Ankle Joint Fragment External Fixator
$286.00
– Ankle joint fragment external fixator available in sizes M, L, and XL
– Includes 4 pieces of 6*130mm pins for size M and 4 pieces of 6*150mm pins for sizes L and XL
– Comes with a 6mm hex wrench and a 6mm screwdriver for easy assembly
– Ideal for stabilizing ankle joint fractures and promoting healing
Description

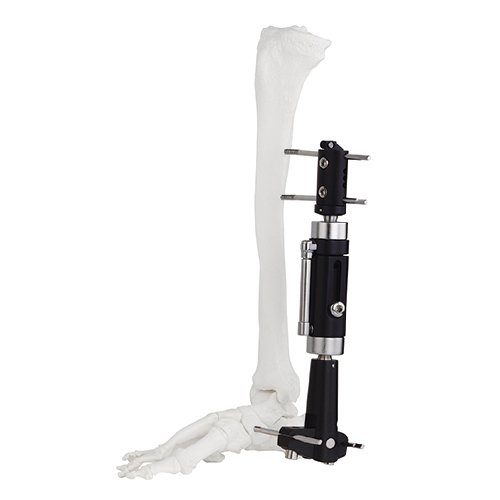

Ankle Joint Fragment External Fixator
A comprehensive external fixation system designed for stabilization of complex ankle joint fractures and periarticular fragment management. Available in three anatomically scaled sizes (M, L, XL) to accommodate varied patient anatomy. Each configuration includes pre-selected Schanz pins and dedicated instrumentation for efficient intraoperative assembly and secure frame construct.
Clinical overview
The Ankle Joint Fragment External Fixator provides surgeons with a reliable solution for managing complex periarticular fractures of the ankle joint, including pilon fractures, malleolar fractures with comminution, and cases requiring temporary or definitive external stabilization. The system’s modular design allows for versatile frame configurations tailored to fracture pattern and soft tissue condition, supporting both damage control orthopedics and definitive treatment strategies.
Anatomically scaled sizing (M, L, XL) ensures optimal fit across diverse patient populations, while the included Schanz pins and dedicated instrumentation streamline surgical workflow. The Orthofix-compatible design integrates seamlessly with existing external fixation platforms, reducing inventory complexity and supporting hybrid construct options when indicated.
Key features & surgeon benefits
Comprehensive anatomical sizing
- Three size options (M, L, XL) accommodate varied patient anatomy from adolescent to large adult
- Pre-selected pin lengths (130mm for M, 150mm for L/XL) optimized for safe bicortical purchase
- Orthofix-compatible design supports integration with existing external fixation systems
Complete instrumentation included
- Four Schanz pins (6mm diameter) included with each fixator for immediate deployment
- Dedicated 6mm hex wrench and screwdriver eliminate instrument tray complexity
- Streamlined assembly reduces operative time and anesthesia exposure
Value-engineered solution
- Complete fixator set with pins and instruments at competitive pricing
- Reduces need for separate pin and instrument procurement
- Durable construction supports multiple sterilization cycles for reusable components
Adaptable to clinical needs
- Modular frame design allows for patient-specific construct configuration
- Compatible with hybrid fixation techniques combining internal and external stabilization
- Custom pin lengths and frame modifications available for specialized applications
Technical specifications
| Indications | Ankle joint fractures, pilon fractures, malleolar fractures with comminution, periarticular fragment stabilization, temporary or definitive external fixation of distal tibial and talar injuries |
|---|---|
| Sizes / range | M (with 6×130mm pins), L (with 6×150mm pins), XL (with 6×150mm pins) |
| Material | Stainless steel pins and clamps; aluminum or stainless steel frame components |
| Sterilisation | Steam autoclave (134°C, 18 minutes minimum) |
| Packaging | Individual sterile or non-sterile packaging; complete set with pins and instruments |
| Warranty | 12 months from date of delivery against manufacturing defects |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| External Fixator Frame | Ankle joint fragment fixator body (size M, L, or XL) | 1 |
| Schanz Pins (Size M) | 6mm × 130mm stainless steel pins | 4 |
| Schanz Pins (Size L/XL) | 6mm × 150mm stainless steel pins | 4 |
| Hex Wrench | 6mm hex key for clamp and connector assembly | 1 |
| Screwdriver | 6mm screwdriver for set screw tightening | 1 |
Get in touch for pricing & availability
Our sales team is ready to provide detailed quotations, technical specifications, and delivery timelines. We support both individual case supply and volume purchasing agreements.
Email: info@tedsmedical.com
