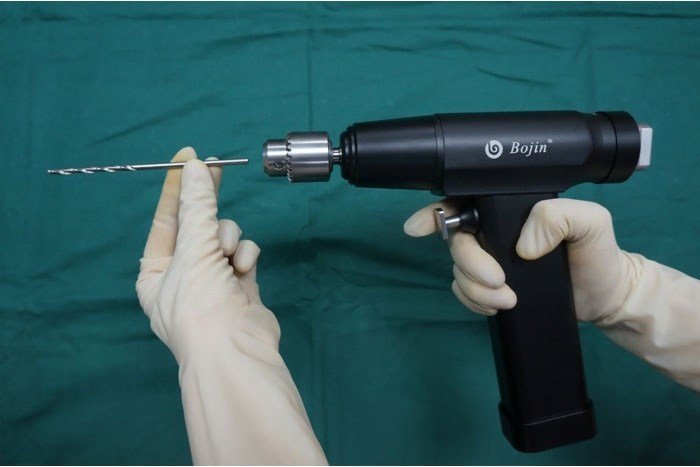

BJ1302 Popularized bone drill (System 1000)
- Autoclavable bone drill for trauma surgery
- Imported motor with low noise and high speed
- Output power of 105w and torque of 2.9Nm
- 1-year warranty on the machine
- SKU
- 9BC5BB435C57
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping

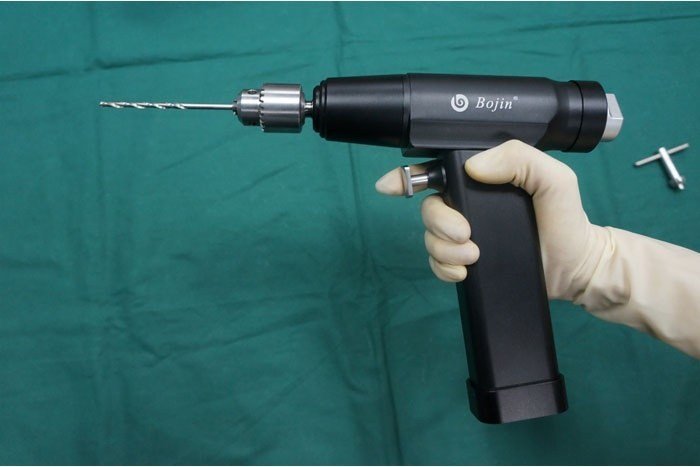

BJ1302 Popularized Bone Drill
High-performance autoclavable bone drill engineered for trauma surgery applications. Features imported motor technology delivering 105W output power with 2.9Nm torque in a fully sterilizable design. Ergonomic handpiece construction ensures optimal control during plate and screw fixation procedures with minimal noise generation and extended service life.
Clinical overview
The BJ1302 Popularized Bone Drill represents a refined solution for trauma surgery drilling applications, specifically engineered for precise hole preparation during plate and screw fixation procedures. The system integrates imported motor technology with ergonomic handpiece design, delivering consistent performance across a wide range of orthopaedic trauma cases. The fully autoclavable construction of the handpiece ensures compliance with stringent infection control protocols while maintaining operational reliability.
Designed with the operating theatre environment in mind, the BJ1302 achieves exceptionally low noise levels (≤40dB) during operation, reducing auditory fatigue for surgical teams during extended procedures. The variable speed control (0–960 rpm) provides surgeons with precise control over drilling parameters, while the 2.9Nm torque output ensures adequate power for cortical bone penetration. The 14.4V nickel-metal hydride battery system delivers consistent power throughout procedures, with an environmentally responsible chemistry that supports sustainable clinical practice.
Key features & surgeon benefits
Complete autoclavability
- Handpiece autoclavable to 135°C at 1.6MPa pressure
- Eliminates cross-contamination risk between procedures
- High-temperature sterilisation destroys resistant pathogens including spore-forming bacteria
- Aseptic battery transfer ring maintains sterile field integrity
Imported motor technology
- 105W output power with 2.9Nm torque for reliable cortical penetration
- Variable speed control 0–960 rpm for procedural versatility
- Exceptionally low noise operation (≤40dB) reduces theatre fatigue
- High precision alignment ensures accurate drill trajectory
Surgeon-focused design
- Ergonomic handpiece geometry reduces hand fatigue during extended cases
- Balanced weight distribution improves control and precision

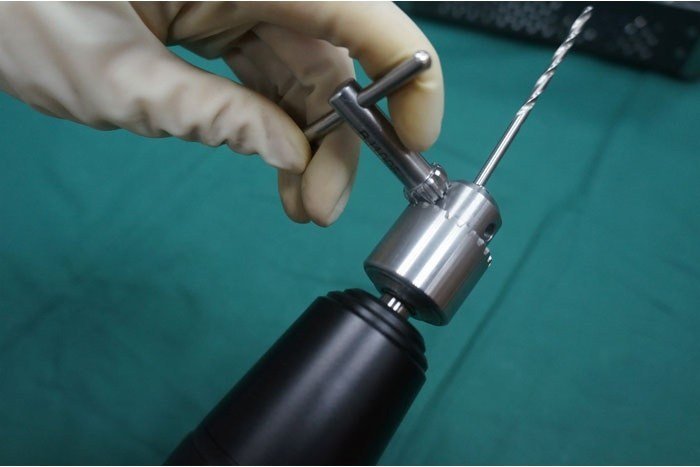

- Intuitive chuck system enables rapid bit changes
- 14.4V battery provides consistent power without cord constraints
Long-term value proposition
- Extended service life through robust motor construction
- 1-year warranty on handpiece, 3-month warranty on consumables
- Environmentally responsible nickel-metal hydride battery chemistry
- Complete system configuration reduces capital equipment requirements
Technical specifications
| Indications | Drilling holes for plate and screw fixation during trauma surgery |
|---|---|
| Output power | 105W |
| Speed range | 0–960 rpm (variable) |
| Torque | 2.9 Nm |
| Operating voltage | 14.4V |
| Noise level | ≤40 dB |
| Drill bit capacity | Up to 6mm diameter |
| Sterilisation | Autoclavable to 135°C at 1.6MPa (handpiece only; battery not autoclavable) |
| Battery type | Nickel-metal hydride (NiMH), environmentally friendly |
| Material | Medical-grade stainless steel components |
| Warranty | 1 year on handpiece; 3 months on battery and consumables |

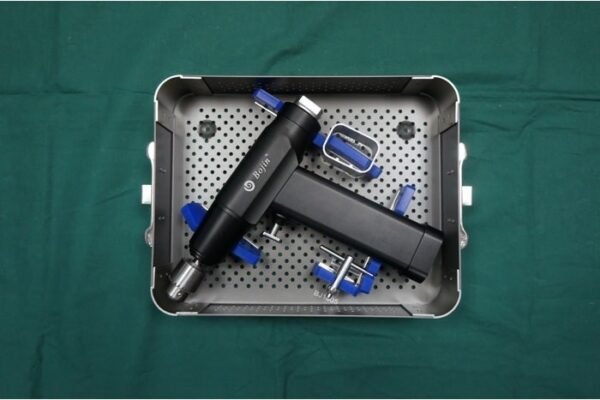

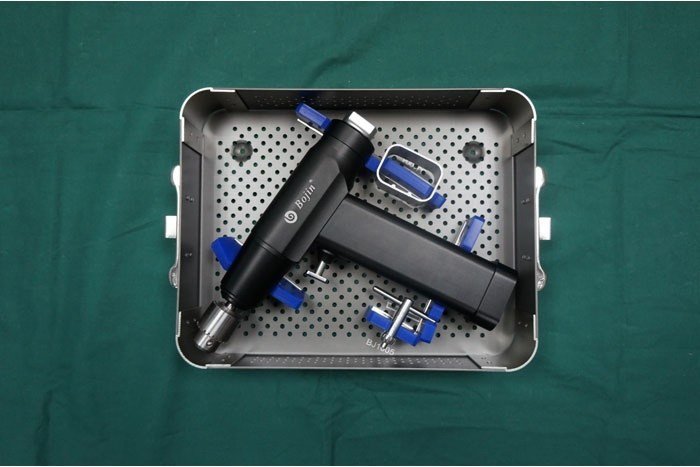

Standard instrument composition
| Item | Description | Qty |
|---|---|---|

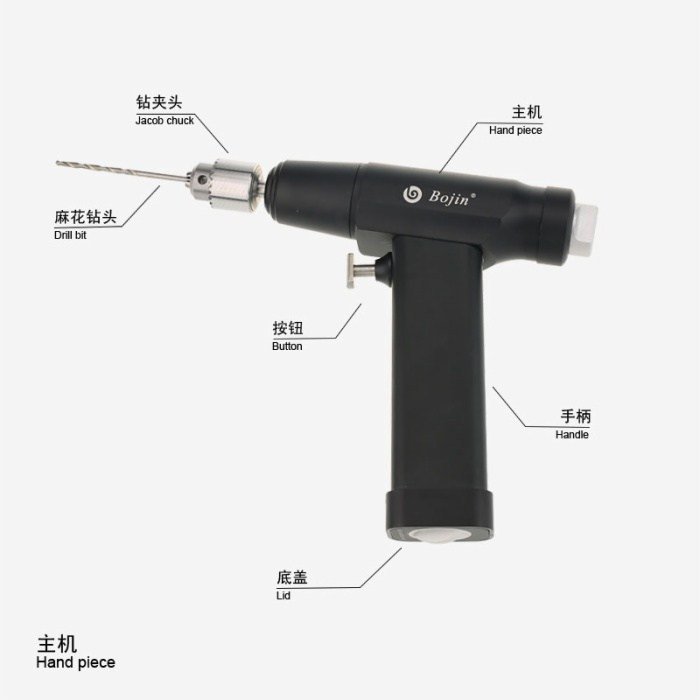

| 1 | Handpiece (autoclavable) | 1 |

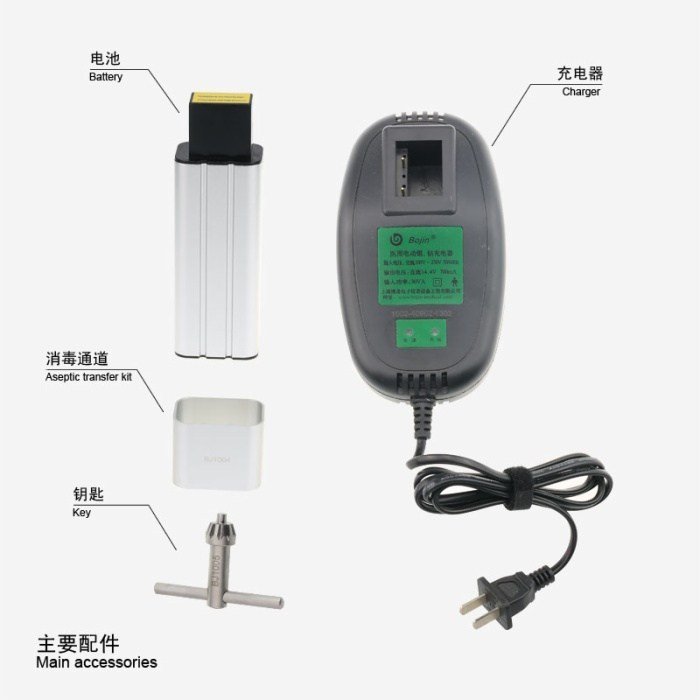

| 2 | Battery (14.4V NiMH) | 1 |
| 3 | Battery charger | 1 |
| 4 | Chuck | 1 |
| 5 | Aseptic battery transfer ring | 1 |
| 6 | Operating manual | 1 |
| 7 | Guarantee card | 1 |
Important usage notes
- Sterilisation limits: Do not exceed 135°C sterilisation temperature to prevent motor damage. Battery must not be autoclaved.
- Drill bit compatibility: Standard configuration accommodates drill bits up to 6mm diameter. Acetabulum reaming requires specialised drill with higher torque (approximately 300 rpm). Cannulated drilling with nail or K-wire typically performed at approximately 600 rpm.
- Battery management: Remove battery from handpiece after each procedure to prevent automatic discharge and extend battery service life.
- Post-operative cleaning: Clean all components immediately after surgery using appropriate purging techniques to prevent biological material adhesion. Ensure complete drying before sterilisation.
- Handpiece care: Ensure battery compartment is completely dry after sterilisation before inserting battery.
- Blade maintenance: Surgical blades manufactured from medical stainless steel are designed for single-use to maintain optimal cutting performance and prevent intraoperative failure.
