- Autoclavable bone drill for trauma surgery
- Imported motor with low noise and high speed
- Output power of 110w and torque of 3.2 Nm
- Warranty for 2 years

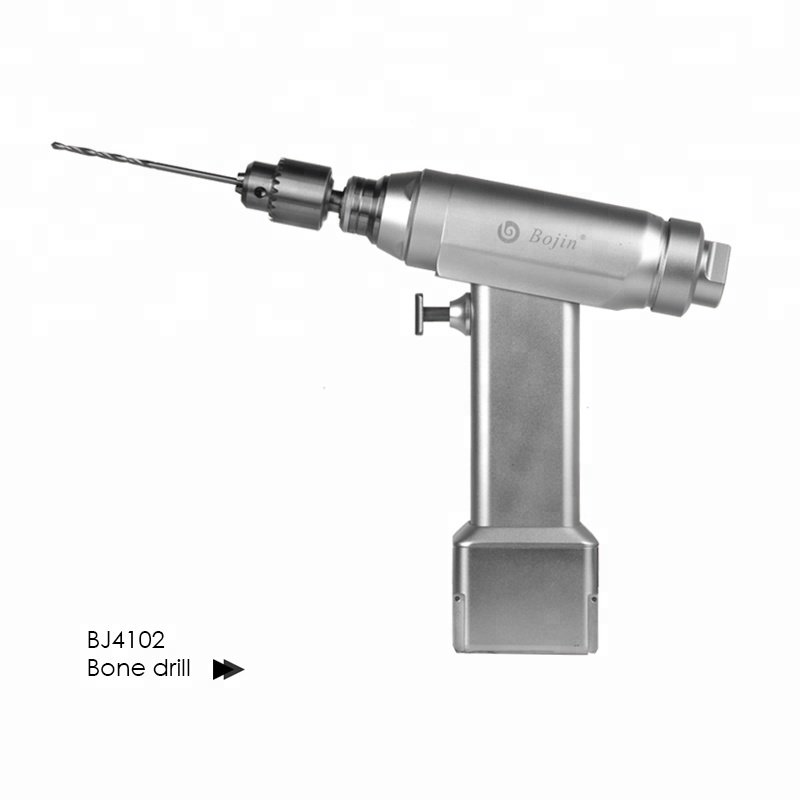

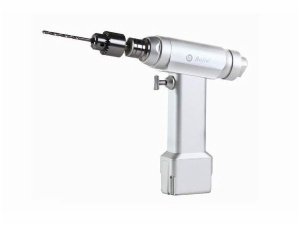

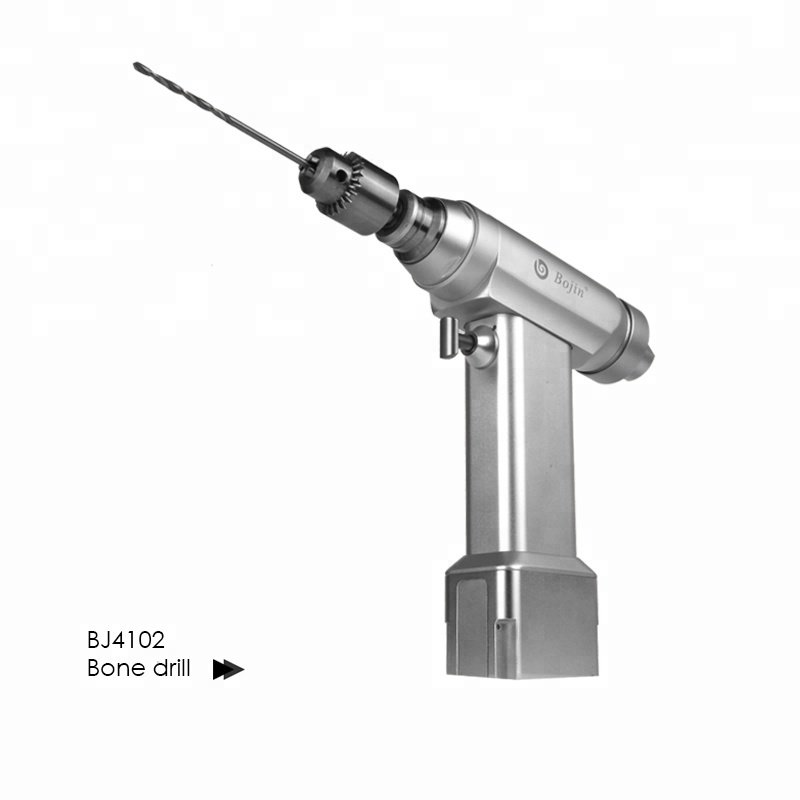

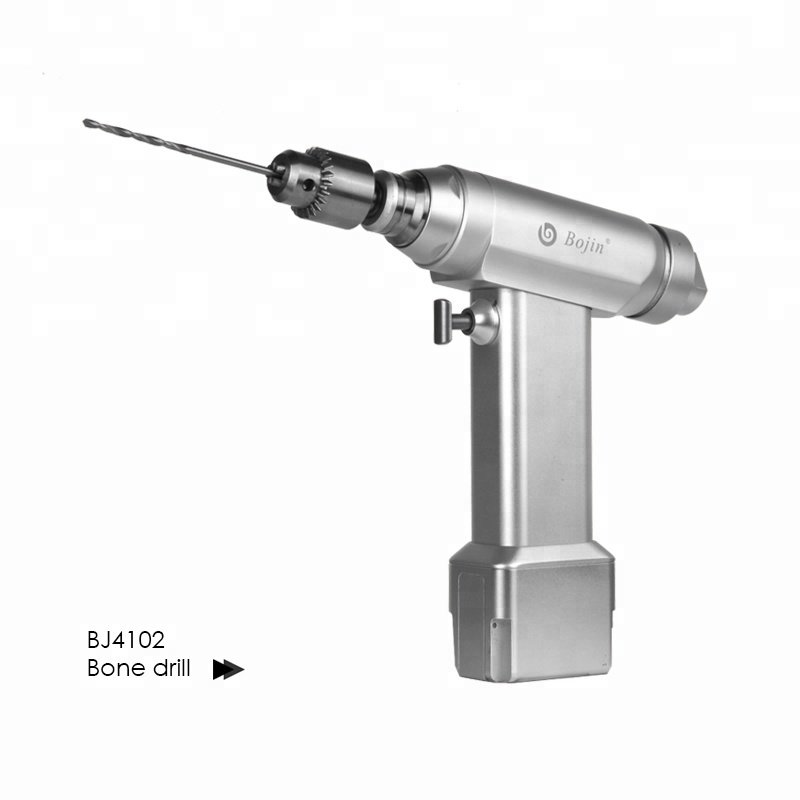

A fully autoclavable, ergonomically designed bone drill engineered for trauma surgery applications. Featuring an imported motor with low noise operation, high-speed performance, and robust torque delivery, the BJ4102 provides reliable drilling for plate and screw fixation with a 2-year warranty on the handpiece.
The BJ4102 Bone Drill is purpose-designed for trauma surgery applications requiring precise, controlled drilling for plate and screw fixation. With an ergonomic handpiece design and fully autoclavable construction (handpiece to 155°C), the instrument integrates seamlessly into sterile surgical workflows while maintaining consistent performance across multiple procedures.
The imported motor delivers 110W output power at 1100 rpm with 3.2 Nm torque, providing the mechanical advantage needed for cortical and cancellous bone drilling without excessive heat generation. Low noise operation (≤75 dB) reduces operating room fatigue, while the nickel-metal hydride battery system offers reliable cordless operation with minimal environmental impact.
| Indications | Drilling holes for plate and screw fixation during trauma surgery |
|---|---|
| Output Power | 110 W |
| Speed | 1100 rpm |
| Torque | 3.2 Nm |
| Operating Voltage | 14.4 V |
| Noise Level | ≤75 dB |
| Sterilisation | 155°C autoclavable (handpiece); battery non-autoclavable |
| Material | Medical-grade stainless steel with ergonomic polymer grip |
| Battery Type | Nickel-metal hydride (environment-friendly) |
| Warranty | Handpiece: 2 years; Battery and consumables: 3 months |
| Packaging | Complete kit with handpiece, battery, charger, aseptic transfer ring, operating manual, and guarantee card |
| Item | Description | Qty |
|---|---|---|

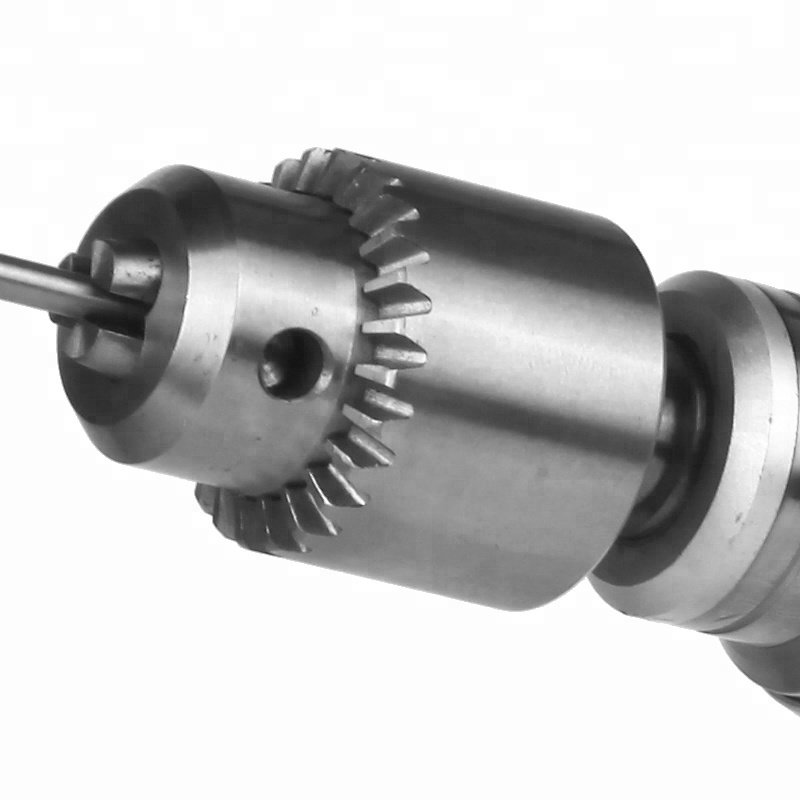

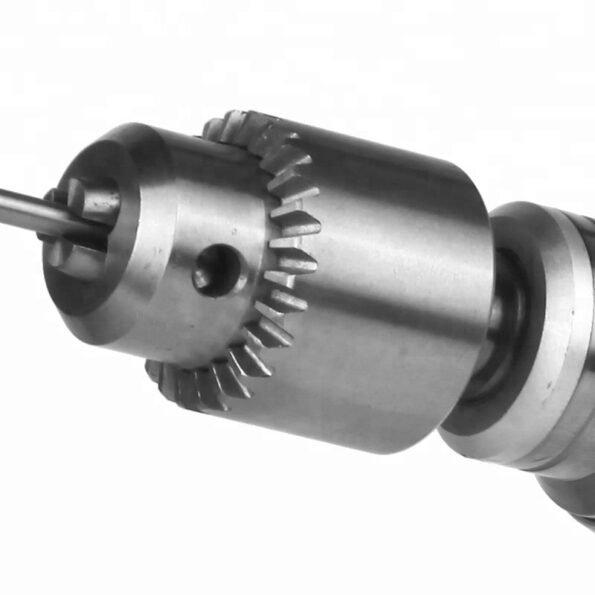

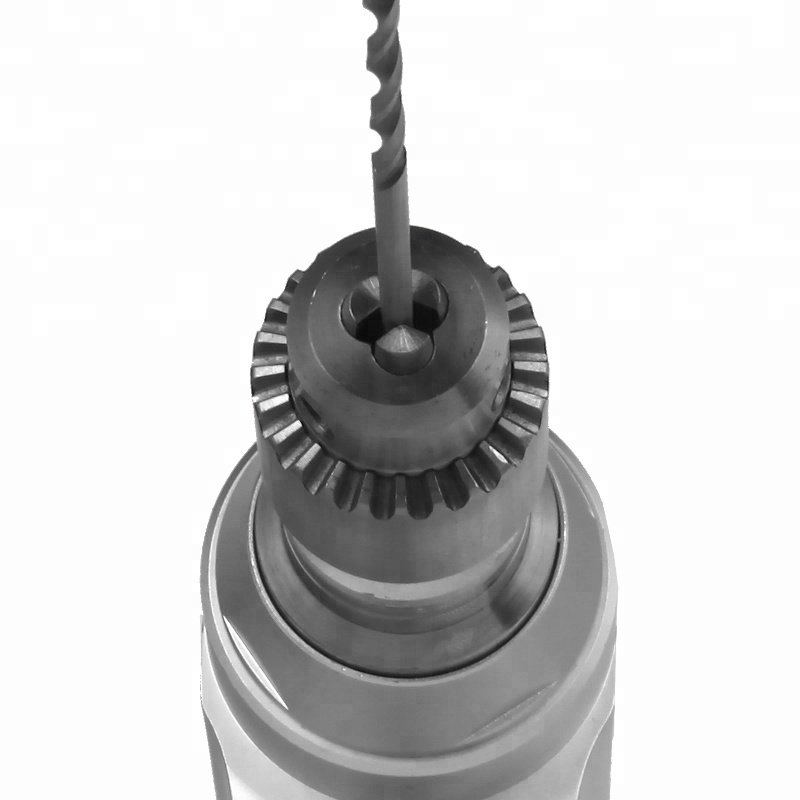

| Handpiece | BJ4102 bone drill handpiece with universal chuck | 1 |
| Battery | Nickel-metal hydride rechargeable battery (14.4 V) | 1 |
| Charger | AC mains charger for battery | 1 |
| Aseptic Battery Transfer Ring | Sterile transfer device for intra-operative battery exchange | 1 |
| Operating Manual | User and maintenance documentation | 1 |
| Guarantee Card | Warranty documentation | 1 |
Contact our sales team to discuss system configuration, volume pricing, and delivery timelines. We provide technical support and clinical consultation to ensure the BJ4102 integrates optimally into your surgical program.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
