Description

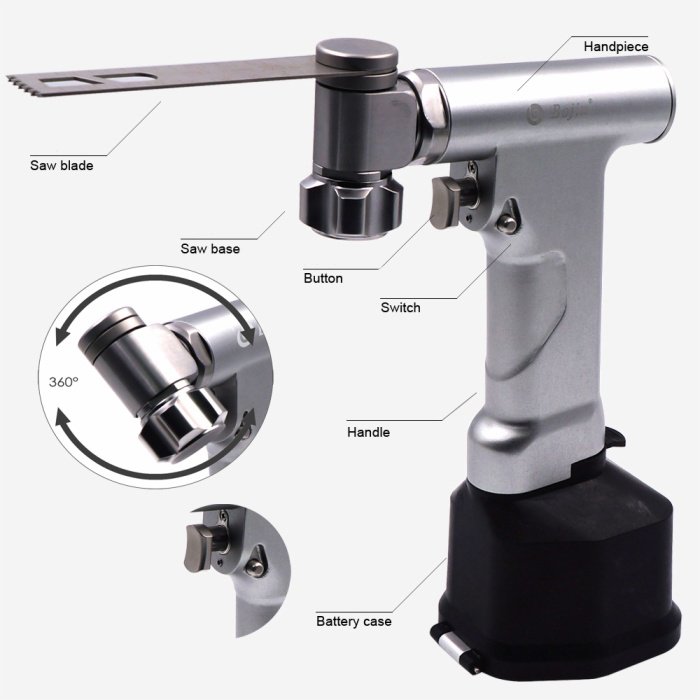

BJ5301 360° Sagittal Saw
High-performance oscillating saw designed for precise bone cutting in joint surgery. Featuring 200W output power, variable oscillation control up to 15,000 osc/min, and a fully autoclavable design with imported motor technology. Engineered for steady, rapid cutting with minimal soft tissue trauma and extended service life.
Clinical overview
The BJ5301 360° Sagittal Saw is engineered for precision bone cutting in joint surgery applications. With ergonomic design and imported motor technology, this instrument delivers steady, rapid cutting performance while minimizing trauma to surrounding soft tissues. The fully autoclavable construction ensures reliable sterilization and long-term durability in demanding surgical environments.
Variable oscillation control (0–15,000 osc/min) and 200W output power provide surgeons with the control and efficiency needed for complex orthopedic procedures. Low operational noise (≤75dB) and customizable blade options make this saw adaptable to diverse surgical requirements and institutional preferences.
Key features & surgeon benefits
Powerful & Precise Cutting
- 200W output power for efficient bone cutting
- Variable oscillation: 0–15,000 osc/min for controlled speed adjustment
- Steady cutting action minimizes soft tissue damage
Ergonomic & Durable Construction
- Fully autoclavable at 155°C for complete sterilization
- Imported motor technology ensures reliability and longevity
- Low noise operation (≤75dB) for improved OR environment
Customizable Blade Options
- Standard lengths: 70mm, 90mm, 100mm
- Standard thicknesses: 0.8mm, 1.0mm, 1.2mm, 1.27mm
- Custom blade dimensions available per institutional requirements
Warranty & Service
- 2-year manufacturer warranty included
- Extended service life with imported motor technology
- OEM customization and configuration support available
Technical specifications
| Indications | Bone cutting during joint surgery and orthopedic procedures |
|---|---|
| Sizes / range | Blade lengths: 70mm, 90mm, 100mm; Thicknesses: 0.8mm, 1.0mm, 1.2mm, 1.27mm (customizable) |
| Material | Stainless steel and aluminum construction |
| Sterilisation | Autoclavable at 155°C |
| Output power | 200W |
| Oscillations | 0–15,000 osc/min (variable) |
| Operating voltage | 12V |
| Noise level | ≤75dB |
| Warranty | 2 years |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| BJ5301 Sagittal Saw | Complete handheld oscillating saw unit with imported motor | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss customization options, or ask technical and clinical questions about the BJ5301 360° Sagittal Saw.
Email: info@tedsmedical.com
