CD-6011 Fumigate Orthopedic Drill
$494.00
Ruijin orthopeadic bone drill is also a orthopedic drill system provides stable operation,safe, reliable, save time and effort.This type of bone drill was modified from industrial drill, apply to trauma operation, compact and lightweight making it useful in long operations.Fumigation sterilization of the whole machine (No sterilization under high temperature).Charging time is short.
CD-6011 Fumigate Orthopedic Drill
Model NO.: CD-6011 | Type: Awl |
Application: Orthopedic | Material: Stainless Steel |
Feature: Reusable | Medical Device Regulatory Type: Type 2 |
Medical devises Reg./Record No.: Wsyjxzz2012-2100053 | Properties: Ortho Drill Medical Equipment |
Color: Green | No-Load Speed: 0-800r/Min |
Noise: 63dB | Diameter of Drill Chuck: 0.6-6mm/ 0.6-8mm |
Working Voltage: 7.2V | Charging Time: About 3 Hours |
Drill Type: Fumigate Type | Port: Shanghai |
Trademark: RUIJIN | Transport Package: One Set Per Aluminium Box, and One Box Per CTN |
Torque: 20000gcm | Origin:China(Mainland) |
HS Code:9018909000 |
PRODUCT STRUCTURE
CD-6011 Rechargerable Orthopedic Bone Drill
1)Professional bone drill and saw maufacturer
2)Fumigate type
3)Discretionary speed control
4)Versatile and cost-effective
1. Technical data:
1)Hand Piece
Working Voltage: 7.2V
Output Power: More than 35W
Unit Rise In Temperature: Less than 25 centi-degree
2)Charger
Input Voltage : AC 220V, 50Hz
Output Power: 7.2V/9.6V, 1.4/1.5A
Input Power: 30VA
3)Battery
Voltage: 7.2V/9.6V
Charging Time: About ThreeHours
4)Non-load speed: More than 600r/m
5)Non-load Noise: Less than 63dB(A)
6)Diameter run-out: Less than 0.5mm
7)Mateial: Stainless steel
8)Drill type: Fumigate type
9)Weight: 1700g
10)Drill chuck of diameter: 0.6-6mm/0.6-8mm
11)Color: Green

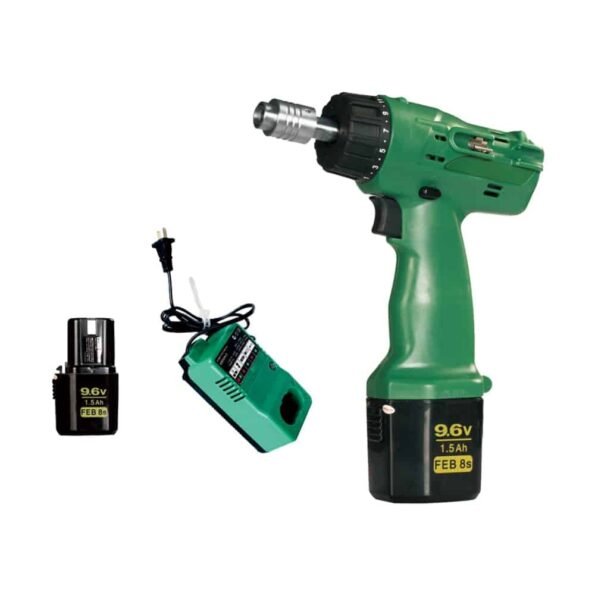

2. Standard configuration:
1)One mainframe
2)One charger
3)Two batteries
4)One drill chuck
5)One aluminium outer case
3. Product merits:
1)Adopt total newly electric machinery of more sufficient power
2)Drilling bits and collects are all imported, with high precision, flexible to operate
3)Popular design and more easier to handle
4)Higher quality and better performance
5)Could connect with different kinds of attachments
4. Packing details:
1)One set packed in the aluminum alloy box and then put in a carton
2)Size of aluminum alloy box: 38cmx28cmx13cm
3)Size of carton box: 41cmx32cmx15cm
