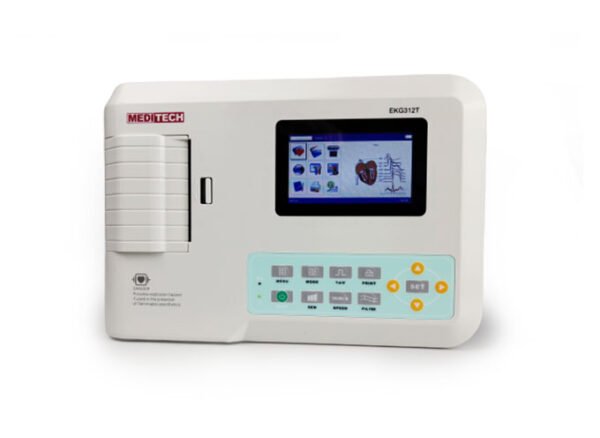

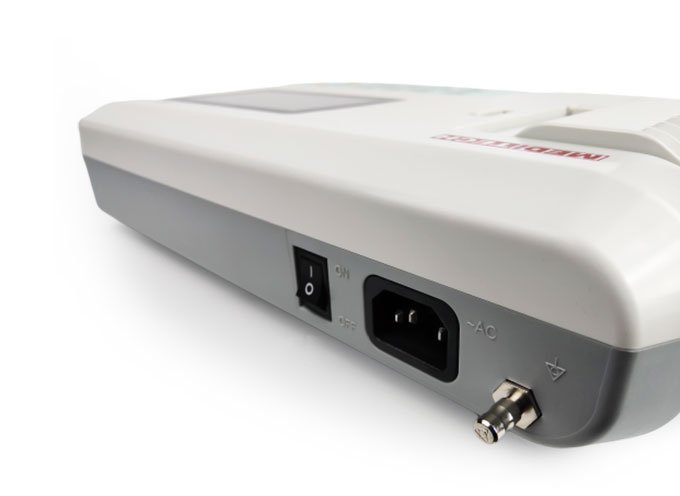

Color&Touch Screen ECG Machine ECG312T
Original price was: $1,235.00.$1,105.00Current price is: $1,105.00.
– 3 Channel Electrocardiograph with TFT Color screen
– Touch screen and soft keyboard for convenient operation
– Simultaneous 12 leads display for comprehensive analysis
– Auto-analysis and auto-interpretation for efficient workflow
Description
Color&Touch Screen ECG Machine ECG312T
Advanced 3-channel electrocardiograph with high-resolution TFT color display and intuitive touch-screen interface. Delivers simultaneous 12-lead visualization, automated analysis and interpretation, and comprehensive diagnostic capability for efficient cardiac assessment in clinical and point-of-care settings.
Clinical overview
The ECG312T is a professional-grade 3-channel electrocardiograph designed for rapid, accurate cardiac assessment across hospital, clinic, and emergency care environments. The high-resolution TFT color display (480 × 270 pixels, 16:9 aspect ratio) provides clear visualization of waveforms and diagnostic parameters. Simultaneous 12-lead recording and display enable comprehensive evaluation of cardiac electrical activity in a single acquisition, reducing examination time and improving diagnostic confidence.
Integrated auto-analysis and auto-interpretation algorithms deliver immediate diagnostic suggestions, supporting clinician decision-making and workflow efficiency. Advanced signal processing—including AC filter, baseline filter, and EMG interference rejection—ensures high-fidelity recordings even in challenging electromagnetic environments. The device supports more than 1000 patient cases in internal memory and can print up to 150 consecutive ECGs, making it ideal for high-volume diagnostic centers and mobile screening programs.
Key features & surgeon benefits
High-Resolution Color Interface
- 480 × 270 pixel TFT display with 16:9 widescreen format
- Simultaneous 12-lead visualization for comprehensive analysis
- Touch-screen and soft keyboard control for intuitive operation
Automated Acquisition & Analysis
- Auto-analysis and auto-interpretation for rapid diagnosis

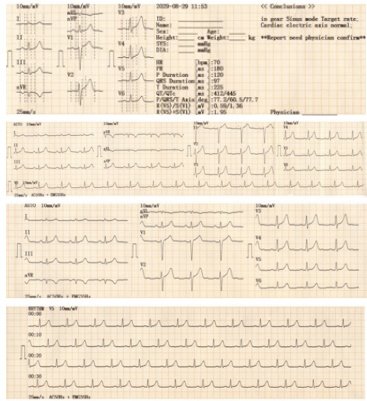

- More than 10 printing modes for flexible reporting
- 90-minute continuous print capability; 150 consecutive ECGs
Advanced Filtering & Noise Rejection
- AC, baseline, and EMG filters for clean signal acquisition
- Noise level ≤15 μVp-p; input impedance ≥5 MΩ
- Floating and defibrillation-protected inputs (Class I, Type CF)
Multi-Language & Connectivity
- 10 language options: English, Chinese, Spanish, Italian, German, French, Russian, Portuguese, Polish, Turkish

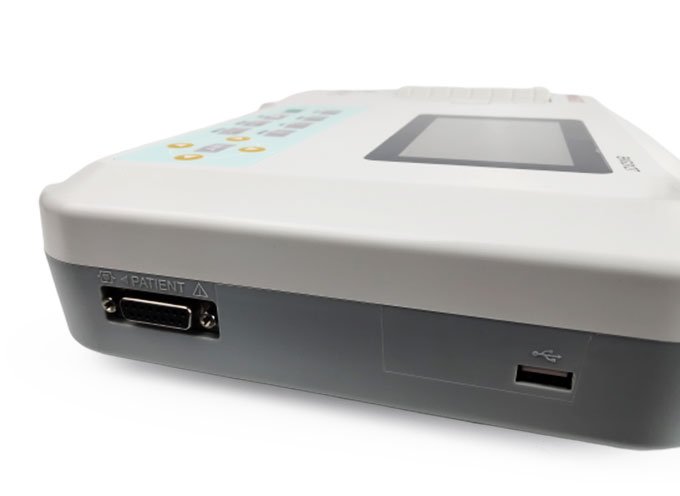

- Optional USB connectivity and ECG-Sync software for PC integration
- Rechargeable lithium battery (7.4V, 3700 mAh) for portable operation
Technical specifications
| Indications | Electrocardiographic diagnosis, cardiac rhythm assessment, arrhythmia detection, and monitoring |
|---|---|
| Lead Configuration | Standard 12 leads |
| Display | TFT color screen, 480 × 270 pixels, 16:9 aspect ratio |
| Paper Speed | Auto/Rhythm: 25, 50 mm/s (±5%); Manual: 5, 6.25, 10, 12.5, 25, 50 mm/s (±5%) |
| Sensitivity | 2.5, 5, 10, 20, 40 mm/mV (±5%); standard 10 mm/mV ±0.2 mm/mV |
| Frequency Response | 1 Hz – 75 Hz |
| Input Impedance | ≥5 MΩ |
| Patient Leakage Current | <10 μA |
| CMRR | >60 dB |
| EMG Filter | 25/35 Hz (-3 dB) |
| Noise Level | ≤15 μVp-p |
| Time Constant | >3.2 s |

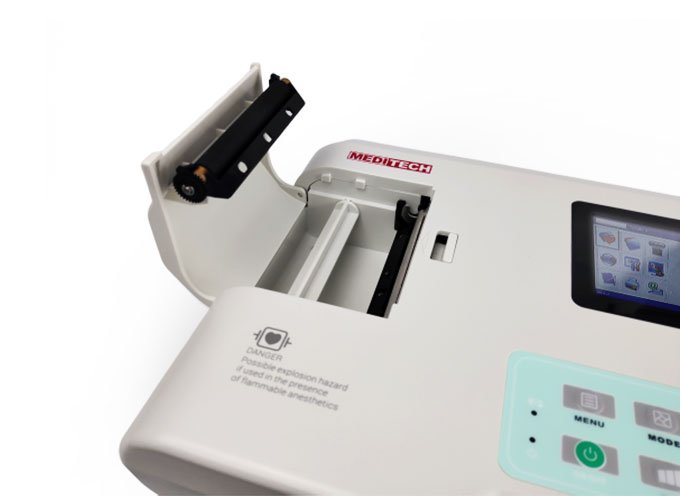

| Recording Method | Thermal array printing system |
| Internal Memory | >1000 patient cases |
| Print Capacity | 90 minutes continuous; 150 consecutive ECGs |
| Measurement Parameters | HR, P-R interval, P duration, QRS duration, T duration, Q-T interval, Q-Tc, P axis, QRS axis, T axis, R(V5), S(V1), R(V5)+S(V1) |
| Safety Classification | Class I, Type CF (defibrillation-proof applied part) |
| Enduring Polarization Voltage | ±300 mV |

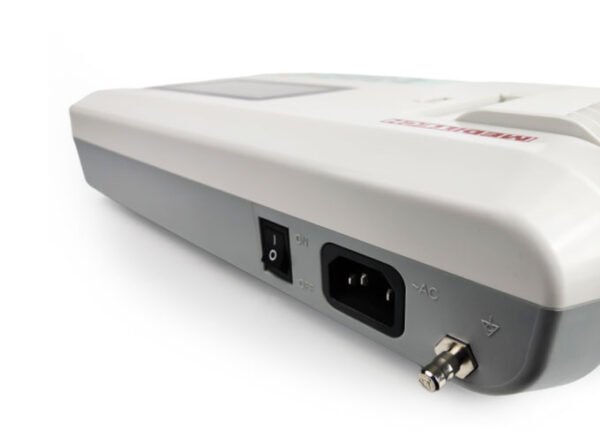

| Power Supply | AC: 100–240V, 50/60 Hz; DC: 7.4V, 3700 mAh rechargeable lithium battery |
| Operating Temperature | +5°C to +35°C |
| Operating Humidity | ≤80% relative humidity |
| Storage Temperature | -10°C to +55°C |
| Storage Humidity | ≤95% relative humidity |
| Atmospheric Pressure (Operating) | 86 kPa – 106 kPa |
| Atmospheric Pressure (Storage) | 50 kPa – 106 kPa |
| Fuse Specification | 2 × φ5×20 mm AC time-lag; T1.6A/250V (220V power supply) |
| Languages | English, Chinese, Spanish, Italian, German, French, Russian, Portuguese, Polish, Turkish |
| Warranty | As applicable |

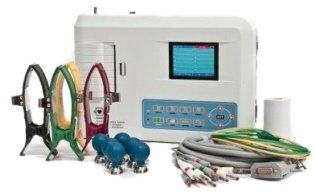

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Chest Electrode | Standard ECG chest electrode | 6 |
| Clamp Electrode | Limb clamp electrodes | 4 |
| ECG Cable | Patient lead cable assembly | 1 |
| USB Cable | USB connectivity cable | 1 |
| CD Software | CardioSoft Pro software | 1 |
| Ground Wire | Ground reference wire | 1 |
| Paper Roll | Thermal recording paper | 1 |
| Power Cable | AC power supply cable | 1 |
| Cleaning Cloth | Display and device cleaning cloth | 1 |
Optional accessories
| Accessory | Description |
|---|---|
| Carrying Case | Protective transport case for device and accessories |
| Thermal Paper | Additional rolls of ECG recording paper |
| Mobile Trolley | Wheeled stand for portable deployment |
| PC Accessories | Computer integration and data management components |
| Printer Accessories | Replacement printer components and supplies |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss clinical requirements, or arrange a demonstration of the ECG312T. We provide comprehensive support for device selection, training, and ongoing technical assistance.
Email: info@tedsmedical.com
