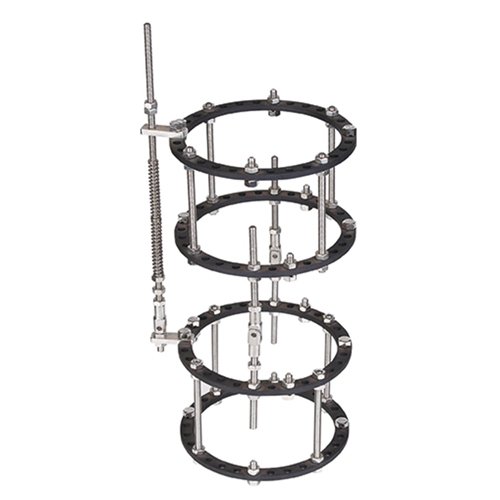

Elbow Joint Fixator
Original price was: $507.00.$383.50Current price is: $383.50.
– Includes 4 rings, 1 annular diagonal tie, and 2 single joints for comprehensive elbow joint support
– Comes with 8 M6*200 threaded rods for secure fixation
– Features 16 pin clamps for stability and strength
– Includes a 2-hole connecting plate for additional support
Description
Elbow Joint Fixator
A comprehensive modular fixation system designed for stable elbow joint support and reconstruction. This Ilizarov-type fixator combines multiple rings, threaded rods, and pin clamps to deliver secure fixation across a range of elbow pathologies and surgical approaches.
Clinical overview
The Elbow Joint Fixator is a modular external fixation system engineered for precise stabilization of complex elbow injuries and reconstructive procedures. Combining four rings with single joints, diagonal ties, and a comprehensive set of threaded rods and pin clamps, this system provides surgeons with the flexibility to adapt fixation geometry to individual patient anatomy and injury patterns.
The system’s multi-component design allows for staged assembly and adjustment, supporting both acute fracture management and gradual correction protocols. The inclusion of a 2-hole connecting plate enhances structural rigidity and load distribution across the fixation construct.
Key features & surgeon benefits
Comprehensive Ring System
- Four rings provide multi-planar fixation capability
- Single joints enable articulation and functional positioning
- Diagonal tie enhances construct stability and load sharing
Modular Assembly
- Rapid component assembly and intraoperative adjustment
- Eight M6×200 threaded rods support multiple fixation patterns
- 16 pin clamps ensure secure and repeatable positioning
Cost-Effective Solution
- Single kit addresses diverse elbow pathologies
- Reusable components reduce per-case material costs
- Minimizes need for multiple specialized frames
Adaptable Design
- Modular architecture supports custom configurations
- Compatible with standard Ilizarov accessories
- OEM and institutional customization available
Technical specifications
| Indications | Elbow joint fractures, reconstruction, stabilization, and corrective procedures |
|---|---|
| Sizes / range | M6×200 threaded rods; modular ring system |
| Material | Stainless steel |
| Sterilisation | As applicable |
| Packaging | Complete kit in protective case |
| Warranty | As per standard terms |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Rings | Circular fixation rings | 4 |
| Annular Diagonal Tie | Diagonal support element | 1 |
| Single Joint | Articulation joint for ring connection | 2 |
| Threaded Rod M6×200 | Stainless steel fixation rod | 8 |
| Pin Clamp | Secure pin and rod attachment | 16 |
| 2-Hole Connecting Plate | Additional structural support element | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customization options for the Elbow Joint Fixator system. We support hospitals, surgical centers, and OEM partners worldwide.
Email: info@tedsmedical.com
