Multifunction Power Tools Bojin System 2000 for Veterinary Surgeons
Original price was: $6,370.00.$5,900.00Current price is: $5,900.00.
– Bojin System 2000 is a veterinary multifunctional surgical power tool designed for working with large bone fragments
– Features a range of attachments for various surgical applications such as sagittal saw, bone drill, and TPLO saw
– Hand block with electric drive, high speed (up to 15,000 rpm), and NiMh battery for efficient performance
– Components made of durable medical stainless steel, sterilizable by autoclaving for convenience and safety
Description
Bojin System 2000 Multifunction Power Tool
A versatile, battery-powered surgical power system designed for large bone fragment work in veterinary orthopedic procedures. Features interchangeable attachments including sagittal saw, bone drill, and specialized TPLO saw for cranial cruciate ligament repair. Delivers up to 15,000 rpm with excellent torque control and autoclavable components for reliable sterilization.
Clinical overview
The Bojin System 2000 is a multifunctional surgical power tool engineered for working with large bone fragments in veterinary orthopedic procedures. The modular handblock design is compatible with multiple nozzle attachments, allowing surgeons to quickly change tool function during operation without interrupting workflow. This flexibility, combined with high-performance drilling and cutting capabilities, makes the system ideal for complex bone work including prosthetic replacement and specialized techniques.
The system incorporates TPLO (Tibial Plateau Leveling Osteotomy) technology specifically designed to address cranial cruciate ligament rupture—one of the most common orthopedic conditions in dogs. By correcting tibial plateau alignment, TPLO procedures eliminate joint instability and prevent chronic progressive arthritis. The dedicated TPLO saw attachment delivers the precision and control required for this advanced surgical technique.
Key features & surgeon benefits
Powerful, Versatile Operation
- Up to 15,000 rpm for efficient cutting and drilling
- Excellent torque (up to 7.8 N·m) for prosthetic replacement procedures

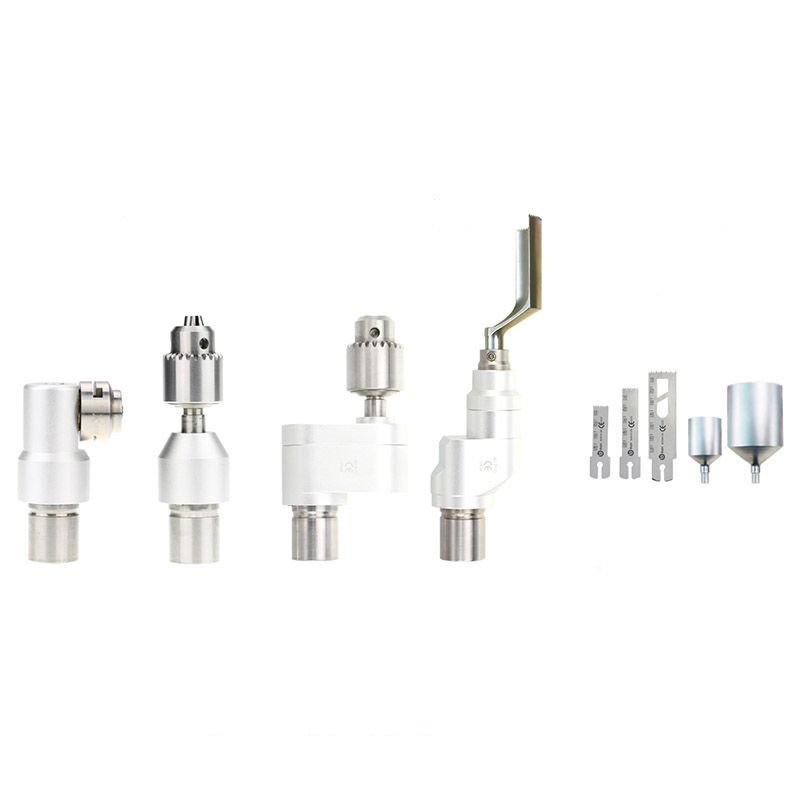

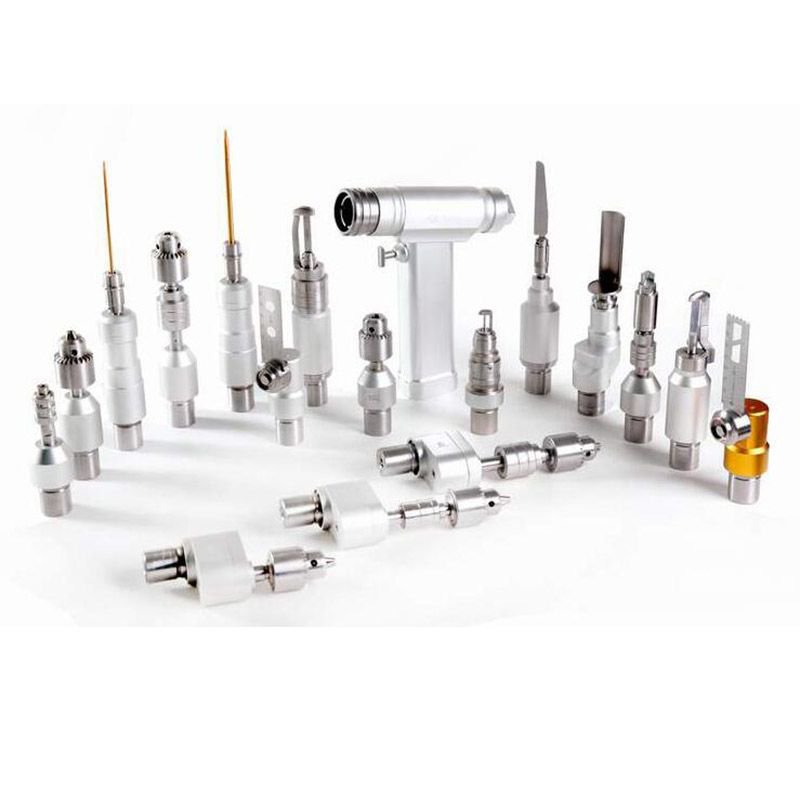

- 13 interchangeable attachments for diverse surgical applications
Rapid Attachment Changeover
- Quick-change nozzle system minimizes operative time
- Sagittal saw, bone drill, cannulated drill, and TPLO saw options
- Aseptic funnel design maintains sterile field during transitions
Battery-Powered Convenience
- NiMh battery with 3–40 minute runtime depending on attachment
- 4-position simultaneous charger for efficient battery management
- Lightweight design (≤1000 g with battery) reduces surgeon fatigue
Autoclavable Components
- All handblock and attachment components sterilizable at ≤135°C
- Medical-grade stainless steel construction ensures durability
- Battery removed before sterilization; external power system optional
Technical specifications
| Indications | Orthopedic surgery, bone cutting and drilling, TPLO procedures, prosthetic replacement, cranial cruciate ligament repair, large bone fragment work |
|---|---|
| Sizes / range | 13 attachment configurations: sagittal saw, bone drill (standard and dual-function), cannulated drill (3 variants), cranial drills (2 models), chest saw, expanding drill (3 variants), reciprocating saw, torque limiters, TPLO saw, spoke-holding drill |
| Material | Medical-grade stainless steel (handblock and attachments) |
| Sterilisation | Autoclave at ≤135°C (individual models ≤155°C); battery not sterilizable; external power system available |
| Packaging | Complete system with handblock, battery, charger, and selected attachments |
| Warranty | Handblock: 2 years; battery and other components: 3 months |

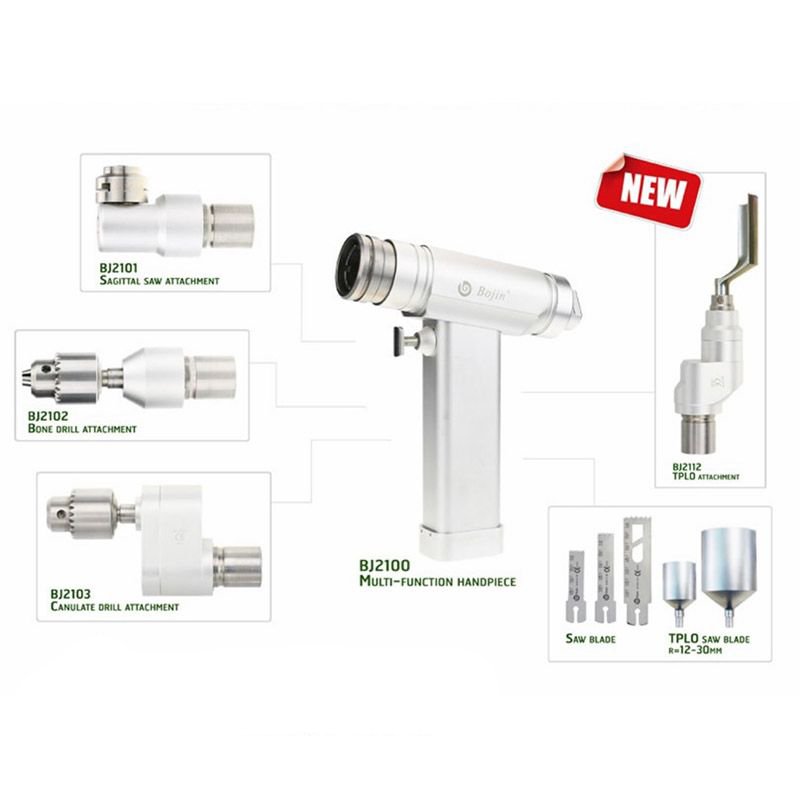

Standard instrument composition
| Item | Description | Qty |
|---|---|---|

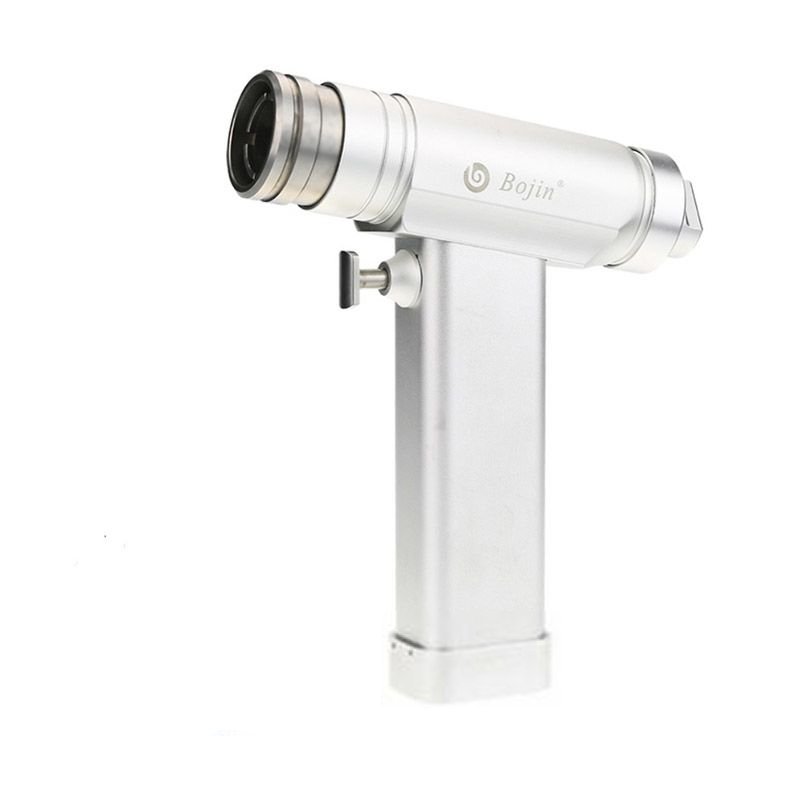

| BJ2100 | Handblock with electric drive | 1 |
| BJ8001 | NiMh battery | 2 |
| BJ1002-4 | 4-position simultaneous charger | 1 |
| BJ2101 | Sagittal saw attachment | 1 |
| BJ2102 | Bone drill attachment | 1 |
| BJ2112 | TPLO saw attachment | 1 |
| Additional attachments available separately: BJ2101S (Sagittal Stryker Saw), BJ2102A (Dual Function Bone Drill), BJ2103 series (Cannulated drills), BJ2104–BJ2105 (Cranial drills), BJ2106 (Chest saw), BJ2107 series (Expanding drills), BJ2109 (Reciprocating saw), BJ2110/2111 (Torque limiters), BJ2113 (Spoke-holding drill) | ||
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, attachment options, and pricing for the Bojin System 2000. We support custom OEM partnerships and can provide technical guidance for your surgical protocols.
