Multifunction Power Tools Bojin System 2000 for Veterinary Surgeons

Veterinary Multifunctional Surgical Power Tool Bojin System 2000

Bojin System 2000 is a multifunctional surgical power tool used to work with large bone fragments. The manual block is compatible with several nozzles, which allows you to easily and quickly change the purpose of the tool during the operation for its various applications. Power tools provide high performance pi drilling and cutting bones.

TPLO technology (tibial plateau leveling osteotomy – osteotomic alignment of the lower leg plateau).

In the vast majority of dogs, the cranial cruciate ligament is torn as a result of prolonged degeneration, as a result of which the fibers inside the ligament weaken over time. When it ruptures, the joint becomes unstable, which causes pain and can lead to chronic progressive arthritis of the knee joint. A TPLO nozzle was developed specifically to eliminate this condition.

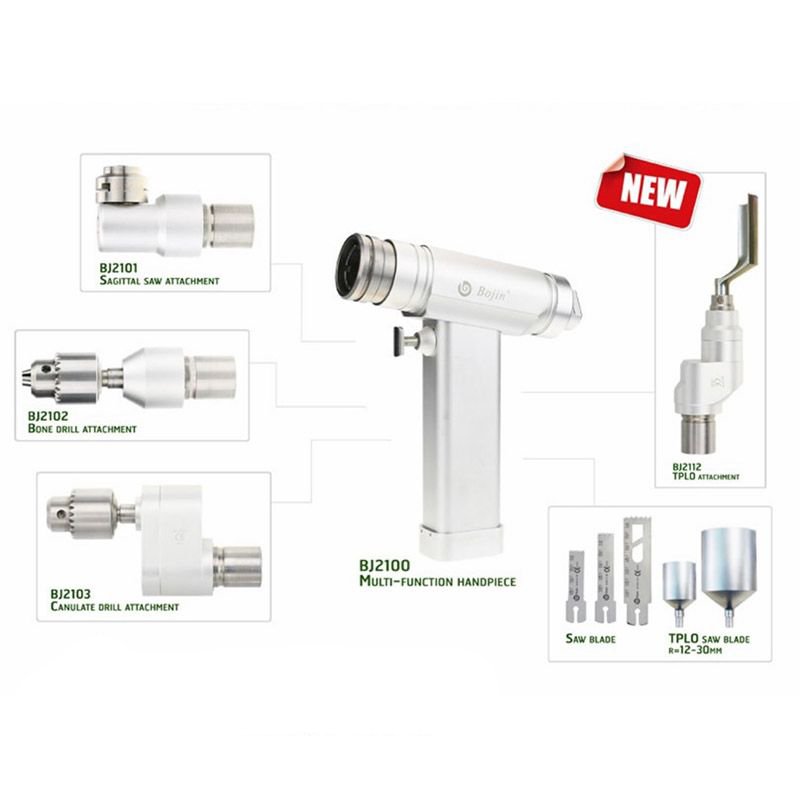

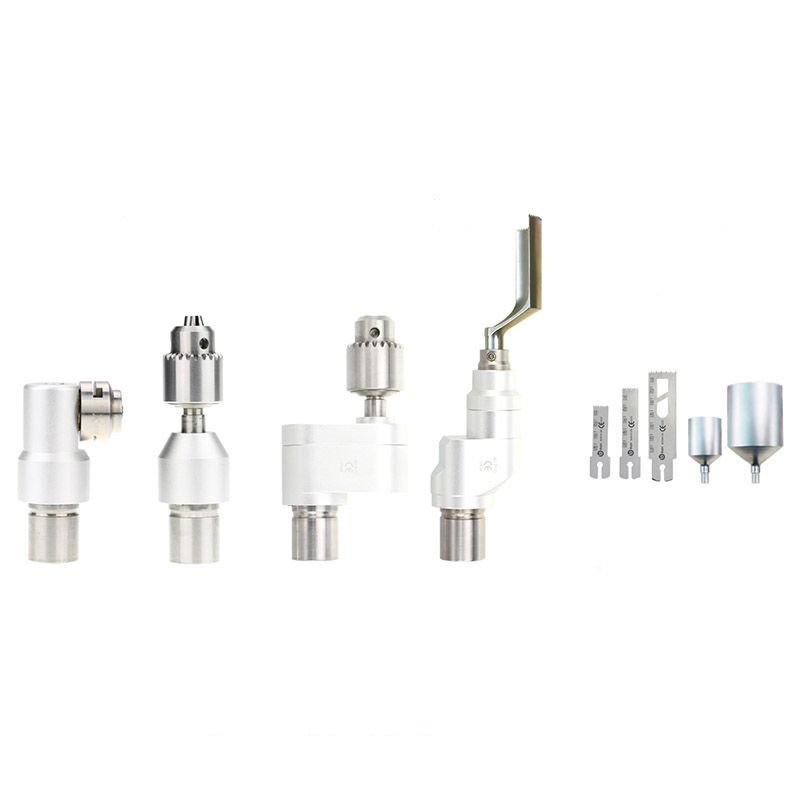

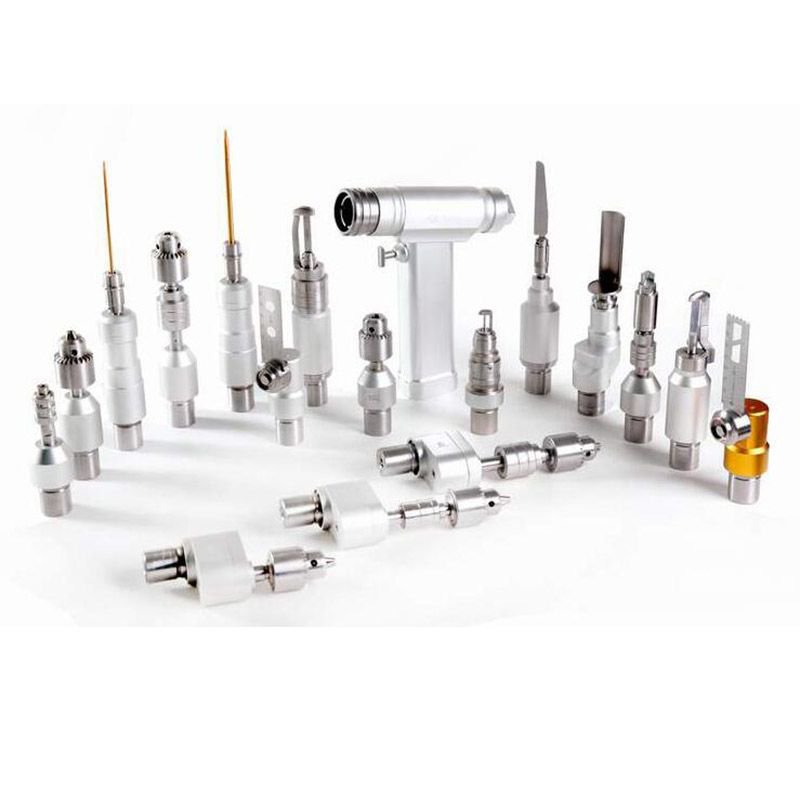

Attachments to choose from:

BJ2101 Sagittal Saw.
BJ2101S Sagittal Stryker Saw.
BJ2102 Bone Drill.
BJ2102A Dual Function Bone Drill.
BJ2103 Cannulated drill
BJ2103B Dual function cannulated drill.
BJ2103D Dual Function Cannulated Drill.
BJ2104 Cranial drill.
BJ2105 Cranial drill.
BJ2106 Breast saw.
BJ2107 Expanding drill.
BJ2107B Dual function drill drill.
BJ2107D Dual-function reamer drill.
BJ2109 Reciprocating saw.
BJ2110 / 2111 Torque limiter.
BJ2112 TPLO saw.
BJ2113 Drill for holding the spokes.

Specifications:

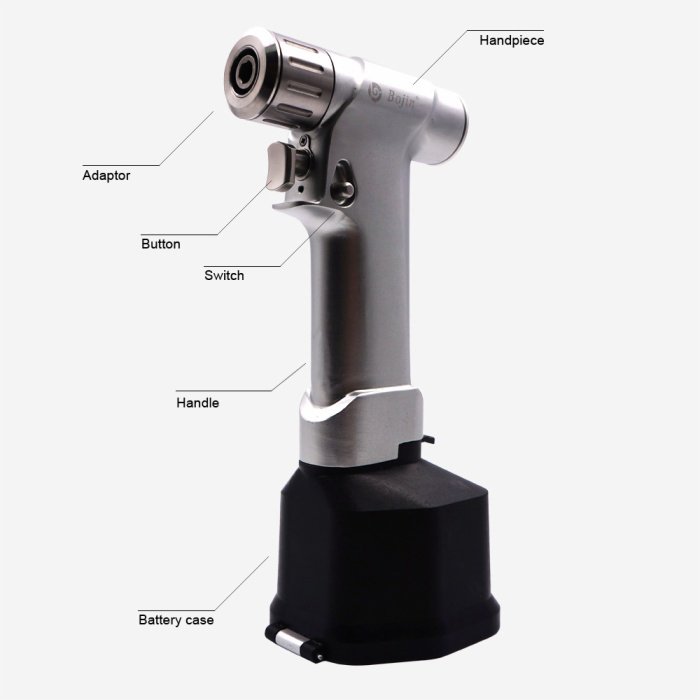

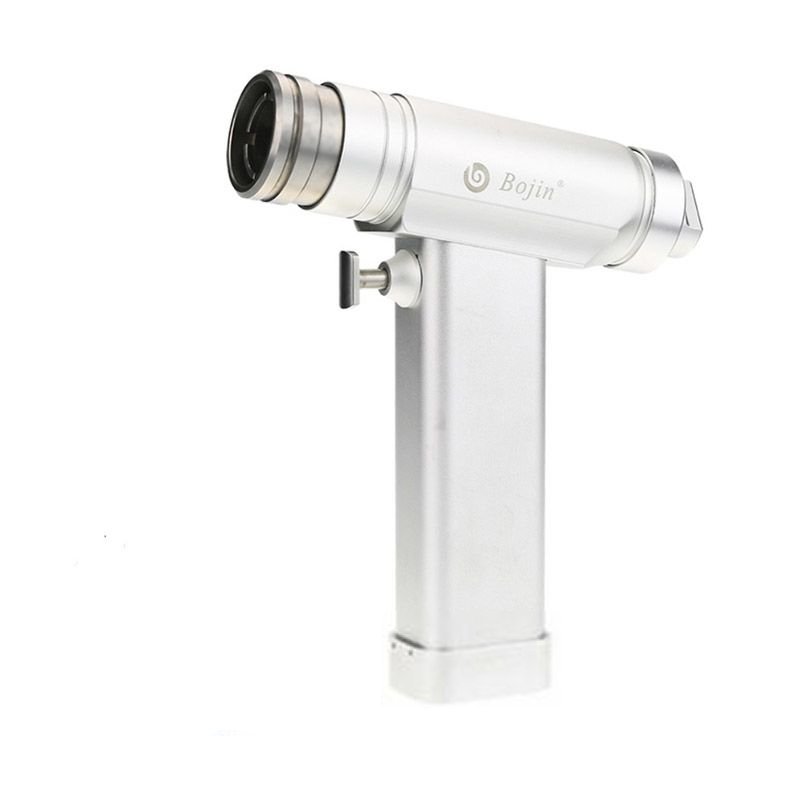

Hand block BJ2100
Electric drive: yes.
Multifunctional: yes.
Weight (with battery): ≤ 1000 g.
Speed: up to 15,000 rpm
Power source: battery.
Sterilization: autoclaving.
Battery Model: BJ8001.
Battery Type: NiMh.
Battery installation method: telescopic.
The blocking mechanism: is.
Aseptic funnel: yes.
Total running time: from 3 to 40 minutes.
Charger: BJ1002-4.
Simultaneous battery charging: 4 pcs.
Battery charge status: indicator light.
Sagittal saw BJ2101
Oscillation frequency (vibrations / min): up to 15000.
Operating voltage (V): 14.4.
Sterilization: 135 ° C.
Noise level (dB): ≤ 75.
Bone drill BJ2102 / BJ2102SAO
Speed ​​(rpm): up to 1000
Torque (N · m): 2.9.
Operating voltage (V): 14.4.
Sterilization: 135 ° C.
Noise level (dB): ≤ 40.
Cannulated BJ2103 / BJ2103B / BJ2103D drill
Speed ​​(rpm): up to 630.
Torque (N · m): 3.3.
Operating voltage (V): 14.4.
Sterilization: 135 ° C.
Noise level (dB): ≤ 40.
Cranial drill BJ2104
Speed ​​(rpm): up to 1000
Torque (N · m): 2.9.
Operating voltage (V): 14.4.
Sterilization: 135 ° C.
Noise level (dB): ≤ 40.
Cranial drill BJ2105
Speed ​​(rpm): up to 40,000.
Sterilization: 135 ° C.
Noise level (dB): ≤ 40.
Chest saw BJ2106
Oscillation frequency (vibrations / min): up to 15000.
Operating voltage (V): 14.4.
Sterilization: 135 ° C.
Noise level (dB): ≤ 70.
BJ2107 / BJ2107B / BJ2107D Expansion Drill
Speed ​​(rpm): up to 280.
Torque (N · m): 7.8.
Operating voltage (V): 14.4.
Sterilization: 135 ° C.
Noise level (dB): ≤ 40.
Reciprocating saw BJ2109
Oscillation frequency (vibrations / min): up to 15000.
Operating voltage (V): 14.4.
Sterilization: 135 ° C.
Noise level (dB): ≤ 70.
BJ2110 / 2111 torque limiter
Torque (N · m): 4 / 1.5.
Operating voltage (V): 14.4.
Sterilization: 135 ° C.
Noise level (dB): ≤ 40.
TPLO-saw BJ2112
Oscillation frequency (vibrations / min): up to 15000.
Operating voltage (V): 14.4.
Sterilization: 135 ° C.
Noise level (dB): ≤ 70.
Warranty:
Warranty on the manual unit – 2 years, on the battery and other components – 3 months.

Benefits:

Excellent torque ensures the successful application of the tool in operations to replace the prosthesis.
Powerful engine provides maximum speed.
High-capacity battery ensures efficient operation.
The main components are made of high-strength medical stainless steel.
Optional: external tool power system.
Sterilization by autoclaving.
Ability to select tips for individual functions.

Notes:

Sterilization temperature ≤ 135 ° C (individual models ≤ 155 ° C), at temperatures above 135 ° C the motor will be damaged.
After work, the battery must be removed from the handheld unit. Otherwise, a small constant automatic discharge will reduce battery life.
The battery cannot be sterilized – it should not be autoclaved.
The battery compartment in the handset must not contain moisture after sterilization.
