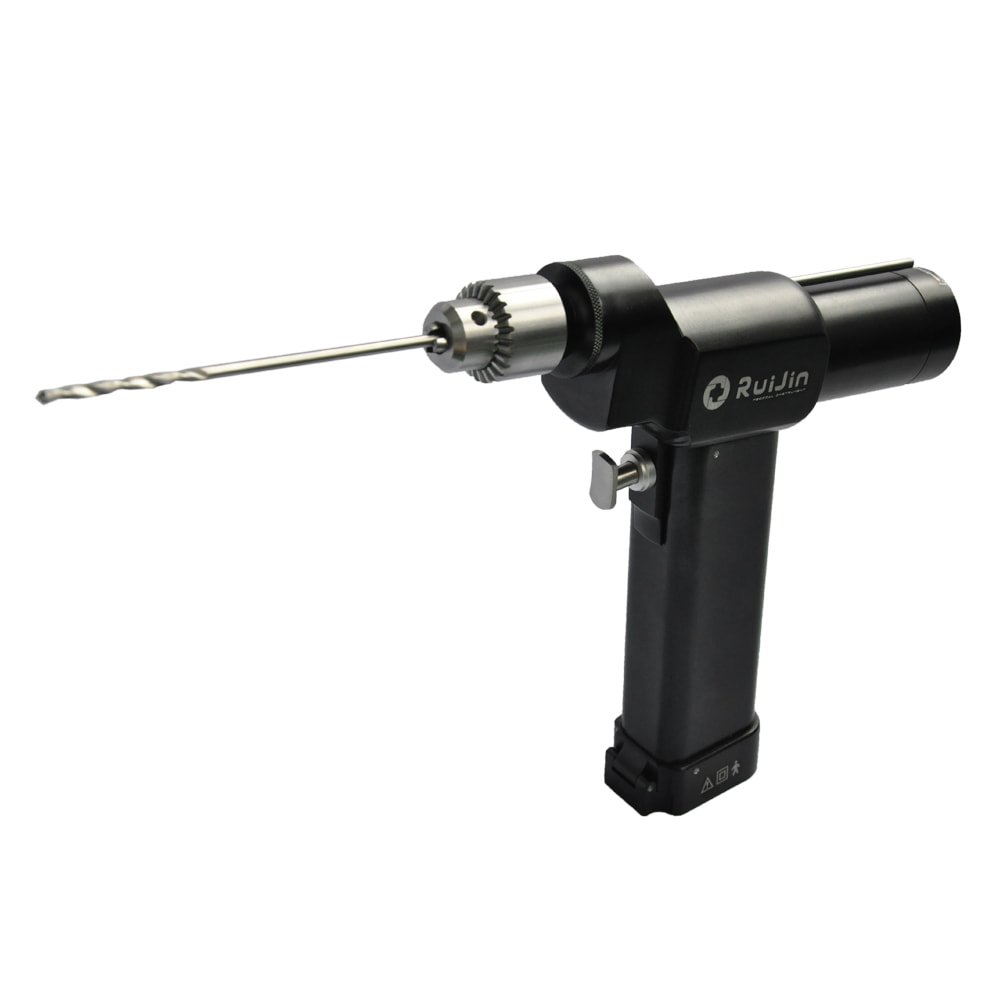

ND-2001 One Function Cannulated Bone Drill
Original price was: $897.00.$832.00Current price is: $832.00.
– Professional Surgical instrument Orthopedic Cannulated Bone Drill
– High-quality stainless steel construction, autoclavable
– Combination of drilling and milling for fast procedures
– Comes with one hand piece, battery, charger, drill chuck, and aluminium box
Description
ND-2001 One Function Cannulated Bone Drill
Professional-grade surgical instrument for orthopedic cannulated bone drilling. High-quality stainless steel construction with autoclavable design. Combines drilling and milling functions for fast, efficient procedures with minimal setup time.
Clinical overview
The ND-2001 One Function Cannulated Bone Drill is a professional-grade surgical instrument designed for orthopedic applications requiring precise cannulated drilling and milling. The instrument combines dual functionality—drilling and milling—in a single handpiece, enabling surgeons to perform fast mounting and dismounting without additional tool changes. This integrated approach reduces operative time and simplifies the surgical workflow.
Manufactured from high-quality stainless steel and fully autoclavable, the ND-2001 meets CE and ISO 13485 standards. The system delivers consistent torque output of 10,000 g/cm at a no-load speed of 900 r/min, providing reliable performance across a range of orthopedic procedures. The cordless battery-powered design enhances mobility and reduces cable management complications in the operating theatre.
Key features & surgeon benefits
Dual-Function Design
- Combined drilling and milling in single handpiece
- Torque output: 10,000 g/cm for consistent cutting
- No-load speed: 900 r/min for controlled advancement
Efficient Surgical Handling
- Fast mounting and dismounting mechanism
- Reduced operative time and setup complexity
- Cordless battery operation for enhanced mobility
Robust Construction
- High-quality stainless steel throughout
- Fully autoclavable for sterilisation
- Reusable design for long-term cost efficiency
Regulatory Standards
- CE certified and ISO 13485 compliant
- Type 2 medical device classification
- Regulatory record: Wsyjxzz2012-2100053
Technical specifications
| Indications | Orthopedic cannulated bone drilling and milling procedures |
|---|---|
| Sizes / range | Single handpiece with universal drill chuck |
| Material | Stainless steel (autoclavable) |
| Sterilisation | Autoclavable |
| Packaging | Aluminium box, then carton (1 PC per carton) |
| Warranty | As applicable |
| Handpiece Working Voltage | 14.4V DC |
| Output Power | ≥ 20W |
| Torque | 10,000 g/cm |
| No-Load Speed | 900 r/min |
| Unit Rise in Temperature | ≤ 25°C |
| Noise Level | 78 dB |
| Charger Input Voltage | 220V/50Hz (110V-120V/60Hz available upon request) |
| Charger Output | 14.4V, 700mA |
| Battery Voltage | 14.4V |
| Charging Time | Approximately 3 hours |
| Certification | CE, ISO 13485 |
| Medical Device Type | Type 2 |
| Brand | Ruijin |
| Origin | Anhui, China (Mainland) |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | One function cannulated bone drill handpiece | 1 |
| Battery | 14.4V rechargeable battery | 1 |
| Charger | 220V/50Hz input charger (or 110V-120V/60Hz upon request) | 1 |
| Drill Chuck | Universal drill chuck for bit attachment | 1 |
| Storage Box | Aluminium carrying and storage box | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss clinical applications, or arrange a product demonstration. We are ready to support your surgical program with technical guidance and flexible ordering options.
