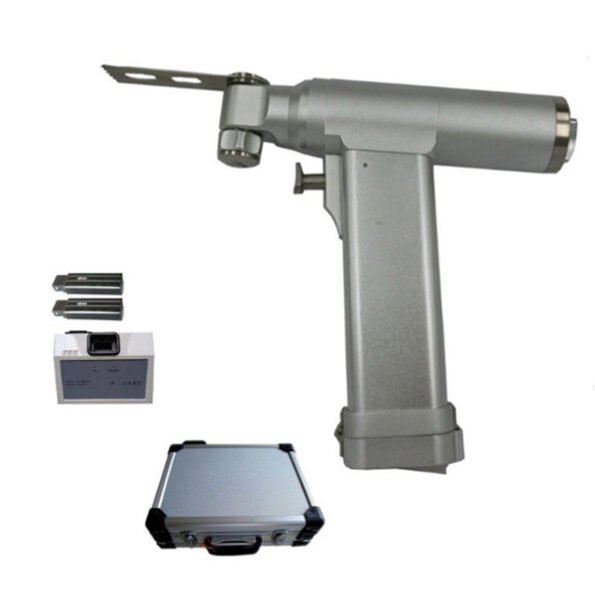

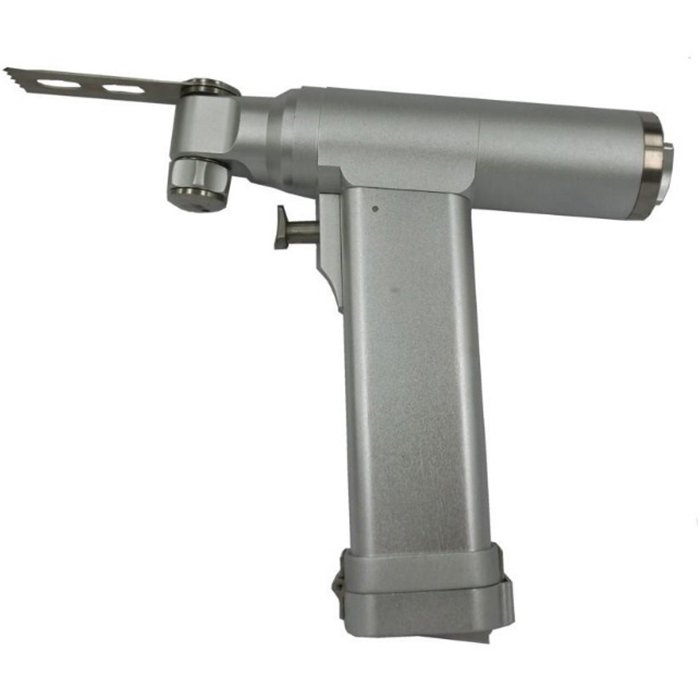

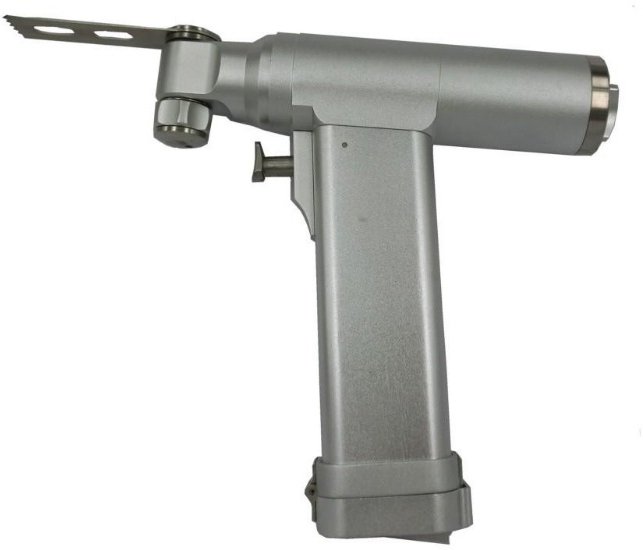

Oscillating / Orthopedic Bone Saw Model OTS-1
$1,001.00
– The Oscillating / Orthopedic Bone Saw Model OTS-1 is a powerful and portable tool designed for all kinds of joint operations.
– The main unit can be sterilized at high temperatures for maximum cleanliness and safety.
– Features a Swiss-made motor for reliable and precise performance.
– Comes with a complete set of standard configurations including handpiece, batteries, charger, sterilizing channels, and saw blades.
– Operates at a variable speed without steps, with a saw frequency of 0-15000 times/minute.
Description
Oscillating / Orthopedic Bone Saw Model OTS-1
A powerful, portable oscillating bone saw engineered for precision in all joint operations. Features Swiss-made motor technology, variable speed control, and high-temperature sterilization capability. Delivers consistent performance with minimal noise and maximum surgical control.
Clinical overview
The OTS-1 is a clinically proven oscillating bone saw designed for surgeons requiring precision, reliability, and ease of use in joint operations. Its Swiss-engineered motor delivers consistent cutting performance across a wide range of orthopedic procedures, from sagittal cuts to complex joint resurfacing. The variable speed control without steps allows surgeons to optimize cutting parameters for different bone densities and anatomical regions, reducing operative time and improving outcomes.
The complete system is engineered for maximum surgical efficiency: the main handpiece is fully autoclavable at 135°C for infection control, while the battery system and charger remain sterile-ready without requiring sterilization. With a 30-minute charge time and 1-hour runtime per battery, the system supports extended surgical sessions with minimal downtime. Low noise operation (70 dB) and stable oscillating amplitude (3–8°) ensure surgeon comfort and precise control throughout the procedure.
Key features & surgeon benefits
Swiss-Made Precision Motor
- 80W output power for reliable cutting in dense bone
- Variable speed 0–15,000 oscillations/minute with ±20% stability
- Oscillating amplitude 3–8° for controlled, predictable cuts
Cordless Battery System
- 14.4V dual-battery configuration for extended runtime
- 30-minute fast charge; 1-hour capacity per battery
- Batteries do not require sterilization—ready for immediate use
Autoclavable Design
- Main handpiece sterilizable at 135°C high-temperature, high-pressure cycle
- Durable construction withstands repeated sterilization
- Integrated sterilizing channels included in standard kit
Surgeon-Focused Design
- Portable, lightweight handpiece for extended use without fatigue
- Low noise operation (70 dB) for improved OR environment
- Stable, vibration-controlled oscillation for precision cutting
Technical specifications
| Indications | Joint operations, orthopedic bone cutting, sagittal saw procedures |
|---|---|
| Motor voltage | 14.4V DC |
| Output power | 80W |
| Saw frequency | 0–15,000 times/minute ±20% |
| Oscillating amplitude | 3–8° |
| Noise level | 70 dB |
| Battery capacity | 14.4V; 1-hour runtime per charge |
| Charging time | 30 minutes |
| Charger input | AC 110V–240V, 50Hz |
| Charger output | 14.4V DC |
| Sterilisation | Main unit: 135°C high-temperature, high-pressure autoclave; batteries and charger: no sterilization required |
| Packaging | Aluminum carrying box with foam insert |
| Warranty | As applicable |

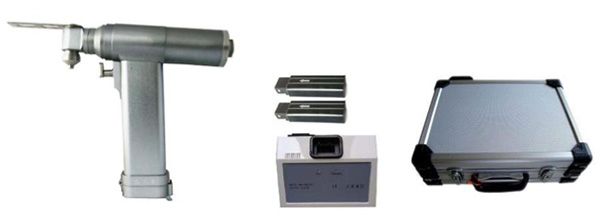

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | Oscillating bone saw handpiece with integrated motor | 1 |
| Battery | 14.4V rechargeable battery pack | 2 |
| Electrical charger | AC 110V–240V input, 14.4V output charger unit | 1 |
| Sterilizing channels | Autoclave-compatible sterilization trays/channels | 2 |
| Saw blades | Oscillating saw blades for bone cutting | 2 |
| Carrying case | Aluminum box with protective foam insert | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, arrange a product demonstration, or discuss customization options for the OTS-1 oscillating bone saw system.
Email: info@tedsmedical.com
Related Products
– Suitable for various orthopaedic joint surgeries
– Rapid and accurate bone tissue cutting
– Smooth and tidy bone edge
– Low temperature rise during operation

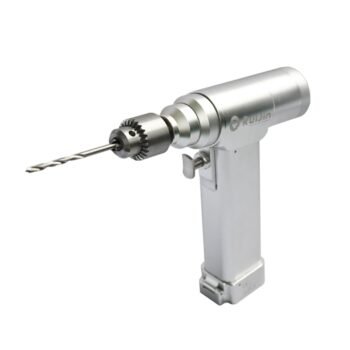

– The ND-1011 Dual Functional Electric Orthopedic Bone Drill is an autoclavable surgical drill designed for orthopedic procedures.
– It features a wide chuck scope of 0.6mm–6mm/0.6mm–8mm and discretionary speed control for precise operation.
– With a torque of 7500g/Cm and noise level below 63dB, this bone drill ensures stable and accurate performance.
– The drill comes with a one-year warranty and certifications including CE, ISO, and SGS for quality assurance.

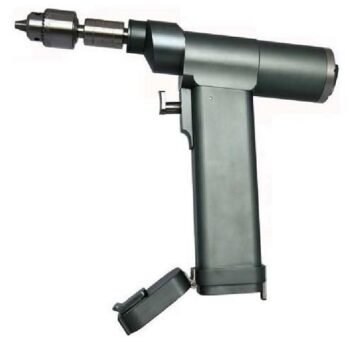

– Professional Surgical instrument Orthopedic Cannulated Bone Drill
– High-quality stainless steel construction, autoclavable
– Combination of drilling and milling for fast procedures
– Comes with one hand piece, battery, charger, drill chuck, and aluminium box
– The NM-300 Mini Multifunctional Drill Saw System is a versatile tool designed for veterinary surgery, orthopedic procedures, and Kirschner wire and intramedullary nail applications.
– Made of stainless steel and aluminum, this system is reusable and comes with CE and ISO13485 certifications.
– With a torque of 20000g/cm and a non-load speed of 600 rpm, it offers reliable and precise performance.
– The system includes one hand piece, two batteries, a charger, a drill chuck, a sterilizing channel, and an aluminum box for convenient storage and transport.

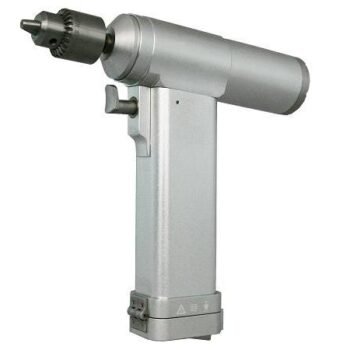

– Surgical Electric Orthopedic Small Bone Drill
– Autoclavable type suitable for small animals
– Discretionary speed control for precise operation
– Comes with two batteries and a sterilizing channel
– Axial run-out within 0.05mm for accurate performance
– Self-Stopped Cranial Drill Model OTS-8 for Neurosurgery
– Motor made in Switzerland for durability and reliability
– Variable speed control up to 500 RPM for precision
– Self-stopped feature ensures safety during operations

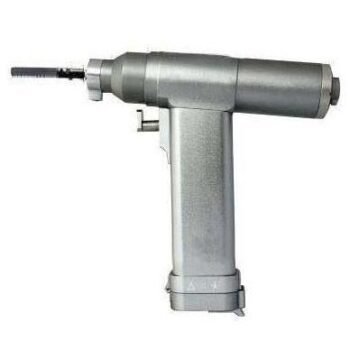

– High-quality bone reciprocating saw designed for surgical procedures
