SonovetID Veterinary Ultrasound Scanner with RFID Technology Handheld 6 Inch Color Display
Original price was: $2,587.00.$2,333.50Current price is: $2,333.50.
– Handheld veterinary ultrasound scanner with RFID technology
– 6-inch high-resolution color display for clear imaging
– Level 7 waterproof design for durability
– Built-in RFID technology with effective short distance scanning
– Customizable software to meet clients’ needs
– Comes with standard accessories including probes, cases, and power adapter
Description

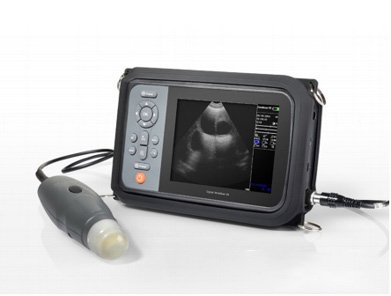

SonovetID Veterinary Ultrasound Scanner with RFID Technology
Handheld 6-inch color display veterinary ultrasound system with integrated RFID technology for animal identification and data management. Level 7 waterproof design ensures durability in demanding clinical environments. Customizable software supports multiple animal species and imaging protocols.
Clinical overview
The SonovetID is a professional-grade handheld veterinary ultrasound scanner designed for comprehensive diagnostic imaging across multiple animal species. The 6-inch high-resolution color LCD display delivers clear, detailed B-mode and B+B imaging with 256 gray levels for precise tissue differentiation. Integrated RFID technology enables automatic animal identification and seamless data integration with farm management systems, improving workflow efficiency and record accuracy.
The Level 7 waterproof design with high-resolution PVC mirror ensures reliable performance in wet clinical environments. Dual freeze keys on both the keyboard and probe provide convenient image capture during examination. The system supports obstetric, cardiac, abdominal, and reproductive imaging protocols for swine, sheep, horses, cattle, and dogs, with customizable software to accommodate facility-specific requirements and emerging clinical applications.
Key features & surgeon benefits
Waterproof & Robust Design

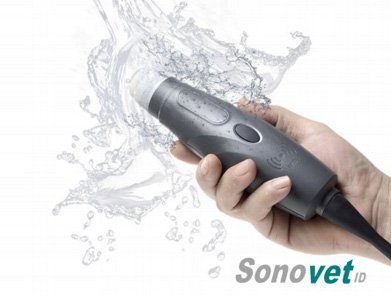

- Level 7 waterproof probe and housing for wet environments
- High-resolution PVC mirror ensures optical clarity and durability
- Negative pressure control prevents air bubble generation during operation
RFID Integration & Data Management
- Built-in RFID reader with 8–13 cm effective scanning distance
- Automatic animal identification and data linking
- TF card storage with multi-language software support
High-Resolution Display & Measurements

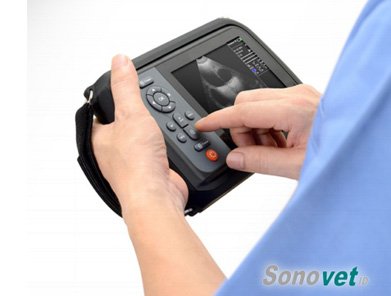

- 6-inch color LCD with 256 gray levels for diagnostic clarity
- Distance, circumference, and volume measurement tools
- Maximum imaging depth of 250 mm for comprehensive assessment
Flexible Software & Probe Options
- Customizable software to meet clinic-specific protocols
- Optional 6.5 MHz, 7.5 MHz, and specialty probes available
- Supports multiple animal species imaging profiles
Technical specifications
| Display Mode | B, B+B |
|---|---|
| Monitor | 6-inch high-resolution color LCD |
| Probe Frequency | 3.5–5.0 MHz, professional Level 7 waterproof |
| Maximum Depth | 250 mm |
| Gray Levels | 256 levels |
| Measurements | Distance, circumference, volume |
| RFID Scanning Range | 8–13 cm effective distance |
| Battery | Rechargeable lithium; >3 hours operating time |
| Package Dimensions | 37 × 26 × 17 cm |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Ultrasonic Probe with RFID | 3.5–5.0 MHz professional waterproof probe with integrated RFID reader | 1 |
| Hard Case | Protective hard carrying case | 1 |
| Silicon Case | Protective silicone sleeve for probe | 1 |
| Power Adapter | AC power adapter for charging | 1 |
| Rechargeable Battery | Lithium battery pack | 1 |
| Cleaning Cloth | Microfiber cleaning cloth | 1 |
Optional accessories & probes
| Accessory | Description |
|---|---|
| 7.5 MHz High-Frequency Linear Array Probe | Enhanced resolution for superficial structures |
| 6.5 MHz Intra-Cavity (Trans-Vaginal) Probe | Specialized reproductive imaging |
| 7.5 MHz Rectal Probe | Equine and large animal reproductive assessment |
| 3.5 MHz Micro-Convex Probe | Improved field of view for cardiac and abdominal imaging |
| DC Car Charger | Mobile charging solution for field use |
| USB Cable | Data transfer and alternative charging option |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, customization options, and probe configurations tailored to your veterinary practice. We provide comprehensive technical support and training for all SonovetID systems.
