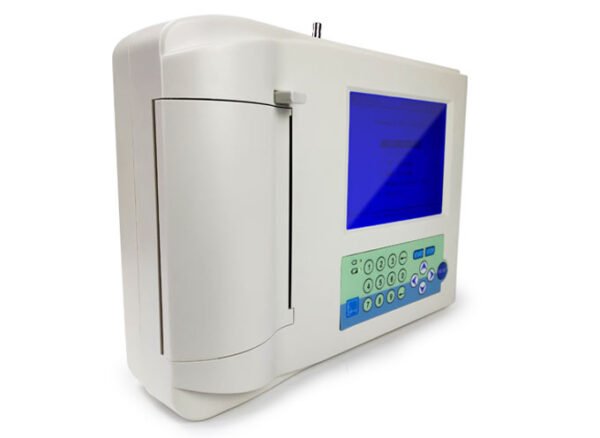

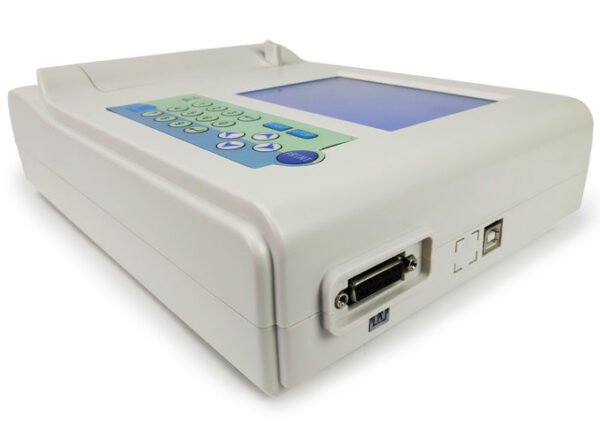

Spirometer Pro
Original price was: $2,405.00.$1,755.00Current price is: $1,755.00.
– The Spirometer Pro is a portable pulmonary function measurement instrument that can measure vital capacity (VC), forced vital capacity (FVC), and Maximum Ventilator Volume (MVV).
– It follows the ATS ERS standards and has a built-in printer for printing out analysis results.

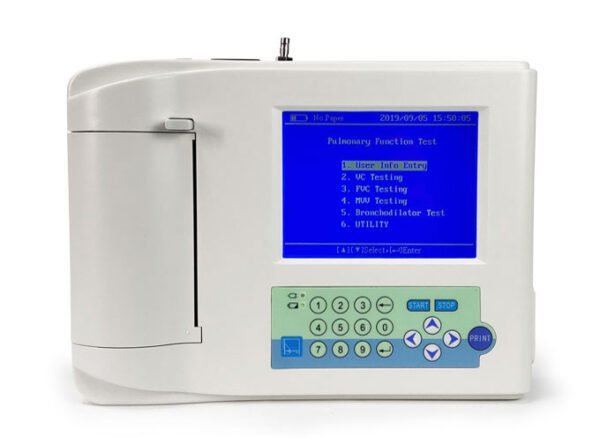

– The instrument has a large screen for displaying all parameters, a memory for storing up to 300 patient measurement results, and an automatic calibration feature for convenience.
– It comes with a single-use filter, mouth set, nose clip, and options for additional accessories like USB cable and PC software for data transfer.
Description
Measuring principle
When be normally breathing, the gas passed through the flow sensor. On both sides of the screen of the sensor will produce different pressure. The pressure is detected by the sensor, which is converted to electrical signals. After the signal amplification, AD converter sampling, the pressure is converted to digital signal into the computer system.
Through digital signal processing and analyzing technology, computer system reproduces the breathing waves that are displayed on the LCD together with analyzed results. In the end the built-in printer prints out the analysis results.Single use filter
Maximum Ventilator Volume (MVV).
Measurement algorithm refers to the ITS ERS standards of the American Thoracic Society (ATS)
110mm thermal printer built-in can print out a clear clinical report predicted value measured value
Compact and flexible
SpioSoft PC Software for data transfer (Options)
Measurement methods:
Flow velocity detection:Â Screen type pneumotachograph flow sensor
Capacity detection:Â Â Â Â Â flow integration
Patient Data:
|  Patient  information input |
Patient ID | ID No.: XXXXXX | ID No.: XXXXXX | |
| Gender | Gender: | Gender: | ||
| Age | Age: | Age: | Years old | |
| Height | Height: | Height: | cm | |
| Weight | Weight: | Weight: | kg | |
| Race | Race: | Race: | ||
| Temperature | Temperature: | Temperature: | ℃ | |
| Humidity | Humidity: | Humidity: | % | |
| Atmosphere | Atmosphere: | Atmosphere: | mmHg |
Measuring range
Capacity range:Â Â Â Â Â Â Â Â 0L ~ 9L
F low velocity range: 0 ~ 14L / s
Measurement accuracy
Capacity:           0L ~ 1.6L (± 50ml)
6L ~ 9L (± 3%)
Flow rate: Â Â Â Â Â Â Â Â Â Â 5% or 0.2L / s
Respiratory rate:         4 / 20 ~ / min (± 1 / min)
20 / 60 / min (error: ± 5%)
Measuring time limit and degree
VC: Â Â Â Â Â Â Â Â Â Â Â Â 50s per time, measuring 3 times
FVC: Â Â Â Â Â Â Â Â Â Â Â 25s per time, measuring 3 times
MVV: Â Â Â Â Â Â Â Â Â Â 12 seconds per time, measuring 3 times
| PARAMETER DESCRIPTION | DISPLAY | UNIT | ||
| VC Test | Vital capacity，Maximum inspiration volume or Maximum exhalation volume | VC | VC | L |
| Tidal volume | TV | TV | L | |
| Expiratory reserved volume | ERV | ERV | L | |
| Inspiratory reserved volume | IRV | IRV | L | |
| Inspiratory capacity | IC | IC | L | |
| FVC Test | Forced vital capacity | FVC | FVC | L |
| Forced expiratory volume at 0.5sec | FEV0.5 | FEV0.5 | L | |
| Forced expiratory volume at 1sec | FEV1.0 | FEV1.0 | L | |
| Forced expiratory volume at 3sec | FEV3.0 | FEV3.0 | L | |
| Forced expiratory volume1sec / Forced vital capacity | FEV1.0/G | FEV1.0/G | % | |
| Forced expiratory volume1sec / vital capacity | FEV1.0%T | FEV1.0%T | % | |
| Forced expiratory volume at 3sec / Forced vital capacity | FEV3.0%G | FEV3.0%G | % | |
| Forced expiratory volume at 3sec / vital capacity | FEV3.0%T | FEV3.0%T | % | |
| Extrapolated volume | Vext | Vext | L | |
| Expiratory time | EX Time | EX Time | s | |
| Maximal mid-expiratory flow | MMF | MMF | L/s | |
| Peak expiratory flow | PEF | PEF | L/s | |
| Mid(forced)-expiratory flow at 75% | MEF75 | MEF75 | L/s | |
| Mid(forced)-expiratory flow at 50% | MEF50 | MEF50 | L/s | |
| Mid(forced)-expiratory flow at 25% | MEF25 | MEF25 | L/s | |
| Forced inspiratory vital capacity | FIVC | FIVC | L | |
| Forced inspiratory volume at 0.5sec | FIV0.5 | FIV0.5 | L | |
| Forced inspiratory volume at 1.0sec | FIV1.0 | FIV1.0 | L | |
| Ratio of FIV1.0divided by FIVC | FIV1.0/FVC | FIV1.0/FVC | % | |
| Ratio of FIV1.0divided by FVC | FIV1.0/FIVC | FIV1.0/FIVC | % | |
| Peak inspiratory flow | PIF | PIF | L/s | |
| Inspiratory flow at 50% | MIF50% | MIF50% | L/s | |
| MVV Test | Maximum voluntary ventilation | MVV | MVV | L/min |
| Respiration rate | RR | RR | /min | |
| Tidal volume | TV | TV | L |
Display (LCD): 320 * 240 dot-matrix
printer: 110mm thermal printer
Data: 10 integral records
Other Note

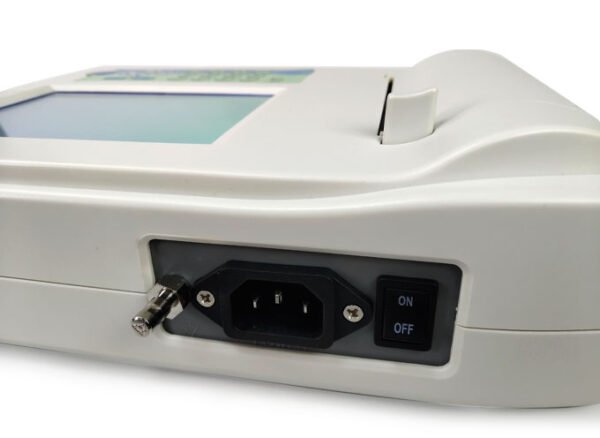

Power: A.C. 100~220V 50/60Hz
The type of security: I Class B type
Transport and storage note
Ambient temperature range:-20°C ~ 55°C;
Relative humidity range: ≤ 93%;
Atmosphere pressure range: 500hPa ~ 1060hPa;
Working note
Surrounding temperature range: 10°C ~ +40°C;
Relative humidity range: 30% to 75%;
Atmosphere pressure range: 700hPa ~ 1060hPa;
Options:
SpioSoft PC Software for data transfer (Options)
Standard:
Antibacterial – Viral Filter …… 1Pcs
Ground Wire   ………………….. 1Pcs
Power cable …………………….. 1Pcs
Cleaning Cloth  …………………. 1PcsOptions:
USB Cable   ……………………… 1Pcs
Related Products

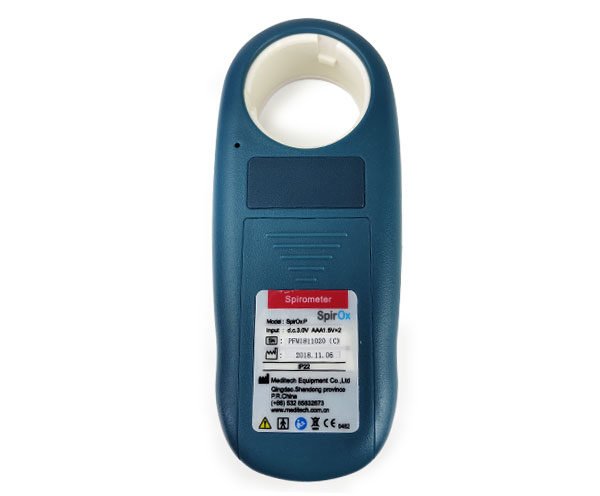

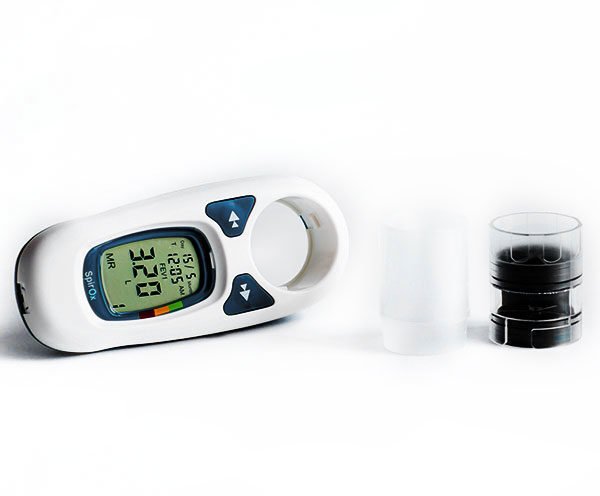

– Palm size spirometer with LCD screen for easy reading
– Performs PEF and FEV1 tests
– Meets ATS 1994 standardization for accuracy
– Records up to 300 measurements
– Bluetooth or USB connectivity to upload data to “SpiroSoft” Analyzer software
– Operates on AAA batteries
– Measures volume from 0.01L to 9.99L and airflow from 30 to 999L/min

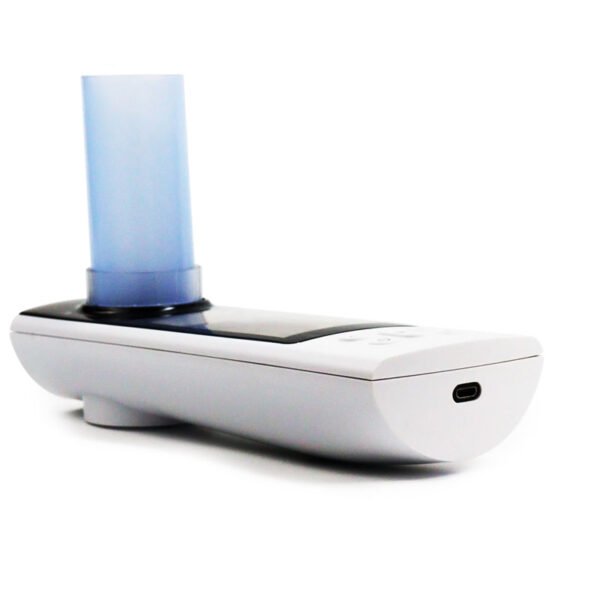

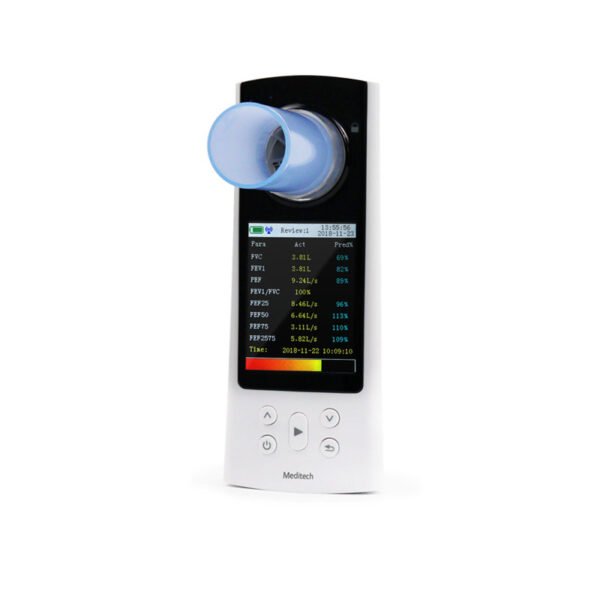

– The Spirometer Pulmonary Lung Function Spirox Plus is the new 2019/2020 version of the Spirox series.
