BJ4302 Bone drill (System 4300)
- High power bone drill for trauma surgery applications
- Autoclavable and noiseless with long service life
- 105w output power with adjustable speed up to 1100 rpm
- Comes with handpiece, battery, charger, chuck, and warranty for 2 years
- SKU
- 7629B3490CFA
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping

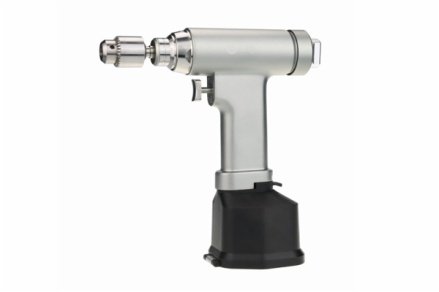

BJ4302 Bone Drill
High-power, autoclavable bone drill engineered for trauma surgery plate and screw fixation. Delivers 105W output with adjustable speed up to 1100 rpm, ergonomic design, and low-noise operation. Complete system includes handpiece, battery, charger, and chuck with 2-year warranty on handpiece.
Clinical overview
The BJ4302 bone drill is purpose-built for trauma surgery applications requiring reliable, controlled drilling for plate and screw fixation. The ergonomic handpiece design reduces surgeon fatigue during extended procedures, while the imported motor delivers consistent performance with minimal vibration and noise (≤40 dB). Full autoclavability of the handpiece at 155°C ensures compliance with standard sterilisation protocols and supports rapid turnover in high-volume surgical environments.
The system's 105W output power and adjustable speed range (0–1100 rpm) accommodate standard bone drilling tasks, with torque output of 2.9 Nm providing adequate force for cortical and cancellous bone penetration. The 12V battery system with dedicated charger and aseptic transfer ring maintains workflow efficiency while minimising cross-contamination risk.
Key features & surgeon benefits
Comprehensive System
- Complete kit: handpiece, battery, charger, chuck, and transfer ring
- Accommodates standard drill bits up to 6 mm diameter
- Suitable for standard bone drilling in trauma fixation
Efficient, Quiet Operation
- Low noise output (≤40 dB) reduces OR fatigue and improves communication
- Adjustable speed 0–1100 rpm for precise control across bone types
- Aseptic battery transfer ring maintains sterility between cases
Durability & Value
- 2-year warranty on handpiece; 3-month warranty on battery and consumables
- Environmentally friendly NiMH battery technology
- Long service life with minimal maintenance requirements
Sterilisation & Compliance
- Fully autoclavable handpiece at 155°C (improved type) or 135°C (standard)
- Kills bacteria and viruses resistant to other sterilisation methods
- Battery removal protocol extends battery life and maintains sterility
Technical specifications
| Indications | Drilling holes for plate and screw fixation during trauma surgery |
|---|---|
| Sizes / range | Drill bit compatibility up to 6 mm; adjustable speed 0–1100 rpm |
| Material | Medical-grade stainless steel handpiece; NiMH battery; imported motor |
| Sterilisation | Handpiece autoclavable at 155°C (improved type) or 135°C (standard) at 1.6 MPa; battery not autoclavable |
| Packaging | Complete system with handpiece, battery, charger, chuck, aseptic transfer ring, operating manual, and guarantee card |
| Warranty | Handpiece: 2 years; battery and consumables: 3 months |
Performance specifications
| Output power | 105 W |
|---|---|
| Speed range | 0–1100 rpm (adjustable) |
| Torque | 2.9 Nm |
| Operating voltage | 12 V |
| Noise level | ≤40 dB |
| Oscillations / Swings | Not applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | BJ4302 bone drill handpiece with ergonomic design | 1 |
| Battery | 12V NiMH rechargeable battery | 1 |
| Charger | Battery charger unit | 1 |
| Chuck | Standard drill bit chuck (up to 6 mm) | 1 |
| Aseptic transfer ring | Battery transfer ring for sterile handling | 1 |
| Operating manual | User and maintenance instructions | 1 |
| Guarantee card | 2-year warranty documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, bulk ordering, and customisation options for your trauma surgery programme. We provide technical support and clinical guidance to ensure optimal integration into your surgical workflow.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
