NM-500 Multifunctional Drill Saw System
$7,790.00
– The NM-500 Multifunctional Drill Saw System is a versatile tool designed for various medical procedures.
– With a powerful 150W output and a battery capacity of 1800mAh, it offers reliable performance.
– This system comes with multiple adapters for different applications, including a normal bone drill adapter, oscillating saw adapter, and reamer drill adapter.
– It is autoclavable up to 135℃ for easy sterilization and has a noise level of ≤60db.
– The system also includes adapters for canulate drilling, cranial drilling, cranial milling, K-wire procedures, sternum sawing, reciprocating sawing, and TPLO sawing.
Description

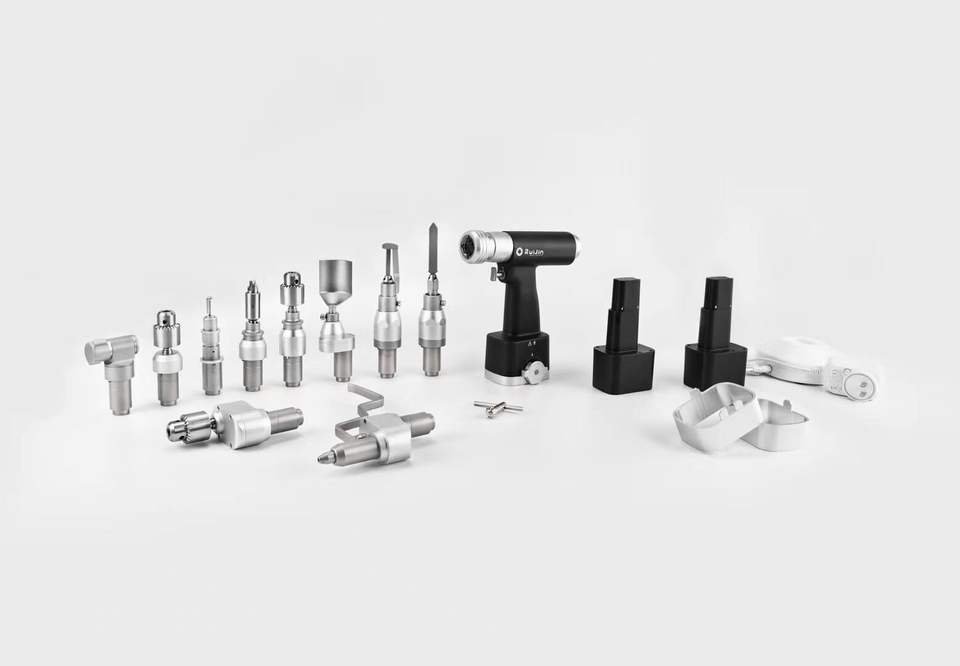

NM-500 Multifunctional Drill Saw System
A versatile, battery-powered surgical system delivering 150W of reliable performance across orthopedic, trauma, and cranio-maxillofacial procedures. With nine interchangeable adapters and autoclavable construction, the NM-500 streamlines workflow while maintaining precision and safety in the operating room.
Clinical overview
The NM-500 Multifunctional Drill Saw System is engineered to consolidate multiple surgical procedures into a single, ergonomic platform. Its 150W motor and 1800mAh battery deliver approximately 20 minutes of continuous operation—sufficient for most routine and complex cases. The system’s modular design allows surgeons to switch between nine specialized adapters without changing handpieces, reducing operative time and instrument changeover delays.
With a noise level of ≤60dB and a handpiece weight of just 1.25kg, the NM-500 minimizes fatigue and provides superior tactile feedback. Full autoclavability at 135°C ensures seamless integration into standard sterilization protocols, while the 2-year warranty underscores manufacturer confidence in durability and performance.
Key features & surgeon benefits
Nine Interchangeable Adapters
- Normal bone drilling (0–1200 rpm)
- Oscillating and reciprocating sawing (0–18,000 cpm)
- Cranial drilling and milling (0–900 rpm / 0–36,000 cpm)
- Canulate drilling, K-wire, sternum, and TPLO procedures
Rapid Adapter Exchange
- Single handpiece eliminates mid-procedure tool changes
- Lightweight design (1.25kg) reduces surgeon fatigue
- Quiet operation (≤60dB) maintains focus and communication
Cost-Effective Integration
- Consolidates multiple instruments into one system
- Reduces inventory complexity and storage requirements
- 2-year warranty minimizes replacement costs
Full Autoclavability
- Handpiece and all adapters autoclavable to 135°C
- Seamless integration with standard OR protocols
- No special cleaning or maintenance procedures required
Technical specifications
| Indications | Bone drilling, oscillating sawing, reaming, canulate drilling, cranial drilling and milling, K-wire procedures, sternum and reciprocating sawing, TPLO procedures |
|---|---|
| Output | 150W |
| Battery capacity | 1800mAh |
| Continuous working time | Approximately 20 minutes |
| Handpiece weight | 1.25kg |
| Noise level | ≤60dB |
| Sterilisation | Autoclavable up to 135°C |
| Warranty | 2 years |

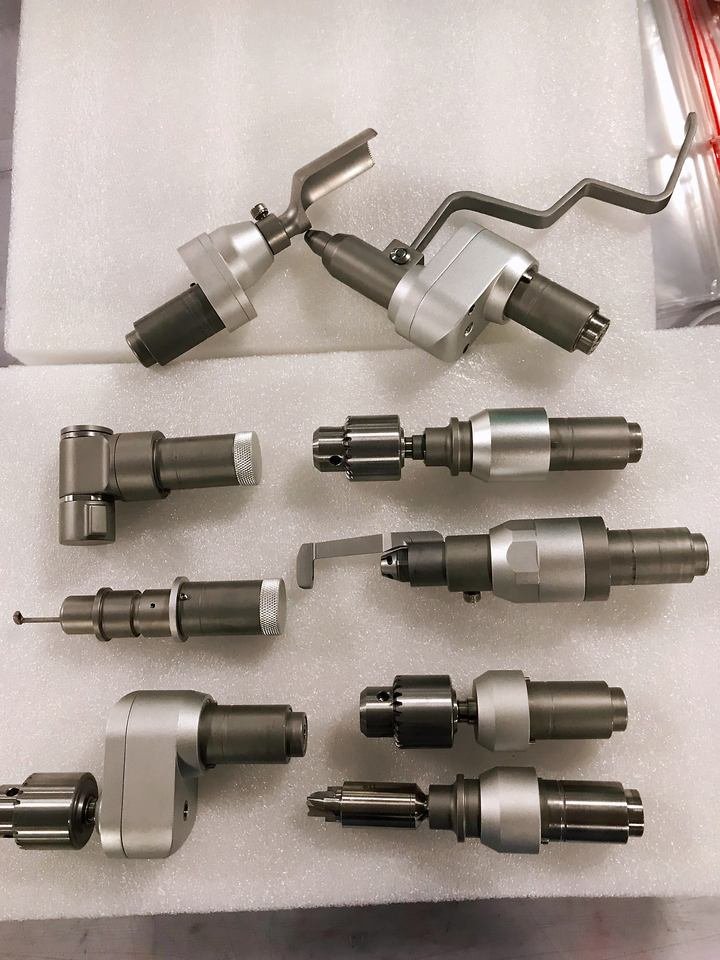

Standard instrument composition
| Item | Description | Specifications |
|---|---|---|
| NM1-1001 | Normal bone drill adapter | Gripping range 0.8–8mm; Speed 0–1200 rpm |
| NM1-S011 | Oscillating saw adapter | Frequency 0–18,000 cpm |
| NM1-3011 | Reamer drill adapter | Gripping range 0.8–8mm; Speed 0–300 rpm |
| NM1-2001 | Canulate drill adapter | Gripping range 0.8–8mm; Speed 0–650/1100 rpm |
| NM1-4011 | Cranial drill adapter | Speed 0–900 rpm |
| NM1-S091 | Cranial mill adapter | Frequency 0–36,000 cpm |
| K-wire adapter | K-wire procedures | Two sizes available |
| NM1-S032 | Sternum saw / reciprocating saw adapter | Frequency 0–18,000 cpm |
| TPLO saw | TPLO procedures | As applicable |
Get in touch for pricing & availability
Contact our sales team to discuss system configurations, pricing, and delivery timelines. We support OEM partnerships and custom adaptations for specialized surgical applications.
Email: info@tedsmedical.com
Related Products
– Model NO.: RJ-MP-ES-1013
– Type: Surgical Instrument
– Material: Stainless Steel
– Feature: Reusable
– Output Power: 200W
– Speed: 0-15000 times/minute
– Voltage: AC220V/50Hz
– Pack of 3 autopsy saw blades for efficient and precise cutting
– Made of high-quality stainless steel for durability and sharpness
– Compatible with most autopsy saw models for easy replacement
– Ideal for forensic and medical professionals who require reliable cutting tools.
– The Autopsy Saw System is widely used in craniotomy, spinal cord opening, and osteotomy
– It provides a swing cut with fast speed, causing no damage to soft tissue
– Features reliable and strong power without blood splatter and bone powder
– Ergonomic design to relieve operators’ operation fatigue
– Equipped with DC AC dual power supply for both indoor and outdoor use
– Comes with a standard configuration including a control cabinet, power connector, power cord, charger, handpiece, socket head wrench, and two saw blades
– High-quality TPLO saw blade suitable for veterinary orthopedic surgeries
– Available in sizes ranging from 8mm to 33mm for precise and tailored cuts
– Durable construction for long-lasting performance
– Designed for use in TPLO (Tibial Plateau Leveling Osteotomy) procedures
– Surgical Electric Orthopedic Small Bone Drill
– Autoclavable type suitable for small animals
– Discretionary speed control for precise operation
– Comes with two batteries and a sterilizing channel
– Axial run-out within 0.05mm for accurate performance
– Electric plaster cast saw for cutting all kinds of plaster bandages
– Comes with three types of saw blades for different cutting needs
– Low noise operation with a frequency of ≥ 12500/min and swing range of 5°
– Stainless steel construction, suitable for orthopedic, ENT, neurosurgery, and microsurgery applications
– NS-2012 360° Roating Micro Oscillating Saw for precise bone cutting
– Reusable stainless steel saw with CE and ISO13485 certification
– 7.7V output voltage and 0.7kg weight for easy handling
– Battery-powered with 0-16000 Ocs/Min oscillations
– Low noise level of 63db and trademarked by RUIJIN
– The MS-1011 Surgical Oscillating Saw is a Type 2 medical electric saw made of stainless steel.
– This oscillating saw is black in color and operates at a speed of 0-18000 times/min.
– It is a reusable surgical tool with a regulatory type of Type 2 and a trademark of RUIJIN.
– The saw comes in a transport package of one set in an aluminum box then in one carton.
– Model NO.: RJ-MP-NM-100
– Material: Stainless Steel
– Feature: Reusable
– Output Power: 150W
– Speed: 0-1200rpm
– Can Be Sterilized up to 135°

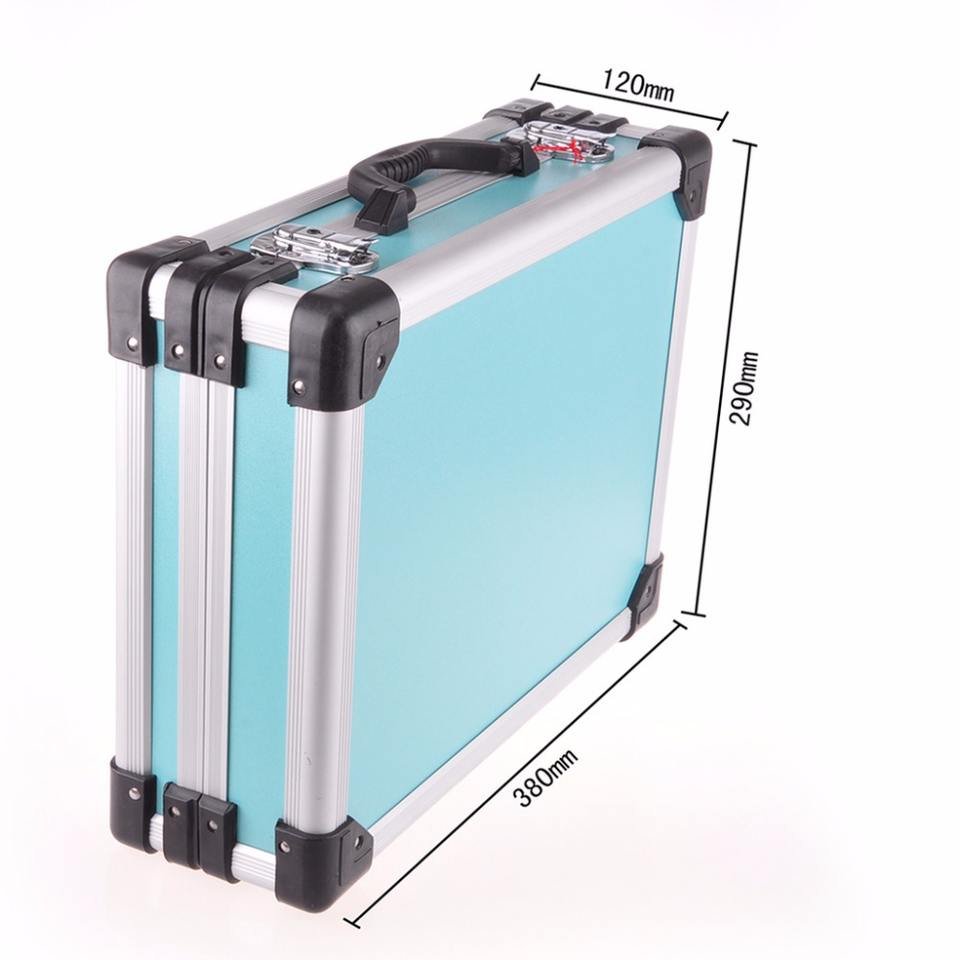

– Transport Package: Each Set Packed in Aluminium Box Then in a Carton
