Description

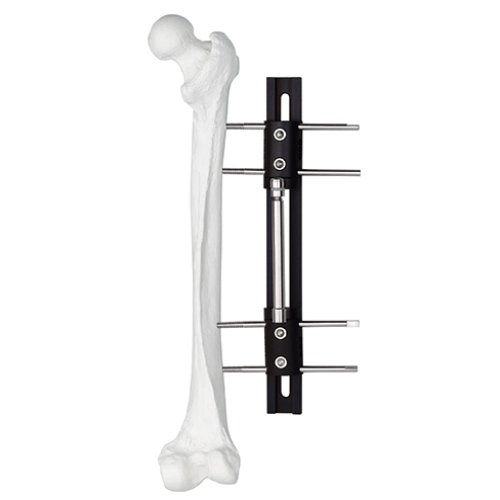

Bone Lengthening External Fixator – Type B
Precision-engineered external fixation system for controlled bone lengthening and stabilization. Available in two frame lengths with complete instrumentation for reliable distraction osteogenesis procedures.
Clinical overview
The Bone Lengthening External Fixator Type B is a modular, Orthofix-compatible system designed for controlled distraction osteogenesis and limb lengthening procedures. The frame provides stable fixation during the latency, distraction, and consolidation phases of bone regeneration, with precise adjustment capability to achieve gradual, predictable bone formation.
Available in two frame lengths (250 mm and 300 mm), the system accommodates a range of anatomical sites and surgical approaches. The complete kit includes six 150 mm pins for secure bone engagement, plus essential instrumentation (6 mm hex wrench and screwdriver) for intraoperative assembly and postoperative adjustment.
Key features & surgeon benefits
Rigid frame design
- Orthofix-compatible geometry for proven biomechanical performance
- Six 150 mm pins provide redundant fixation and load distribution
- Minimizes micromotion and supports early callus formation
Intuitive assembly
- Modular design reduces operative time and learning curve
- Included 6 mm instrumentation enables rapid setup and adjustment
- Compatible with standard Orthofix accessories for extended functionality
Cost-effective solution
- Complete kit reduces need for separate component purchases
- Durable stainless steel construction supports multiple uses
- Straightforward sterilization and reprocessing workflow
Dual-length system
- 250 mm and 300 mm options accommodate diverse anatomical requirements
- Scalable pin configuration for pediatric and adult applications
- OEM customization available for specialized protocols
Technical specifications
| Indications | Bone lengthening, distraction osteogenesis, limb reconstruction, orthopedic trauma |
|---|---|
| Sizes / range | 250 mm and 300 mm frame lengths |
| Material | Stainless steel (pins and frame components) |
| Sterilisation | Autoclavable (steam sterilization, 121°C) |
| Packaging | Sterile or non-sterile per customer specification |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| External fixator frame | Type B, 250 mm or 300 mm length | 1 |
| Fixation pins | 6 × 150 mm stainless steel pins | 6 |
| Hex wrench | 6 mm hex wrench for frame assembly | 1 |
| Screwdriver | 6 mm screwdriver for pin and frame adjustment | 1 |
Get in touch for pricing & availability
Contact our sales and technical team to discuss frame length selection, bulk ordering, and custom configurations for your surgical program.
Email: info@tedsmedical.com
