Description

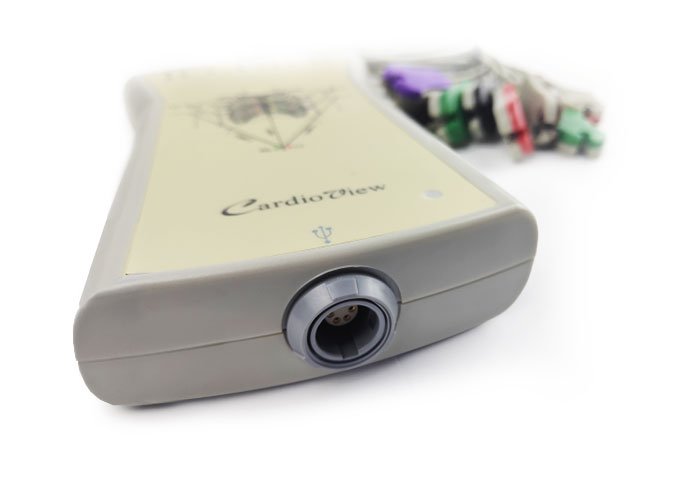

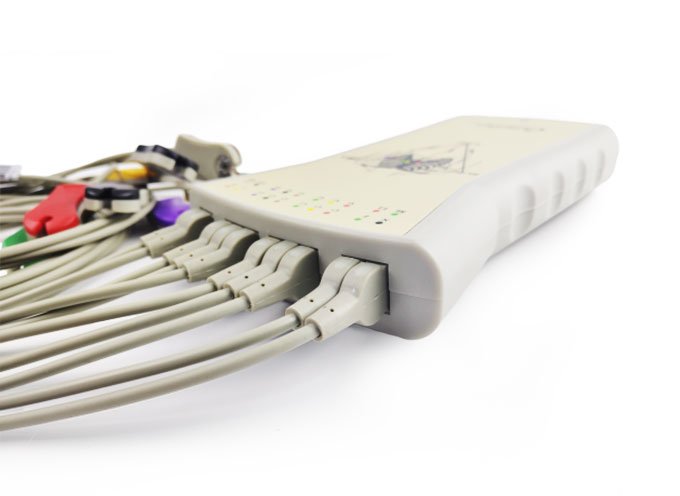

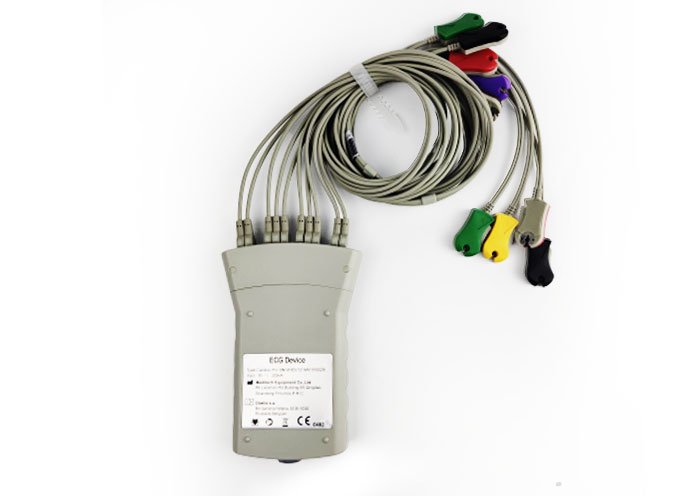

Cardios PC-Based ECG Machine
Advanced 12-lead simultaneous ECG system with automatic measurement, interpretation, and pacemaker analysis. Designed for clinical efficiency with one-key operation, multi-form printing, and integrated PC connectivity via isolated USB interface.
Clinical overview
The Cardios PC-Based ECG Machine is a comprehensive diagnostic solution delivering simultaneous 12-lead electrocardiography with integrated automatic measurement and clinical interpretation. Engineered with anti-defibrillation and high-frequency protection, the system provides reliable cardiac signal acquisition across diverse patient populations, including those with implanted pacemakers. The device combines precision signal processing with clinician-friendly workflow, enabling rapid diagnosis and documentation in hospital, clinic, and ambulatory settings.
Advanced features including vectorcardiography (VCG) and vectorial loop projection (VLP) support detailed arrhythmia analysis. The isolated USB interface ensures safe data exchange with external clinical information systems, while automatic baseline adjustment optimizes recording quality regardless of signal amplitude variation.
Key features & surgeon benefits
Superior Acquisition & Resolution
- 24-bit A/D quantization with 0.4μV resolution
- 24K SPS sampling rate per channel during acquisition
- Frequency response 0.05–250 Hz (±3dB) for comprehensive diagnostic coverage
One-Key Operation & Automation
- Automatic measurement and interpretation reduce operator dependency
- Multi-form printing for flexible documentation
- Real-time heart rate display (30–300 bpm) with beat-by-beat updates
Clinical-Grade Isolation & Defibrillation Protection
- 4000V isolation voltage for patient safety
- Built-in defibrillation protection circuitry
- Patient leakage current <10μA; >90dB common-mode rejection
Integrated Data Management
- Isolated USB interface for secure data exchange
- 10-wire independent patient cable (easy removal)
- Compatible with external software and clinical systems
Technical specifications
| Indications | Cardiac diagnostic screening, arrhythmia detection, pacemaker analysis, routine ECG recording |
|---|---|
| Sizes / range | Single device; 8-channel simultaneous recording |
| Material | Medical-grade electronics with anti-defibrillation and high-frequency protection |
| Sterilisation | As applicable |
| Packaging | Standard kit includes chest electrodes (6), clamp electrodes (4), cleaning cloth (1) |
| Warranty | As per manufacturer terms |
Technical performance parameters
| Parameter | Specification |
|---|---|
| Sampling Rate (A/D) | 24,000 SPS per channel |
| Recording Sampling Rate | 1,000 SPS per channel |
| A/D Quantization | 24 bits |
| Recording Quantization | 16 bits |
| Resolution | 0.4 μV |
| Frequency Response | 0.05–250 Hz (±3 dB) |
| Common Mode Rejection | >90 dB |
| Input Impedance | >10 MΩ |
| Time Constant | ≥3.2 seconds |
| Maximum Electrode Potential | ±300 mV DC |
| Dynamic Range | ±12 mV |
| Isolation Voltage | 4,000 V |
| Patient Leakage Current | <10 μA |
| Recording Speeds | 12.5 mm/s, 25 mm/s, 50 mm/s |
| Sensitivity Options | 10 mm/mV, 5 mm/mV, 20 mm/mV |
| Heart Rate Display Range | 30–300 bpm |
| PC Interface | USB connector (isolated, 5V output) |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Chest Electrode | Standard diagnostic electrode for precordial placement | 6 |
| Clamp Electrode | Limb lead electrode with secure clamp mechanism | 4 |
| Cleaning Cloth | Maintenance cloth for electrode and device care | 1 |
Optional accessories & configurations
| Category | PC (Computer) accessories, Trolley, Printer accessories |
|---|
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, pricing, and delivery timelines. We support custom OEM solutions and integration with your existing clinical infrastructure.
