Good hinged elbow control
Maintains alignment for complex distal humerus and elbow fracture-dislocations. Stable yet allows the protected motion we need.
Dr. Tobias Wagner, MD, FRCSVerified buyerAug 5, 2025
Teds Medical

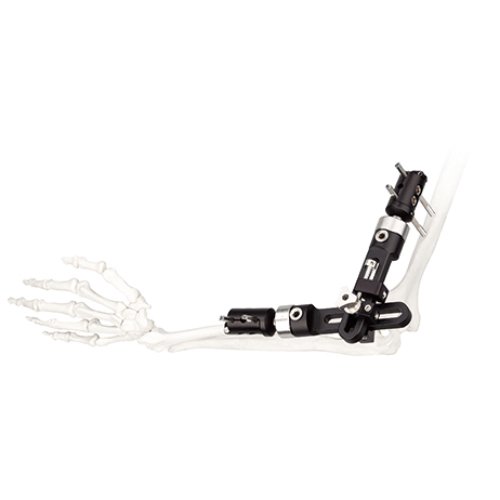

Elbow Fragment External Fixator
4.7(3 reviews)- Includes 4 pieces of 5*110mm pins
- Comes with 3mm and 5mm hex wrench for easy assembly
- Includes a 6mm screwdriver for precise adjustments
- Helps fix elbow fragments effectively
- SKU
- 6100-0801
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Tags
External Fixation
Elbow Fragment External Fixator
Precision external fixation system designed for effective stabilization and reduction of elbow fragment fractures. Complete with all necessary instruments for assembly and adjustment, enabling reliable intraoperative control and optimal healing outcomes.
Ordering Ref.
6100-0801
Configuration4-pin system
MaterialStainless steel
ApplicationElbow trauma
OEM customisation and bulk ordering available upon request.
Clinical overview
The Elbow Fragment External Fixator is a specialized trauma system engineered for the stabilization and reduction of complex elbow fractures, particularly comminuted distal humerus injuries. This Orthofix-type configuration provides surgeons with a reliable method for maintaining fragment alignment during the critical healing phase, reducing the risk of malunion and optimizing functional outcomes.
The system combines proven biomechanical principles with intuitive assembly, enabling rapid intraoperative deployment and precise adjustment without compromising sterility or operative time.
Key features & surgeon benefits
Stability
Rigid Fragment Control
- Four 5×110 mm pins provide multi-directional stability
- Orthofix design minimizes micromotion at fracture site
- Proven biomechanical performance in complex trauma
Workflow
Intuitive Assembly
- Included 3 mm and 5 mm hex wrenches for rapid setup
- 6 mm screwdriver for precise intraoperative adjustments
- Minimal learning curve; compatible with standard trauma protocols
Economics
Complete Kit Solution
- All instruments included; no additional purchases required
- Reduces operative time and associated costs
- Competitive pricing for high-volume trauma centers
Customisation
OEM Flexibility
- Available for private-label and institutional branding
- Custom pin configurations upon request
- Bulk ordering and supply agreements supported
Technical specifications
| Indications | Elbow fragment fractures, comminuted distal humerus fractures, complex elbow trauma |
|---|---|
| Sizes / range | 5×110 mm pins (4 pieces per kit) |
| Material | Stainless steel (pins and instruments) |
| Sterilisation | As applicable |
| Packaging | Complete kit with carrying case |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Fixation pins | 5×110 mm stainless steel pins | 4 |
| Hex wrench | 3 mm hex wrench | 1 |
| Hex wrench | 5 mm hex wrench | 1 |
| Screwdriver | 6 mm screwdriver for adjustments | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, and OEM customisation options for the Elbow Fragment External Fixator. We support trauma centers, hospital networks, and medical device distributors worldwide.
Phone: (302) 613-4333
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
4.7· 3 reviewsReliable
Held the reduction well through the soft-tissue recovery window.
Dr. Pedro Alvarez, MDApr 21, 2026
Solid periarticular frame
Rigid construct with sensible pin spacing around the elbow. Setup takes a little planning.
Dr. Naomi Fischer, MDSep 12, 2024
