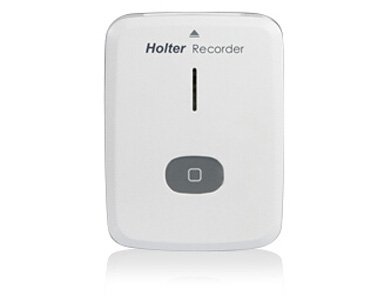

HeartRec® Lite Holter ECG Ambulatory ECG Analysis System
Original price was: $1,131.00.$767.00Current price is: $767.00.
– The HeartRec® Lite Holter ECG is a compact and lightweight ambulatory ECG analysis system
– Offers automatic duplex operation with 12-channel or 3-channel options
– Programmable recording up to 7 days for 3-channel configuration
– Features lightning-fast data transfer and pacemaker detection
– Comes with standard accessories including EKG cable, SD card, and battery
Description
HeartRec® Lite Holter ECG Ambulatory Analysis System
Compact, lightweight ambulatory ECG recorder with automatic duplex operation supporting 12-channel or 3-channel configurations. Programmable recording up to 7 days, lightning-fast data transfer, and integrated pacemaker detection for comprehensive cardiac monitoring.
Clinical overview
The HeartRec® Lite Holter ECG is a fully programmable, research-grade ambulatory ECG analysis system designed for extended cardiac monitoring in clinical and field settings. Its automatic duplex operation allows seamless switching between 12-channel and 3-channel modes via simple cable exchange, providing flexibility for diverse diagnostic protocols without requiring device reconfiguration.
With recording capabilities up to 7 days for 3-channel configuration and independent pacemaker detection, the system delivers high-fidelity cardiac data suitable for comprehensive arrhythmia assessment, ischemia detection, and device monitoring. Lightning-fast data transfer via SD card or USB ensures rapid turnaround for clinical reporting.
Key features & surgeon benefits
Flexible Channel Architecture
- 12-lead (10-wire) or 3-channel (5-wire or 7-wire) switchable configuration
- Independent pacemaker detection channel for device patients
- Standard leads: I, II, III, aVR, aVL, aVF, V1–V6
Rapid Data Acquisition & Transfer
- Lightning-fast data transfer via removable SD card or USB connector
- Programmable recording: 24–72 hours (12-channel), up to 7 days (3-channel)
- Sampling rate: 128–1024 Hz per channel, up to 10,000 Hz available
Ultra-Low Power Consumption
- Single AAA battery operation: up to 7 days for 3-channel recording

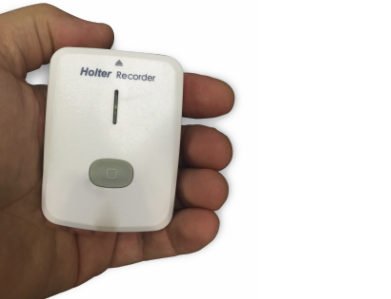

- Compact size (72×53×16 mm) and lightweight (48 g) for patient comfort
- Optional rechargeable battery and charger available
Research-Grade Performance
- Frequency response: 0.05–60 Hz with CMMR >80 dB
- Input impedance: >5 MΩ; 12–16 bit resolution
- High-fidelity recording suitable for clinical and research applications
Technical specifications
| Indications | Ambulatory cardiac rhythm monitoring, arrhythmia detection, ischemia assessment, pacemaker function monitoring |
|---|---|
| Sizes / range | 12-channel (10-wire) or 3-channel (5-wire or 7-wire selectable) |
| Material | Compact polymer housing |
| Sterilisation | As applicable |
| Packaging | Plastic case and leather case included |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| EKG Cable | Patient lead cable assembly | 1 |
| Plastic Case | Protective carrying case | 1 |
| Leather Case | Premium protective carrying case | 1 |
| Battery | AAA battery (2 units) | 2 |
| SD Card | Data storage card | 1 |
| Cleaning Cloth | Device maintenance cloth | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss HeartRec® Lite specifications, pricing, and delivery timelines. We also offer optional rechargeable battery systems and custom configurations for your clinical requirements.
