Medical Device Diagnostic Portable Digital Ultrasound Scanner SONO R
Original price was: $3,185.00.$2,333.50Current price is: $2,333.50.
– Portable digital ultrasound scanner with a 5.5-inch TFT color LCD monitor
– 4 display modes: B,B+B,4B,B+M,M and 256 gray scale levels
– 256 frames for cine-memory, 64 image permanent storage
– Various body measurement options for OB/GY, heart, and general imaging
– Probe options available for different applications along with essential accessories included
Description
Monitor: 5.5 inch TFT color LCD
Full digital beam forming technology
Gama correction, histogram& Scanning angle adjustment
Display Mode: B,B+B,4B,B+M,M
Image magnification: ×1.0, ×1.2, ×1.5, ×2.0 times
4 focusing combination selectable
PAL-D output
Gray Scale: 256 levels
256 frames for cine-memory,64 image permanent storage
Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession
15 difference kinds of body marks with difference calipers.
Measurement in Distance, Circumference/Area, Time/Heart Rate/EF rate for heart, and GS, CRL, BPD, HC, FL, AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation.
Characteristic showing in real-time clock, ID, Sex, Age, Focusing Info and Gain (Near, Far, Overall) info.
USB 2.0 For real-time picture uploading to PC
Scanning Method: Convex, Micro-convex, Linear, rectal
Power supply: AC100-240v, 50/60Hz DC: 16.8v rechargeable, Lithium battery Capacity 180 minute continue working
Dimensions: 265mmx46mmx53mm
Weight: 700g.
| Probe | linear probe 6.5MHz Rectal probe |
convex probe | micro-convex probe | |
| Detect Depth(mm) | ≥80 | ≥140 | ≥90 | |
| Resolution (mm) |
Lateral | ≤1 (Depth≤60) | ≤3 (Depth≤80) ≤5 (80＜Depth≤130) |
≤3 (Depth≤60) |
| Axial | ≤1 (Depth≤80) | ≤1 (Depth≤80) | ≤1 (Depth≤60) | |
| Blind zone(mm) | ≤3 | ≤6 | ≤5 | |
| Geometric position precision | Horizontal | ≤5 | ≤7.5 | ≤7.5 |
| Vertical | ≤5 | ≤5 | ≤5 | |
| Monitor size | 5 inch | |||
| Display mode | B, B+B, B+M, M, 4B | |||
| Image gray scale | 256 | |||
| Image storage | 64 | |||
| Cine loop | ≥400 frame | |||
| Scan depth | 70 mm～140 mm | |||
| Image flip | Up/down, left/right | |||
| Focus position | Adjustable | |||
| posture mark | 16 | |||
| Image Process | Histogram, Color encode, GAMA, Image Smoothen | |||
| Probe Frequency | Adjustable(3 point each probe) | |||
| Frame correlation | Adjustable | |||
| Measurement | Distance, circumference, area, volume, heart rate. GA,EDD | |||
| Notation | Date, time, name, sex, age, hospital name、Full screen words edit | |||
| output report | Measurement | |||
| Output | USB2.0, VIDEO(PALD, NTSC) | |||
| Battery Continuous work | ≥2Hours | |||
Standard:
Multi frequency convex probe …… 1Pcs
Hard Case …………………………….. 1Pcs
Silicon Case ……………………….. 1Pcs
Power Adapter …………………….. 1Pcs
Chargable Battery ………………….. 1Pcs
Cleaning Cloth ………………………. 1Pcs

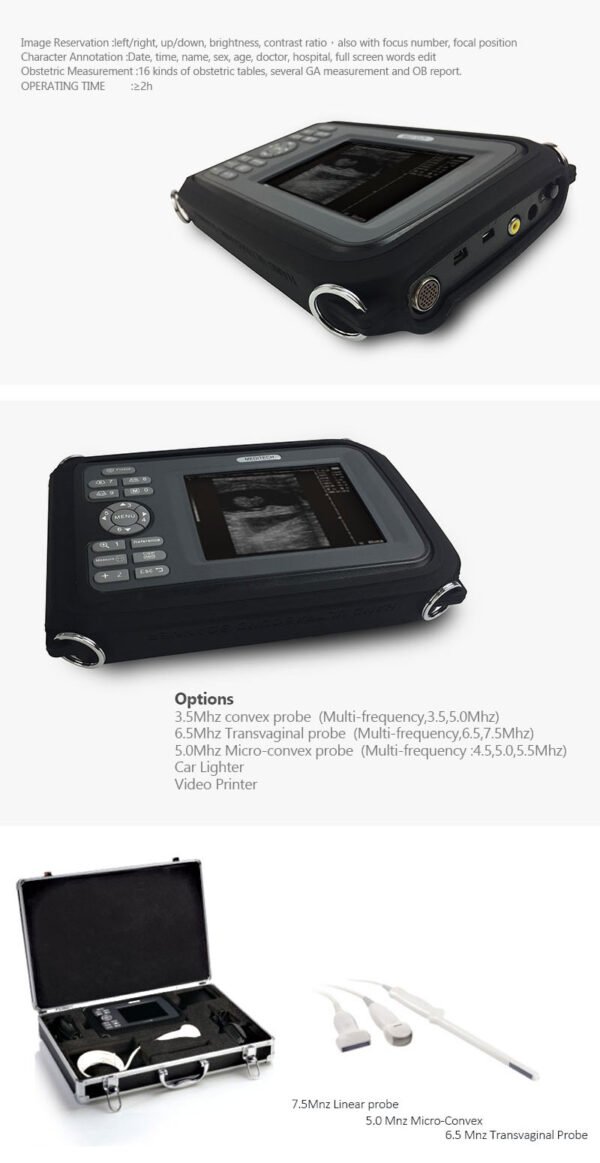

Options:
7.5MHz high-frequency linear array probe
6.5MHz intra-cavity (trans-vaginal) probe
7.5MHz rectal probe
3.5MHz micro-convex probe
DC Car Charger
USB Cable
