Medical Oscillating Bone Saw 507
Original price was: $1,105.00.$949.00Current price is: $949.00.
– Suitable for various orthopaedic joint surgeries
– Rapid and accurate bone tissue cutting
– Smooth and tidy bone edges with low temperature rise
– Multiple saw blade sizes available for clinical needs
Description

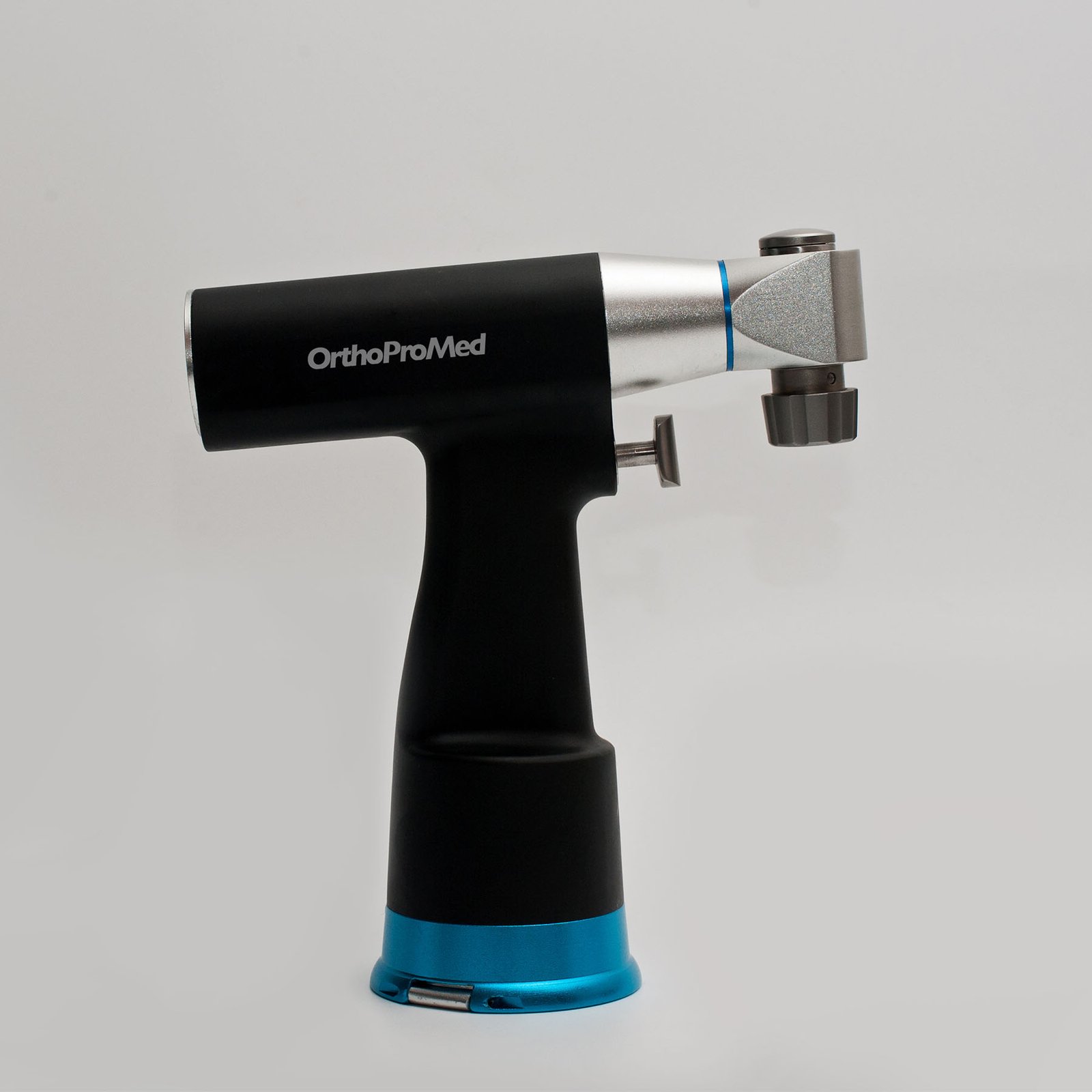

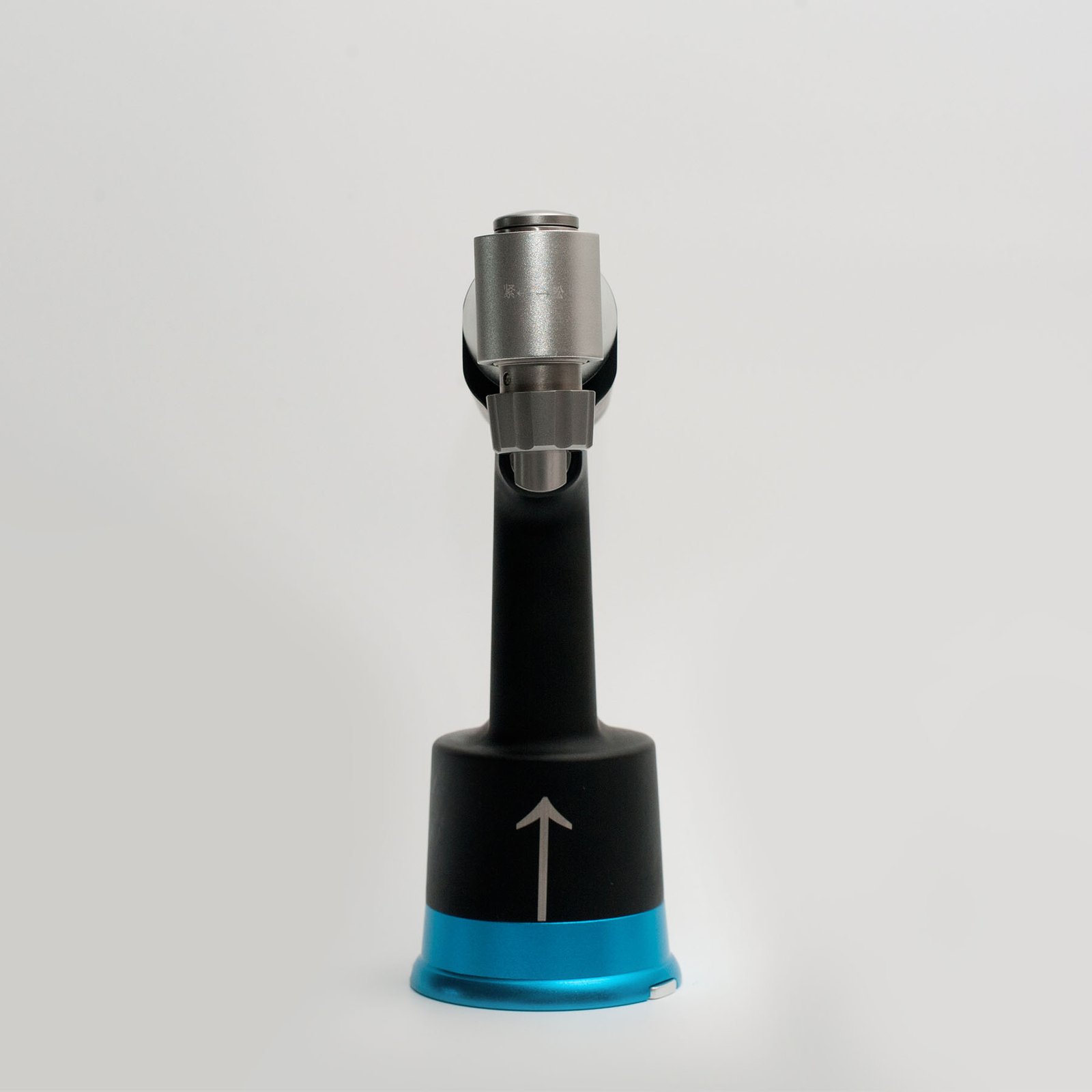

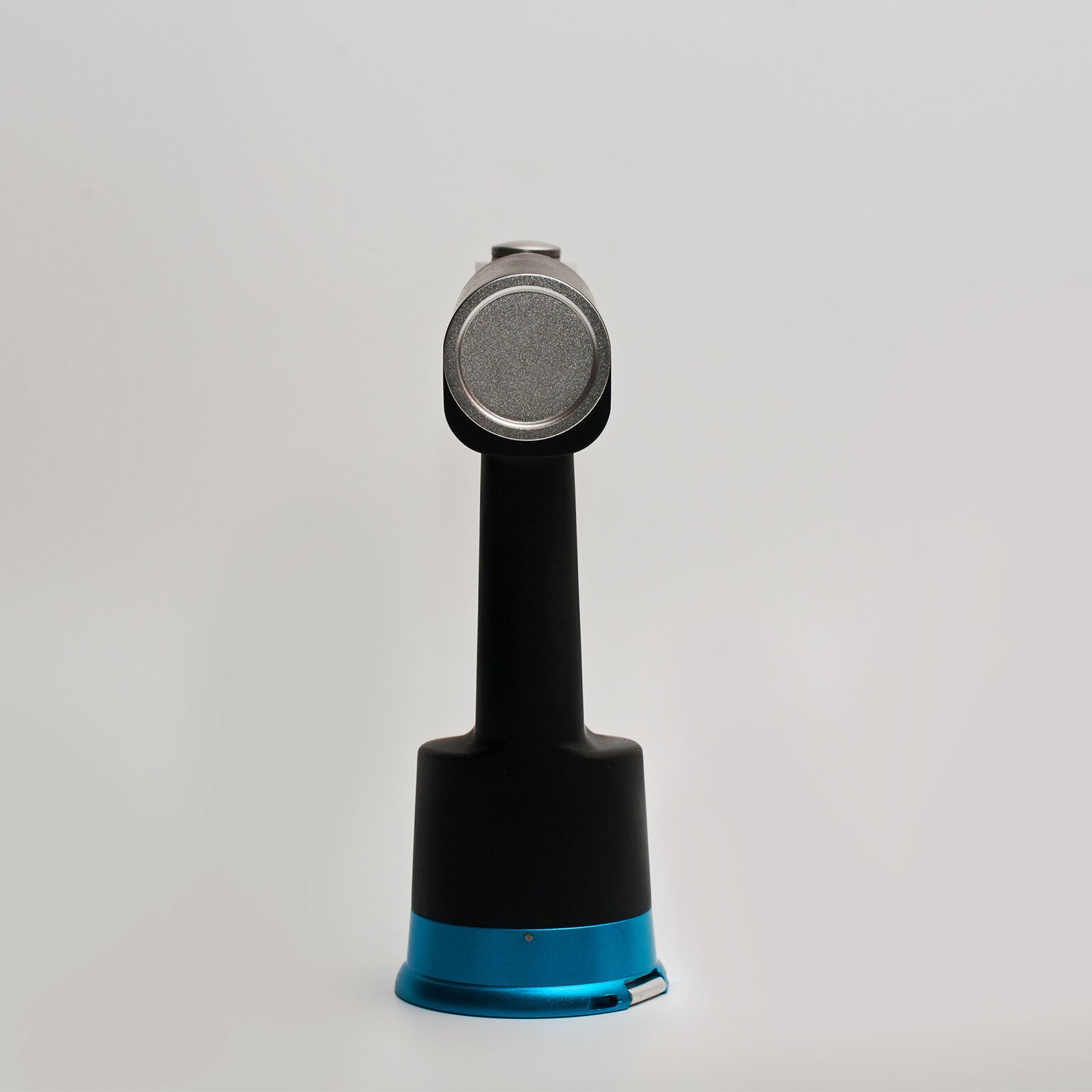

Medical Oscillating Bone Saw 507
Rapid, accurate bone tissue cutting with smooth, tidy edges and minimal thermal rise. Engineered for orthopaedic joint surgery with multiple blade sizes and ergonomic design. Proven performance for human and veterinary surgical applications.
Clinical overview
The Medical Oscillating Bone Saw 507 is purpose-built for orthopaedic joint surgery, delivering rapid and accurate bone tissue cutting with minimal thermal rise. The oscillating mechanism produces smooth, tidy bone edges essential for optimal healing and reduced post-operative complications. Multiple saw blade sizes are available to accommodate diverse surgical requirements across small, medium, and large bone procedures.
With its ergonomic design and lightweight construction, the saw is comfortable to control even during extended surgical procedures. The cordless battery-powered system provides freedom of movement and eliminates cable management concerns. Proven performance across human and veterinary surgical applications, with 5-star clinical feedback supporting its reliability and effectiveness.
Key features & surgeon benefits
Rapid & Accurate Bone Cutting
- 0–20,000 RPM variable speed control
- Smooth, tidy bone edges with minimal thermal rise
- Precise location accuracy for complex joint procedures
Ergonomic & Cordless Design
- Lightweight, handy construction for small-hand surgeons
- Cordless battery operation with 2 included batteries
- Low noise output ≤70dB for operating room comfort
Multiple Blade Sizes
- Wide range of saw blade specifications available
- Suitable for small, medium, and large bone procedures
- Compatible with both human and veterinary applications
Sterilisable & Reliable
- HTHP sterilisation at 134–138°C
- Robust construction with proven clinical track record
- 1800mAh battery capacity for extended surgical sessions
Technical specifications
| Indications | Orthopaedic joint surgery, bone tissue cutting |
|---|---|
| Sizes / range | Multiple saw blade sizes available |
| Input voltage | 110V–240V / 50Hz |
| Output power | ≤120W |
| Rated speed | 0–20,000 RPM |
| Battery capacity | 1800mAh |
| Charging voltage | 14.4V |
| Sterilisation | HTHP (134–138°C) |
| Noise level | ≤70dB |
| Packaging | As applicable |
| Warranty | As applicable |

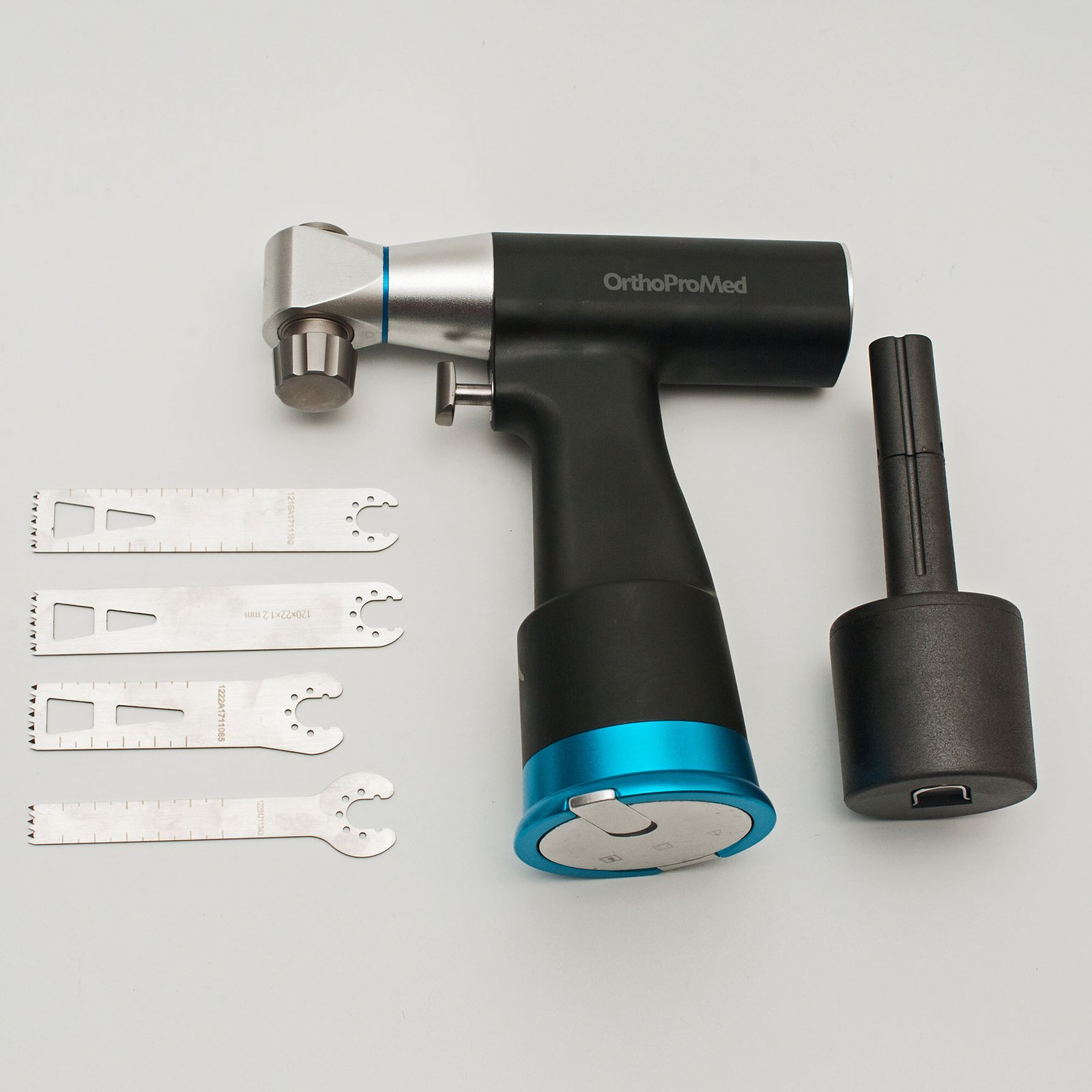

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Oscillating Bone Saw Unit | Main handpiece with motor and oscillating mechanism | 1 |
| Rechargeable Battery | 1800mAh lithium-ion battery pack (14.4V) | 2 |
| Charging Dock | Universal charger for 110V–240V input | 1 |
| Saw Blade Set | Multiple blade sizes for various bone cutting applications | As applicable |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, discuss clinical requirements, or arrange a product demonstration. We support both human and veterinary surgical facilities.
Email: info@tedsmedical.com
