Description

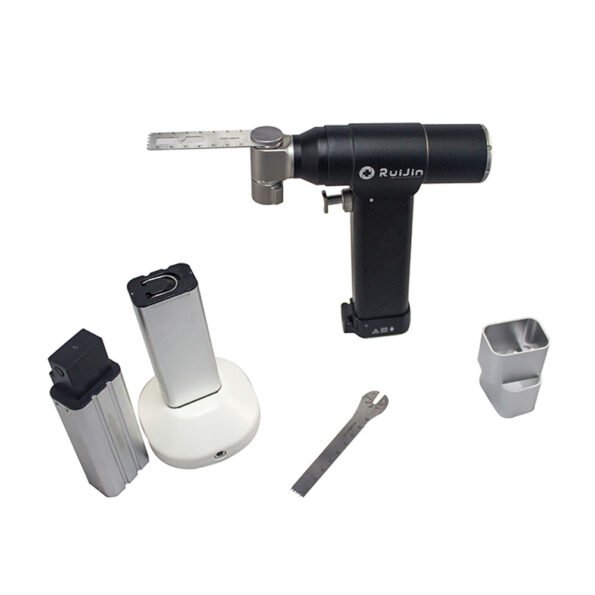

NS-1011 Oscillating Bone Saw Medical
Precision cordless oscillating bone saw engineered for hand surgery and orthopedic procedures. Features ergonomic design, autoclavable construction, and reliable Ni-MH battery technology for extended operative time and minimal surgeon fatigue.
Clinical overview
The NS-1011 is a cordless oscillating bone saw designed for precision cutting in hand surgery and orthopedic procedures. Engineered with ingenuity and high-quality construction, this device combines ergonomic design with wide surgical compatibility. The lightweight handpiece minimizes joint fatigue during extended procedures, while the autoclavable main unit meets all regulatory requirements for sterilization and safety.
Ideal for both medical and veterinary surgeons, the NS-1011 delivers consistent cutting performance with output power ≥20W and minimal thermal rise (≤25°C). The Ni-MH battery technology is environmentally friendly and free from memory effect, ensuring reliable performance across multiple surgical cases.
Key features & surgeon benefits
Lightweight & Maneuverable
- Weighs only 1700g for reduced operator fatigue
- Optimized balance and grip design for precision control
- Wide surgical compatibility across multiple applications
Cordless Convenience
- 14.4V Ni-MH battery with ~3-hour charging time
- Two saw blades included for extended operative sessions
- Sterilizing channel and aluminum carrying case provided
Autoclavable Construction
- Main unit sterilizable by high temperature and high pressure
- Stainless steel construction for corrosion resistance
- Reusable design reduces long-term procedural costs
Reliable Power Output
- Output power ≥20W for consistent cutting performance
- Unit temperature rise ≤25°C for safe prolonged use
- Environmentally friendly battery without memory effect
Technical specifications
| Indications | Hand surgery, medium and large bone surgeries, orthopedic and veterinary applications |
|---|---|
| Sizes / range | Single handpiece with two saw blades |
| Material | Stainless Steel |
| Sterilisation | Autoclavable (high temperature and high pressure) |
| Packaging | One set in aluminum box, then in one carton |
| Warranty | As applicable |
Handpiece & power specifications
| Component | Parameter | Specification |
|---|---|---|
| Handpiece | Working Voltage | 14.4V |
| Output Power | ≥20W | |
| Unit Temperature Rise | ≤25°C | |
| Charger | Input Power | AC 220V, 50Hz |
| Output Power | 14.4V, 700mA | |
| Input Power Rating | 30VA | |
| Battery | Voltage | 14.4V Ni-MH |
| Charging Time | Approximately 3 hours |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | Cordless oscillating saw handpiece, 14.4V | 1 |
| Battery | Ni-MH rechargeable battery, 14.4V | 1 |
| Charger | AC 220V, 50Hz charging unit | 1 |
| Saw Blades | Replacement oscillating saw blades | 2 |
| Sterilizing Channel | Sterilization tray for handpiece | 1 |
| Carrying Case | Aluminum box for transport and storage | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss clinical applications, or arrange a demonstration of the NS-1011 Oscillating Bone Saw. We support both direct purchase and OEM customization options.
Email: info@tedsmedical.com
Related Products

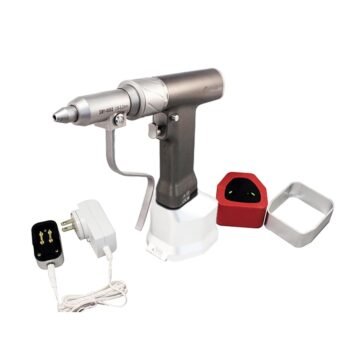

– The SM-100 Handpiece Of Multifunctional System is a surgical instrument made of stainless steel.
