NS-2012 360° Roating Micro Oscillating Saw
$1,131.00
– NS-2012 360° Roating Micro Oscillating Saw for precise bone cutting
– Reusable stainless steel saw with CE and ISO13485 certification
– 7.7V output voltage and 0.7kg weight for easy handling
– Battery-powered with 0-16000 Ocs/Min oscillations
– Low noise level of 63db and trademarked by RUIJIN
Description

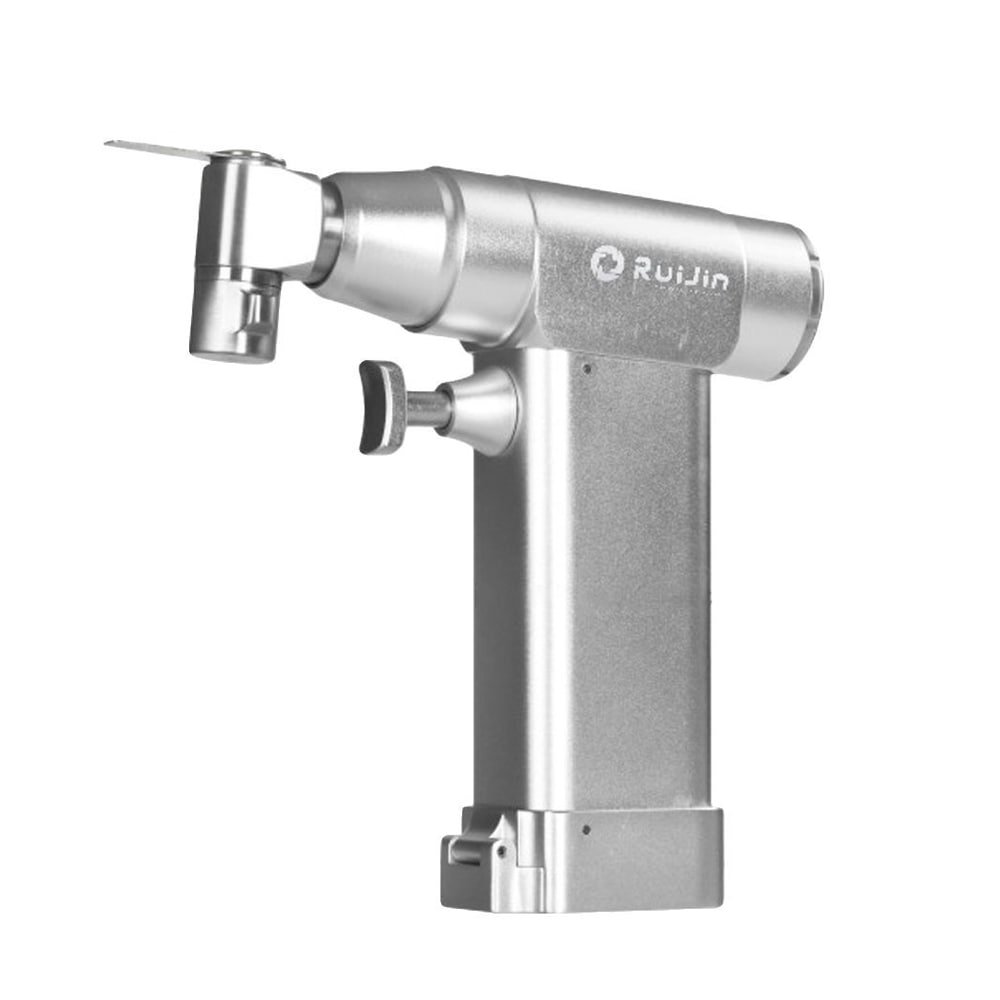

NS-2012 360° Rotating Micro Oscillating Saw
Precision bone cutting instrument engineered for orthopedic and burn surgery applications. Battery-powered with variable oscillation control, low noise operation, and lightweight ergonomic design for enhanced surgical control and reduced operator fatigue.
Clinical overview
The NS-2012 is a battery-powered oscillating saw designed for precise bone cutting in orthopedic and burn surgery. Its 360° rotating capability combined with variable oscillation frequency (0–16,000 Ocs/Min) enables surgeons to achieve clean, controlled cuts with minimal thermal damage to surrounding tissue. The lightweight design (0.7 kg) and ergonomic handling reduce operator fatigue during extended procedures.
Operating at a low noise level of 63 dB with a temperature rise below 25°C, the NS-2012 provides a comfortable surgical environment while maintaining high cutting efficiency. The Ni-MH battery system offers 3-hour charging time and reliable cordless operation, eliminating cable management concerns in the operating room.
Key features & surgeon benefits
Precision Cutting Control
- Variable oscillation 0–16,000 Ocs/Min for adaptive cutting
- 360° rotating head for multi-directional access
- Radial runout ≤0.05 mm ensures straight, clean cuts
Cordless Operation
- Battery-powered with 3-hour charge time
- No cable entanglement or OR setup delays
- Lightweight 0.7 kg design reduces hand fatigue
Thermal & Acoustic Control
- Temperature rise <25°C protects adjacent tissues
- Low noise 63 dB minimizes OR disruption
- 45 W output power with controlled pendulum frequency
Reusable & Certified
- Stainless steel construction for long service life
- CE and ISO 13485 certified
- Supplied with aluminum sterilization case
Technical specifications
| Model | NS-2012 |
|---|---|
| Indications | Orthopedic surgery, burn surgery, bone cutting |
| Type | Oscillating Saw / Medical Bone Saw |
| Material | Stainless Steel |
| Output Voltage | 7.7 V |
| Output Power | 45 W |
| Oscillation Range | 0–16,000 Ocs/Min |
| Pendulum Frequency | 18,000 rpm |
| Swing Angle | 4.0° |
| Radial Runout | ≤0.05 mm |
| Weight | 0.7 kg |
| Battery Type | Ni-MH |
| Charging Time | 3 hours |
| Noise Level | 63 dB (operational); 45 dB or less (no-load) |
| Temperature Rise | <25°C (continuous operation); 30°C at 5 min |
| Colors Available | Silver, Black |
| Sterilisation | Reusable; sterilization case included |
| Packaging | Aluminum case, carton box, sterilization case |
| Certification | CE, ISO 13485 |
| Trademark | RUIJIN |
| Origin | China (Mainland) |
| HS Code | 9018909000 |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| NS-2012 Saw Unit | 360° rotating micro oscillating saw with battery and charger | 1 |
| Ni-MH Battery | Rechargeable battery pack (7.7 V) | 1 |
| Charger | 3-hour charging unit | 1 |
| Sterilization Case | Aluminum sterilization case for reprocessing | 1 |
| Carton Packaging | Protective carton box for transport | 1 |
