Portable Capnoxi Capnography Gas Analyzer Display with SpO2 Monitor, SpO2 with Gas Analyzer
Original price was: $3,055.00.$2,333.50Current price is: $2,333.50.
– Portable Capnography Gas Analyzer Display with SpO2 Monitor
– Monitoring SpO2, pulse rate, ETCO2, and respiratory rate
– Update 255-hour historical data replay on PC through USB
– Suitable for clinical and emergency circumstances
– SpO2, SpO2+CO2 selectable
Description
Monitoring SpO2, pulse rate, ETCO2 and respiratory rate;
Update 255-hour historical data replay on PC through USB
Equip Spo2 and Respiratory Status Analysis Software, comprehensive data analysis
Suitable for clinical and emergency circumstance
SpO2, SpO2+CO2 selectable
Software Function
Professional Data Analysis Software for CO2 Monitoring
Connecting the palm monitor to PC through USB
Storing Unlimited patient’s data
Displaying ETCO2，SPO2 Trends Table
Controlling PC printer, outputting trend graph, trend table report
Recording and storage object’s respiration details in clinical
Main Unit’s Environment Requirement
Working: Temperature: 5℃~50℃;
Relative humidity: 0~95%;
Atmosphere Pressure: 70.0KPa~106.0KPa
Storage: Temperature: 0℃~70℃;
Relative humidity: 0~95%;
Atmosphere Pressure: 22.0KPa~120.0KPa
LED
Patient Alarm Indicator: Two colors: Yellow and Red
Sound Indicator
Loudspeaker: Play alarm voices
Interfaces
Power: 12VDC power socket x 1
USB: MINI USB socket x 1
Measurement Specification
Principle: NDIR single beam optics
Sampling Rate: 90mL/min, ±10mL/min
Initialization Time: Waveform displaying in 20 seconds
Range
CO2: 0~99 mmHg, 0~13 %
N2O: 0~100 VOL%
ISO: 0~6VOL%
ENF: 0~6VOL%
SEV: 0~8VOL%
RR: 2~150 bpm
Resolution
CO2: 0~40 mmHg ±2 mmHg
40 ~99 mmHg ±5% of reading
N2O: 0~100VOL%
±(2.0 vol% +5% of reading)
ISO: 0~6VOL%
±(0.3 vol% +2% of reading)
ENF: 0~6VOL%
±(0.3 vol% +2% of reading)
SEV: 0~8VOL%
±(0.3 vol% +2% of reading)
RR: ±1 bpm
Apnea Alarm Time: 20~60s
MAC value defines
1.0MAC: under an atmospheric pressure condition, give a person or animal skin stimulation, 50% of people or animals not body dynamic response or escape reflection occurs, the inhalation anesthetics in alveolar concentration.
To achieve 95% of people don’t respond to stimuli, the MAC value should reach to 1.3.
When MAC value is 0.4，most patients will wake up.
Anesthetic agents
Enflurane: 1.68
Isoflurane: 1.16
Sevoflurane: 1.71
Halothane: 0.75
N2O: 100%
Notice Desflurane’s MAC1.0 values differ with age
Age: 18-30 MAC 1.0 7.25%
Age: 31-65 MAC 1.0 6.0%
Power Specification
Input Voltage: 12V DC
Input Current: 2.0 A
Physical Specification
Main Unit
Weight: 0.65Kg
Dimension: 192mm x 106mm x 44mm
Hardware Specification
TFT Screen
Type: Colorful TFT LCD
Dimension: 5.0 inch
Battery
Quantity: 4
Model: Rechargeable lithium battery
Voltage: 3.7 V
Capacity: 2200mAh
Working time: 10 hours
Recharging time: 4 Hours
Standard:
CO2 Sample Line ……… 1Pcs
Nasal Tube ……………… 1Pcs
Water-trap Column ……… 1Pcs
Airway Adapter …………. 1Pcs
Power Adapter ………….. 1Pcs
Options:
SpO2 Cable (Adult hard shell sensor)
SpO2 Cable (Adult Soft shell sensor)
SpO2 Cable (Neonatal soft sensor)
SpO2 Cable (Pediatric hard shell sensor)
SpO2 Cable (Pediatric Soft shell sensor)
SpO2 Cable (Child finger clip)
SpO2 Cable (multi-site Y type)
SpO2 External Cable
Related Products
– Portable MiniScan Veterinary Mini Ultrasound Scanner for small and large animal pregnancy
– Multi-frequency waterproof ultrasound probe for versatile scanning
– Includes rechargeable lithium ion battery pack for convenient field use
– Comes with two years factory warranty (one year for probe) and a carrying case
– Optional accessories available such as car lighter and video goggles for enhanced functionality
– Cardios Pro Stress Test System for evaluation of exercise stress test including ECG, symptoms, and blood pressure
– Features high-resolution A/D conversion and patented Meditech technology for accurate measurements
– Offers different selectable filters, arrhythmia detection, and live review for comprehensive analysis
– Compatible with various treadmills and ergometers, with preset protocols and user-defined options
– Includes exercise testing hardware, software for real-time analysis, and data management capabilities
– Handheld veterinary ultrasound scanner with RFID technology
– 6-inch high-resolution color display for clear imaging
– Level 7 waterproof design for durability
– Built-in RFID technology with effective short distance scanning
– Customizable software to meet clients’ needs
– Comes with standard accessories including probes, cases, and power adapter
– High resolution 8” color TFT display
– Monitors 6 parameters: ECG, HR, Resp, NIBP, SpO2, TEMP
– Portable and lightweight design with a built-in rechargeable lithium battery
– Features unique human voice alarms and multiple screen layouts
– Multi-functional visual stethoscope with auscultation sound output
– ECG waveform display for accurate heart monitoring
– SpO2 monitor for oxygen saturation levels
– Pulse waveform and rate display for comprehensive patient assessment
– High resolution 15” color TFT display
– Portable and lightweight design
– Suitable for adult, pediatric, and neonatal patients
– Features 9 parameters including ECG, Resp, NIBP, SpO2, and TEMP
– Options for Invasive Blood Pressure, Carbon dioxide Module, and Touch Screen
– Upgradable system software through network
– Built-in rechargeable lithium battery and human voice alarm
– Slim and lightweight 3 channel ECG machine
– Large color touch screen display for easy operation
– Precise ECG auto-interpretation program for accurate results
– Built-in rechargeable battery for 2 hours of continuous use
– Lead-off detection for signal quality assurance
– Multiple operation modes including automatic, manual, and arrhythmia analysis
– External USB card for storing up to 1000 reports
– Deluxe high-density polyethylene shell
– Intelligent automatic pressing with WHO indicator
– Large-scale LCD display with storage memory for 2 users (99 records each)
– Voice broadcast feature with arrhythmia detection
– Capnoxi Plus Capnography with CO2 Sensor is a versatile device suitable for clinical and emergency circumstances
– It monitors SpO2, pulse rate, ETCO2, and respiratory rate
– Features a TFT screen with a colorful 5.0-inch LCD display
– Comes with professional data analysis software for CO2 monitoring and storage of unlimited patient data

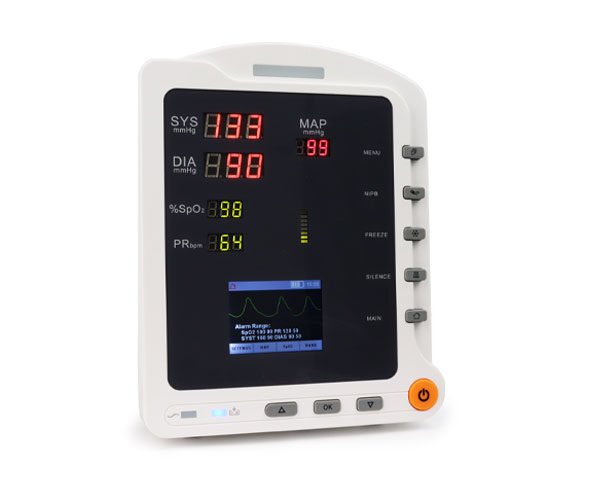

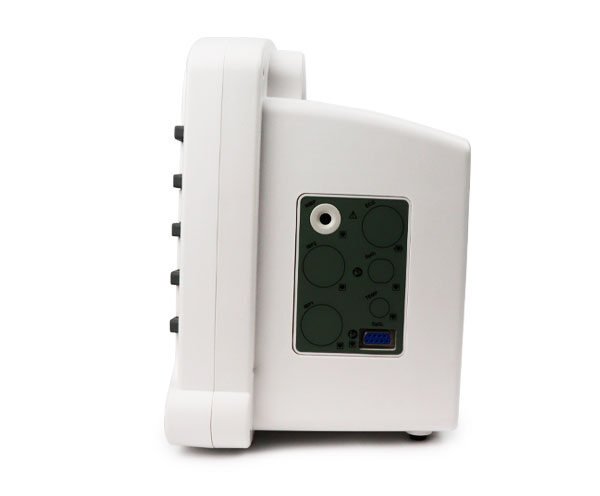

– The Oxima® 3 Light Weight Vital Signs Patient Monitor is efficient and easy to use
