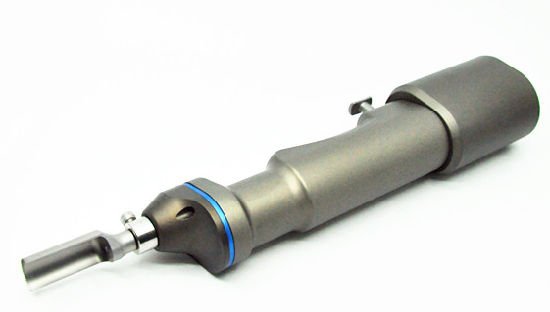

Veterinary TPLO Saw including 2 batteries for animal surgery
$2,275.00
– Veterinary TPLO Saw with 2 batteries, ideal for animal surgery
– Features 130W output power and a speed range of 0-16000rpm
– Can be sterilized up to 135ºC, ensuring optimal hygiene
– Made of hard oxidized aluminum alloy for durability
– Step-less speed regulation and ergonomic design for operator safety
– Includes Ni-MH batteries and various accessories for convenience
– Optional saw blades available in 8 sizes for versatile use
Description
Veterinary TPLO Saw with 2 Batteries
Professional-grade oscillating saw system for tibial plateau leveling osteotomy and orthopedic procedures in veterinary surgery. Delivers 130W output power with variable speed control from 0–16,000 rpm, autoclavable to 135°C, and includes dual Ni-MH batteries with charger for extended surgical sessions.
Clinical overview
The Veterinary TPLO Saw is a precision oscillating saw system designed specifically for tibial plateau leveling osteotomy and general orthopedic bone cutting in veterinary surgical practice. With 130W output power and stepless speed regulation from 0–16,000 rpm, the system delivers controlled, predictable cutting performance across a range of bone densities and thicknesses. The triangular interface saw head allows repeated, gentle cutting with minimal thermal damage to surrounding tissues.
Constructed from hard oxidized aluminum alloy, the handpiece is fully autoclavable to 135°C, ensuring compliance with surgical facility sterilization protocols. The dual Ni-MH battery system eliminates memory effect and provides extended runtime, with approximately 2-hour charging time. Low vibration, ergonomic design, and noise levels ≤75 dB support operator comfort and safety during extended procedures.
Key features & surgeon benefits
Precise Cutting Control
- 130W output power with 0–16,000 rpm variable speed
- Stepless speed regulation for optimal control
- Radial run-out ≤0.5 mm for accuracy
Extended Surgical Sessions
- Dual Ni-MH batteries included; ~2-hour charge time
- No memory effect for consistent performance
- Rapid battery swap capability
Surgical-Grade Construction
- Hard oxidized aluminum alloy housing
- Autoclavable to 135°C
- Low vibration and ≤75 dB noise level

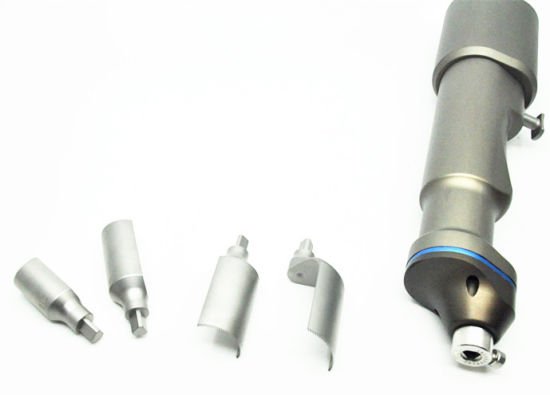

Modular Blade System
- Standard triangular interface for blade compatibility
- 8 optional saw blade sizes available
- Suitable for small to large bone cutting
Technical specifications
| Output Power | 130W |
|---|---|
| Speed Range | 0–16,000 rpm (stepless) |
| Noise Level | ≤75 dB |
| Sterilisation | Up to 135°C (autoclavable) |
| Operating Voltage | 12V DC |
| Unit Temperature Rise | ≤25°C |
| Battery Type | Ni-MH (2 included) |
| Charging Time | Approximately 2 hours |
| Charger Input | AC 100–240V, 50/60 Hz |
| Charger Output | 7.2V–14.4V, 1A |
| Net Weight | 1.5 kg |
| Radial Run-out | ≤0.5 mm |
| Material | Hard oxidized aluminum alloy |

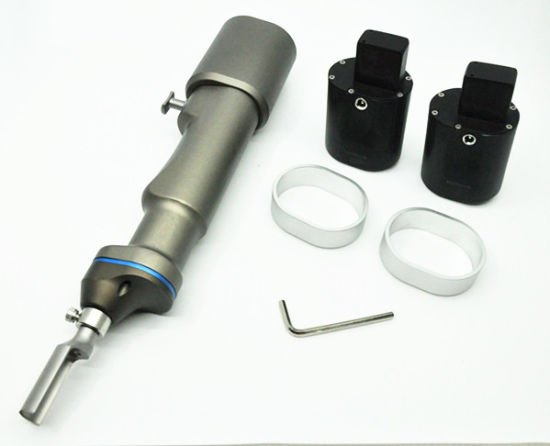

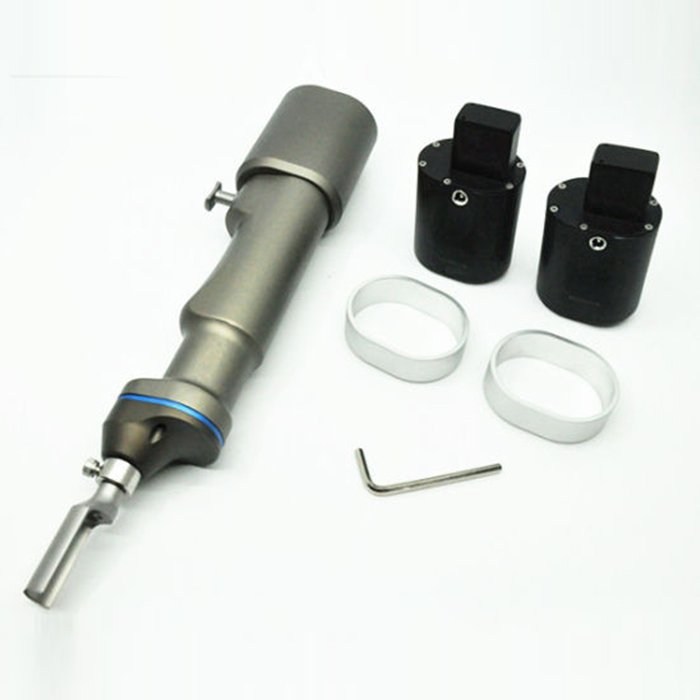

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | TPLO saw handpiece with triangular interface | 1 |
| Battery | Ni-MH rechargeable battery | 2 |
| Charger | AC 100–240V dual-voltage charger | 1 |
| Hexagonal Wrench | Internal hex wrench for blade installation | 1 |
| Sterilizing Channel | Protective sterilization channel | 2 |
| Sterilizing Case | Autoclavable sterilization case | 1 |
| Aluminum Box | Protective carrying and storage box | 1 |
Get in touch for pricing & availability
Contact our sales team to request a formal quote, discuss custom configurations, or arrange a product demonstration. We support veterinary surgical facilities worldwide with competitive pricing and technical support.
