Reliable for pilon staging
Held length and alignment across the staged protocol without any loosening.
Dr. Henrik Sorensen, MDVerified buyerDec 18, 2025
Teds Medical

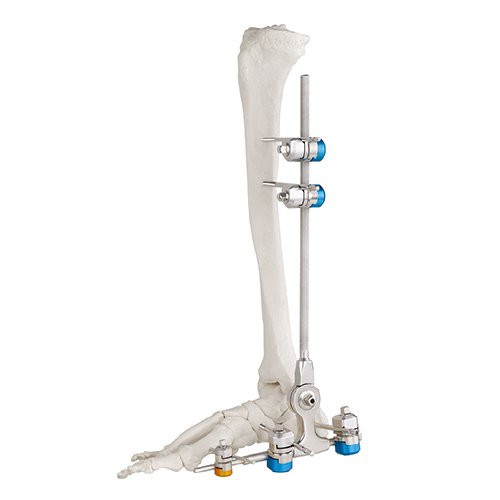

Ankle Joint External Fixator
4.7(3 reviews)- The Ankle Joint External Fixator includes Rod-Rod Coupling, Rod-Pin Coupling, Aluminum Connecting Rods, and Apex Pin
- Quality is top-notch for ease of use by patients and orthopedic surgeons
- Comes with instruments, accessories, and application parts
- Orders delivered promptly within 7 days
- SKU
- 7100-17
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Tags
Hoffman Type External Fixation
Ankle Joint External Fixator
A comprehensive Hoffman-type external fixation system engineered for ankle joint stabilization and fracture management. This modular configuration combines precision-machined aluminum connecting rods with versatile rod-to-rod and rod-to-pin couplings, delivering reliable construct stability for complex periarticular trauma and reconstructive procedures. Designed for rapid assembly and intraoperative adjustability, the system supports a wide range of ankle fixation strategies with proven clinical performance.
Ordering Ref.
7100-17
ConfigurationComplete Set
MaterialAluminum Rods / Stainless Steel Pins
ApplicationAnkle Joint
Complete system with instruments, accessories, and application components. Fast-track delivery available.
Clinical overview
The Ankle Joint External Fixator provides orthopedic surgeons with a versatile Hoffman-type solution for managing complex ankle trauma, periarticular fractures, and reconstructive procedures requiring temporary or definitive external stabilization. The system's modular architecture enables rapid construct assembly while maintaining the mechanical rigidity essential for fracture healing and joint alignment. Self-drilling apex pins facilitate efficient percutaneous insertion, reducing operative time and soft tissue disruption.
Engineered for both acute trauma management and elective reconstructive applications, this fixator supports a broad spectrum of ankle stabilization techniques. The aluminum connecting rod system offers an optimal balance of strength and weight, enhancing patient comfort during the treatment period while maintaining construct integrity. Clinicians benefit from intuitive coupling mechanisms that allow intraoperative adjustment and postoperative fine-tuning without frame disassembly.
Key features & surgeon benefits
Coverage
Comprehensive Ankle Stabilization
- Complete system for ankle joint external fixation applications
- Compatible with 5mm and 6mm pin diameters for anatomical versatility
- Multiple rod lengths (250mm, 300mm) accommodate varied patient anatomy
- Self-drilling apex pins enable efficient percutaneous placement
Workflow
Streamlined Surgical Technique
- Modular coupling system allows rapid intraoperative assembly
- Rod-to-rod and rod-to-pin couplings provide construct flexibility
- Self-drilling pins reduce insertion steps and operative time
- Intuitive design minimizes learning curve for surgical teams
Economics
Value-Driven Solution
- Complete set delivered within 7 days for predictable case planning
- Durable aluminum construction supports multiple sterilization cycles
- Comprehensive kit reduces need for supplementary component orders
- Competitive pricing without compromising clinical performance
Customisation
Adaptable Configuration
- Multiple coupling options enable patient-specific construct design
- Rod length variety accommodates different fixation strategies
- System compatible with standard Hoffman-type accessories
- Postoperative adjustment capability without frame removal
Technical specifications
| Indications | Ankle fractures, periarticular trauma, joint stabilization, arthrodesis, deformity correction, temporary or definitive external fixation |
|---|---|
| Sizes / range | Pin compatibility: 5mm, 6mm | Rod diameter: 8mm | Rod lengths: 250mm, 300mm | Pin length: 150mm |
| Material | Aluminum alloy connecting rods, stainless steel self-drilling apex pins, stainless steel couplings |
| Sterilisation | Steam autoclave (134°C, 18 minutes minimum) |
| Packaging | Complete set with instruments, accessories, and application components in protective case |
| Warranty | Standard manufacturer warranty; fast-track 7-day delivery available |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 7100-1701 | Rod-Rod Coupling (8mm Rod) | 3 |
| 7100-1702 | Rod-Pin Coupling (5/6mm Pin, 8mm Rod) | 4 |
| 7100-1703 | Aluminum Connecting Rod 8×250mm | 2 |
| 7100-1704 | Aluminum Connecting Rod 8×300mm | 1 |
| 7100-1705 | Apex Pin Self-drilling 5×150mm | 4 |
Get in touch for pricing & availability
Our team is ready to provide detailed pricing, technical specifications, and delivery timelines for the Ankle Joint External Fixator. Fast-track 7-day delivery available for urgent case requirements.
Phone: (302) 613-4333
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
4.7· 3 reviewsStable ankle-spanning frame
Ideal for high-energy pilon injuries that need soft-tissue rest before ORIF. The delta configuration is rigid and keeps the ankle out to length.
Dr. Colin Radcliffe, MD, FRCSVerified buyerJun 27, 2025
Good spanning fixator
Maintains tibiotalar alignment nicely. The foot pin is slightly fiddly to fine-tune, but the construct is stable once set.
Dr. Isabella Conti, MDNov 5, 2024
Related products
See all →
Teds Medical

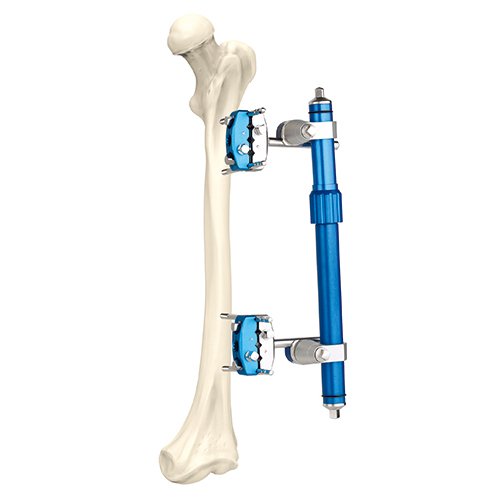

Femoral External Fixator
4.8(4)
- Complete femoral external fixator kit - Includes tube-rod coupling, compression distraction tube, pin clamp, angled post, and self-drilling apex pins - Easy ordering for patients and orthopedic surgeons - High-quality materials for effective fixation - Quick delivery within 7 days
$572.00
Teds Medical

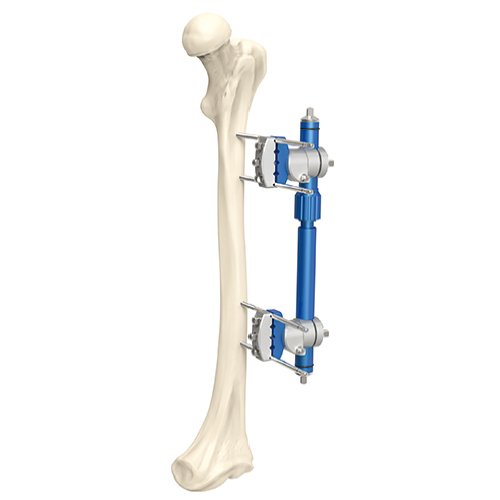

Femoral External Fixator
- Includes tube-rod coupling, compression distraction tube, 5-hole pin clamp, and angled post - Comes with a total of 11 essential components - High-quality product for orthopedic procedures - Easy ordering process with quick 7-day delivery time
$572.00
Teds Medical

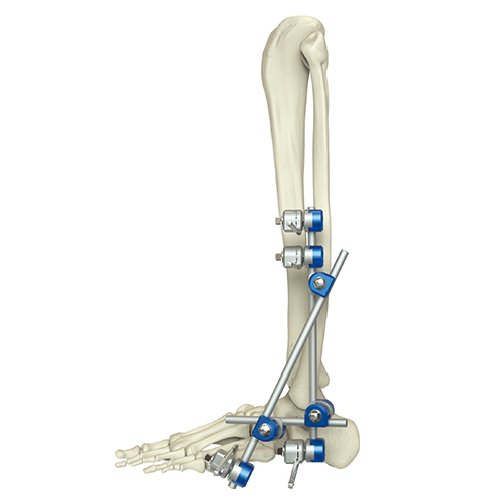

Ankle Joint External Fixator
- Includes rod-rod coupling, rod-pin coupling, ankle joint, apex pins - Designed for ankle joint external fixation - Easy to order and fast delivery in 7 days - Perfect quality for orthopedic surgeons and patients
$474.50
Teds Medical
Knee Joint External Fixator
4.7(3)
- Includes rod-rod and rod-pin couplings for flexibility in fixation - Features a knee joint component for stability - Comes with a 5-hole pin clamp for secure attachment - Includes a 30-degree angled post for customized positioning - Easy to order and receive in just 7 days - Perfect quality recommended by experts for orthopedic surgeries
$715.00
Teds Medical

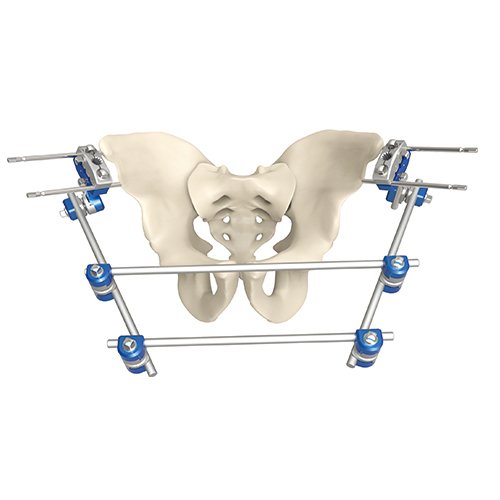

Pelvic External Fixator
- Complete set for pelvic external fixation - Includes rod-rod coupling, pin clamp, angled post, and connecting rods - Also comes with self-drilling apex pins - High-quality materials for optimal performance
$561.60
Teds Medical

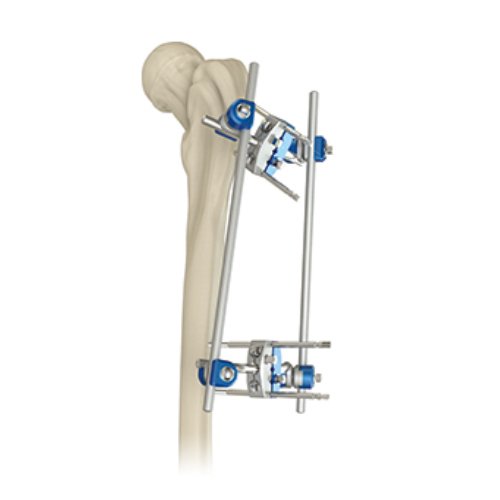

Proximal Femur External Fixator
