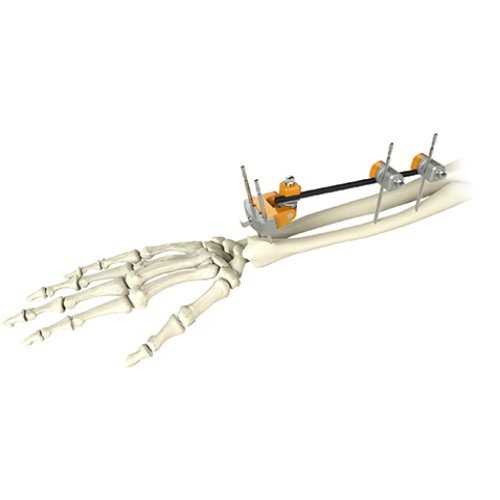

Ulna & Radius External Fixator
$287.30
– Ulna & Radius External Fixator for stable fixation
– Includes rod-rod coupling, rod-pin coupling, pin clamp, connecting rod, and self-drilling pins
– Designed for precise alignment and stability in ulna and radius fractures
– Versatile components for customized treatment options
Description
Ulna & Radius External Fixator
Precision external fixation system for stable reduction and alignment of ulna and radius fractures. Modular design with rod-rod coupling, rod-pin coupling, pin clamps, and self-drilling pins enables customized construct configurations for optimal clinical outcomes.
Clinical overview
The Ulna & Radius External Fixator is a modular external fixation system designed for stable reduction and alignment of ulna and radius fractures. The system combines rod-rod coupling, rod-pin coupling, pin clamps, and self-drilling pins to provide surgeons with flexible construct options tailored to individual patient anatomy and fracture patterns.
This Hoffman-type system enables precise alignment while maintaining ease of assembly and adjustment. The self-drilling pins reduce operative time and tissue trauma, while the aluminum connecting rod provides lightweight yet rigid support for optimal fracture stability during the healing phase.
Key features & surgeon benefits
Rigid fixation architecture
- Multi-point pin fixation for enhanced construct rigidity
- Rod-rod and rod-pin coupling options for flexible construct design
- Aluminum connecting rod provides lightweight strength
Simplified surgical technique
- Self-drilling pins reduce operative time and tissue trauma
- Modular components enable rapid assembly and adjustment
- Intuitive coupling mechanisms for straightforward construct configuration
Customizable constructs
- Multiple coupling options accommodate varied fracture patterns
- Compatible pin and rod sizes for anatomically appropriate fixation
- Modular design supports both simple and complex fracture management
Cost-effective solution
- Complete kit includes all essential components for standard constructs
- Reusable components reduce per-case material costs
- Efficient inventory management with standardized component set
Technical specifications
| Indications | Ulna and radius fractures requiring external fixation and stable reduction |
|---|---|
| Sizes / range | Pin sizes: 3mm and 4mm; Rod diameter: 5mm; Connecting rod: 200mm length |
| Material | Aluminum connecting rod; Stainless steel couplings, clamps, and pins |
| Sterilisation | As applicable |
| Packaging | Complete kit with all components |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 7100-0501 | Rod-Rod Coupling (5mm Rod) | 1 |
| 7100-0502 | Rod-Pin Coupling (3/4mm Pin, 5mm Rod) | 2 |
| 7100-0503 | Pin Clamp (3/4mm Pin) | 1 |
| 7100-0504 | Aluminum Connecting Rod 5×200mm | 1 |
| 7100-0505 | Apex Pin Self-drilling 3×120mm | 4 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss clinical applications, or explore custom configurations for your surgical program.
Email: info@tedsmedical.com
