Complete Kit 1.5/2.0/2.7/3.5/4.0mm
- Our Complete Kit 1.5/2.0/2.7/3.5/4.0mm is a comprehensive system for orthopedic surgery
- Includes a full range of instruments and implants made of high-quality stainless steel
- Adjustable kit to meet customer's specific requirements
- Comes with drill bits, drill guides, tap sleeves, taps, screwdrivers, forceps, bone plates, and screws
- SKU
- 3542F345CFEE
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping

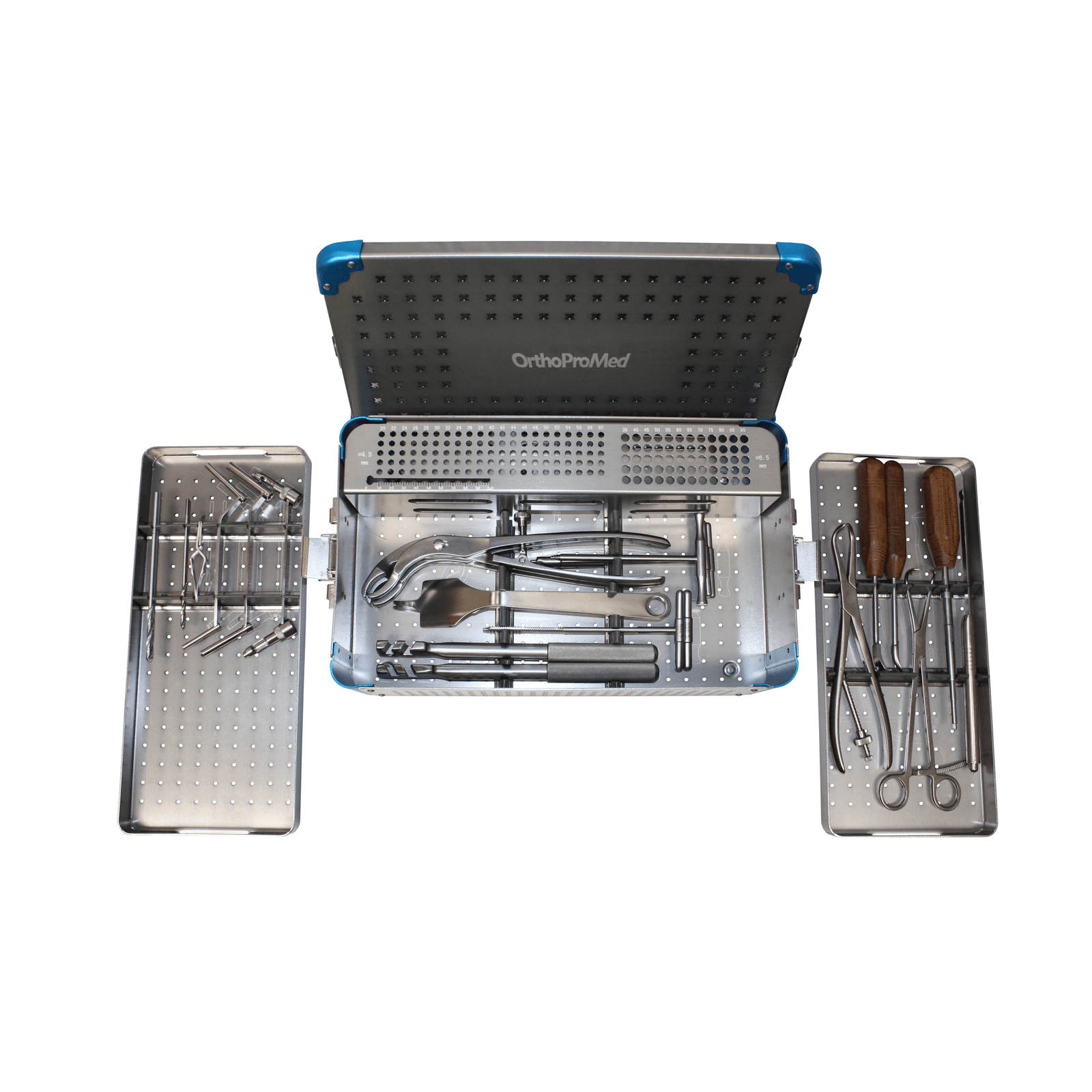

Complete Kit 1.5/2.0/2.7/3.5/4.0mm
Our most popular comprehensive system for orthopedic surgery. This complete kit includes a full range of high-quality stainless steel instruments and implants across five screw sizes. Fully adjustable to meet your specific surgical requirements and clinical protocols.
Clinical overview
This is our most popular orthopedic system, containing all necessary standard tools required for comprehensive bone fixation procedures. The kit is packed with a full range of instruments and implants, all manufactured from high-quality stainless steel. All screws are self-tapping with hex head design for reliable fixation across multiple anatomical sites and fracture patterns.
The system spans five screw sizes (1.5mm through 4.0mm), enabling surgeons to address diverse clinical scenarios from small bone fixation to larger load-bearing applications. The kit can be adjusted according to your specific requirements, making it suitable for both general orthopedic practices and specialized trauma centers.
Key features & surgeon benefits
Five-size system
- 1.5mm, 2.0mm, 2.7mm, 3.5mm, 4.0mm screw sizes
- Comprehensive drill bits and guides for each size
- Matched tap sleeves and taps for precise thread preparation
Complete surgical workflow
- Drill guides (neutral and loaded) for accurate hole placement
- Depth gauges and countersinks for controlled screw seating
- Reduction forceps and periosteal elevators for tissue handling
Cost-effective solution
- All-in-one kit reduces need for multiple purchases
- Generous screw quantities (20 qty per size)
- Multiple bone plate options included (3–10 qty per size)
Adjustable composition
- Kit can be customized to match your surgical protocols
- Add or remove instruments based on clinical needs
- OEM and bulk customization available
Technical specifications
| Indications | Orthopedic fixation, trauma, bone plating, fracture reduction |
|---|---|
| Sizes / range | 1.5mm, 2.0mm, 2.7mm, 3.5mm, 4.0mm |
| Material | Stainless steel (instruments and implants) |
| Sterilisation | Autoclavable |
| Packaging | Aluminum instrument case with organized trays |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Drill bit 1.1 | Drill bit 1.1mm | 2 |
| Drill bit 1.5 | Drill bit 1.5mm | 2 |
| Drill bit 2.0 | Drill bit 2.0mm | 2 |
| Drill bit 2.5 | Drill bit 2.5mm | 2 |
| Drill bit 3.2 | Drill bit 3.2mm | 2 |
| Drill Guide 1.1mm | Neutral & Loaded Drill Guide for 1.5mm screws | 1 |
| Drill Guide 1.5mm | Neutral & Loaded Drill Guide for 2.0mm screws | 1 |
| Drill Guide 2.0mm | Neutral & Loaded Drill Guide for 2.7mm screws | 1 |
| Drill Guide 2.5mm | Neutral & Loaded Drill Guide for 3.5mm screws | 1 |
| Drill Guide 3.2mm | Neutral & Loaded Drill Guide for 4.5mm screws | 1 |
| Tap Sleeve 2.5/3.5mm | Tap sleeve for 2.5mm & 3.5mm | 1 |
| Tap Sleeve 3.2/4.0mm | Tap sleeve for 3.2mm & 4.0mm | 1 |
| Tap Sleeve 2.0/2.7mm | Tap sleeve for 2.0mm & 2.7mm | 1 |
| HA1.5 Tap | Tap for 1.5mm screws | 1 |
| HA2.0 Tap | Tap for 2.0mm screws | 1 |
| HA2.7 Tap | Tap for 2.7mm screws | 1 |
| HA3.5 Tap | Tap for 3.5mm screws | 1 |
| HB 4.0 Tap | Tap for 4.0mm screws | 1 |
| Depth Gauge | Depth gauge for screw measurement | 1 |
| Hex Head Screw Driver SW2.5 | Hex head screwdriver 2.5mm | 1 |
| Hex Head Screwdriver 1.5mm | Hex head screwdriver 1.5mm | 1 |
| Plate Benders Pair | Plate benders pair—modern design large | 1 |
| Plate Benders Small | Plate benders small | 1 |
| Periosteal Elevator Round | Periosteal elevator with round head | 1 |
| Broken Screw Extractor | Broken screw exterioriser | 1 |
| Counter Sink Large | Counter sink large | 1 |
| Counter Sink Small | Counter sink small | 1 |
| Periosteal Elevator Flat | Periosteal elevator with flat head | 1 |
| Reduction Forceps Pointed | Reduction forceps with point | 1 |
| Reduction Forceps | Reduction forceps standard | 1 |
| Self-centering Forceps | Self-centering forceps | 2 |

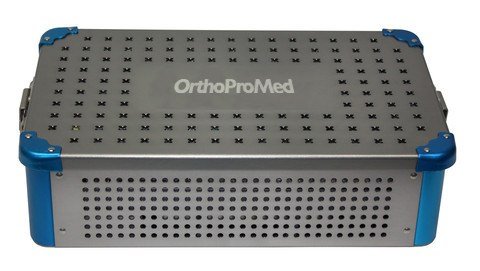

| Aluminum Case | Case aluminum with organized trays | 1 |
| Screw Rack 3.5/4.0mm | Screw rack for 3.5/4.0mm screws | 1 |

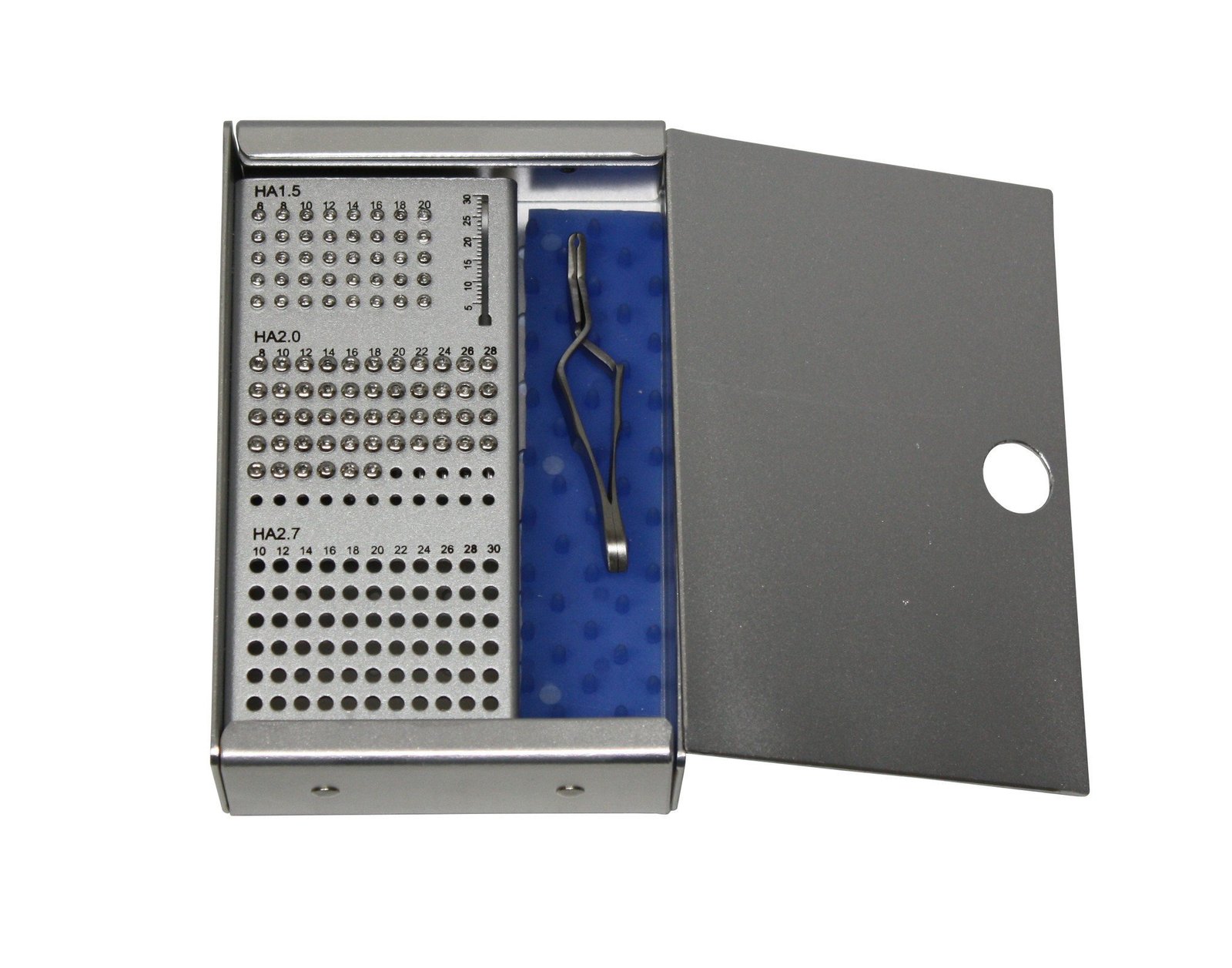

| Screw Rack 1.5/2.0/2.7 | Screw rack for 1.5/2.0/2.7mm screws | 1 |
| Bone Plate 1.5mm | Bone plate 1.5mm | 3 |
| Bone Plate 2.0mm | Bone plate 2.0mm | 3 |
| Bone Plate 2.7mm | Bone plate 2.7mm | 3 |
| Bone Plate 3.5/4.0mm | Bone plate 3.5/4.0mm | 10 |
| Cortical Screw 1.5mm | Cortical screw self-tapping 1.5mm hex head | 20 |
| Cortical Screw 2.0mm | Cortical screw self-tapping 2.0mm hex head | 20 |
| Cortical Screw 2.7mm | Cortical screw self-tapping 2.7mm hex head | 20 |
| Cortical Screw 3.5mm | Cortical screw self-tapping 3.5mm hex head | 20 |
| Cortical Screw 4.0mm | Cortical screw self-tapping 4.0mm cancellous hex head | 20 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss customization options, or ask technical and clinical questions about this comprehensive orthopedic system.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
