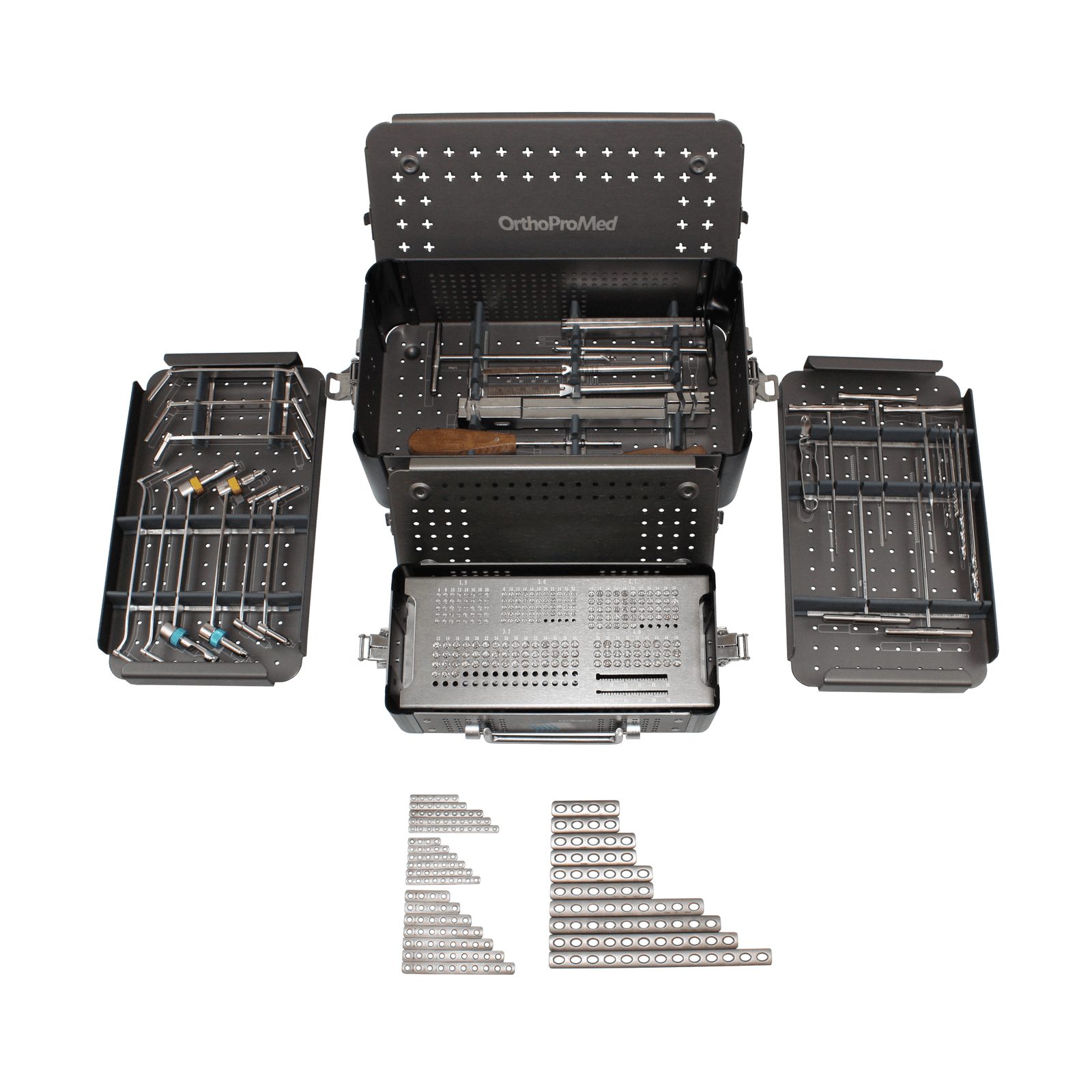

Complete Orthopedic System for Small Autoclaves
- Complete kit of orthopedic instruments, bone screws, and plates
- Constructed of high-quality stainless steel
- Includes self-tapping screws with hex heads
- Comes with aluminum and screw cases for organization
- Drill bits and tap sleeves included for various sizes
- SKU
- CCFB2C7DDD19
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Complete Orthopedic System for Small Autoclaves
A comprehensive, ready-to-use orthopedic instrument kit featuring high-quality stainless steel components, self-tapping bone screws, and precision drill guides across multiple sizes. Organized in durable aluminum and screw cases, this system is designed for efficient small autoclave sterilization and immediate clinical deployment.
Clinical overview
This complete orthopedic system provides surgeons with a fully integrated solution for bone fixation across multiple anatomical sites and fracture patterns. The kit includes precision instruments, self-tapping cortical and cancellous screws, bone plates, and specialized guides—all organized in compact, autoclavable cases suitable for small sterilization chambers. Each component is manufactured from medical-grade stainless steel to ensure durability, biocompatibility, and reliable performance in the operating room.
The system supports fixation in sizes from 1.5 mm to 4.0 mm, accommodating both small-bone and larger orthopedic applications. Neutral and loaded drill guides, tap sleeves, and depth gauges enable precise screw placement and reduce operative time. The inclusion of both small and large plate benders, along with multiple bone plate options, provides flexibility for complex anatomical reconstruction.
Key features & surgeon benefits
Multi-Size Fixation Range
- Five core screw sizes: 1.5, 2.0, 2.7, 3.5, and 4.0 mm
- Cortical and cancellous screw options for varied bone density
- Bone plates in all corresponding sizes for comprehensive fixation
Precision Instrumentation
- Neutral and loaded drill guides for accurate screw trajectory
- Matched tap sleeves and drill bits for each size category
- Depth gauges (40 mm and 70 mm) to prevent over-insertion
Complete System Value
- Single integrated kit eliminates need for multiple purchases
- Aluminum and screw cases organize and protect all components
- High-quality stainless steel construction ensures long instrument lifespan
Flexible Configuration
- OEM customization available for specific surgical protocols
- Component substitution and kit modification upon request
- Scalable for volume orders and institutional requirements
Technical specifications
| Indications | Orthopedic fixation, bone plating, cortical and cancellous screw placement, small bone and larger orthopedic applications |
|---|---|
| Sizes / range | 1.5 / 2.0 / 2.7 / 3.5 / 4.0 mm |
| Material | Medical-grade stainless steel instruments and screws; aluminum cases |
| Sterilisation | Autoclavable; suitable for small autoclave chambers |
| Packaging | 1 aluminum case (11¾″L × 7″W × 4″H); 1 screw case (9½″L × 4½″W × 2⅝″H) |
| Warranty | As applicable |

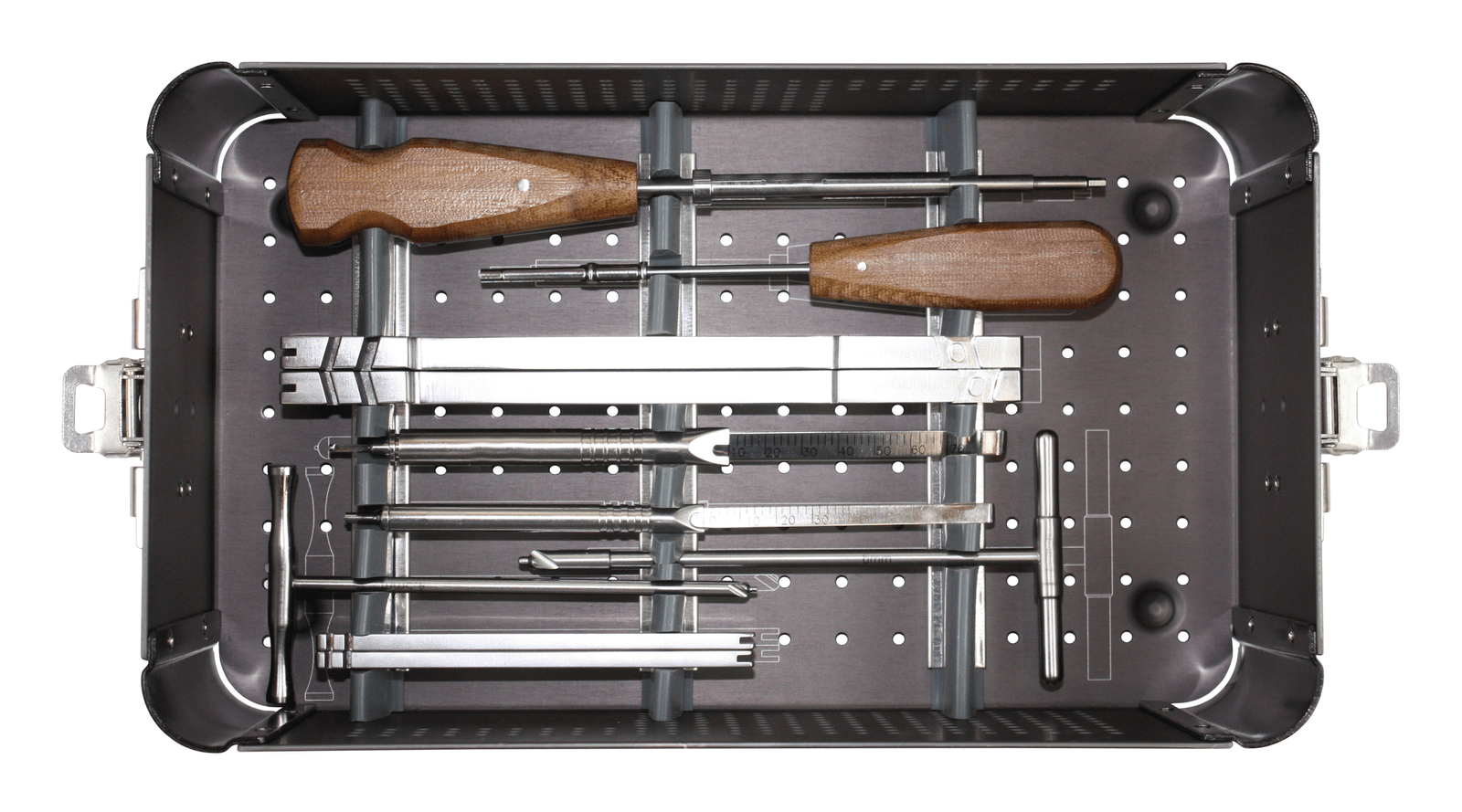

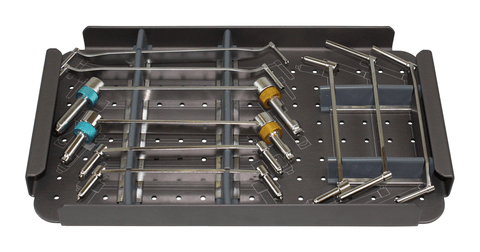

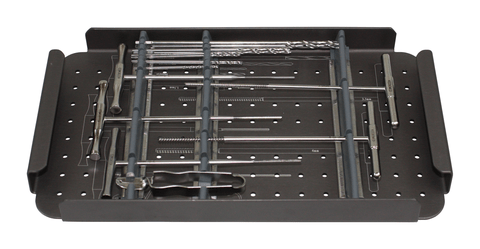

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Aluminum Case | Main storage and transport case | 1 |
| Screw Case | 1.5 / 2.0 / 2.7 / 3.5 / 4.0 mm compartments | 1 |
| Drill Bit 1.1 mm | Precision drill bit | 2 |
| Drill Bit 1.5 × 80 mm | Precision drill bit | 2 |
| Drill Bit 2.0 × 80 mm | Precision drill bit | 2 |
| Drill Bit 2.5 × 115 mm | Precision drill bit | 2 |
| Drill Bit 3.2 × 150 mm | Precision drill bit | 2 |
| Drill Guide 1.1 mm | Neutral & loaded | 1 pair |
| Drill Guide 1.5 mm | Neutral & loaded | 1 pair |
| Drill Guide 2.0 mm | Neutral & loaded | 1 pair |
| Drill Guide 2.5 mm | Neutral & loaded | 1 pair |
| Drill Guide 3.2 mm | Neutral & loaded | 1 pair |
| Tap Sleeve 1.1 / 1.5 mm | Combined sleeve | 1 |
| Tap Sleeve 2.0 / 2.7 mm | Combined sleeve | 1 |
| Tap Sleeve 2.5 / 3.5 mm | Combined sleeve | 1 |
| Tap Sleeve 3.2 / 4.0 mm | Combined sleeve | 1 |
| HA Tap 1.5 mm | Hydroxyapatite-coated tap | 1 |
| HA Tap 2.0 mm | Hydroxyapatite-coated tap | 1 |
| HA Tap 2.7 mm | Hydroxyapatite-coated tap | 1 |
| HA Tap 3.5 mm | Hydroxyapatite-coated tap | 1 |
| HA Tap 4.0 mm | Hydroxyapatite-coated tap | 1 |
| Screw Forceps | Small, for precise screw handling | 1 |
| Hex Head Screwdriver | SW 2.5 mm | 1 |
| Hex Head Screwdriver | 1.5 mm | 1 |
| Depth Gauge | Large, 70 mm | 1 |
| Depth Gauge | Small, 40 mm | 1 |
| Counter Sink | Large, 6.0 mm | 1 |
| Counter Sink | Small, 4.5 mm | 1 |
| Plate Bender | Small (pair) | 1 pair |
| Plate Bender | Large (pair) | 1 pair |
| Bone Plate 1.5 mm | Fixation plate | 3 |
| Bone Plate 2.0 mm | Fixation plate | 3 |
| Bone Plate 2.7 mm | Fixation plate | 3 |
| Bone Plate 3.5 / 4.0 mm | Combined fixation plate | 3 |
| Cortical Screw 1.5 mm | Self-tapping, hex head | 20 |
| Cortical Screw 2.0 mm | Self-tapping, hex head | 20 |
| Cortical Screw 2.7 mm | Self-tapping, hex head | 20 |
| Cortical Screw 3.5 mm | Self-tapping, hex head | 20 |
| Cancellous Screw 4.0 mm | Self-tapping, hex head | 20 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, discuss customization options, or arrange a product demonstration. We offer flexible ordering, volume discounts, and rapid delivery for qualified institutions.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
