Large Fragments Kit 4.5/6.5mm
- High-quality orthopedic system including plates, screws, and instruments
- Self-tapping hex head screws packed in aluminum case
- Comprehensive kit with drills, forceps, taps, and screw rack
- Plates available in different sizes for 4.5mm and 6.5mm screws
- SKU
- 815286D5229F
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Large Fragments Kit 4.5/6.5mm

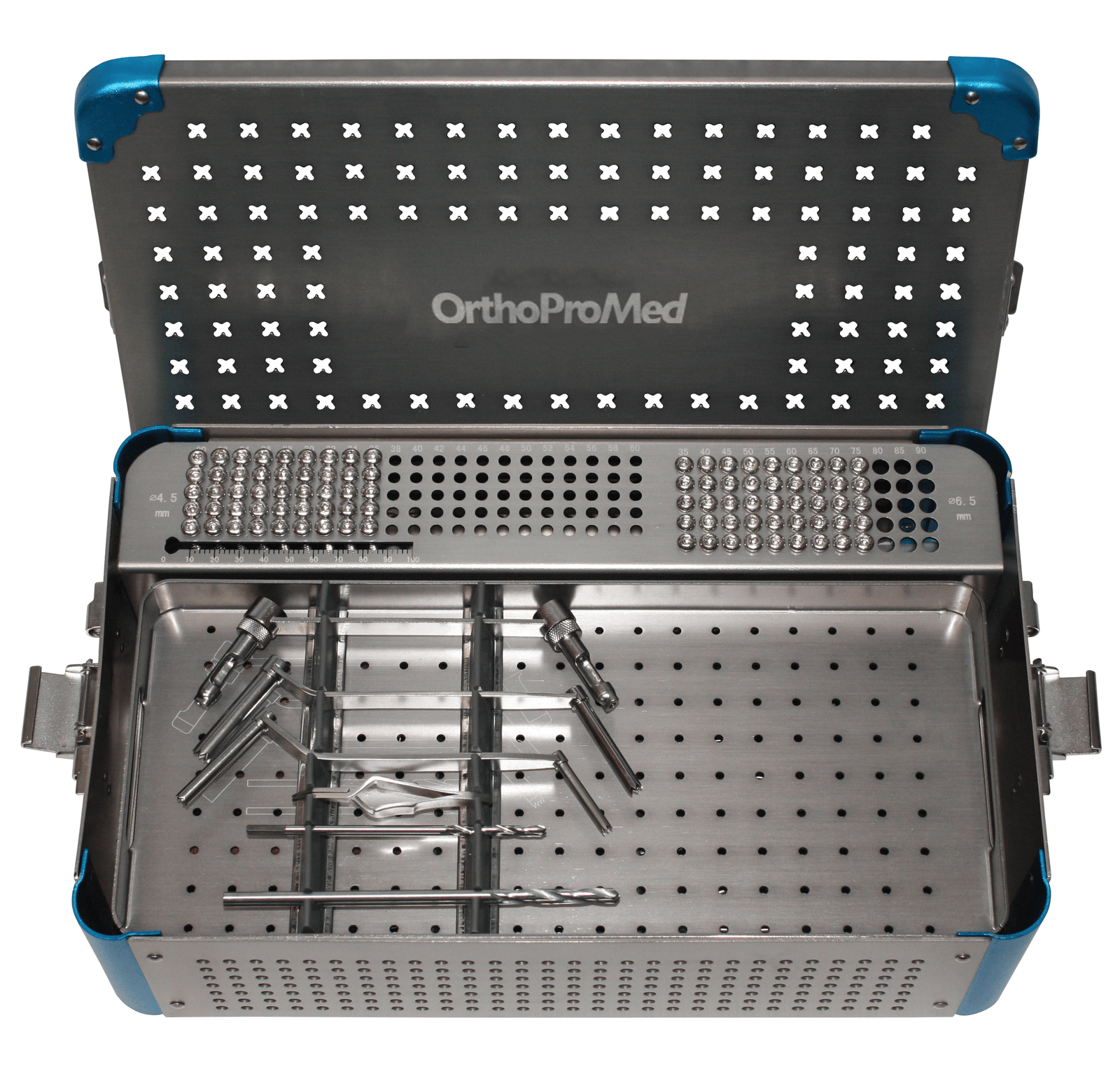

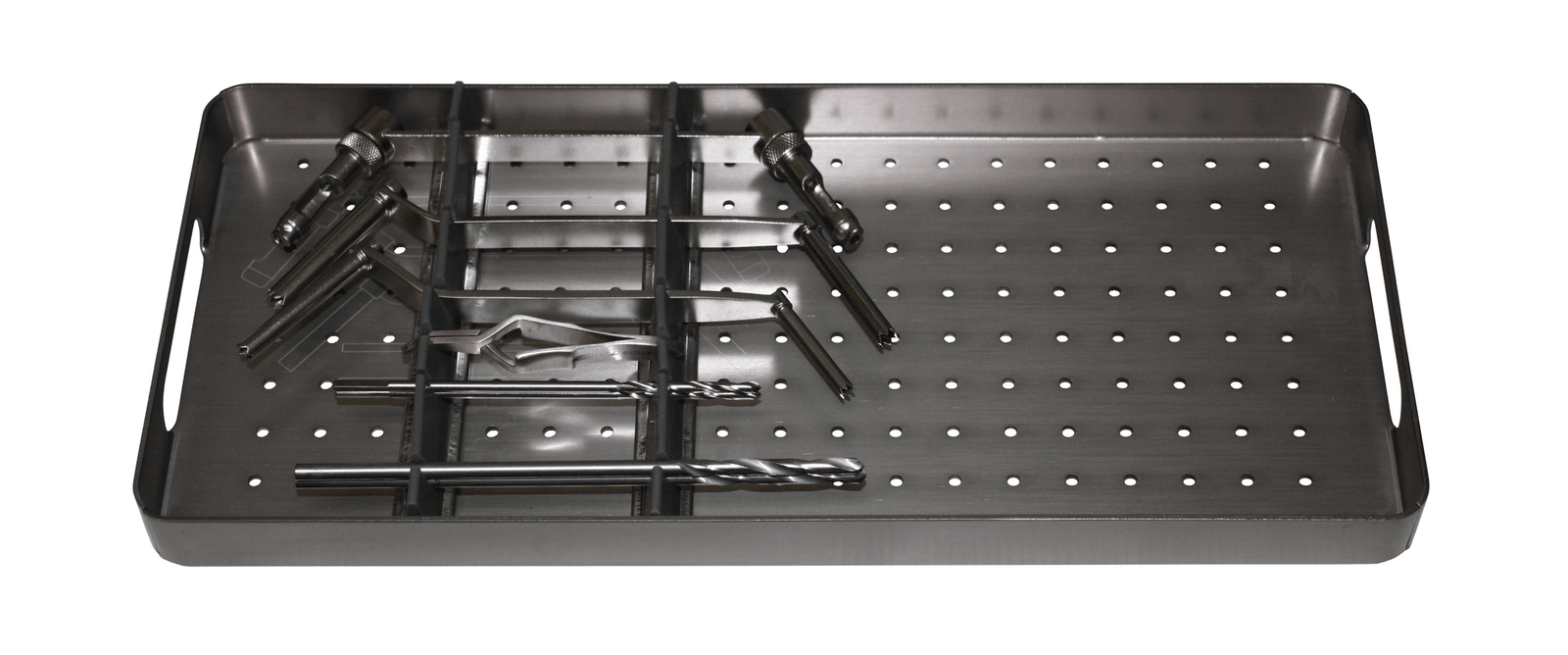

Comprehensive orthopedic system featuring self-tapping hex head screws, precision plates, and a complete surgical instrument set. Delivered in a professional aluminum case with integrated screw rack for optimal organization and sterile field management.
Clinical overview
The Large Fragments Kit 4.5/6.5mm is a high-quality orthopedic system designed for reliable fixation of large bone fragments in trauma and reconstructive surgery. The system combines self-tapping hex head screws with precision-engineered plates and a comprehensive set of surgical instruments, all organized in a professional aluminum case with integrated screw rack.
This system supports both cortical (4.5mm) and cancellous (6.5mm) bone applications, offering surgeons flexibility in approach and technique. The complete instrument set includes guides, drills, taps, forceps, and retractors—everything required for efficient, controlled surgical workflow from reduction through final fixation.
Key features & surgeon benefits
Dual-Size Plate & Screw System
- 4.5mm cortical and 6.5mm cancellous screw options
- Plates available in 5–14 hole configurations (92–254mm)
- Comprehensive size range for diverse anatomical requirements
Complete Surgical Instrument Set
- Integrated drill guides, taps, and depth gauges for precision
- Reduction and self-centering forceps for controlled alignment
- Periosteal elevators and retractors for optimal visualization
All-in-One Kit Solution
- 40 bone screws (4.5mm and 6.5mm) included
- Eliminates need for multiple instrument purchases
- Professional aluminum case ensures durability and organization
Flexible Configuration Options
- OEM and custom kit assembly available
- Modular design allows selective instrument additions
- Scalable for institutional and surgical center needs
Technical specifications
| Indications | Large fragment fixation, cortical and cancellous bone applications, trauma and reconstructive orthopedic surgery |
|---|---|
| Sizes / range | 4.5mm and 6.5mm screws; plates 5–14 holes, 92–254mm length |
| Material | Stainless steel (instruments and hardware) |
| Sterilisation | As applicable |
| Packaging | Professional aluminum case with integrated screw rack |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Neutral & Loaded Drill Guide | 3.2mm | 1 |
| Depth Gauge | 30mm | 1 |
| Countersink Drill | 8mm | 1 |
| Broken Screw Exteriorizer | Standard | 1 |
| Plate Bending Forceps | 2×1 | 1 |
| Periosteal Elevator Flat | 16mm | 1 |
| Periosteal Elevator Round | 8mm | 1 |
| Screwdriver (Hex) + Driver Nut | SW 3.5 | 1 |
| Hohmann Retractor | 2×1 | 1 |
| HA 4.5 Tap | Self-tapping | 1 |
| HA 6.5 Tap | Self-tapping | 1 |
| Skid Exteriorizer | SW 3.5 | 1 |
| Reduction Forceps | Standard | 1 |
| Curved Reduction Forceps | Standard | 1 |
| Self-Centering Forceps | Standard | 2 |
| Drill Bit | 3.2×150mm | 2 |
| Drill Bit | 4.5×150mm | 2 |
| C-Shaped Guider | 3×1 | 1 |
| Drill Bushing | 3.2/4.5mm | 1 |
| Drill Bushing | 4.5/6.5mm | 1 |
| Screw Holding Forceps | Standard | 1 |
| Case with Screw Rack | Aluminum, 4.5/6.5mm | 1 |
| Plates | 4.5mm and 6.5mm, 5–14 holes (92–254mm) | 3 |
| Bone Screws HA 4.5 (Cortical) | Self-tapping hex head | 20 |
| Bone Screws HA 6.5 (Cancellous) | Self-tapping hex head | 20 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, discuss custom configurations, or arrange a demonstration of the Large Fragments Kit 4.5/6.5mm system.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
