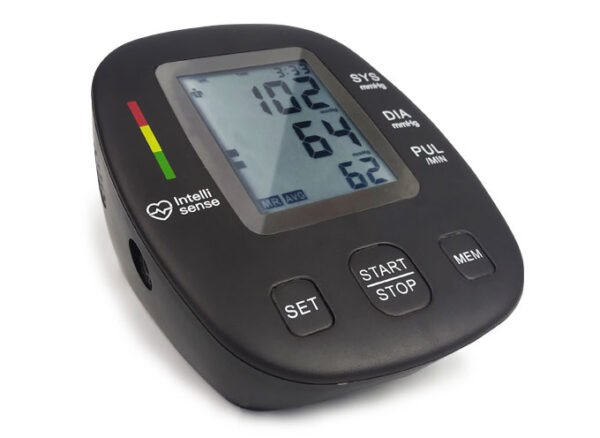

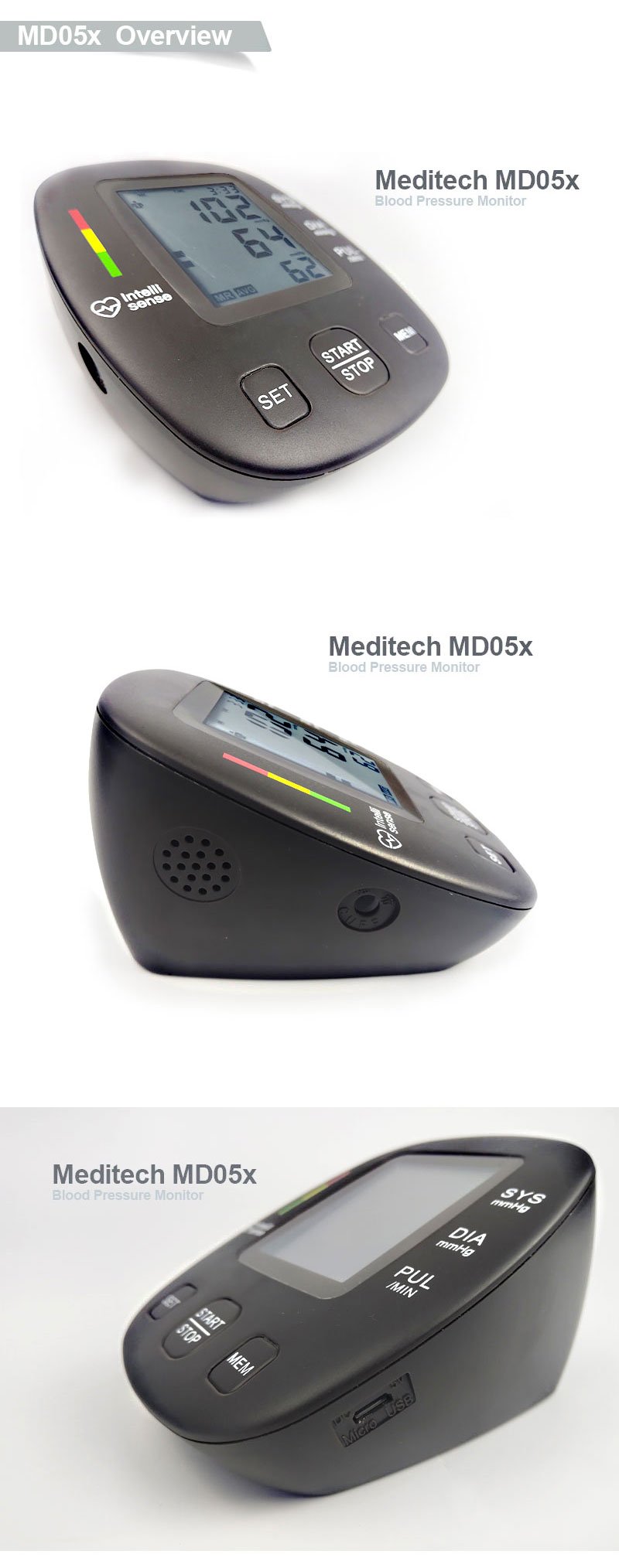

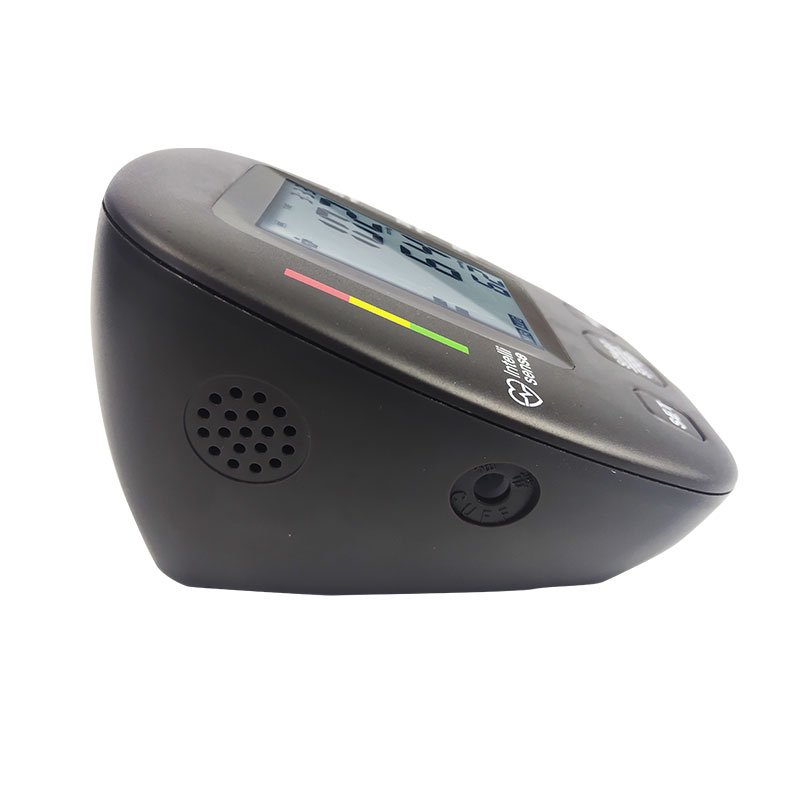

Digital Blood Pressure Monitor for Home Use and Self-Measurements
- Deluxe high-density polyethylene shell
- Intelligent automatic pressing with WHO indicator
- Large-scale LCD display with storage memory for 2 users (99 records each)
- Voice broadcast feature with arrhythmia detection
- SKU
- 62078790DEB1
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Digital Blood Pressure Monitor for Home Use and Self-Measurements
A clinically reliable, user-friendly arm-type blood pressure monitor with intelligent automatic pressurization, dual-user memory, and integrated arrhythmia detection. Ideal for home monitoring, patient compliance tracking, and longitudinal cardiovascular assessment.
Clinical overview
This digital blood pressure monitor delivers accurate, oscillographic-based measurements suitable for home monitoring, clinical screening, and longitudinal patient assessment. The intelligent automatic pressurization system eliminates manual cuff inflation, reducing operator variability and improving measurement consistency. Integrated arrhythmia detection alerts users to potential cardiac rhythm irregularities, supporting early identification of cardiovascular concerns.
Dual-user memory (99 records per user) enables household or clinical tracking of multiple patients, while the large-scale LCD display and voice broadcast feature enhance accessibility for patients with visual or hearing limitations. Automatic shutdown after one minute conserves battery life, and the anti-shaking design minimizes motion artifact during measurement.
Key features & surgeon benefits
Intelligent Pressurization & Detection
- Oscillographic determination method for reliable readings
- Automatic pressurization eliminates manual inflation variability
- Integrated arrhythmia detection for cardiac rhythm screening
User-Centric Design
- One-key measurement for simplified operation
- Large 2.5" LCD display with clear readout
- Voice broadcast feature for accessibility
Dual-User Memory & Tracking
- Storage for 2 users with 99 records each (198 total measurements)
- Time and date stamping for longitudinal analysis
- High-pressure alarm and wrong-action reminder
Flexible Configuration
- Multiple cuff sizes: child, small adult, adult, large adult, thigh
- Optional extended tubing (150 cm) for accessibility
- Power adapter and rechargeable battery options available

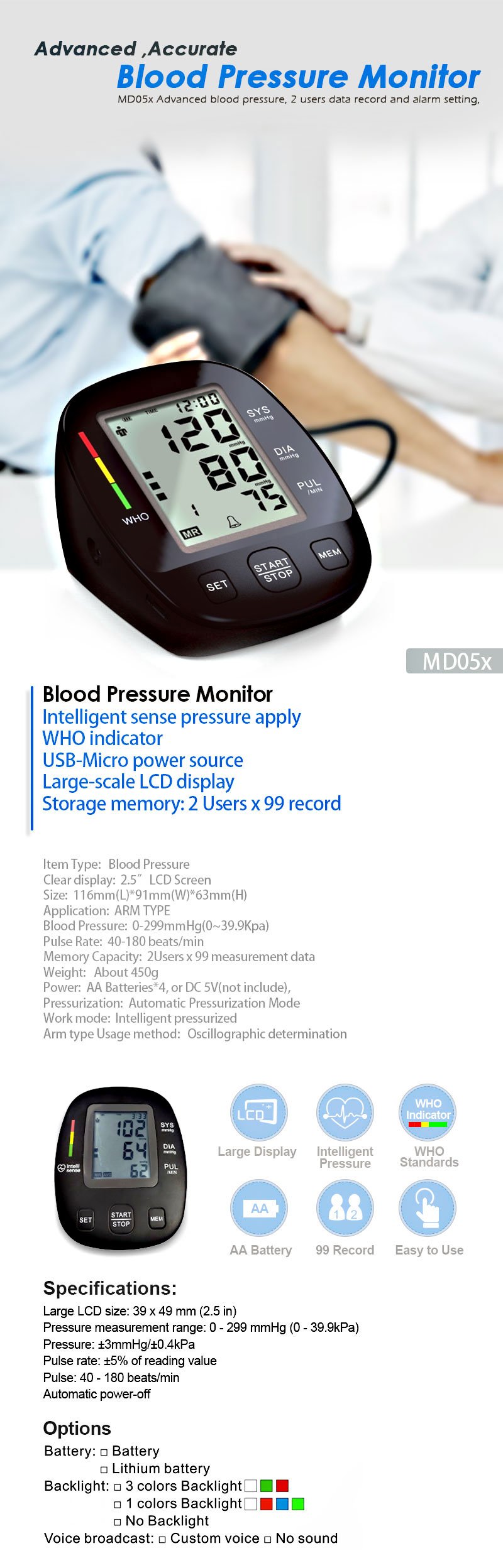

Technical specifications
| Indications | Hypertension screening, cardiovascular monitoring, home self-measurement, patient education |
|---|---|
| Measurement range | Blood pressure: 0–299 mmHg (0–39.9 kPa); Pulse rate: 40–180 bpm |
| Memory capacity | 2 users × 99 measurements each (198 total records) |
| Display | 2.5" large-scale LCD screen |
| Pressurization | Automatic pressurization mode; intelligent pressurized work mode |
| Detection method | Oscillographic determination |
| Power source | DC 6V / 500 mA; 4 × AA alkaline batteries (standard) |
| Dimensions | 116 mm (L) × 91 mm (W) × 63 mm (H) |
| Weight | Approximately 450 g |
| Features | Voice broadcast, arrhythmia detection, one-key measurement, wrong-action reminder, high-pressure alarm, automatic shutdown (1 min), anti-shaking design, cuff wear self-checking, time/date setting |
| Sterilisation | Non-sterile; clean with provided cloth |
| Warranty | As applicable |

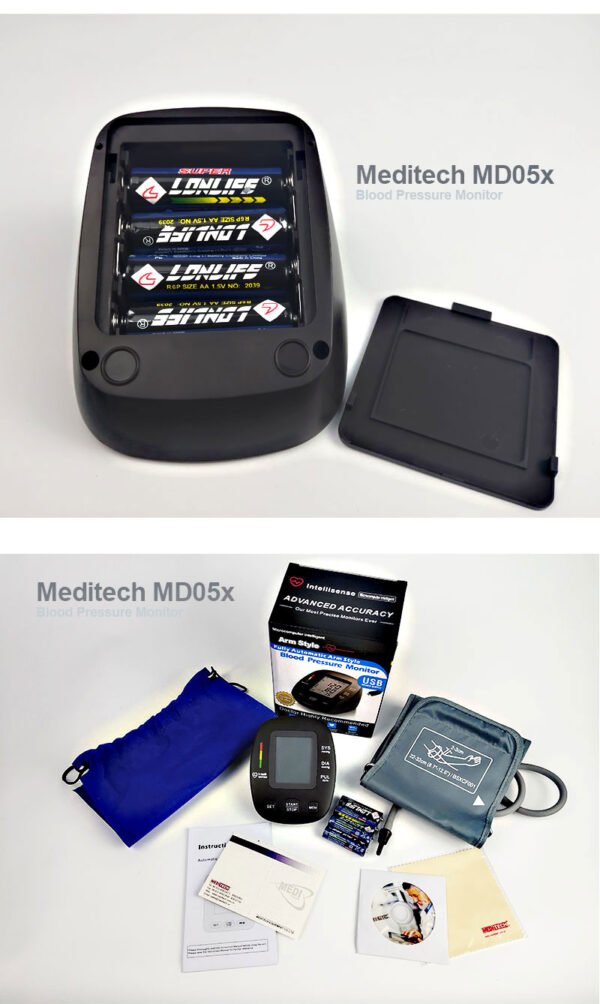

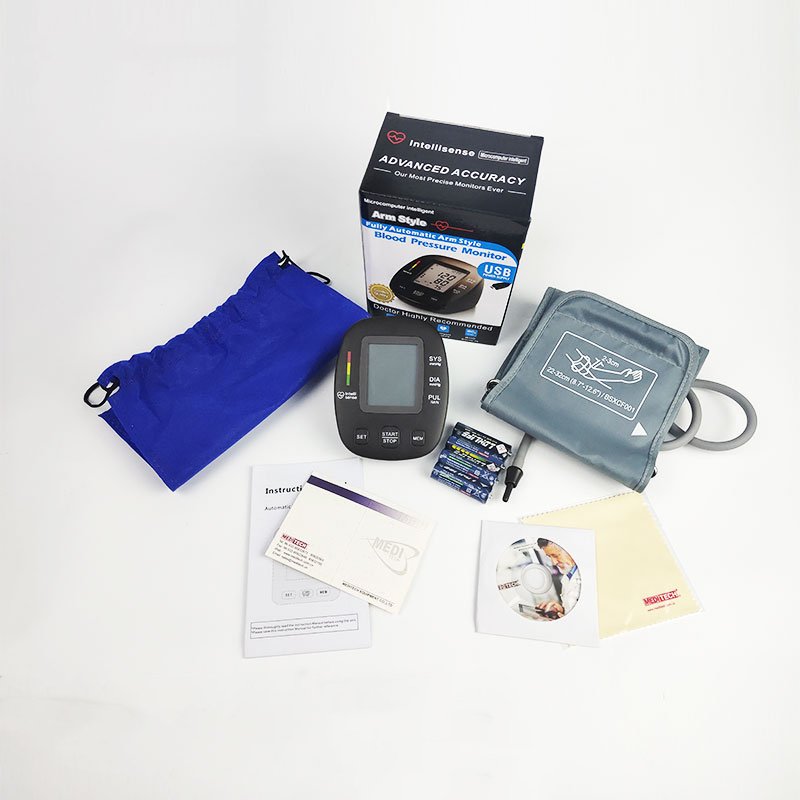

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| NIBP Cuff (Adult) | Standard adult arm cuff (26–35 cm) | 1 |
| AA Battery | Alkaline batteries for power | 4 |
| Cleaning Cloth | Microfiber cloth for device maintenance | 1 |
Optional accessories & cuff sizes
| Accessory | Specification | Qty per pack |
|---|---|---|
| NIBP Cuff (Child) | 13–20 cm circumference | 5 |
| NIBP Cuff (Small Adult) | 18–26 cm circumference | 5 |
| NIBP Cuff (Adult) | 26–35 cm circumference | 5 |
| NIBP Cuff (Adult Long) | 29–38 cm circumference | 5 |
| NIBP Cuff (Large Adult) | 32–42 cm circumference | 5 |
| NIBP Cuff (Large Adult Long) | 35–44 cm circumference | 5 |
| NIBP Cuff (Thigh) | 42–50 cm circumference | 1 |
| NIBP Tube | Extended tubing for accessibility | 150 cm |
| Power Adapter | AC mains power supply (optional) | 1 |
| Rechargeable Battery | Lithium-ion rechargeable pack (optional) | 1 |
| Charger (Panasonic) | Battery charging unit (optional) | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss cuff size options, or explore customization for your clinical or home-monitoring program. We offer flexible ordering, bulk discounts, and OEM configurations.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
