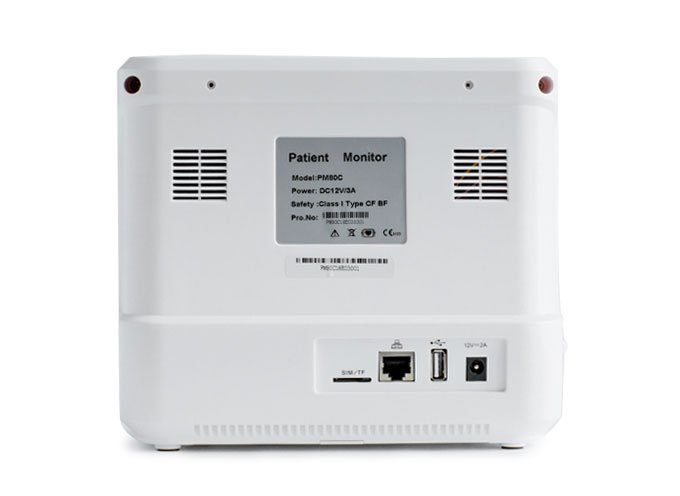

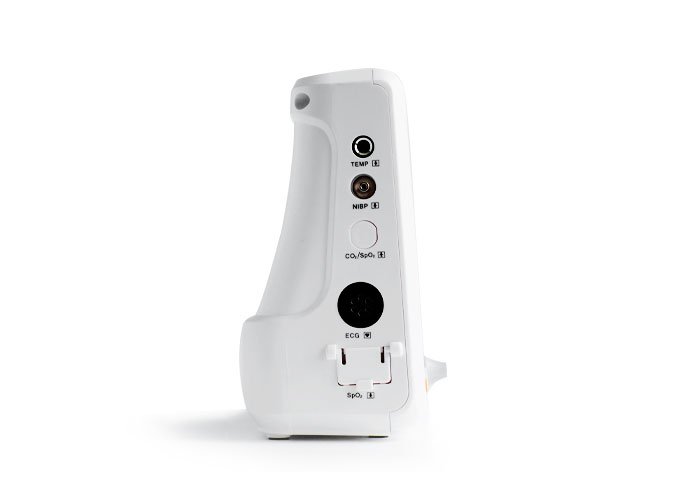

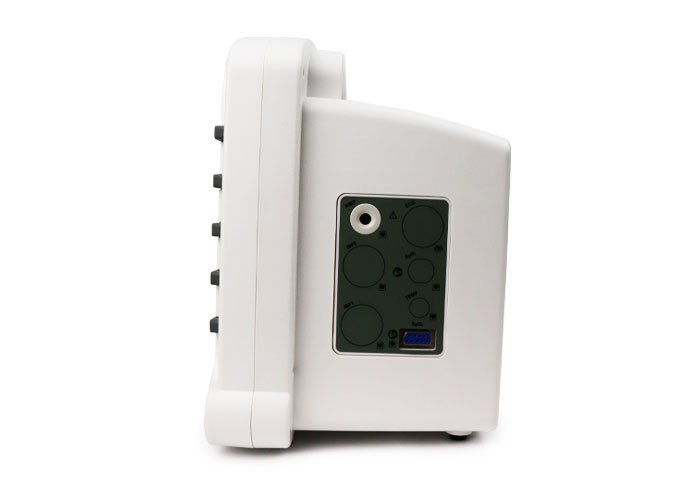

MD908B Patient Monitor 8 inch Screen Light Weight and Small Size
Original price was: $1,033.50.$903.50Current price is: $903.50.
– High resolution 8” color TFT display
– Monitors 6 parameters: ECG, HR, Resp, NIBP, SpO2, TEMP
– Portable and lightweight design with a built-in rechargeable lithium battery
– Features unique human voice alarms and multiple screen layouts
Description
High resolution 8” color TFT display
6 Parameters : ECG,HR, Resp, NIBP, SpO2, TEMP,
Light weight, compact and portable
Built-in rechargeable lithium battery
Unique human voice alarm
Rich screen layouts: Standard, Big font, Trend table, NIBP trend, ECG full lead, OxyCRG, IoC Layout
Powerful storage: Maximum 720 Hour graphic and tabular trends of all
parameters, up to 10000 NIBP review ,200alarm review ,2Hours of all waveforms
System software can be upgraded through network
Data and waveforms color be adjustable
Arrhythmia analysis and S-T segment analysis
Suitable for adult, paediatric and neonatal patient

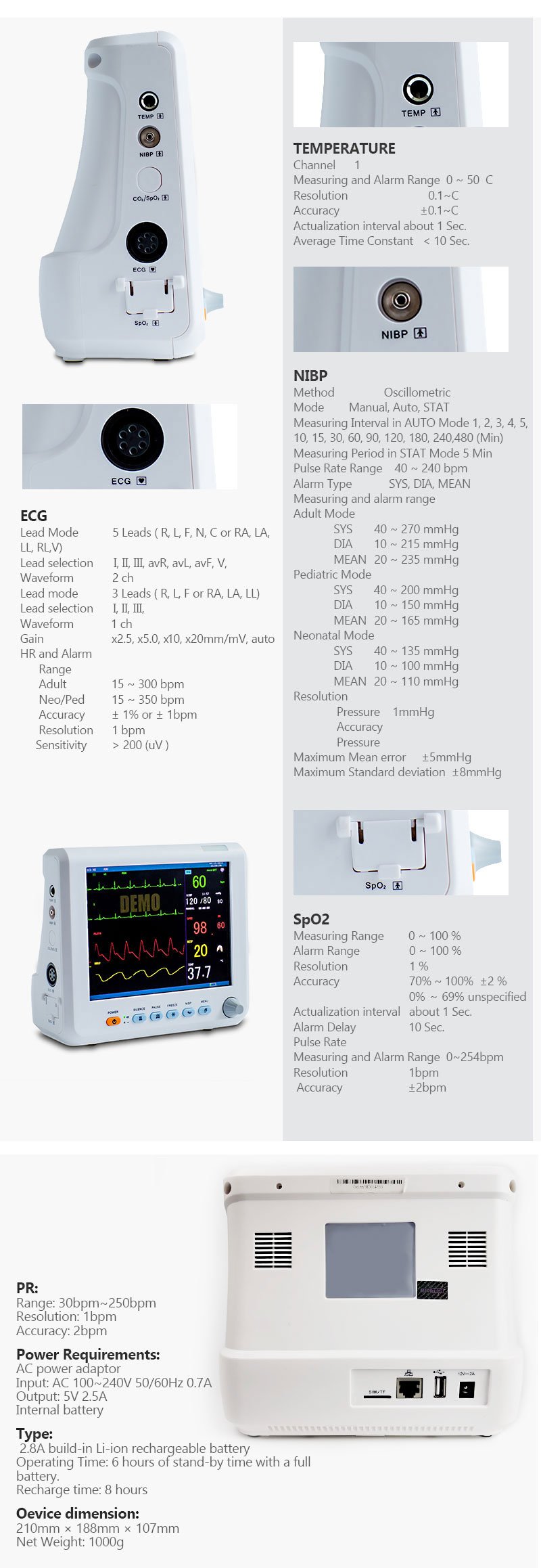

Technical Specifications:
ECG
Lead Mode 5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)
Lead selection I, II, III, avR, avL, avF, V,
Waveform 2 ch
Lead mode 3 Leads ( R, L, F or RA, LA, LL)
Lead selection I, II, III,
Waveform 1 ch
Gain x2.5mm/mV, x5.0mm/mV, x10mm/mV, x20mm/mV, auto
HR and Alarm
Range
Adult 15 ~ 300 bpm
Neo/Ped 15 ~ 350 bpm
Accuracy ± 1% or ± 1bpm,which great
Resolution 1 bpm
Sensitivity > 200 (uV )
Differential Input Impedance > 5 MΩ
CMRR
Monitor > 105 dB
Operation > 105 dB
Diagnosis > 85 dB
Electrode offset potential ±300mV
Leakage Current < 10 uA
Baseline Recovery < 3 S After Defi. ECG Signal Range ±8 m V ( Vp-p ) Bandwidth Surgery 1 ~ 15 Hz Monitor 0.5 ~ 35 Hz Diagnostic 0.05 ~ 100 Hz Calibration Signal 1 (mV ), Accuracy ：±5% ST Segment Monitoring Range Measure and Alarm -2.0 ~ +2.0 mV ARR Detecting Type ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY,MISSED BEATS, PNP, PNC
Alarm Available
Review Available
RESPARATION
Method Impedance between R-F(RA-LL)
Differential Input Impedance >2.5 MΩ
Measuring Impedance Range: 0.3~5.0Ω
Base line Impedance Range: 0 – 2.5 KΩ
Bandwidth 0.3 ~ 2.5 Hz
Resp. Rate
Measuring and Alarm Range
Adult 0 ~ 120 rpm
Neo/Ped 0 ~ 150 rpm
Resolution 1 rpm
Accuracy ±2 rpm
Apean Alarm 10 ~ 40 S
NIBP
Method Oscillometric
Mode Manual, Auto, STAT
Measuring Interval in AUTO Mode 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min)
Measuring Period in STAT Mode 5 Min
Pulse Rate Range 40 ~ 240 bpm
Alarm Type SYS, DIA, MEAN
Measuring and alarm range
Adult Mode
SYS 40 ~ 270 mmHg
DIA 10 ~ 215 mmHg
MEAN 20 ~ 235 mmHg
Pediatric Mode
SYS 40 ~ 200 mmHg
DIA 10 ~ 150 mmHg
MEAN 20 ~ 165 mmHg
Neonatal Mode
SYS 40 ~ 135 mmHg
DIA 10 ~ 100 mmHg
MEAN 20 ~ 110 mmHg
Resolution
Pressure 1mmHg
Accuracy
Pressure
Maximum Mean error ±5mmHg
Maximum Standard deviation ±8mmHg
Overpressure Protection
Adult Mode 297±3 mmHg
Pediatric Mode 240±3 mmHg
Neonatal Mode 147±3 mmHg
SpO2
Measuring Range 0 ~ 100 %
Alarm Range 0 ~ 100 %
Resolution 1 %
Accuracy 70% ~ 100% ±2 %
0% ~ 69% unspecified
Actualization interval about 1 Sec.
Alarm Delay 10 Sec.
Pulse Rate
Measuring and Alarm Range 0~254bpm
Resolution 1bpm
Accuracy ±2bpm
TEMPERATURE
Channel 1
Measuring and Alarm Range 0 ~ 50 C
Resolution 0.1~C
Accuracy ±0.1~C
Actualization interval about 1 Sec.
Average Time Constant < 10 Sec.
IBP
Label ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measuring and alarm range
ART 0 ~ 300 mmHg
PA -6 ~ 120 mmHg
CVP/RAP/LAP/ICP -10 ~ 40 mmHg
P1/P2 -10 ~ 300 mmHg
Press Sensor
Sensitivity 5 uV/V/mmHg
Impedance 300-3000Ω
Resolution 1 mmHg
Accuracy ±2% or ±1mmHg, which great about 1 Sec.
Standard:
ECG Cable (5 Leads) …… 1Pcs
SpO2 Cable (Adult) …….. 1Pcs
TEMP Probe (Adult) ……. 1Pcs
NIBP Cuff (Adult) ………… 1Pcs
NIBP Tube(150cm) ……… 1Pcs
Ground Cable ……………. 1Pcs
Power Cable ………………. 1Pcs
Cleaning Cloth ……………. 1Pcs
Options:
ECG Cable (3 Leads)
ECG Alligator Clips (Metal)
SpO2 Cable (Adult hard shell sensor)
SpO2 Cable (Adult Soft shell sensor)
SpO2 Cable (Neonatal soft sensor)
SpO2 Cable (Pediatric hard shell sensor)
SpO2 Cable (Pediatric Soft shell sensor)
SpO2 Cable (Child finger clip)
SpO2 Cable (multi-site Y type)
SpO2 External Cable
NIBP Cuff (infant 8 – 14 cm 5/Bag)
NIBP Cuff (Child 13 – 20 cm 5/Bag)
NIBP Cuff (Small Adult 18 – 26 cm 5/Bag)
NIBP Cuff (Adult 26 – 35 cm 5/Bag)
NIBP Cuff (Adult Long 29 – 38 cm 5/Bag)
NIBP Cuff (Large Adult 32 – 42 cm 5/Bag)
NIBP Cuff (Large Adult Long 35 – 44 cm 5/Bag)
NIBP Cuff (Thigh 42 – 50 cm)
NIBP Tube 150cm
Paper Role
Thermal printer
Patient Monitor Wall mounts (3 Models)
Patient Monitor Trolley (5 Models)
EtCO2 Module
CO2 Sample Line
Nasal Tube
Water-trap Column
Airway Adapter
IBP Adapter (2-IBP)
IBP Reusable Interface Cable
IBP Disposable Transducers
Related Products
– Capnoxi Plus Capnography with CO2 Sensor is a versatile device suitable for clinical and emergency circumstances
– It monitors SpO2, pulse rate, ETCO2, and respiratory rate
– Features a TFT screen with a colorful 5.0-inch LCD display
– Comes with professional data analysis software for CO2 monitoring and storage of unlimited patient data
– CapnoVet Hand Held CO2 Monitor is ideal for monitoring the patient’s respiratory status during CPR
– It assists in determining when to intubate or extubate, and verifies ET tube placement
– Alerts if accidental extubation occurs and verifies ventilation during transport
– Specialized data export function for analyzing sleep conditions
– Professional veterinary patient monitor with a 12.1″ color TFT display
– Features ECG, SpO2, NIBP, RESP, and 2-TEMP monitoring capabilities
– 7-lead ECG waveforms displayed simultaneously on the screen
– Built-in rechargeable lithium battery for portability and convenience
– The MD9000s Patient Monitor features a 12.1” TFT color LCD screen
– Fanless design for quiet and energy-saving operation, reducing cross-infection risks
– Suitable for monitoring adult, pediatric, and neonatal patients
– Offers 8-channel waveform display, ECG waveform cascade, and oxygen graph display
– Features HRV analysis, NIBP measurements, drug concentration calculation, and trend graph printing
– Advanced palm multi-parameter patient monitor with 5 standard parameters: ECG, NIBP, SPO2, PR, TEMP
– Features adjustable audible and visual alarms with sensor off alarm for enhanced monitoring
– Built-in Bluetooth modem for easy data downloading and tele-monitoring capabilities
– Storage and review data for up to 9999 user IDs and 3888 groups via Trend Graph and Trend List
– MD9000VET Veterinary 12.1 Inch Color TFT Patient Monitor
– Professional veterinary software for accurate monitoring
– Compact and portable design for ease of use
– Features ECG, SpO2, NIBP, RESP, 2-TEMP, and PR
– Suitable for adult, pediatric, and neonatal patients
– 15” high resolution color TFT display with maximum 13 waveforms
– Full touch-screen for intuitive operation
– Pacemaker detection and electrosurgical interference proof
– SD card slot for large data storage
– Built-in rechargeable Li-ion battery for up to 6 hours
– Multiple language options available
– Option for 12-lead ECG, Nellcor-SpO2, Omron NIBP, and more
– High resolution 15” color TFT display
– Portable and lightweight design
– Suitable for adult, pediatric, and neonatal patients
– Features 9 parameters including ECG, Resp, NIBP, SpO2, and TEMP
– Options for Invasive Blood Pressure, Carbon dioxide Module, and Touch Screen
– Upgradable system software through network
– Built-in rechargeable lithium battery and human voice alarm
– Portable Capnography Gas Analyzer Display with SpO2 Monitor
– Monitoring SpO2, pulse rate, ETCO2, and respiratory rate
– Update 255-hour historical data replay on PC through USB
– Suitable for clinical and emergency circumstances
– SpO2, SpO2+CO2 selectable
– High-quality veterinary ultrasound scanner with a 5.5 inch TFT display (Option: 7 inch)
– Features full digital beam-forming technology and probe automatic identification
– Offers a wide range of scanning methods including Convex, Micro-convex, Linear, and rectal
– Equipped with 256 frames for cine-memory and 64 image permanent storage
– Portable and compact patient monitor with a 5.0 inch color TFT touch screen
– Allows intelligent measuring of ECG, NIBP, SpO2, PR, PLETH, and TEMP
– Features alarm functions for audio and visual alerts
– Offers easy data storage and review capabilities for up to 129.6 hours and 3888 groups

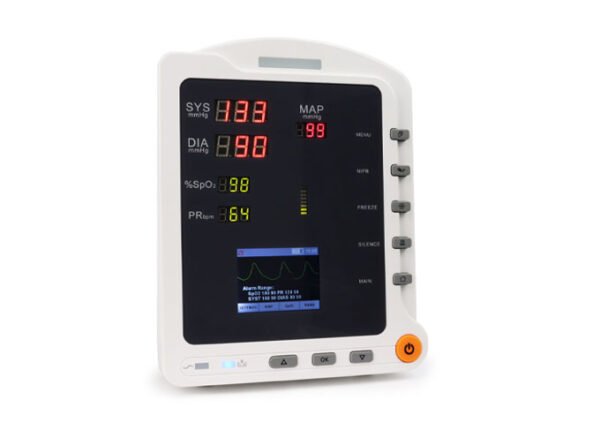

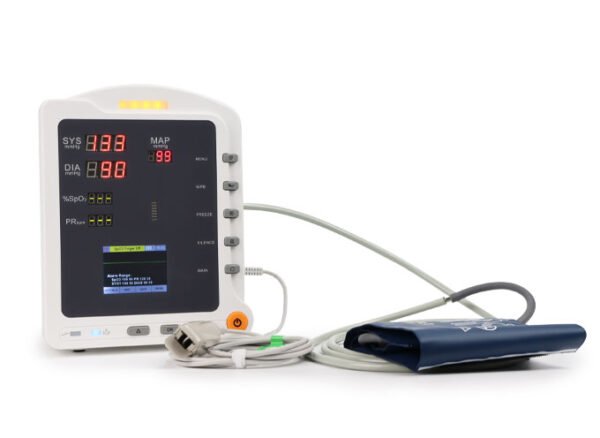

– The Oxima® 3 Light Weight Vital Signs Patient Monitor is efficient and easy to use
