MD09X Wrist Multi-Parameters and Individual Parameter Patient Monitor
- 2.4 inch TFT color screen with a resolution of 320*240
- Displays 2 channels waveform of ECG, respiration, blood pressure, and SpO2
- Features ECG with abnormal data storage and trend display
- Wireless Bluetooth 4.0 connectivity for use with smart devices
- SKU
- E2CDE413A2CD
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping

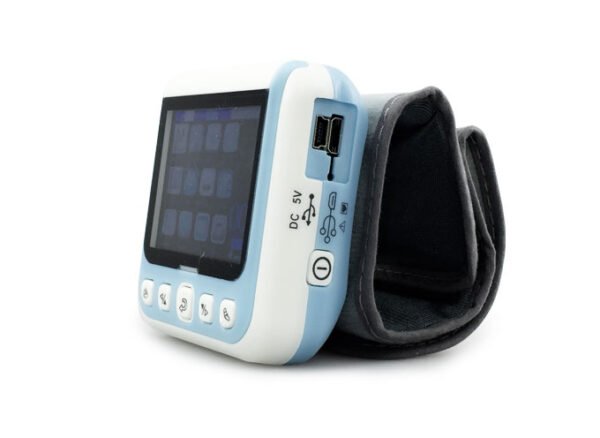

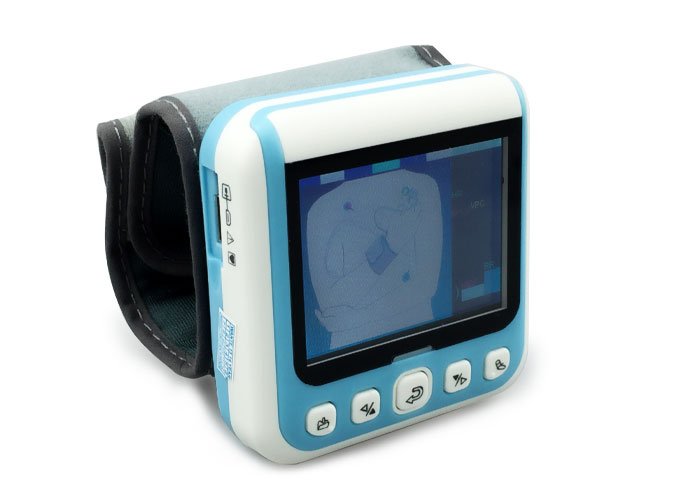

MD09X Wrist Multi-Parameters and Individual Parameter Patient Monitor

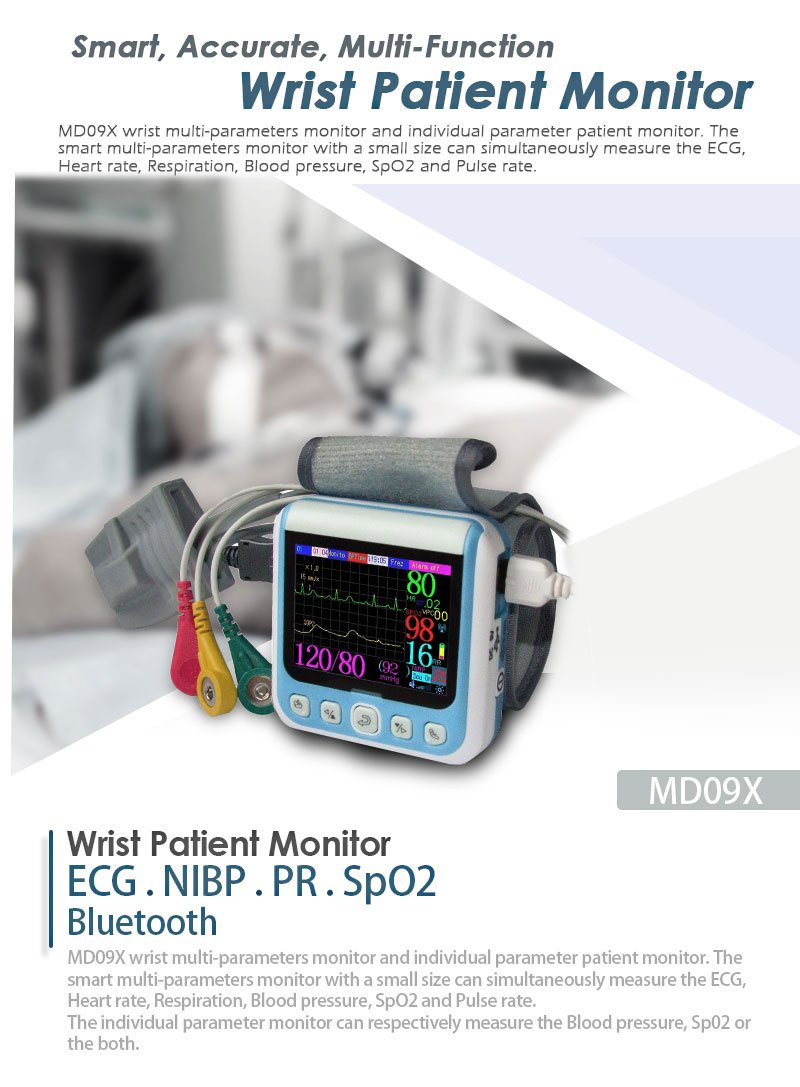

Compact wrist-worn multiparameter monitor with 2.4-inch TFT color display. Simultaneous monitoring of ECG, respiration, blood pressure, and SpO₂ with wireless Bluetooth 4.0 connectivity for seamless integration with Android and iOS smart devices.
Clinical overview

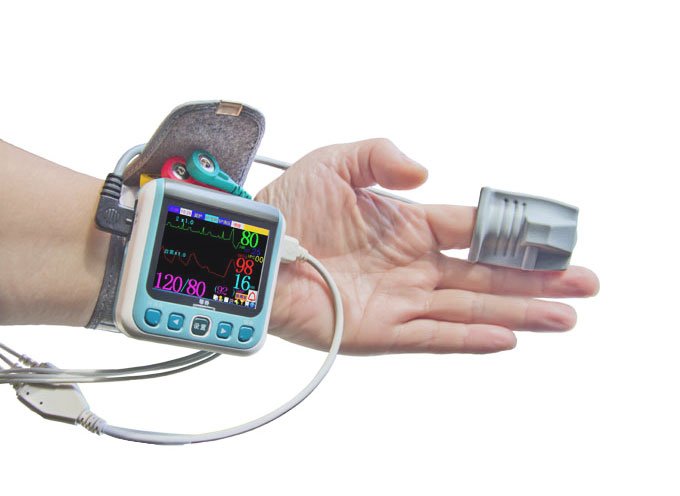

The MD09X is a portable wrist-worn multiparameter patient monitor designed for continuous and spot-check monitoring in clinical, ambulatory, and home care environments. The device integrates ECG, noninvasive blood pressure (NIBP), SpO₂, and pulse rate measurement into a single compact form factor with a 2.4-inch TFT color display capable of showing dual-channel waveforms simultaneously.
Advanced ECG processing includes automatic detection of cardiac arrhythmias (tachycardia, bradycardia, VPC, bigeminal rhythm, trigeminal rhythm, RonT, VTAC, escape beat, and sinus arrest), real-time ST-segment measurement, and pacing pulse suppression. The NIBP module uses oscillometric technology with automatic adult/child mode selection and real-time waveform display. SpO₂ measurement incorporates anti-low-perfusion and motion artifact rejection. All parameters support 96-hour trend display and abnormal data logging. Wireless Bluetooth 4.0 connectivity enables seamless integration with Android and iOS smart devices for remote monitoring and data management.
Key features & surgeon benefits
Dual-Channel Waveform Display

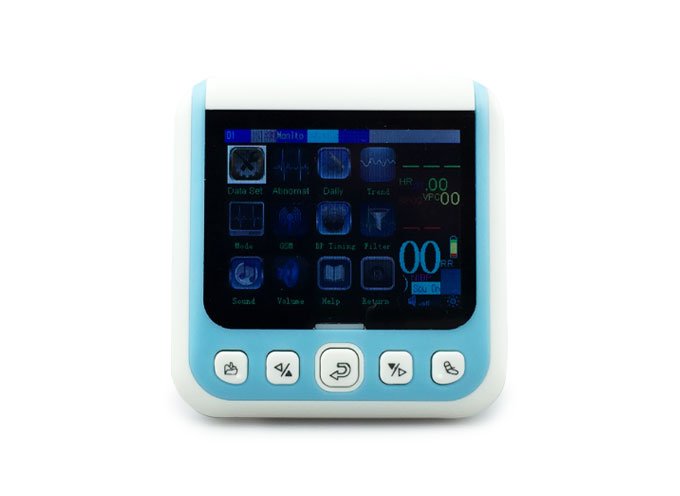

- 2.4-inch TFT color screen with 320×240 resolution
- Simultaneous display of two waveforms (ECG, respiration, BP, SpO₂)
- 96-hour trend history with ST-segment and arrhythmia tracking
- Real-time blood pressure waveform visualization
Portable & User-Friendly Operation
- Compact wrist-worn form factor (7 cm W × 7 cm H × 2.6 cm D)
- Lightweight design (130 g) for extended wear comfort
- Embedded e-manual for self-guided setup and troubleshooting
- Dual alarm modes: visual screen alerts and audible voice reminders
Wireless Smart Device Integration
- Bluetooth 4.0 for real-time data streaming to smartphones and tablets
- Compatible with Android and iOS platforms
- Remote monitoring and data logging capabilities
- Facilitates telemedicine and home-based patient management
Flexible Configuration Options
- Standard 3-lead ECG cable; optional 10-lead upgrade available
- Automatic adult/child mode detection for NIBP measurement
- Adjustable alarm thresholds and measurement parameters
- OEM and custom integration partnerships supported
Technical specifications
| Indications | Continuous and spot-check monitoring of cardiac rhythm, blood pressure, oxygen saturation, and heart rate in clinical and ambulatory settings |
|---|---|
| Display | 2.4-inch TFT color screen; 320×240 resolution; dual-channel waveform display |
| Wrist circumference range | 135–215 mm |
| ECG cable options | 3-lead (standard) or 10-lead (optional) |
| Material | Plastic housing with fabric wrist strap |
| Power supply | Built-in 3.7 V, 1000 mAh lithium battery; 5 V/1 A power adapter (2 W) |
| Operating environment | Temperature: 5–40 °C; Humidity: 15–80%; Atmospheric pressure: 80–105 kPa |
| Storage environment | Temperature: −20–55 °C; Humidity: 10–90%; Atmospheric pressure: 50.0–106.0 kPa |
| Dimensions | 7 cm (W) × 7 cm (H) × 2.6 cm (D) excluding wrist strap |
| Net weight | 130 g |
| Gross weight | 0.5 kg |
| Electrical safety | CF type (cardiac floating); leakage current <10 µA |
| Sterilisation | Non-sterile; cleaned with supplied cloth |
| Warranty | As applicable |
ECG specifications
| Parameter | Specification |
|---|---|
| Waveform gain | 0.5, 1.0, 2.0 mm/mV |
| Scanning speed | 7.5 mm/s, 15 mm/s |
| Heart rate range (adult) | 30–250 bpm |
| Heart rate precision | ±5%; resolution 1 bpm |
| Sensitivity | >200 µV peak-to-peak |
| Trigger level threshold | 200 nV (Lead II) |
| Differential input resistance | >5 MΩ |
| Common-mode rejection ratio | ≥90 dB |
| Electrode polarization voltage | 300 mV |
| Input signal range | ±5 mV |
| Frequency response (filter) | 0.67–40 Hz |
| Frequency response (guardianship) | 0.05–40 Hz |
| Frequency response (detection) | 0.05–100 Hz |
| Calibration signal | 6 mm/mV |
| Arrhythmia detection | Tachycardia, bradycardia, VPC, bigeminal rhythm, trigeminal rhythm, RonT, VTAC, escape beat, sinus arrest |
| ST-segment measurement range | −2.0 to +2.0 mV |
| ST-segment precision | −0.8 to +0.8 mV; ±0.02 mV or ±10% |
| ST-segment renewal period | 10 s |
| Pacing pulse suppression range | ±2 mV to 500 mV |
| Pacing pulse width | 0.1–2 ms |
| Pacing pulse rise time | 10–100 µs |
| Alarm sound pressure | 45–65 dB |
| Alarm mute duration | <10 s |
NIBP & SpO₂ specifications
| Parameter | Specification |
|---|---|
| Noninvasive Blood Pressure (NIBP) | |
| Measurement method | Oscillometric |
| Measuring range | 30–280 mmHg |
| Measurement accuracy | ±5 mmHg or ±5% |
| Maximum cuff pressure | ≤300 mmHg; cuff pressure ≥15 mmHg for ≤3 min |
| Overvoltage protection | Yes |
| Alarm accuracy | Systolic/diastolic ±2 mmHg |
| Auto mode detection | Adult and child modes with automatic pressure adjustment |
| Oxygen Saturation (SpO₂) | |
| Measuring range | 40–99% |
| Measurement accuracy (90–99%) | ±2% |
| Measurement accuracy (70–89%) | ±4% |
| Measurement accuracy (40–69%) | ±6% |
| Alarm range | 50–99% |
| Anti-low-perfusion | Yes |
| Motion artifact rejection | Yes |
| Pulse Rate | |
| Measuring range (30–80 bpm) | ±2 bpm |
| Measuring range (80–150 bpm) | ±4 bpm |
| Measuring range (150–240 bpm) | ±5 bpm |
| Measurement accuracy | ±5% |

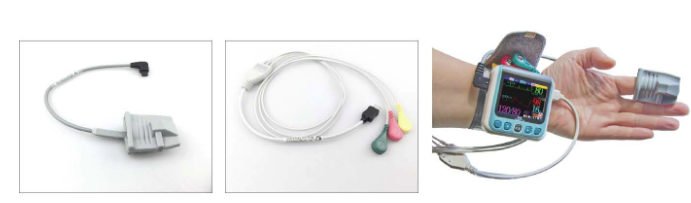

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG Cable | 3-lead standard configuration | 1 |
| SpO₂ Probe | Soft-tip finger probe | 1 |
| Power Adapter | 5 V/1 A USB charger | 1 |
| Cleaning Cloth | Microfiber cloth for device maintenance | 1 |
| Optional: ECG Cable (10-lead upgrade available) | ||
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, OEM partnerships, and custom configurations for the MD09X wrist multiparameter monitor.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
