Large Fragment Locking Plate Instrument Set
- Complete set of instruments for large fragment locking plate procedures
- Includes various threaded wire guiders, drill guiders, and taps
- Comes with a variety of drill bits and screwdrivers for precise work
- Features torque limiting handle and protective sleeve for safe and efficient procedures
- SKU
- 3200-02
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Large Fragment Locking Plate Instrument Set
Complete surgical instrument set engineered for large fragment locking plate procedures. Includes threaded wire guiders, drill guiders, taps, drill bits, and precision screwdrivers with torque limiting handle and protective sleeve for safe, efficient fixation.
Clinical overview
The Large Fragment Locking Plate Instrument Set is a comprehensive surgical solution designed to streamline large fragment locking plate procedures. This 26-piece set combines essential guiding instruments, drilling tools, tapping devices, and reduction forceps to support accurate fracture reduction and secure plate fixation. The inclusion of a torque-limiting handle ensures consistent screw insertion torque, reducing the risk of over-tightening and implant damage.
Engineered for orthopedic trauma surgeons, this set provides the precision and control required for complex fracture management. The protective sleeve and quick-coupling handles enhance ergonomics and procedural efficiency, while the depth gauge facilitates accurate screw length determination. All instruments are supplied in a durable aluminium carrying case for convenient transport and storage.
Key features & surgeon benefits
Complete Surgical Arsenal
- Threaded wire guiders (2.0mm) for precise plate positioning
- Multiple drill guiders (4.3mm) for consistent hole preparation
- Dedicated taps for cortical (4.5mm) and locking (5.0mm) screws
Optimized Procedure Control
- Torque-limiting handle (4.0 N·M) prevents screw over-insertion
- Quick-coupling handles (T-handle and straight) for rapid tool changes
- Depth gauge (0–90mm) ensures accurate screw length selection
Accuracy & Consistency
- Multiple drill bit sizes (φ3.2, φ4.2mm) for varied screw diameters
- Guider wires (φ2.0mm) for plate alignment and reduction control
- Push-pull reduction forcep for controlled fracture manipulation
Long-Term Value
- Stainless steel construction resists corrosion and wear
- Protective sleeve extends instrument lifespan
- Aluminium carrying case ensures safe storage and transport
Technical specifications
| Indications | Large fragment locking plate fixation; fracture reduction and stabilization |
|---|---|
| Sizes / range | Drill bits φ3.2–4.2mm; taps 4.5mm cortical, 5.0mm locking; depth gauge 0–90mm |
| Material | Stainless steel (instruments); aluminium (carrying case) |
| Sterilisation | Autoclavable |
| Packaging | Aluminium carrying case with foam insert |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|

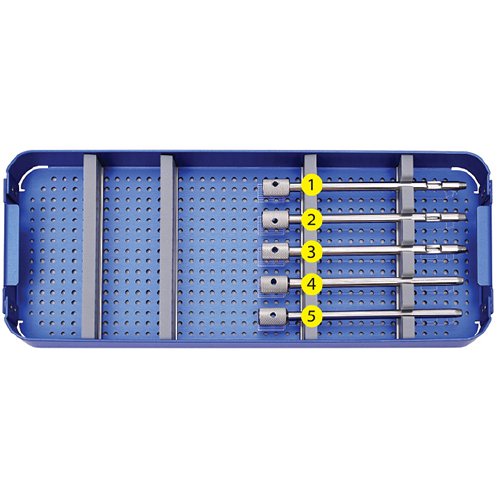

| 1 | Threaded Wire Guider 2.0mm | 1 |
| 2 | Threaded Wire Guider 2.0mm | 1 |
| 3 | Threaded Drill Guider 4.3mm | 2 |
| 4 | Threaded Drill Guider 4.3mm | 2 |
| 5 | Threaded Drill Guider 4.3mm | 1 |

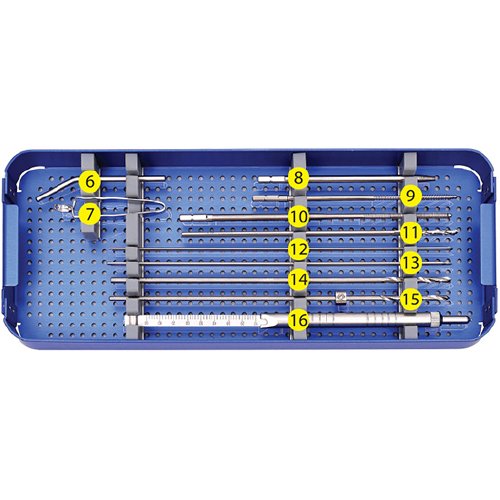

| 6 | Sleeve Key | 1 |
| 7 | Screw Forcep | 1 |
| 8 | Extraction Screw | 1 |
| 9 | Tap for Cortical Screw 4.5mm | 1 |
| 10 | Tap for Locking Screw 5.0mm | 1 |
| 11 | Drill Bit φ3.2 | 1 |
| 12 | Guider Wire φ2.0 | 1 |
| 13 | Threaded Guider Wire φ2.0 | 1 |
| 14 | Drill Bit φ4.2 | 1 |
| 15 | Drill Bit φ3.2 with Block | 1 |
| 16 | Depth Gauge 0–90mm | 1 |

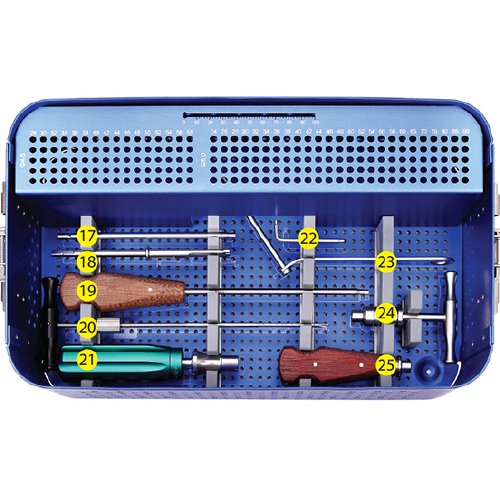

| 17 | Screwdriver Hexagonal 3.5mm | 1 |
| 18 | Screwdriver Hexagonal 3.5mm + Sleeve | 1 |
| 19 | Screwdriver Hexagonal 3.5mm | 1 |
| 20 | Push-pull Reduction Forcep | 1 |
| 21 | Torque Limiting Handle 4.0 N·M | 1 |
| 22 | Hex Key | 1 |
| 23 | Protective Sleeve | 1 |
| 24 | T-handle Quick Coupling | 1 |
| 25 | Straight Handle Quick Coupling | 1 |
| 26 | Aluminium Box | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, arrange a product demonstration, or discuss customization options for your surgical facility.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

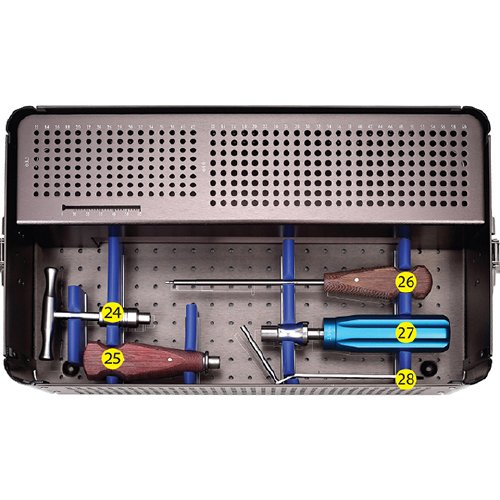

Small Fragment Locking Plate Instrument Set
