Small Fragment Locking Plate Instrument Set
- Complete set of instruments for small fragment locking plate procedures
- Includes guider wires, drill bits, screwdrivers, taps, forceps, and more
- Comes in a convenient aluminum box for storage and organization
- High-quality tools designed for precision and durability
- SKU
- 3200-01
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Small Fragment Locking Plate Instrument Set
Complete surgical instrument set for small fragment locking plate procedures. Includes guider wires, drill bits, screwdrivers, taps, forceps, and precision tools—all organized in a durable aluminum storage box for optimal workflow efficiency and instrument protection.
Clinical overview
The Small Fragment Locking Plate Instrument Set is a comprehensive surgical solution designed for orthopedic surgeons performing small fragment fixation procedures. This 29-piece set includes all essential instruments required for accurate plate placement, screw insertion, and secure fixation. Each component is engineered for precision, durability, and ease of use in the operating room.
The kit combines guider wires, drill bits with limitators, specialized taps, reduction forceps, and quick-coupling handles—all essential for modern locking plate techniques. Organized in a protective aluminum box, the set ensures instrument integrity, streamlines surgical workflow, and reduces operative time through intuitive instrument arrangement and accessibility.
Key features & surgeon benefits
Complete surgical toolkit
- 29 precision instruments in one set
- Guider wires, drill bits, and taps for all procedural steps
- Reduction forceps and screw forceps for plate manipulation
Optimized surgical efficiency
- Quick-coupling handles (T-handle and straight) for rapid tool changes
- Torque-limiting handle (1.5 N·M) ensures consistent screw insertion
- Depth gauge (0–60mm) for precise screw length determination
Cost-effective solution
- Single comprehensive purchase eliminates need for multiple kits
- Durable stainless steel construction ensures long instrument lifespan
- Aluminum storage box protects investment and maintains organization
Adaptable to your needs
- Component substitution available for specific surgical preferences
- OEM customisation options for institutional requirements
- Modular design allows selective instrument upgrades
Technical specifications
| Indications | Small fragment locking plate fixation procedures |
|---|---|
| Sizes / range | Guider wires φ1.5mm; drill bits φ2.5–3.2mm; taps 3.5–4.0mm |
| Material | Stainless steel instruments; aluminum storage box |
| Sterilisation | As applicable |
| Packaging | Protective aluminum box with organized compartments |
| Warranty | As applicable |

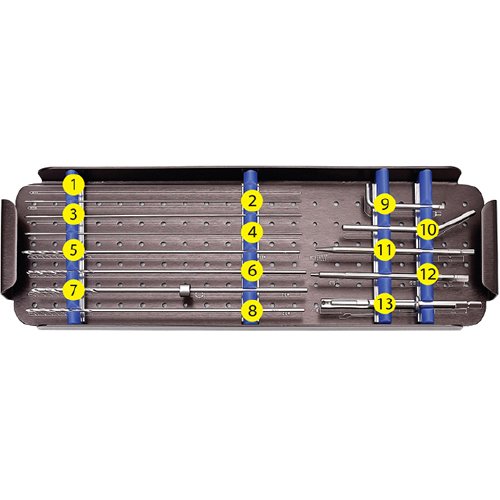

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Threaded Guider Wire φ1.5×200mm | 1 |
| 2 | Threaded Guider Wire φ1.5×200mm | 1 |
| 3 | Guider Wire φ1.5×200mm | 1 |
| 4 | Guider Wire φ1.5×200mm | 1 |
| 5 | Drill Bit φ2.5×200mm | 1 |
| 6 | Drill Bit φ2.5×200mm | 1 |
| 7 | Drill Bit φ3.2×200mm with Limitator | 1 |
| 8 | Drill Bit φ3.2×200mm | 1 |
| 9 | Hex Key | 1 |
| 10 | Sleeve Key | 1 |
| 11 | Extraction Screw | 1 |
| 12 | Screwdriver Hexagonal 2.5mm | 1 |
| 13 | Screwdriver Hexagonal 2.5mm + Sleeve | 1 |
| 14 | Depth Gauge 0–60mm | 1 |
| 15 | Push-pull Reduction Forcep | 1 |
| 16 | Tap for Cortical Screw 3.5mm | 1 |
| 17 | Tap for Locking Screw 4.0mm | 1 |
| 18 | Threaded Wire Guider 1.5mm | 1 |
| 19 | Threaded Wire Guider 1.5mm | 1 |
| 20 | Threaded Drill Guider 3.2mm | 1 |
| 21 | Threaded Drill Guider 3.2mm | 1 |
| 22 | Threaded Drill Guider 3.2mm | 1 |
| 23 | Screw Forcep | 1 |
| 24 | T-handle Quick Coupling | 1 |
| 25 | Straight Handle Quick Coupling | 1 |
| 26 | Screwdriver Hexagonal 2.5mm | 1 |
| 27 | Torque Limiting Handle 1.5 N·M | 1 |
| 28 | Protective Sleeve | 1 |
| 29 | Aluminium Box | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, discuss customisation options, or ask technical and clinical questions about the Small Fragment Locking Plate Instrument Set.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
