Micro Kit 1.5/2.0/2.7mm
- High-quality orthopedic kit for various bone surgeries
- Made of durable stainless steel material
- Includes a variety of instruments and implants for different sizes and numbers
- Can be customized based on customer's requirements
- SKU
- B980190F18D9
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Micro Kit 1.5/2.0/2.7mm
Complete orthopedic surgical kit engineered for precision bone fixation across multiple implant sizes. Manufactured from medical-grade stainless steel with comprehensive instrumentation for drilling, tapping, reduction, and plate fixation. Fully customizable component selection available.
Clinical overview
The Micro Kit 1.5/2.0/2.7mm is a comprehensive orthopedic surgical system designed for precision bone fixation across three implant sizes. Manufactured entirely from medical-grade stainless steel, this kit provides surgeons with all necessary instrumentation for drilling, tapping, reduction, and plate fixation in a single, organized system. The multi-size approach enables flexibility in surgical planning while maintaining consistent quality and ergonomic design across all components.

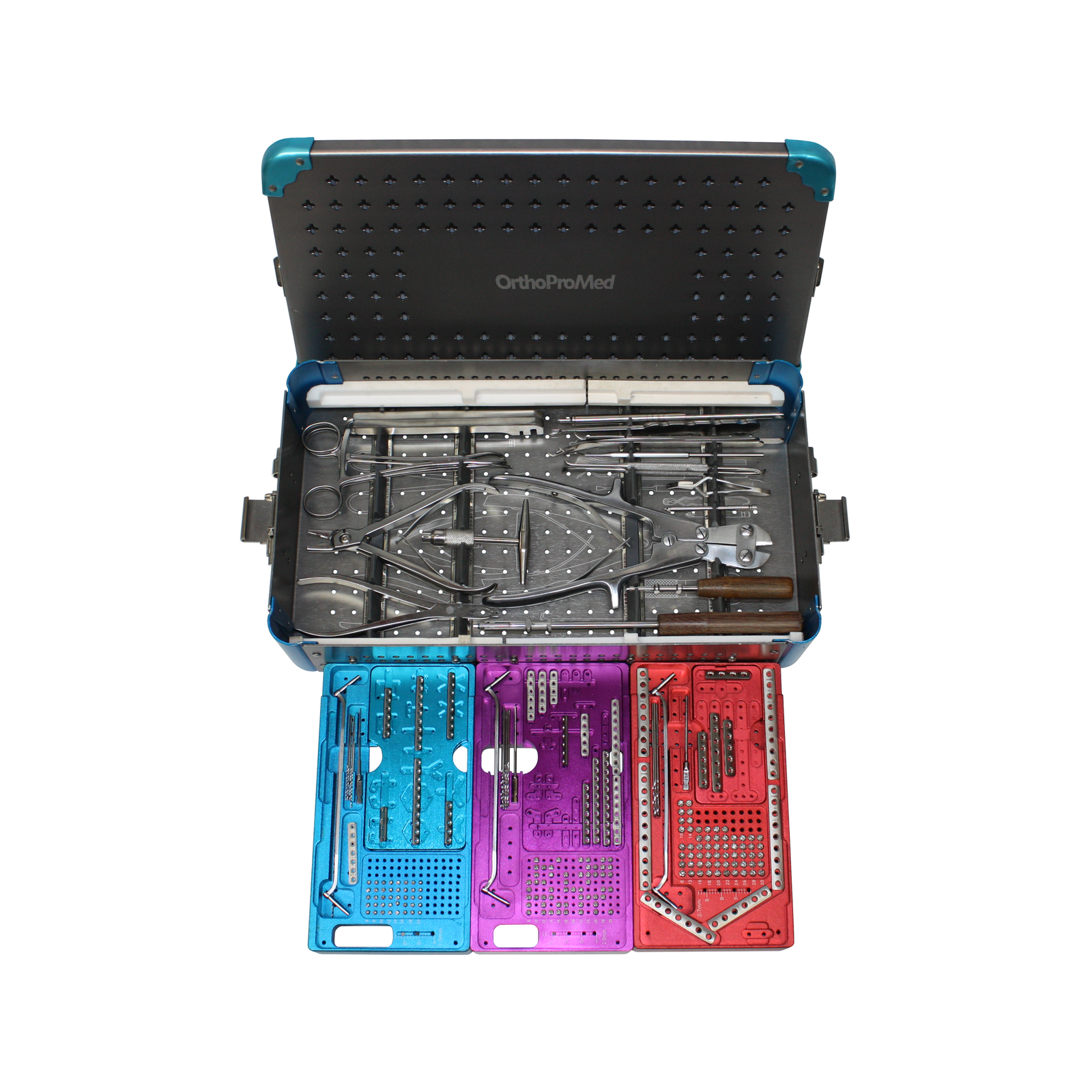

Each size system (1.5mm, 2.0mm, 2.7mm) includes dedicated bone screws, plates, and specialized instruments. The kit is supplied in a protective case with organized compartments for each implant size and instrument category, ensuring efficient intraoperative access and inventory management. Customization options allow modification of plate and screw quantities and lengths to match specific surgical protocols and institutional preferences.
Key features & surgeon benefits
Medical-Grade Durability
- All instruments and implants manufactured from medical-grade stainless steel
- Autoclavable for repeated sterilization without degradation
- Corrosion-resistant for long-term biocompatibility
Complete Surgical System
- Comprehensive drilling, tapping, and reduction instruments
- Dedicated screwdrivers and holding sleeves for each size
- Specialized forceps and elevators for plate handling and reduction
Cost-Effective Solution
- All-in-one kit reduces need for multiple instrument sets
- Generous implant quantities (40–60 screws per size, 3 plates per size)
- Competitive pricing with full customization available
Flexible Configuration
- Modify plate and screw sizes and quantities per institutional need
- Add or remove instruments based on surgical workflow
- Custom case organization available
Technical specifications
| Indications | Orthopedic bone surgery, fracture fixation, plate and screw fixation |
|---|---|
| Sizes / range | 1.5mm, 2.0mm, 2.7mm implant systems |
| Material | Medical-grade stainless steel (all components) |
| Sterilisation | Autoclavable |
| Packaging | Protective case with organized compartments (15" × 9" × 3") |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Bone drill bit | 1.1 × 80mm | 5 |
| Bone drill bit | 1.5 × 80mm | 5 |
| Bone drill bit | 2.0 × 80mm | 5 |
| Tap | 1.5mm | 1 |
| Tap | 2.0mm | 1 |
| Tap | 2.7mm | 1 |
| Screwdriver | 1.5/2.0mm | 1 |
| Screw holding sleeve | 1.5mm | 1 |
| Screwdriver | 2.7mm | 1 |
| Screw holding sleeve | 2.7mm | 1 |
| Guider | 1.1/1.5mm | 1 |
| Guider | 1.5/2.0mm | 1 |
| Guider | 2.0/2.7mm | 1 |
| Counter drill | 4.0mm | 1 |
| Straight quick-coupling handle | 4.5mm | 1 |
| T-shape quick-coupling handle | 4.5mm | 1 |
| Screwdriver with handle | 2.6mm | 1 |
| Depth detector | 40mm | 1 |
| Hook | Standard | 2 |
| De-coupling | Standard | 1 |
| Periosteal dissector | 3mm | 1 |
| Periosteal dissector | 5mm | 1 |
| Screw holder | Standard | 1 |
| Plate forcep | Standard | 1 |
| Plate bender | 2×1 | 1 set |
| Elevator | 3×1 | 1 |
| Bent reduction forcep | Standard | 1 |
| Sharp reduction forcep | Standard | 1 |
| Plate nipper | Standard | 1 |
| Multi-functional forcep | Standard | 1 |
| Bone plate box | 1.5mm | 1 set |
| Bone plate box | 2.0mm | 1 set |
| Bone plate box | 2.7mm | 1 set |
| Case with lid | 15" × 9" × 3" | 1 |
| Bone screws (self-tapping) | 1.5mm (6–30mm) | 40 |
| Bone screws (self-tapping) | 2.0mm (6–30mm) | 55 |
| Bone screws (self-tapping) | 2.7mm (8–30mm) | 60 |
| Bone plate | 1.5mm | 3 |
| Bone plate | 2.0mm | 3 |
| Bone plate | 2.7mm | 3 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, discuss customization options, or arrange a product demonstration. We offer flexible configurations to meet your surgical and institutional requirements.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
