MiniScan Veterinary Mini Ultrasound Scanner Designed For Small And Large Animal Pregnancy
- Portable MiniScan Veterinary Mini Ultrasound Scanner for small and large animal pregnancy
- Multi-frequency waterproof ultrasound probe for versatile scanning
- Includes rechargeable lithium ion battery pack for convenient field use
- Comes with two years factory warranty (one year for probe) and a carrying case
- Optional accessories available such as car lighter and video goggles for enhanced functionality
- SKU
- 7EBC4B6948F1
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping

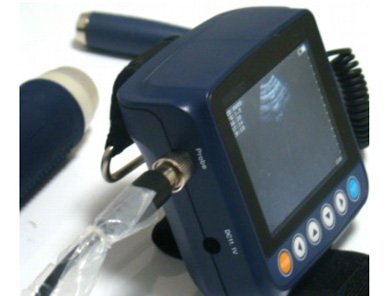

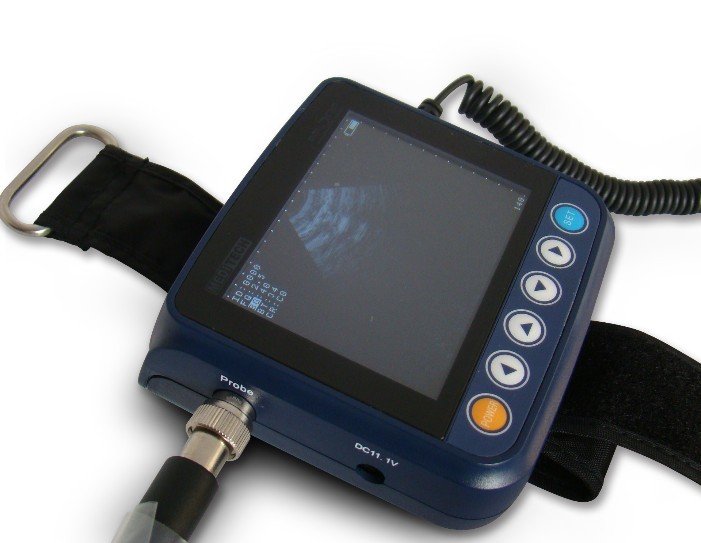

MiniScan Veterinary Mini Ultrasound Scanner
Portable, field-ready ultrasound system designed for pregnancy and fertility scanning in small and large animals. Features multi-frequency waterproof probe, rechargeable battery, and wearable display goggles for hands-free operation in diverse farm environments.
Clinical overview
The MiniScan Veterinary Mini Ultrasound Scanner delivers significant improvements in viewing images from fertility and pregnancy scanning across multiple species including horses, cattle, sheep, deer, and goats. Engineered specifically for field use, the system combines portability with clinical-grade imaging performance, enabling veterinarians to conduct comprehensive reproductive assessments in diverse farm environments.
The integrated wearable display technology projects ultrasound images directly in front of the operator's eyes, providing excellent peripheral vision and increased awareness of surrounding animals during scanning procedures. This hands-free approach enhances both safety and workflow efficiency, while the lightweight, ergonomic design supports comfortable extended use without fatigue.
Key features & surgeon benefits
Field-Ready Design
- Lightweight 340 g system including battery
- Water-resistant and dust-tight construction
- Operates across wide temperature range
- Compact carrying case for transport
High-Resolution Display
- 3.5-inch high-resolution color TFT LCD (640 × 480 pixels)
- 256 gray levels for detailed visualization
- Multi-frequency probe (2.5/3.5/5.0 MHz)
- 78-degree scan angle with 160 mm maximum depth
Extended Runtime
- Rechargeable lithium-ion battery pack
- 2.5+ hours continuous operation
- Full charge in 2 hours (75% in 1 hour)
- AC adapter (110–110V/240V, 50/60 Hz)
Multi-Species Protocols
- Distance, area, volume, and heart rate measurements
- Species-specific OB measurements (bovine, ovine, porcine, canine, feline)
- Up to 128 frames built-in memory
- Standardized measurement presets
Technical specifications
| Indications | Pregnancy and fertility scanning in horses, cattle, sheep, deer, goats, pigs, cats, and dogs |
|---|---|
| Display | 3.5-inch high-resolution color TFT LCD, 640 × 480 pixels |
| Probe Type | Multi-frequency mechanical sector probe |
| Frequencies | 2.5 MHz, 3.5 MHz, 5.0 MHz |
| Depth Range | Maximum 160 mm |
| Scan Angle | 78 degrees |
| Gray Levels | 256 gray levels |
| Memory | Up to 128 frames |
| Measurements | Distance, area, volume, heart rate; species-specific OB protocols |
| Battery | Internal lithium-ion; 2.5+ hours continuous use; full charge 2 hours |
| Power Supply | AC adapter 110–110V/240V, 50/60 Hz |
| Weight | 340 g (including battery) |
| Dimensions | 171 mm × 93 mm × 62 mm |
| Sterilisation | Water-resistant and dust-tight; field-ready design |
| Warranty | Two years factory warranty (one year for probe) |
| Packaging | Carrying case; net weight 3.4 kg, gross weight 4 kg |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | MiniScan veterinary ultrasound system | 1 |
| Ultrasound Probe | Multi-frequency waterproof ultrasound probe | 1 |
| Battery Pack | Rechargeable lithium-ion battery pack | 1 |
| AC Adapter | AC adapter (110–110V/240V, 50/60 Hz) | 1 |
| Wrist Bandage | Wrist bandage for probe handling | 1 |
| Carrying Case | Protective carrying case for transport | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss optional accessories, or arrange a technical demonstration of the MiniScan system for your veterinary practice.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
