Description

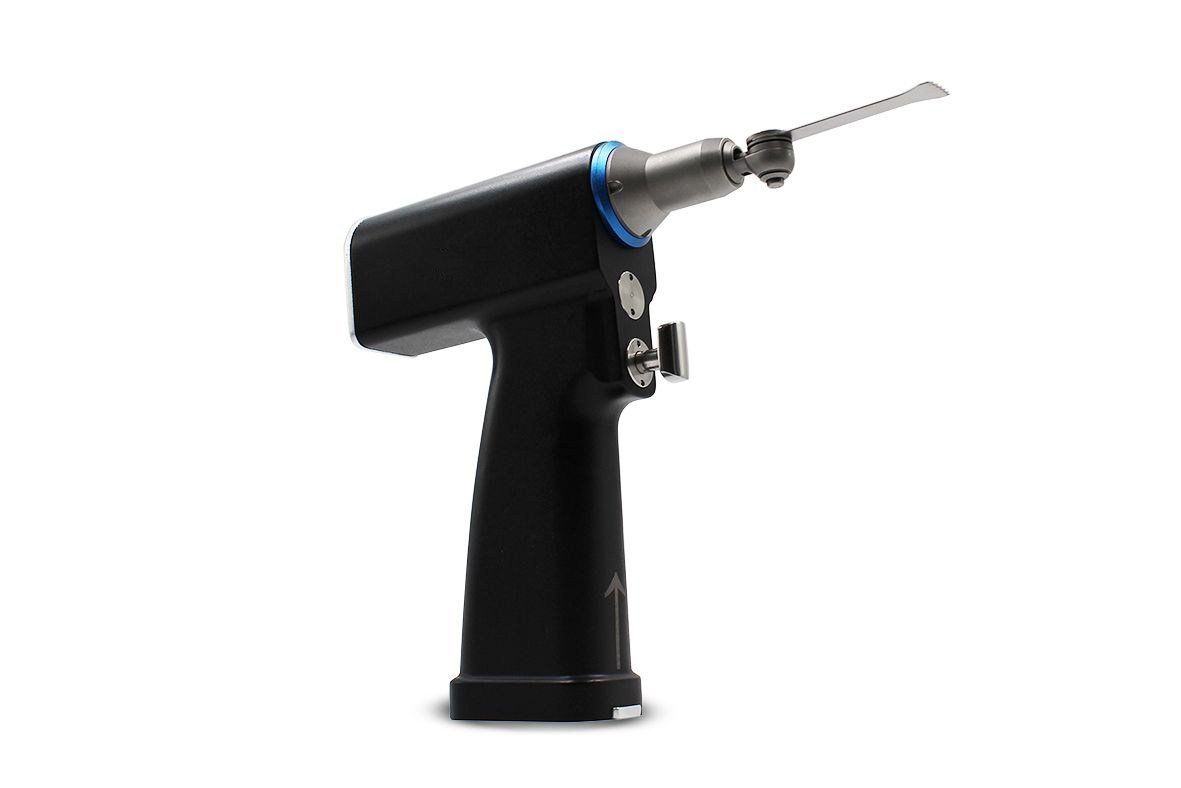

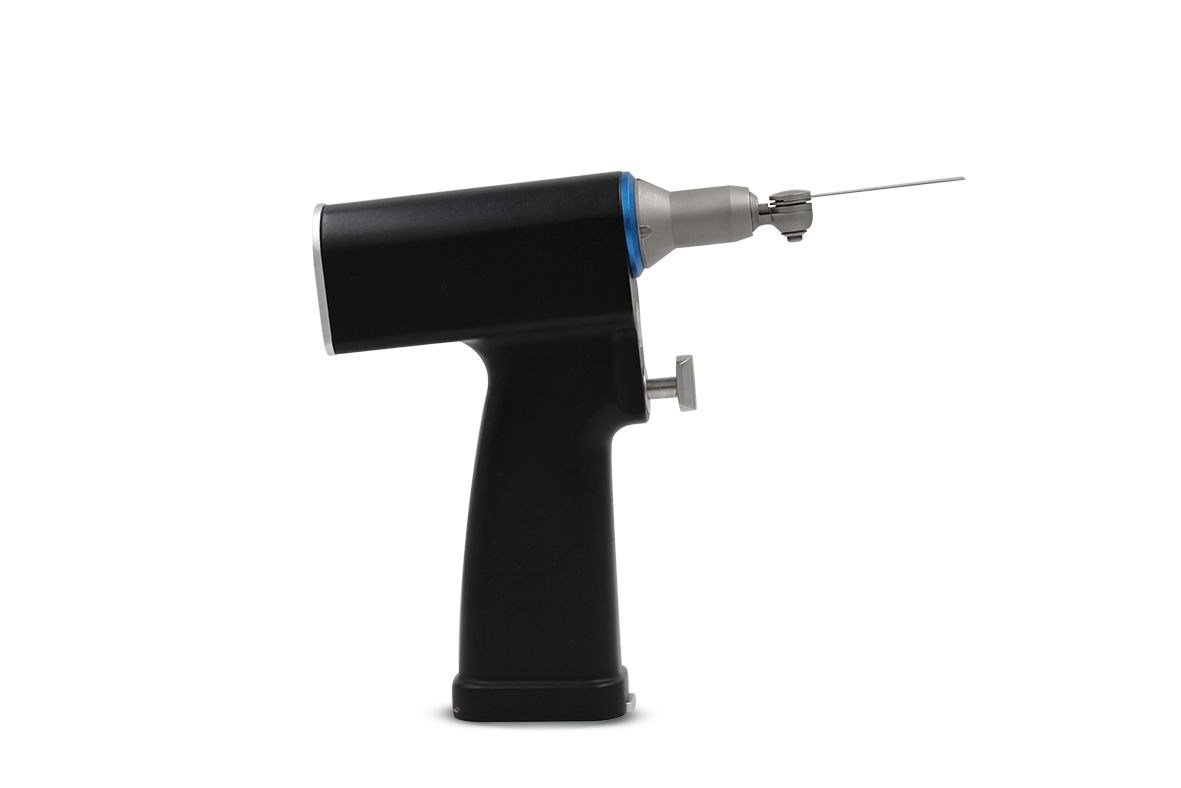

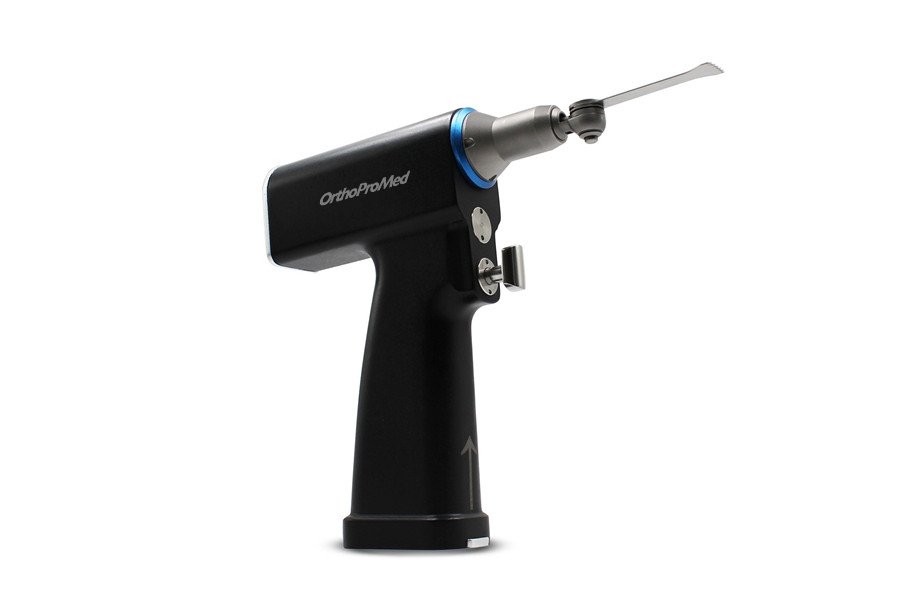

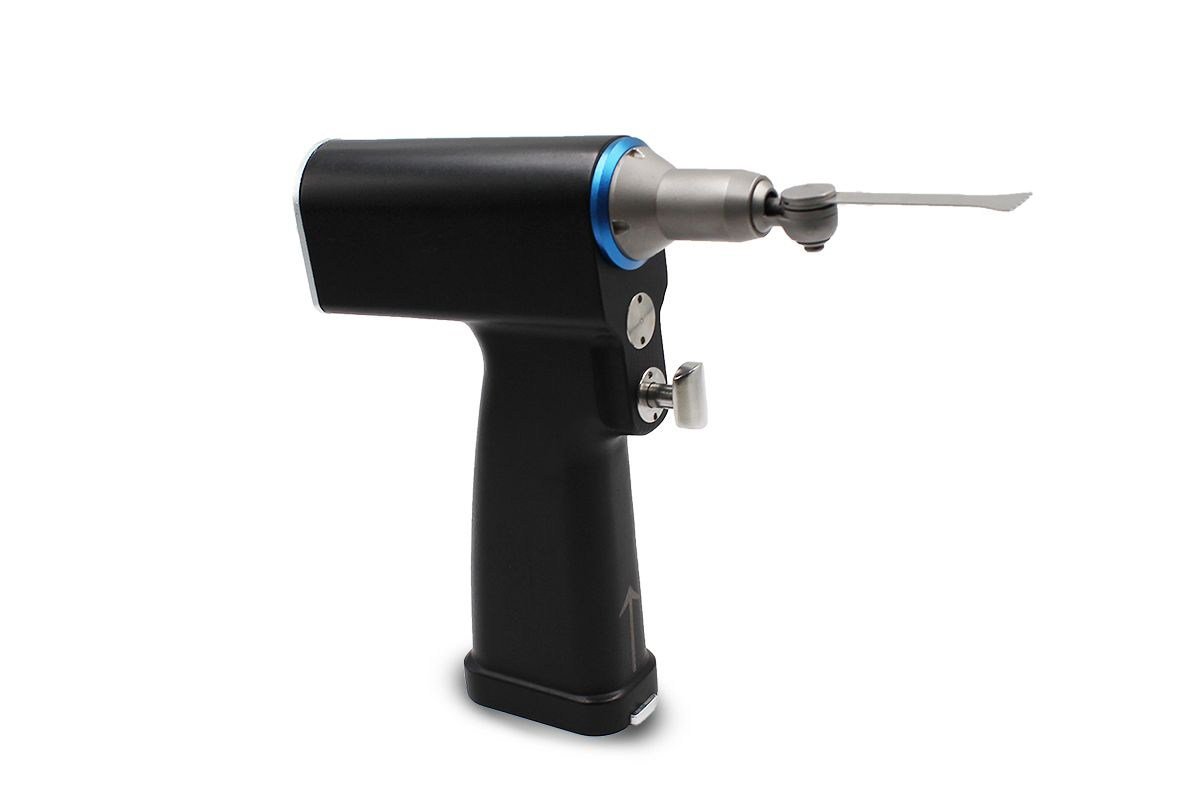

Orthopromed 1100 Mini Sagittal Saw
A precision-engineered cordless sagittal saw designed for orthopedic and maxillofacial procedures. Features an ergonomic design, fully autoclavable construction, and a high-efficiency brushless motor with extended battery life. Available with nine blade size options for maximum surgical versatility.
Clinical overview
The Orthopromed 1100 Mini Sagittal Saw is a professional-grade cordless cutting instrument engineered for precision orthopedic and maxillofacial surgical applications. Its compact, ergonomic design ensures comfortable handling during extended procedures, while the top-quality brushless motor delivers consistent, efficient cutting performance with minimal vibration and noise.
The handpiece is fully autoclavable, simplifying sterilization protocols and reducing turnaround time between cases. With nine interchangeable blade sizes ranging from 25mm to 60mm in length, surgeons can select the optimal blade configuration for each anatomical site and procedural requirement. The advanced battery technology provides extended runtime while maintaining consistent power delivery throughout the surgical procedure.
Key features & surgeon benefits
Optimized for Comfort & Control
- Ergonomic handpiece design reduces hand fatigue during extended procedures
- Lightweight cordless construction improves maneuverability and precision
- Double-button switches enable swift, intuitive forward and reverse control
High-Efficiency Brushless Performance
- Top-quality cannulated hollow brushless motor minimizes energy loss
- Extended battery life with consistent power delivery
- Reduced wear and longer service life compared to brushed alternatives
Fully Autoclavable Design
- Complete handpiece autoclavable at 135–138°C for simplified sterilization
- Battery removed prior to sterilization; no high-temperature exposure required
- Reduces instrument turnaround time and improves OR efficiency
Nine Blade Size Options
- 60mm × 15mm × 0.5mm, 45mm × 10mm × 0.5mm, 45mm × 8mm × 0.6mm
- 45mm × 6mm × 0.5mm, 45mm × 4mm × 0.5mm, 25mm × 10mm × 0.5mm
- 25mm × 8mm × 0.5mm, 25mm × 6mm × 0.5mm, 25mm × 4mm × 0.5mm; custom sizes available
Technical specifications
| Indications | Orthopedic and maxillofacial surgical cutting procedures |
|---|---|
| Sizes / range | Nine blade configurations: 25–60mm length, 4–15mm width, 0.5–0.6mm thickness |
| Material | Surgical-grade stainless steel handpiece; brushless motor; lithium-ion battery |
| Sterilisation | Handpiece: 135–138°C autoclave (battery removed); battery not autoclavable |
| Packaging | As applicable |
| Warranty | Handpiece: 1 year; battery and consumables: 3 months |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | Orthopromed 1100 Mini Sagittal Saw cordless handpiece with brushless motor | 1 |
| Battery pack | Lithium-ion rechargeable battery | 1 |
| Saw blade set | Nine interchangeable blade sizes (25–60mm length, 4–15mm width) | 1 set |
| Charging unit | Battery charger | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss customization options, or arrange a clinical demonstration of the Orthopromed 1100 Mini Sagittal Saw.
