Orthopromed 5505 Multifunctional Power Tool
$6,990.00
– The Orthopromed 5505 Multifunctional Power Tool features fast and slow gearboxes for versatile functionality
– Lightweight and ergonomic design for comfortable handling
– Integrated handpiece with good sealing and autoclavable construction
– Dual triggers for single-handed control
– Cordless high-quality motors for low noise and extended service life
Description
Orthopromed 5505 Multifunctional Power Tool
Dual-speed cordless handpiece engineered for orthopedic and trauma surgery. Features integrated fast and slow gearboxes, ergonomic design, and fully autoclavable construction with dual-trigger single-handed control for enhanced surgical precision and efficiency.
Clinical overview
The Orthopromed 5505 is a versatile cordless multifunctional power tool designed for demanding orthopedic and trauma applications. Its integrated dual-speed gearbox (fast and slow) eliminates the need for multiple attachments while maintaining complete functional capability. The handpiece delivers both high-speed drilling and high-torque reaming in a single, lightweight platform, reducing operative time and instrument changeover.
Built with advanced cordless motor technology, the 5505 operates at exceptionally low noise levels with minimal vibration, enhancing surgeon comfort and patient safety. The fully integrated, autoclavable handpiece design ensures reliable sterilisation and long-term durability, while the dual-trigger ergonomic control enables single-handed operation for improved surgical precision and reduced fatigue during extended procedures.
Key features & surgeon benefits
Dual-Speed Gearbox
- Fast and slow speed modes in single handpiece
- Eliminates need for multiple attachments
- Supports drilling, reaming, and wire/pin driving
- Reduces operative time and setup complexity
Lightweight & Intuitive Control
- Ergonomic handpiece design for comfortable handling
- Dual-trigger system enables single-handed operation
- Low noise, low vibration cordless motor
- Reduces surgeon fatigue during extended procedures
Robust Construction & Sterilisation
- Fully integrated, autoclavable handpiece design
- Superior wear and water resistance vs. medical stainless steel
- High-capacity long-lasting batteries
- 1-year handpiece warranty; 3-month battery warranty

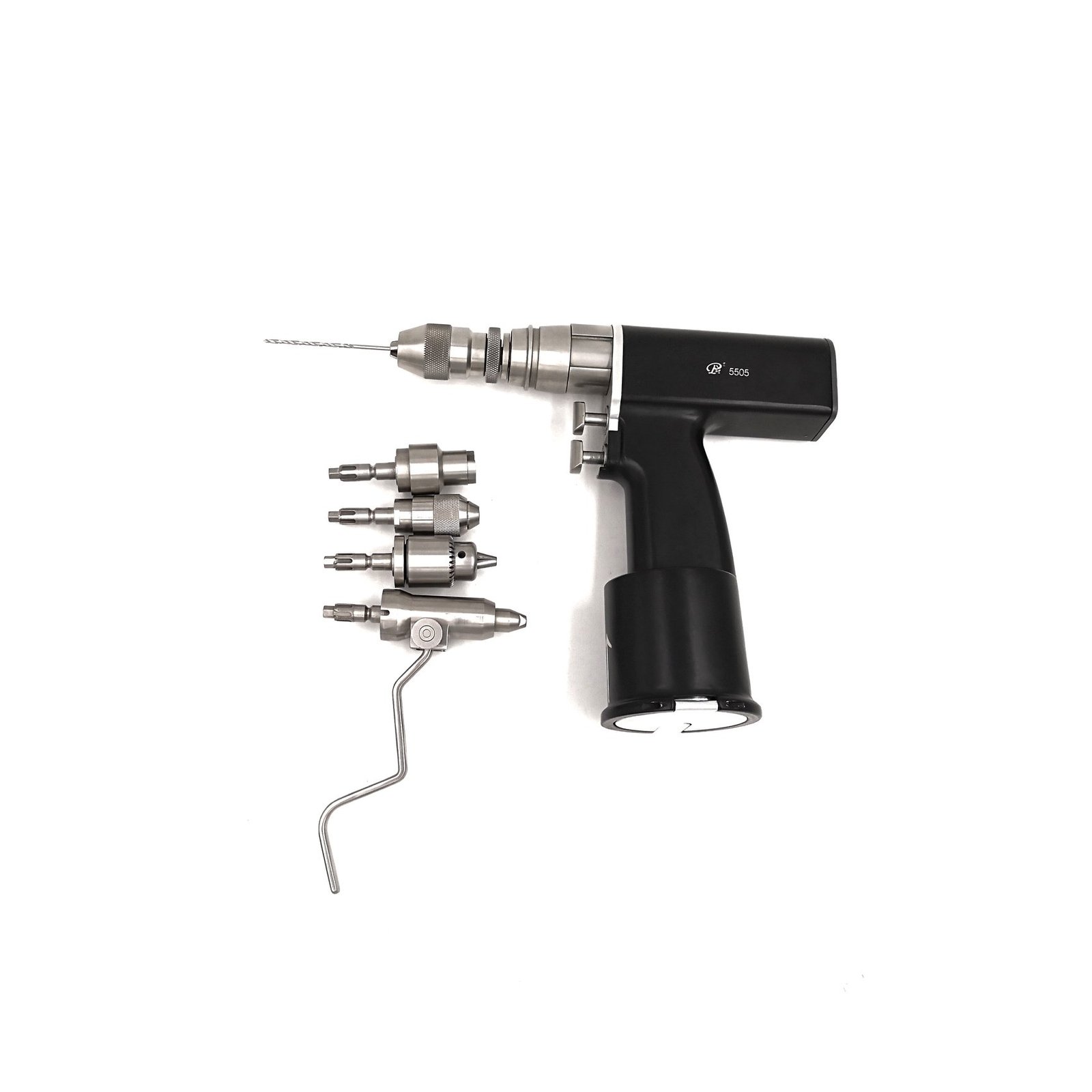

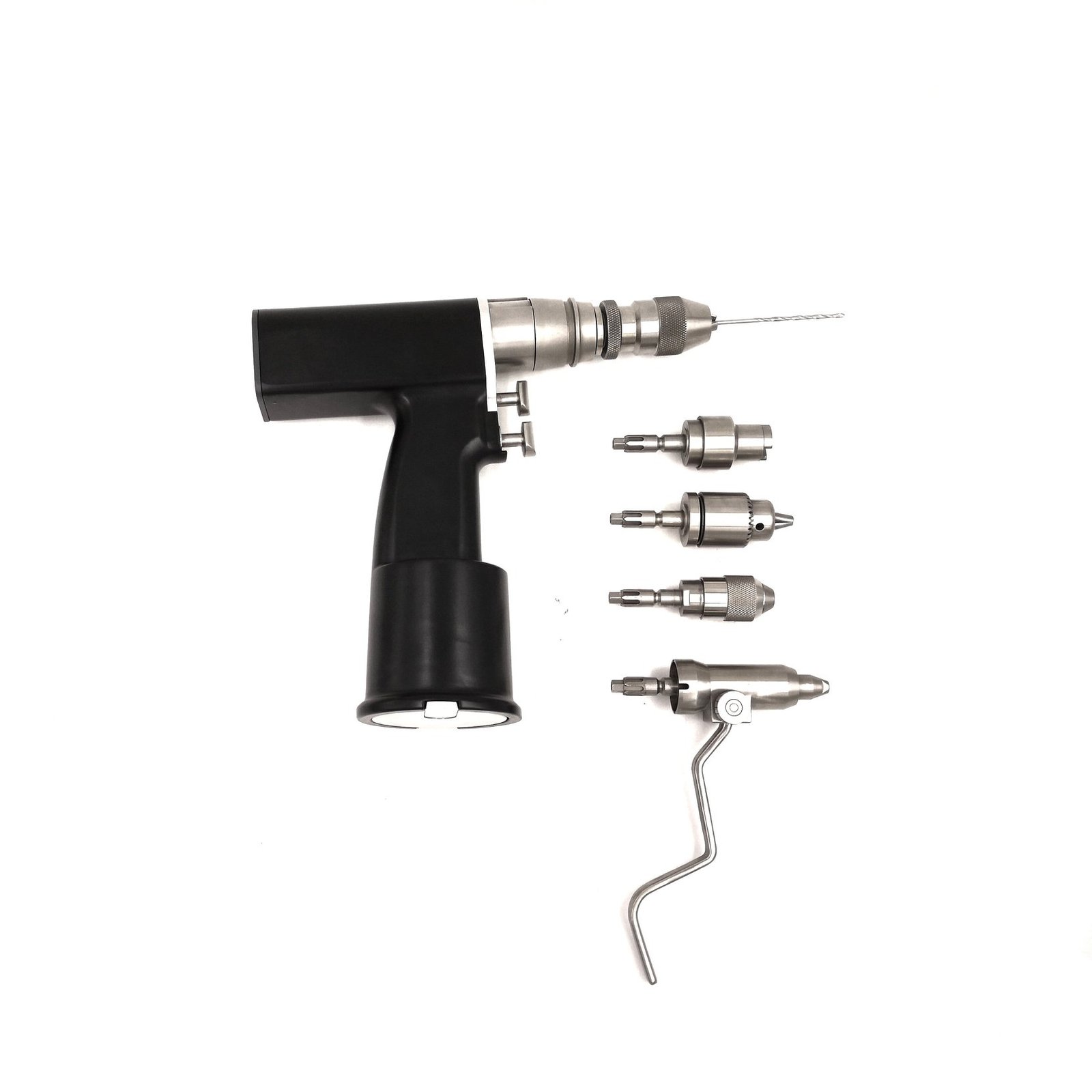

Multiple Chuck Options
- Jacobs Chuck (1:1 ratio)
- AO Chuck (1:1 ratio)
- Quick Coupling (1:1 ratio)
- Keyless Chuck; Wire & Pin Drivers (0.8–3.2 mm)
Technical specifications
| Indications | Orthopedic drilling, reaming, wire and pin driving in trauma and reconstructive surgery |
|---|---|
| Sizes / range | Jacobs Chuck (1:1), AO Chuck (1:1), Quick Coupling (1:1), Keyless Chuck (1:1); Wire & Pin Drivers 0.8–1.8 mm and 2.0–3.2 mm |
| Material | High-performance composite handpiece with superior wear and water resistance; stainless steel components |
| Sterilisation | Autoclavable at 135–137 °C (handpiece only; battery must be removed and stored separately) |
| Packaging | Sterile case compatible; handpiece and accessories fit within standard surgical trays |
| Warranty | Handpiece: 1 year; Battery and fast-consumption items: 3 months |

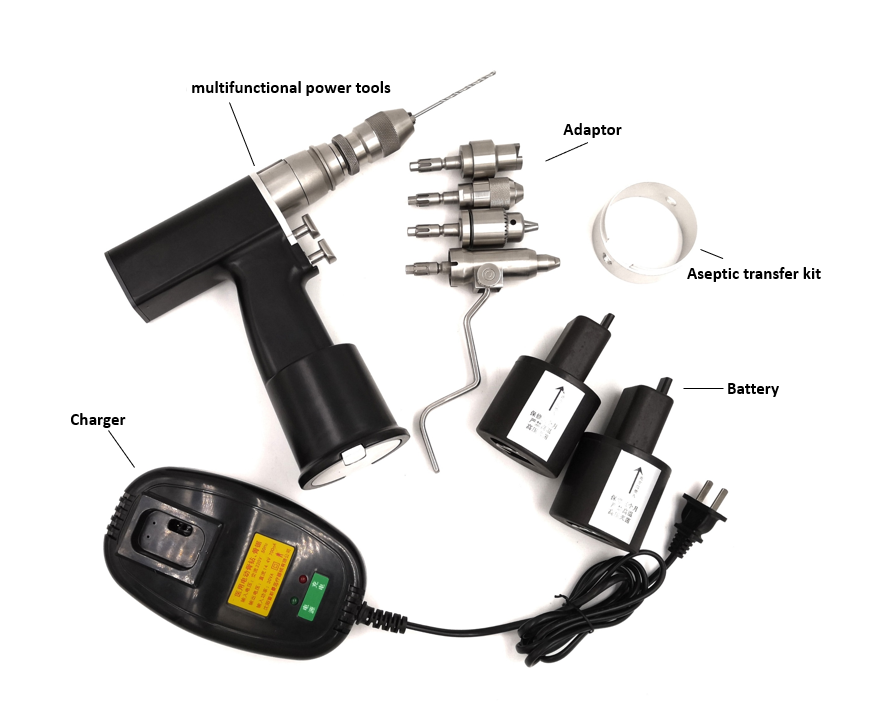

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 5505-1 | 1:1 Jacobs Chuck | 1 |
| 5505-2 | 1:1 AO Chuck | 1 |
| 5505-3 | 1:1 Drill Quick Coupling | 1 |
| 5505-4 | 1:1 Keyless Chuck | 1 |
| 5505-5-1 | 1:1 Wire & Pin Driver (0.8–1.8 mm) | 1 |
| 5505-5-2 | 1:1 Wire & Pin Driver (2.0–3.2 mm) | 1 |
| Handpiece | Multifunctional cordless handpiece with dual-speed gearbox | 1 |
| Battery Pack | High-capacity cordless battery system | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, arrange a demonstration, or discuss customisation options for the Orthopromed 5505. We provide comprehensive support and rapid delivery to surgical centres worldwide.
Email: info@tedsmedical.com
