Description

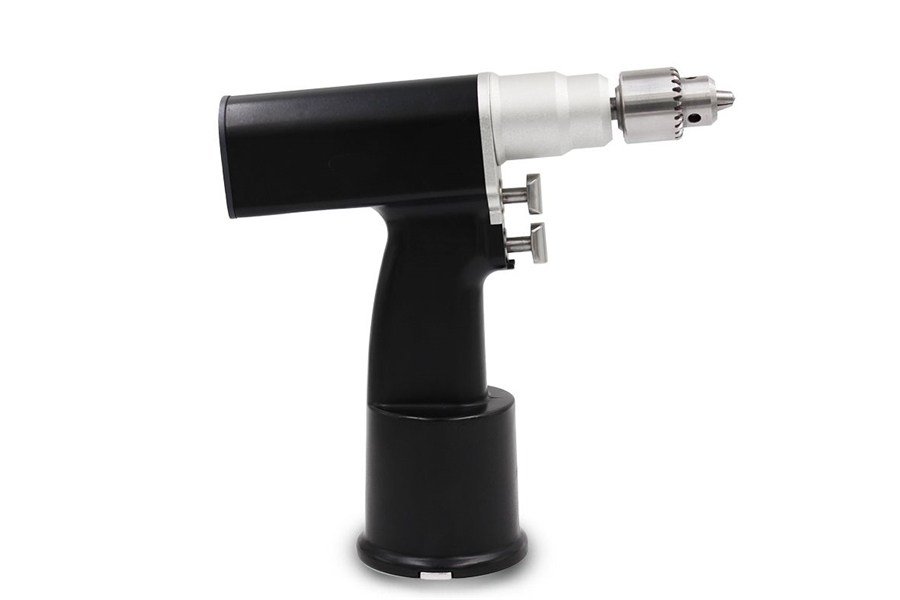

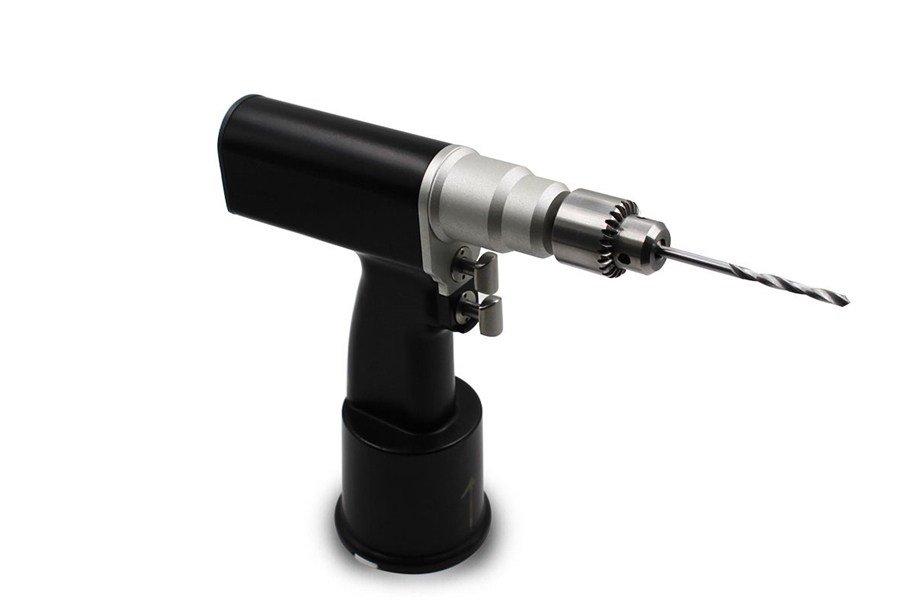

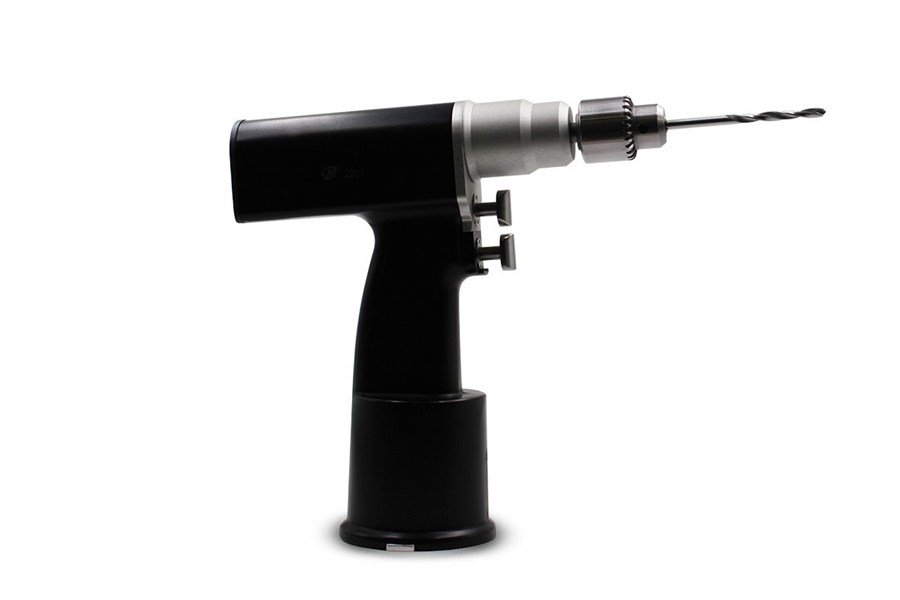

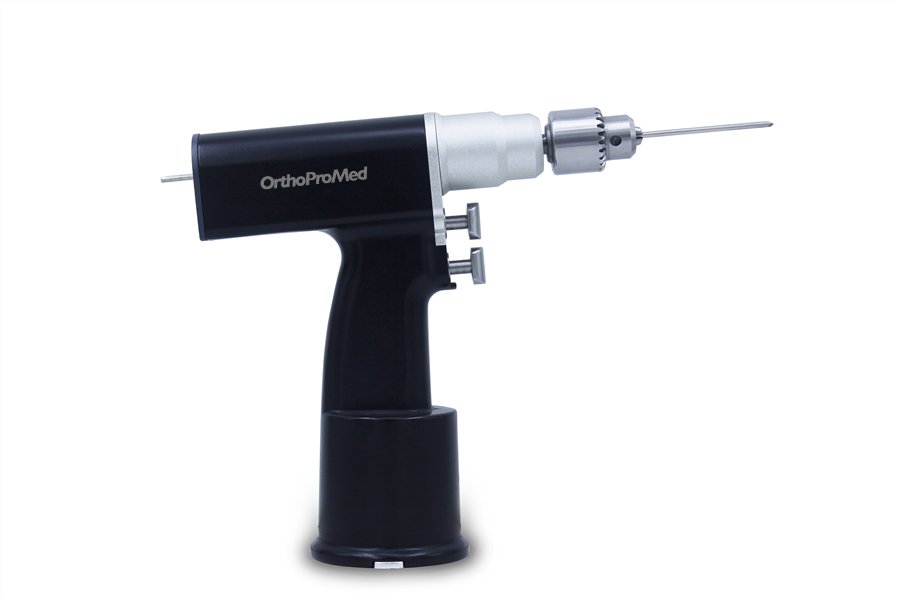

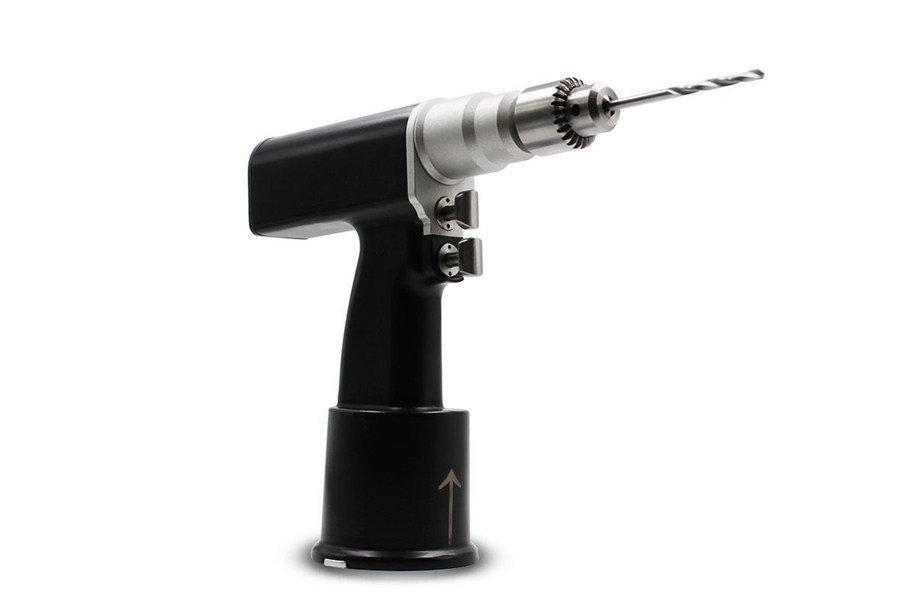

Orthopromed 2201 Cannulated Bone Drill
A precision cordless cannulated bone drill engineered for orthopedic and trauma surgery. Features ergonomic design, dual-trigger operation, and a high-quality motor delivering low noise and extended service life. Fully autoclavable for comprehensive sterilization.
Clinical overview
The Orthopromed 2201 is a precision cannulated bone drill designed for orthopedic and trauma surgical applications requiring accurate, controlled drilling with minimal tissue trauma. The integrated handpiece design ensures excellent sealing and durability, while the optimized weight distribution enhances surgeon comfort and control during extended procedures. The center hole diameter of 0–8 mm with precise concentricity improves operational accuracy and consistency.
Engineered for the modern surgical environment, this cordless system eliminates cable management complications and provides consistent power delivery throughout the procedure. The dual-trigger design enables single-handed operation, allowing surgeons to maintain optimal positioning and visibility while drilling.
Key features & surgeon benefits
Optimized for comfort and control
- Ergonomic shape reduces hand fatigue during extended procedures
- Optimized weight distribution enhances balance and functional control
- Integrated handpiece design with superior sealing integrity
Intuitive single-handed operation
- Dual-trigger design for seamless one-handed control
- Cordless motor eliminates cable management and positioning constraints
- Consistent power delivery throughout procedure
Precision and reliability
- Center hole diameter 0–8 mm with precise concentricity
- Low-loss, low-noise cordless motor for extended service life
- Consistent, long-lasting battery performance
Fully autoclavable construction
- Complete unit autoclavable at 135–137 °C
- Special wear-resistant material superior to standard medical stainless steel
- Excellent water and corrosion resistance
Technical specifications
| Indications | Orthopedic and trauma surgery; cannulated bone drilling procedures |
|---|---|
| Center hole diameter | 0–8 mm with precise concentricity |
| Material | Medical-grade stainless steel with wear-resistant coating; superior to standard medical stainless steel |
| Motor type | Cordless high-quality motor; low loss, low noise, low wear |
| Sterilisation | Fully autoclavable at 135–137 °C; battery must be removed prior to sterilization |
| Packaging | Standard configuration with handpiece, battery, and charging system |
| Warranty | Handpiece: 1 year; Battery and consumables: 3 months |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | Orthopromed 2201 cordless cannulated bone drill with integrated design | 1 |
| Battery pack | Rechargeable lithium-ion battery with consistent, long-lasting performance | 1 |
| Charging system | Dedicated charger for battery pack | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss clinical applications, or arrange a product demonstration. We offer comprehensive support and can discuss customization and OEM options for your facility.
