Pocket Spirometer with PC Spirometry Reports, Lung Diagnosis
- Palm size spirometer with LCD screen for easy reading
- Performs PEF and FEV1 tests
- Meets ATS 1994 standardization for accuracy
- Records up to 300 measurements
- Bluetooth or USB connectivity to upload data to "SpiroSoft" Analyzer software
- Operates on AAA batteries
- Measures volume from 0.01L to 9.99L and airflow from 30 to 999L/min
- SKU
- ECB13EE939F7
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Pocket Spirometer with PC Spirometry Reports
Compact, portable spirometer with LCD display for rapid PEF and FEV1 assessment. ATS 1994 standardized accuracy, Bluetooth/USB connectivity to SpiroSoft analyzer software, and capacity for 300 measurements. Ideal for hospital and home-based pulmonary screening.
Clinical overview
The Pocket Spirometer is a palm-sized, portable pulmonary function testing device designed for rapid, accurate measurement of forced expiratory volume in one second (FEV1) and peak expiratory flow (PEF). Meeting ATS (American Thoracic Society) 1994 standardization criteria, it delivers clinically reliable results suitable for both hospital and home-based respiratory screening programs.
With integrated Bluetooth and USB connectivity, patient data automatically uploads to SpiroSoft Analyzer software for comprehensive reporting, trend analysis, and clinical documentation. The device stores up to 300 measurements with timestamps, enabling longitudinal monitoring and seamless integration into electronic health records.
Key features & surgeon benefits
Palm-Sized Design
- Compact form factor fits in pocket or medical bag
- Lightweight for point-of-care testing
- Operates on standard AAA batteries
ATS 1994 Standardized
- Volume accuracy: ±0.1L or ±3% (whichever greater)
- Flow accuracy: ±5% or 0.2L/s (whichever greater)
- Turbine sensor technology for reliable measurements
Wireless Data Management

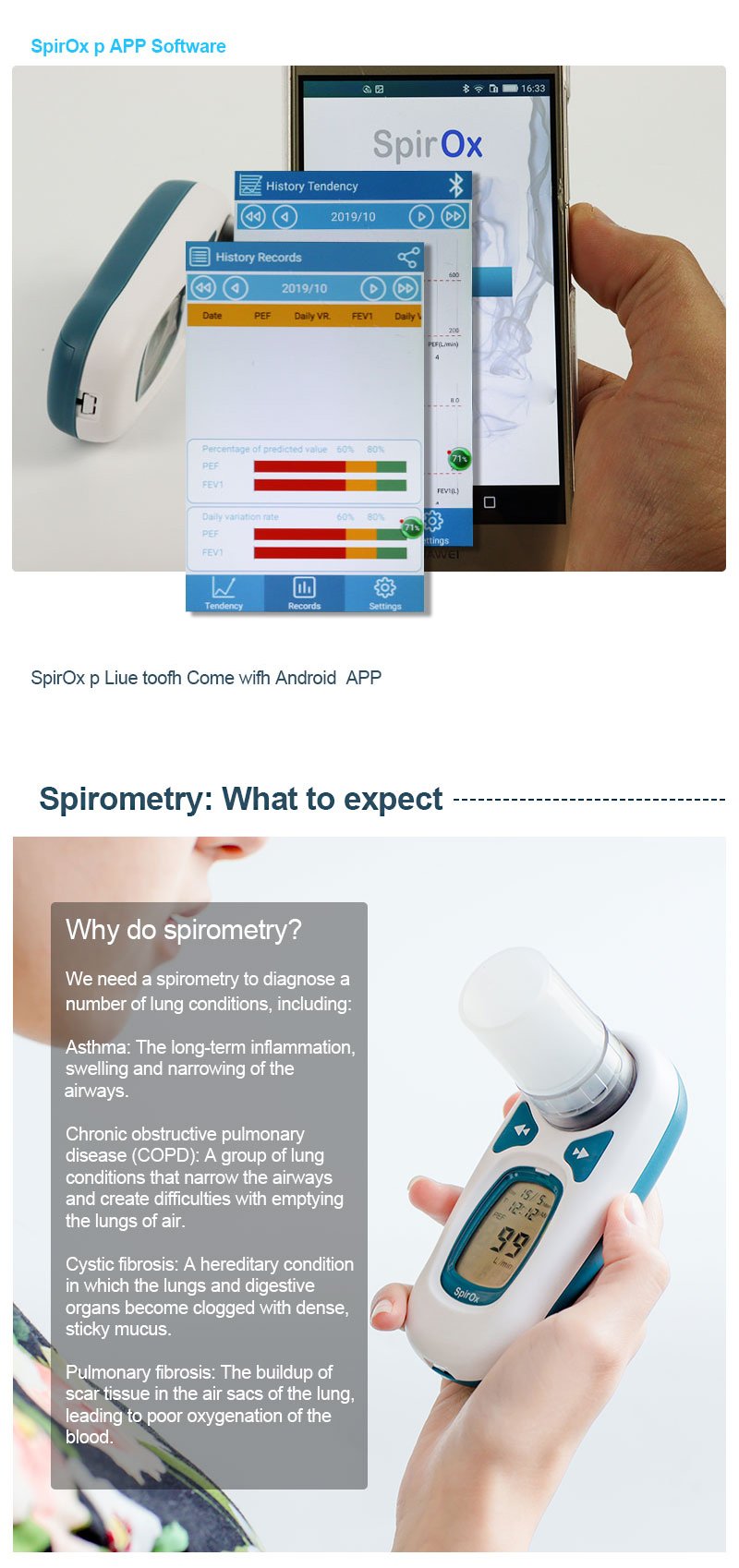

- Bluetooth and USB data transfer to SpiroSoft software
- Stores 300 measurements with date/time stamps
- Automated reporting and trend analysis

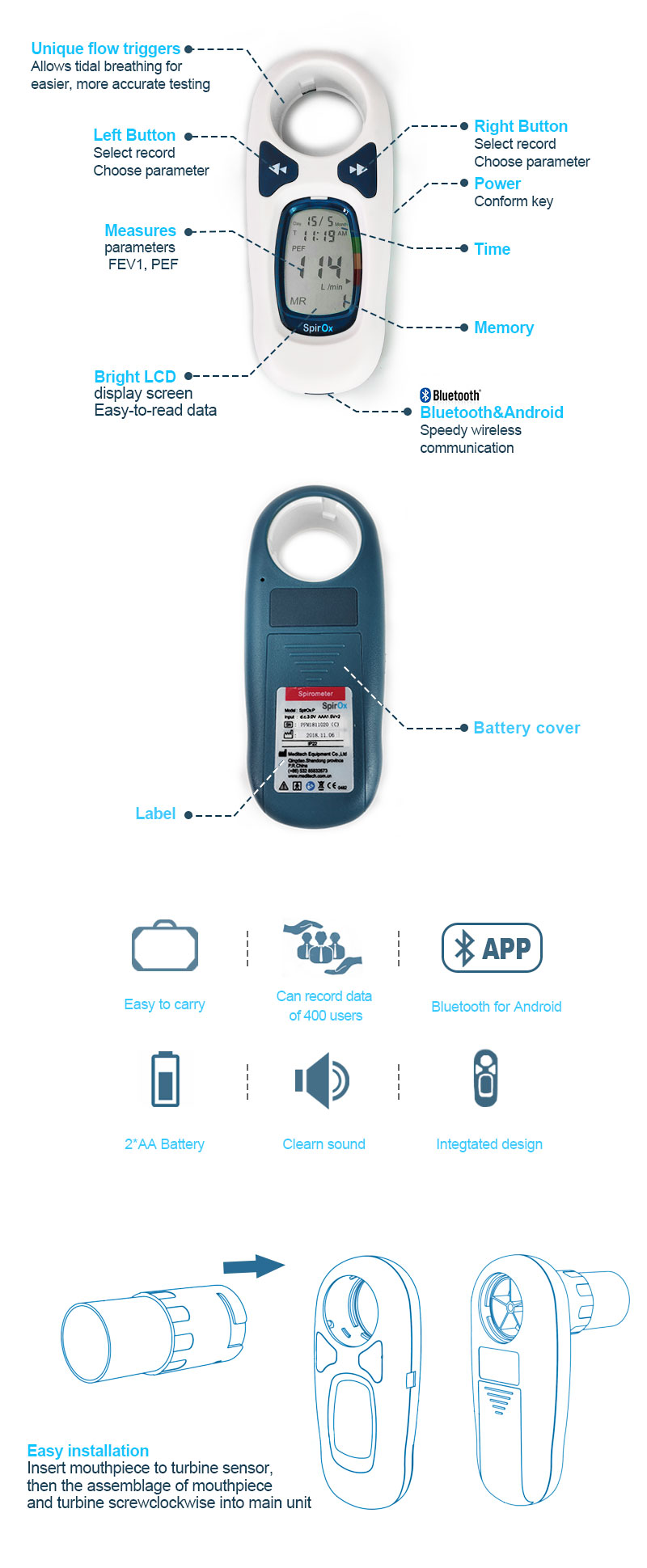

Intuitive Operation
- Segment LCD display for clear reading
- Simple power/confirm and navigation controls
- Suitable for patient self-testing and clinician-administered use

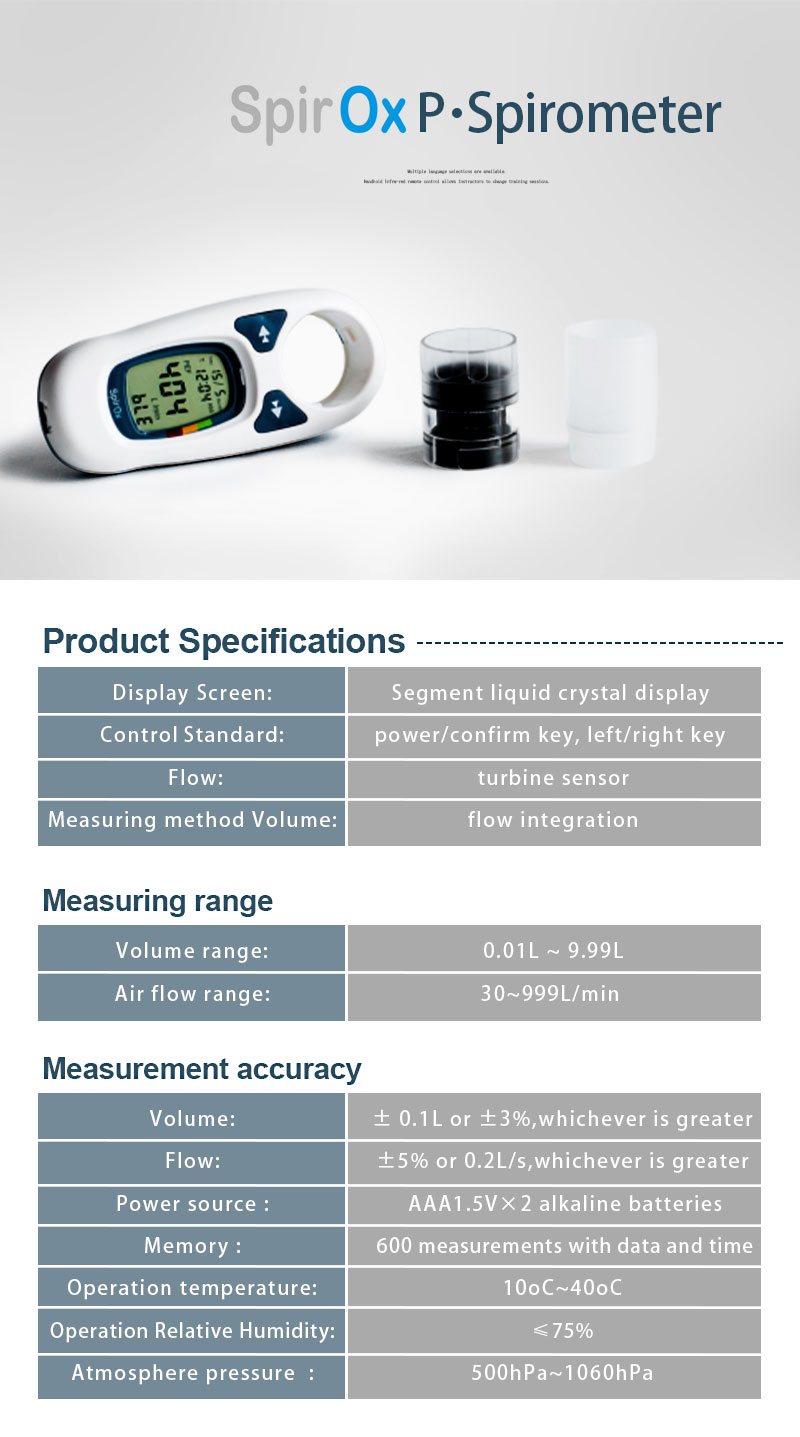

Technical specifications
| Indications | Pulmonary function testing, FEV1 and PEF measurement, respiratory screening |
|---|---|
| Sizes / range | Volume: 0.01L–9.99L; Airflow: 30–999L/min |
| Material | Turbine sensor, plastic housing |
| Sterilisation | As applicable |
| Packaging | Includes mouthpiece and cleaning cloth; USB cable optional |
| Warranty | As per manufacturer terms |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Pocket Spirometer | Handheld spirometer with LCD display, turbine sensor, Bluetooth/USB connectivity | 1 |
| Mouthpiece | Disposable or reusable mouthpiece for patient interface | 1 |
| Cleaning Cloth | Microfiber cloth for device maintenance | 1 |
| USB Cable (Optional) | USB connection cable for data transfer and charging | 1 |
| AAA Batteries | 1.5V alkaline batteries (2 required for operation) | 2 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, and customization options for the Pocket Spirometer. We provide comprehensive technical support and clinical guidance to ensure optimal integration into your respiratory screening program.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
