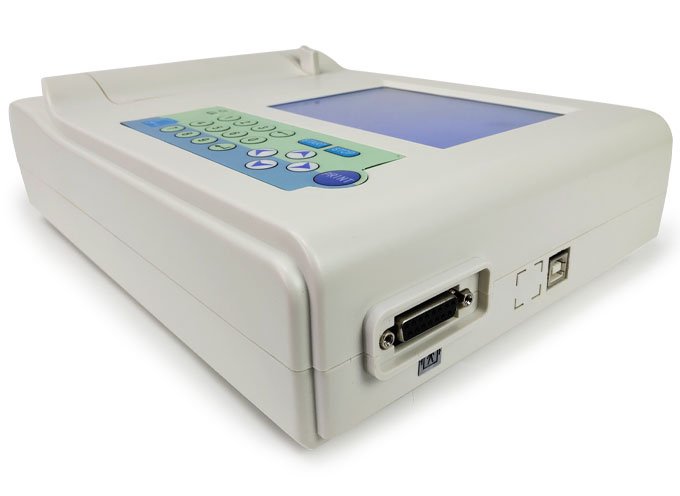

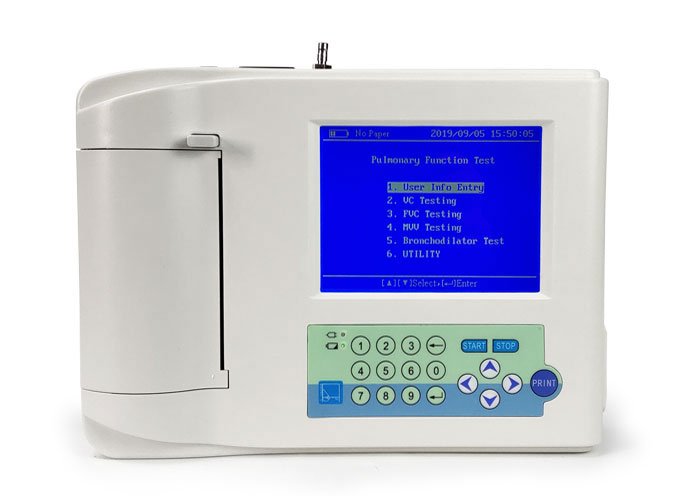

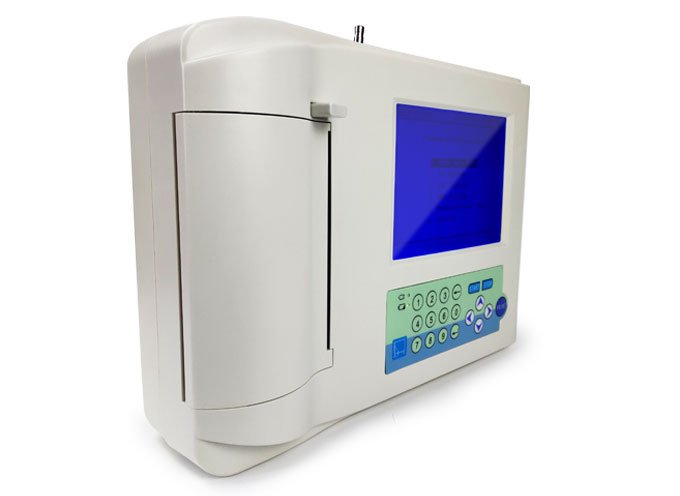

Spirometer Pro
$2,405.00 Original price was: $2,405.00.$1,755.00Current price is: $1,755.00.
FREE SHIPPING! Delivery in 3 Days
The portable pulmonary function measurement instrument can be used to measure vital capacity (VC), forced vital capacity (FVC), Maximum Ventilator Volume (MVV). Measurement algorithm refers to the ITS, ERS standards of the American Thoracic Society (ATS)
Measuring principle
When be normally breathing, the gas passed through the flow sensor. On both sides of the screen of the sensor will produce different pressure. The pressure is detected by the sensor, which is converted to electrical signals. After the signal amplification, AD converter sampling, the pressure is converted to digital signal into the computer system.
Through digital signal processing and analyzing technology, computer system reproduces the breathing waves that are displayed on the LCD together with analyzed results. In the end the built-in printer prints out the analysis results.Single use filter
Maximum Ventilator Volume (MVV).
Measurement algorithm refers to the ITS ERS standards of the American Thoracic Society (ATS)
110mm thermal printer built-in can print out a clear clinical report predicted value measured value
Compact and flexible
SpioSoft PC Software for data transfer (Options)
Measurement methods:
Flow velocity detection:Â Screen type pneumotachograph flow sensor
Capacity detection:Â Â Â Â Â flow integration
Patient Data:
 Patient  information input |
Patient ID | ID No.: XXXXXX | ID No.: XXXXXX | |
Gender | Gender: | Gender: | ||
Age | Age: | Age: | Years old | |
Height | Height: | Height: | cm | |
Weight | Weight: | Weight: | kg | |
Race | Race: | Race: | ||
Temperature | Temperature: | Temperature: | ℃ | |
Humidity | Humidity: | Humidity: | % | |
Atmosphere | Atmosphere: | Atmosphere: | mmHg |
Measuring range
Capacity range:Â Â Â Â Â Â Â Â 0L ~ 9L
F low velocity range: 0 ~ 14L / s
Measurement accuracy
Capacity:           0L ~ 1.6L (± 50ml)
6L ~ 9L (± 3%)
Flow rate: Â Â Â Â Â Â Â Â Â Â 5% or 0.2L / s
Respiratory rate:         4 / 20 ~ / min (± 1 / min)
20 / 60 / min (error: ± 5%)
Measuring time limit and degree
VC: Â Â Â Â Â Â Â Â Â Â Â Â 50s per time, measuring 3 times
FVC: Â Â Â Â Â Â Â Â Â Â Â 25s per time, measuring 3 times
MVV: Â Â Â Â Â Â Â Â Â Â 12 seconds per time, measuring 3 times
PARAMETER DESCRIPTION | DISPLAY | UNIT | ||
VC Test | Vital capacity,Maximum inspiration volume or Maximum exhalation volume | VC | VC | L |
Tidal volume | TV | TV | L | |
Expiratory reserved volume | ERV | ERV | L | |
Inspiratory reserved volume | IRV | IRV | L | |
Inspiratory capacity | IC | IC | L | |
FVC Test | Forced vital capacity | FVC | FVC | L |
Forced expiratory volume at 0.5sec | FEV0.5 | FEV0.5 | L | |
Forced expiratory volume at 1sec | FEV1.0 | FEV1.0 | L | |
Forced expiratory volume at 3sec | FEV3.0 | FEV3.0 | L | |
Forced expiratory volume1sec / Forced vital capacity | FEV1.0/G | FEV1.0/G | % | |
Forced expiratory volume1sec / vital capacity | FEV1.0%T | FEV1.0%T | % | |
Forced expiratory volume at 3sec / Forced vital capacity | FEV3.0%G | FEV3.0%G | % | |
Forced expiratory volume at 3sec / vital capacity | FEV3.0%T | FEV3.0%T | % | |
Extrapolated volume | Vext | Vext | L | |
Expiratory time | EX Time | EX Time | s | |
Maximal mid-expiratory flow | MMF | MMF | L/s | |
Peak expiratory flow | PEF | PEF | L/s | |
Mid(forced)-expiratory flow at 75% | MEF75 | MEF75 | L/s | |
Mid(forced)-expiratory flow at 50% | MEF50 | MEF50 | L/s | |
Mid(forced)-expiratory flow at 25% | MEF25 | MEF25 | L/s | |
Forced inspiratory vital capacity | FIVC | FIVC | L | |
Forced inspiratory volume at 0.5sec | FIV0.5 | FIV0.5 | L | |
Forced inspiratory volume at 1.0sec | FIV1.0 | FIV1.0 | L | |
Ratio of FIV1.0divided by FIVC | FIV1.0/FVC | FIV1.0/FVC | % | |
Ratio of FIV1.0divided by FVC | FIV1.0/FIVC | FIV1.0/FIVC | % | |
Peak inspiratory flow | PIF | PIF | L/s | |
Inspiratory flow at 50% | MIF50% | MIF50% | L/s | |
MVV Test | Maximum voluntary ventilation | MVV | MVV | L/min |
Respiration rate | RR | RR | /min | |
Tidal volume | TV | TV | L |
Display (LCD): 320 * 240 dot-matrix
printer: 110mm thermal printer
Data: 10 integral records
Other Note
Power: A.C. 100~220V 50/60Hz
The type of security: I Class B type
Transport and storage note
Ambient temperature range:-20°C ~ 55°C;
Relative humidity range: ≤ 93%;
Atmosphere pressure range: 500hPa ~ 1060hPa;
Working note
Surrounding temperature range: 10°C ~ +40°C;
Relative humidity range: 30% to 75%;
Atmosphere pressure range: 700hPa ~ 1060hPa;
Options:
SpioSoft PC Software for data transfer (Options)
Standard:
Antibacterial – Viral Filter …… 1Pcs
Ground Wire   ………………….. 1Pcs
Power cable …………………….. 1Pcs
Cleaning Cloth  …………………. 1PcsOptions:
USB Cable   ……………………… 1Pcs
- ankle surgery
- Biphasic Defibrillator
- Cordless Drill
- dental surgery
- drill for veterinary surgeon
- ECG
- ECG analysis
- ECG machine
- ECG monitor
- External Fixator
- foot surgery
- Hand Foot Surgery
- Joint Operation
- Maxillofacial surgery
- medical drill
- medical saw
- monophasic defibrillator
- Neurosurgery
- ortholimited
- orthopedic bone drill
- orthopedic drill
- orthopedic power tools
- orthopedic saw
- Patient Monitor Touch screen
- pneumatic drill
- pneumatic power tools
- portable defibrillator
- pulse lavage
- Pulse Oximeter
- surgical bone saw
- surgical pneumatic drill system
- surgical pulsed lavage
- titanium vet plates
- Trauma Operation
- Ultrasound Scanner
- Veterinary Bone Saw
- Veterinary Device
- veterinary drill
- Veterinary ECG
- veterinary implants
- Veterinary Orthopedic Drill
- vet surgery
- visible
- Vital Sign Monitor
- wound irrigation
Related Products
FREE SHIPPING! Delivery in 3 Days

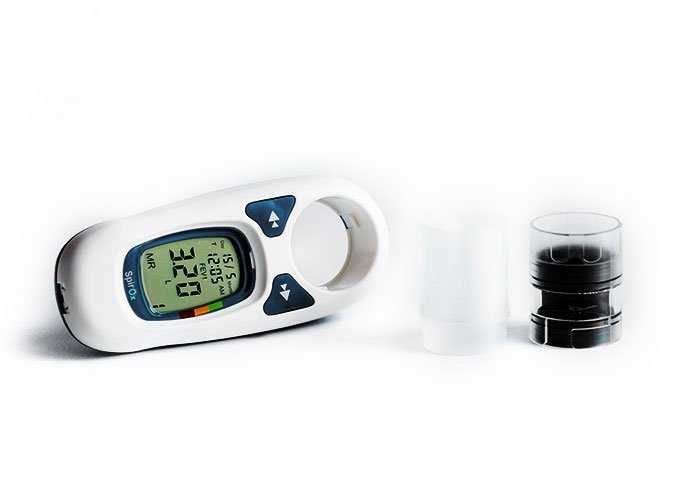

-The Spirometer Type P is quick and easy to use as part of a routine physical examination.
-Comes with the ‘Spirometer Reports’ PC software for creating PDF’s that can be viewed, archived, transmitted or printed.
FREE SHIPPING! Delivery in 3 Days

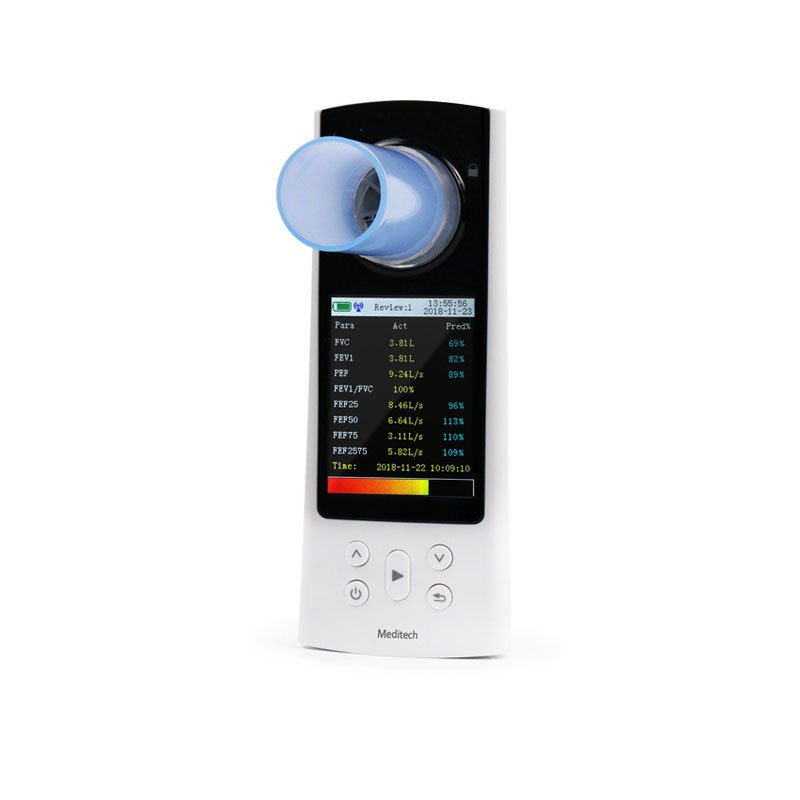

-Spirometer Plus is a hand-held equipment for checking lung conditions,
