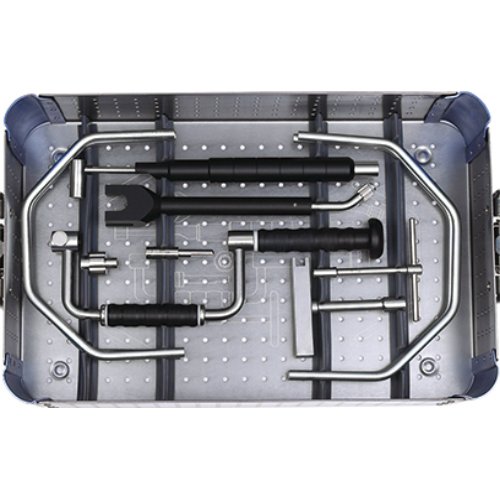

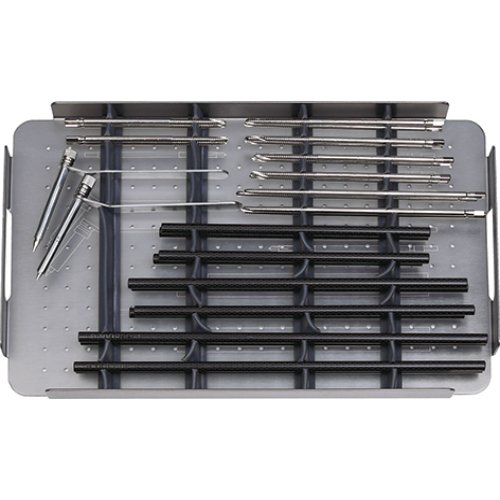

Hoffmann External Fixation Large Fragment Set
- Comprehensive set for large fragment external fixation
- Includes various rods, pins, clamps, posts, and wrenches
- Carbon fiber connecting rods for stability
- Self-drilling apex pins in varying lengths
- Convenient aluminum box for storage
- SKU
- 7100-02
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Hoffmann External Fixation Large Fragment Set
Comprehensive external fixation system designed for large fragment trauma and orthopedic applications. This complete set includes carbon fiber connecting rods, self-drilling apex pins in multiple lengths, precision clamps, posts, and all necessary instruments for efficient frame assembly and adjustment.
Clinical overview
The Hoffmann External Fixation Large Fragment Set is a comprehensive solution for managing complex large fragment fractures and trauma cases requiring external stabilization. This system combines proven Hoffmann-type mechanics with modern materials and precision engineering to deliver reliable, adjustable fixation across a wide range of anatomical applications.
The set includes a complete range of connecting rods in carbon fiber for optimal strength-to-weight ratio, multiple self-drilling apex pins in varying lengths to accommodate different anatomical depths, and a full complement of clamps, posts, and adjustment instruments. All components are organized in a durable aluminum storage box for convenient transport and inventory management.
Key features & surgeon benefits
Versatile component range
- Multiple apex pin lengths (120, 150, 180mm) for varied anatomical requirements
- Carbon fiber rods in three standard lengths (200, 250, 300mm)
- Semi-circular rods for complex three-dimensional fixation
Efficient assembly and adjustment
- Self-drilling apex pins eliminate pre-drilling steps
- Dedicated reduction wrench and adjustment wheel for precise frame manipulation
- Arc drilling stand and pin chuck for controlled pin placement
Complete system value
- All essential instruments included—no additional purchases required
- Aluminum storage box protects investment and enables organized inventory
- Reusable components reduce per-case consumable costs
Adaptable to your needs
- Multiple coupling options for rod-to-pin and rod-to-rod connections
- Angled and straight posts for varied frame geometry
- Custom kit configurations available for specialized applications
Technical specifications
| Indications | Large fragment external fixation, trauma stabilization, orthopedic reconstruction |
|---|---|
| Sizes / range | 5–6mm pins; 8mm rods; 120–300mm connecting rod lengths |
| Material | Stainless steel components; carbon fiber connecting rods |
| Sterilisation | As applicable |
| Packaging | Aluminum storage box with foam-lined compartments |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Rod-Pin Coupling (5/6mm Pin, 8mm Rod) | 12 |
| 2 | Rod-Rod Coupling (8mm Rod) | 12 |
| 3 | 5-Hole Pin Clamp (5/6mm Pin) | 3 |
| 4 | 30 Degree Angled Post 8mm | 2 |
| 5 | Straight Post 8mm | 4 |
| 6 | Apex Pin Self-drilling 5×120mm | 4 |
| 7 | Apex Pin Self-drilling 5×150mm | 8 |
| 8 | Apex Pin Self-drilling 5×180mm | 4 |
| 9 | Drill Sleeve | 2 |
| 10 | Carbon Fiber Connecting Rod 8×200mm | 4 |
| 11 | Carbon Fiber Connecting Rod 8×250mm | 4 |
| 12 | Carbon Fiber Connecting Rod 8×300mm | 4 |
| 13 | Semi Circular Rod 8×180mm | 1 |
| 14 | Semi Circular Rod 8×200mm | 1 |
| 15 | Reduction Wrench | 1 |
| 16 | Wrench with Extension Bar | 1 |
| 17 | Adjust Wheel | 1 |
| 18 | Apex Pin Chuck | 1 |
| 19 | Arc Drilling Stand | 1 |
| 20 | T-shaped Clamp Wrench 7# | 1 |
| 21 | T-shaped Pin Wrench 5mm | 1 |
| 22 | Aluminum Box | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and any custom configurations for your facility. We are committed to supporting your trauma and orthopedic programs with reliable, cost-effective solutions.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
