Hoffmann External Fixation Small Fragment Set
- Complete small fragment set for external fixation
- Includes various pins, clamps, connecting rods, and wrenches
- Features self-drilling apex pins in different sizes
- Comes with a convenient aluminum box for storage
- SKU
- 7100-01
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Hoffmann External Fixation Small Fragment Set
Complete small fragment external fixation system featuring self-drilling apex pins, carbon fiber connecting rods, and precision clamps. Designed for trauma and orthopedic applications requiring modular, reliable fixation with comprehensive instrumentation and convenient storage.
Clinical overview
The Hoffmann External Fixation Small Fragment Set is a comprehensive modular system designed for precise fracture reduction and stabilization in trauma and orthopedic surgery. This complete kit includes self-drilling apex pins in multiple sizes, carbon fiber connecting rods of varying lengths, and precision clamps that enable surgeons to construct custom fixation frames tailored to individual patient anatomy and fracture patterns.
The system's modular architecture allows for flexible frame configurations while maintaining rigidity and ease of assembly. Self-drilling pins eliminate the need for separate drilling steps, reducing operative time and improving workflow efficiency. All components are engineered for reliability and ease of manipulation, with dedicated wrenches and chucks included for secure pin placement and frame adjustment.
Key features & surgeon benefits
Comprehensive component range
- Self-drilling apex pins: 3×80mm, 3×100mm, 4×80mm, 4×100mm, 4×120mm
- Carbon fiber connecting rods: 5×120mm, 5×150mm, 5×180mm, 5×200mm
- Multiple clamp types: rod-rod, rod-pin, 4-hole pin, single pin clamps
Efficient operative technique
- Self-drilling pins reduce operative time and eliminate separate drilling
- Dedicated pin chucks and wrenches for secure, rapid placement
- Modular design allows real-time frame configuration adjustments
Complete system value
- 27-piece kit reduces need for multiple purchases
- Aluminum storage box protects instruments and enables organized transport
- Durable carbon fiber and stainless steel construction ensures longevity
Modular flexibility
- Mix-and-match components for patient-specific frame designs
- Angled posts (30°) and straight posts enable multi-planar fixation
- Elbow joint and arc drilling stand support complex anatomical configurations
Technical specifications
| Indications | Trauma, fracture fixation, orthopedic surgery |
|---|---|
| Sizes / range | Pins: 3mm and 4mm diameter; Rods: 5mm diameter; Lengths: 80–200mm |
| Material | Stainless steel (pins, clamps, posts, wrenches); Carbon fiber (connecting rods) |
| Sterilisation | As applicable |
| Packaging | Aluminum storage box with 27-piece instrument set |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|

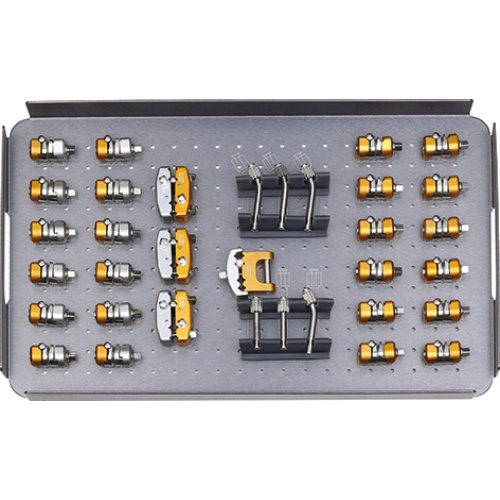

| 1 | Rod-Rod Coupling (5mm Rod) | 12 |
| 2 | Rod-Pin Coupling (3/4mm Pin, 5mm Rod) | 12 |
| 3 | 4-Hole Pin Clamp (3/4mm Pin) | 3 |
| 4 | Pin Clamp (3/4mm Pin) | 1 |
| 5 | Straight Post | 2 |
| 6 | 30 Degree Angled Post | 4 |

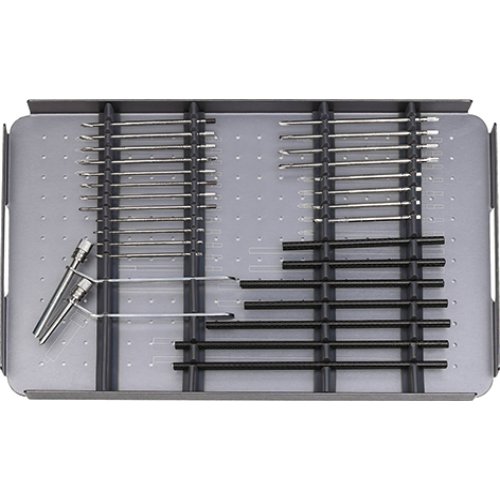

| 7 | Apex Pin Self-drilling 3×80mm | 4 |
| 8 | Apex Pin Self-drilling 3×100mm | 4 |
| 9 | Apex Pin Self-drilling 4×80mm | 4 |
| 10 | Apex Pin Self-drilling 4×100mm | 4 |
| 11 | Apex Pin Self-drilling 4×120mm | 4 |
| 12 | Drill Sleeve 3mm | 1 |
| 13 | Drill Sleeve 4mm | 1 |
| 14 | Carbon Fiber Connecting Rod 5×120mm | 4 |
| 15 | Carbon Fiber Connecting Rod 5×150mm | 4 |
| 16 | Carbon Fiber Connecting Rod 5×180mm | 2 |
| 17 | Carbon Fiber Connecting Rod 5×200mm | 4 |

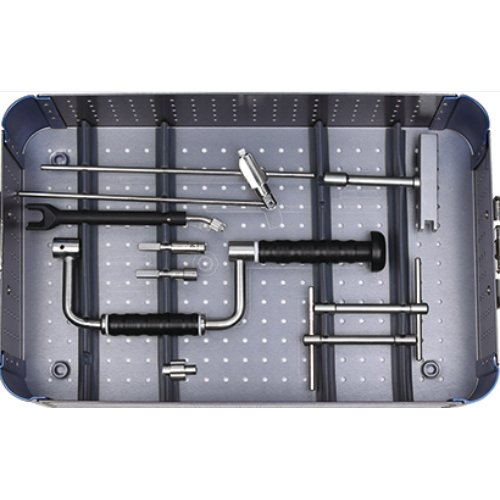

| 18 | T-shaped Clamp Wrench 5# | 1 |
| 19 | Reduction Wrench | 1 |
| 20 | Elbow Joint 5mm | 1 |
| 21 | Apex Pin Chuck 3mm | 1 |
| 22 | Apex Pin Chuck 4mm | 1 |
| 23 | T-shaped Pin Wrench 3mm | 1 |
| 24 | T-shaped Pin Wrench 4mm | 1 |
| 25 | Arc Drilling Stand | 1 |
| 26 | Adjust Wheel | 1 |
| 27 | Aluminum Box | 1 |
