Humeral Interlocking Nail Instrument Set
- Complete set of instruments for humeral interlocking nail surgery
- Includes drill bits, wrench, taps, reamers, screws, and connectors
- Designed for precise and efficient surgical procedures
- Comes in a convenient aluminium storage box for easy organization
- Essential tools for orthopedic surgeons performing humeral nail insertion
- SKU
- 1200-01
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Humeral Interlocking Nail Instrument Set
Complete surgical instrument set designed for humeral interlocking nail procedures. Includes precision drill bits, reamers, positioning frames, guides, and all essential tools for efficient proximal and distal locking. Organized in a durable aluminium storage box for optimal instrument protection and OR workflow.
Clinical overview
The Humeral Interlocking Nail Instrument Set provides surgeons with a comprehensive, purpose-built toolkit for minimally invasive fixation of proximal and mid-shaft humeral fractures. This 29-piece set combines precision drilling, reaming, positioning, and locking capabilities in a single, organized package. Each instrument is engineered for accuracy and durability, enabling reliable proximal and distal screw placement while minimizing soft-tissue trauma and operative time.
The set includes multiple drill bit sizes (2.9mm, 5.2mm), progressive reamers (7.5mm, 8.0mm, 8.5mm), positioning frames, depth gauges, and specialized guides for both proximal and distal locking. The aluminium storage box ensures instrument integrity and facilitates efficient OR setup and sterilisation cycles.
Key features & surgeon benefits
Complete surgical pathway
- Proximal and distal locking guides included
- Multiple reamer sizes for optimal nail fit
- Positioning frames for accurate screw placement
Streamlined OR efficiency
- All instruments organized in single aluminium box
- Quick-coupling handles and T-handles for rapid tool exchange
- Depth gauge and sighting device for precise measurements
Cost-effective solution
- Single purchase covers complete procedure
- Durable stainless steel construction minimizes replacement costs
- Reusable instruments reduce per-case expenses
Flexible configurations
- OEM branding and packaging available
- Custom instrument subsets upon request
- Compatible with standard intramedullary nail systems
Technical specifications
| Indications | Proximal humerus fractures, humeral shaft fractures, pathological fractures, non-unions |
|---|---|
| Sizes / range | Drill bits: 2.9mm, 5.2mm (multiple lengths); Reamers: 7.5mm, 8.0mm, 8.5mm (340mm); Depth gauge: 0–60mm |
| Material | Stainless steel (instruments), aluminium (storage box) |
| Sterilisation | Autoclavable; steam sterilisation at 121°C, 15 min minimum recommended |
| Packaging | Aluminium storage box with foam inserts; custom packaging available |
| Warranty | As applicable; contact sales for details |

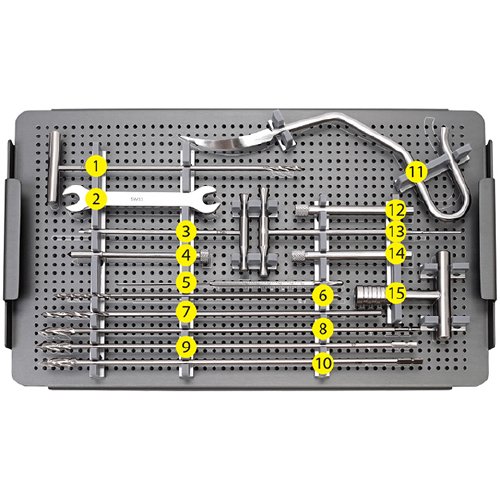

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Drill Bit 5.2mm | 1 |
| 2 | Open Wrench | 1 |
| 3 | Tap 3.5mm | 1 |
| 4 | Distal Positioning Frame | 1 |
| 5 | Depth Gauge 0–60mm | 1 |
| 6 | Drill Bit 2.9×250mm | 1 |
| 7 | Drill Bit 5.2×300mm | 1 |
| 8 | Reamer 8.5×340mm | 1 |
| 9 | Reamer 8.0×340mm | 1 |
| 10 | Reamer 7.5×340mm | 1 |
| 11 | Awl | 1 |
| 12 | Sleeve | 1 |
| 13 | Screwdriver SW2.5 | 1 |
| 14 | Sleeve | 1 |
| 15 | Quick Coupling T-Handle | 1 |
| 16 | Sighting Device Handle | 1 |
| 17 | Nail Connector | 1 |
| 18 | Distal Guider | 1 |
| 19 | Proximal Guider | 1 |
| 20 | Fixed Connector | 1 |
| 21 | Location Rod | 1 |
| 22 | Drill Sleeve | 1 |
| 23 | Hex Wrench | 1 |
| 24 | Gauge Cannula | 1 |
| 25 | Universal Joint | 1 |
| 26 | Guide Rod | 1 |
| 27 | Hammer | 1 |
| 28 | Guide Wire | 1 |
| 29 | Aluminium Storage Box | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, arrange a product demonstration, or discuss custom configurations for your facility.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
