Tibial Intramedullary Nail Instrument Set
- Complete set of instruments for tibial intramedullary nail insertion
- Includes drills, reamers, guide wires, and connectors
- Features various sizes of drill bits and reamers for versatility
- Comes with a durable aluminium box for organized storage
- SKU
- 1200-02
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Tibial Intramedullary Nail Instrument Set
Complete surgical instrument set for tibial intramedullary nail insertion procedures. Includes precision drills, reamers, guide wires, connectors, and specialized surgical tools. Organized in a durable aluminium storage box for optimal instrument protection and surgical workflow efficiency.
Clinical overview
The Tibial Intramedullary Nail Instrument Set is a comprehensive surgical solution designed for trauma surgeons performing tibial shaft fracture fixation. This 35-piece kit provides all essential instruments required for safe, efficient intramedullary nail insertion, from initial guide wire placement through final distal and proximal locking. The set includes precision drilling and reaming components across multiple sizes, specialized guiders, connectors, and supporting tools—all organized in a protective aluminium case for easy transport and sterilization.
Engineered for reliability in high-demand surgical environments, each instrument is manufactured to exacting standards to ensure consistent performance and durability throughout the procedure. The modular design allows surgeons to adapt their approach to individual patient anatomy while maintaining workflow efficiency and reducing operative time.
Key features & surgeon benefits
Complete surgical pathway
- 35 precision instruments in one set
- Multiple drill and reamer sizes (4.0–11 mm)
- Distal and proximal guiders included
- Both solid and cannulated nail connectors
Optimized surgical efficiency
- Organized aluminium box for rapid instrument access
- Quick-coupling T-handle for rapid tool changes
- Depth gauge (10–100 mm) for precise measurement
- Sighting device handle for accurate distal locking
Cost-effective solution
- Single comprehensive kit reduces per-case costs
- Durable stainless steel construction for long service life
- Minimizes need for multiple instrument trays
- Reusable components reduce consumable waste
Flexible configuration
- OEM modifications available
- Custom instrument subsets upon request
- Adaptable to institutional protocols
- Compatible with standard surgical systems
Technical specifications
| Indications | Tibial shaft fractures; intramedullary nail fixation |
|---|---|
| Sizes / range | Drill bits: 4.0 mm, 5.2 mm (300 mm length); Reamers: 8 mm, 9 mm, 10 mm, 11 mm; Depth gauge: 10–100 mm |
| Material | Stainless steel instruments; aluminium storage box |
| Sterilisation | Steam sterilizable |
| Packaging | Protective aluminium case with foam insert |
| Warranty | As applicable per manufacturer terms |

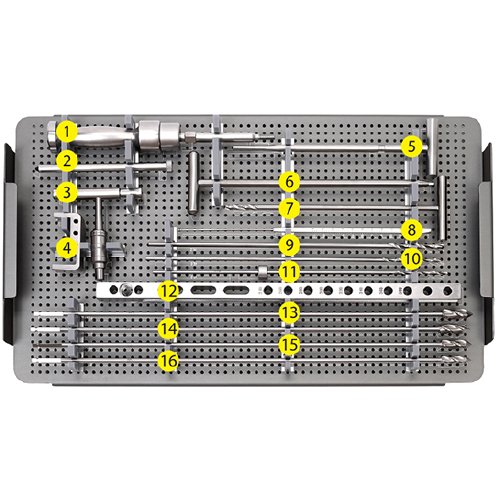

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Universal Joint | 1 |
| 2 | Drill Sleeve | 1 |
| 3 | Quick Coupling T-Handle | 1 |
| 4 | Fixed Connector | 1 |
| 5 | Location Rod | 1 |
| 6 | Screwdriver | 1 |
| 7 | T-handle Drill Bit 5.2 mm | 1 |
| 8 | Depth Gauge 10–100 mm | 1 |
| 9 | Drill Bit 5.2 × 300 mm | 1 |
| 10 | Drill Bit 4.0 × 300 mm | 1 |
| 11 | Drill Bit with Limitator 4.0 × 300 mm | 1 |
| 12 | Guide Rod | 1 |
| 13 | Reamer 8 mm | 1 |
| 14 | Reamer 9 mm | 1 |
| 15 | Reamer 10 mm | 1 |
| 16 | Reamer 11 mm | 1 |
| 17 | Guide Wire | 1 |
| 18 | Distal Guider | 1 |
| 19 | Proximal Guider | 1 |
| 20 | Location Forcep | 1 |
| 21 | Drill Sleeve | 1 |
| 22 | Drill Sleeve | 1 |
| 23 | Hex Wrench | 1 |
| 24 | Hex Wrench | 1 |
| 25 | Drill Sleeve | 1 |
| 26 | Hammer | 1 |
| 27 | Sighting Device Handle | 1 |
| 28 | Bolt | 1 |
| 29 | Bolt | 1 |
| 30 | Bolt | 1 |
| 31 | Nail Connector Solid | 1 |
| 32 | Nail Connector Cannulated | 1 |
| 33 | Open Wrench | 1 |
| 34 | AWL | 1 |
| 35 | Aluminium Box | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, discuss customization options, or arrange a product demonstration for your surgical team.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Frequently bought together
Related products
See all →

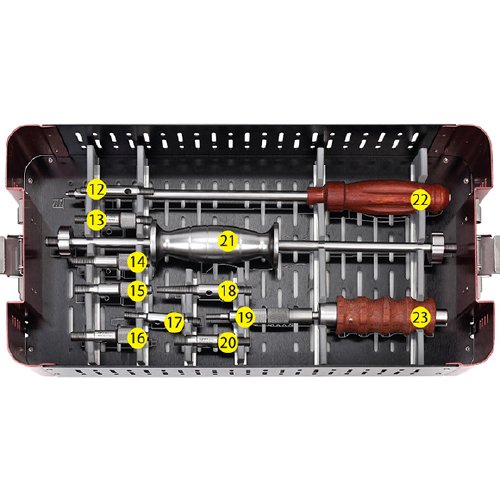

Intramedullary Nail Removal Set
- Complete set for efficient intramedullary nail removal procedures - Includes a variety of tools such as T-handle, wrenches, screwdrivers, and extractors - Equipped with saw blade driver, wire cutter, and hammer for versatile use - Comes in a convenient aluminum box for organized storage and transport
Flexible Reamer
- Includes a set of 14 flexible reamers in various sizes from Φ7.5 to Φ14 - Each reamer is designed for precision shaping and smoothing bone surfaces - Made of high-quality materials for durability and performance - Ideal for orthopedic and surgical procedures requiring accurate bone preparation

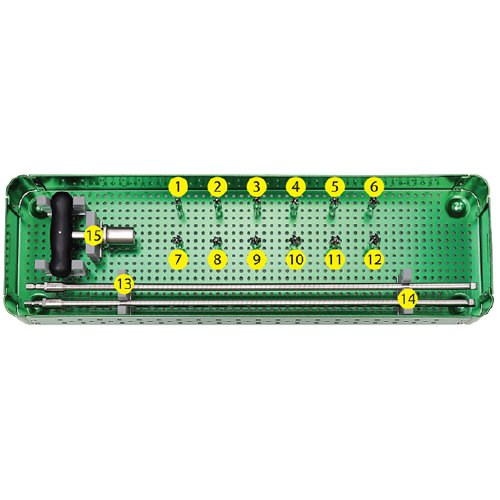

Flexible Reamer Stryker Quick Coupling
- Complete set of flexible reamer heads from Φ7.5 to Φ13 - Includes additional bars of 7.5mm and 8.5mm - Convenient Quick Coupling T-Handle for easy attachment - Comes in a durable Aluminium Box for storage and transport

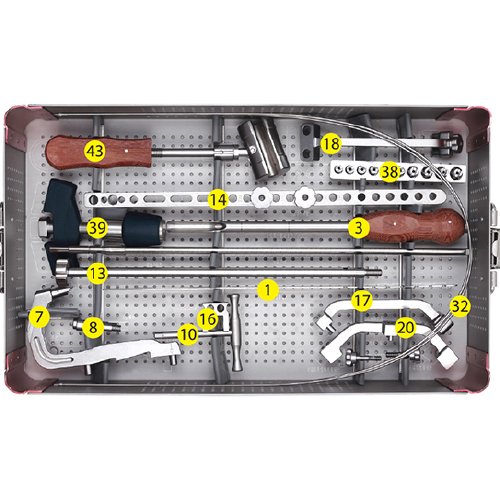

New Tibia Intramedullary Nail Instrument Set
- Complete set of instruments for tibia intramedullary nail procedures - Includes a variety of tools such as bone drills, reamers, guides, and screws - Designed for precise and efficient surgical intervention - High-quality stainless steel construction for durability and reliability

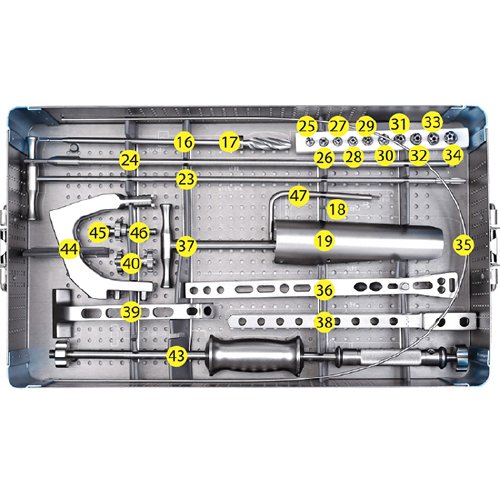

New Femoral Reconstction Intramedullary Nail Instrument Set
- Complete set of instruments for femoral reconstruction - Includes locking drills, nail bone drill, and guide pins - Features soft tissue separating devices and positioning tools - Comes with handle, spanners, and various sizes of soft knife heads

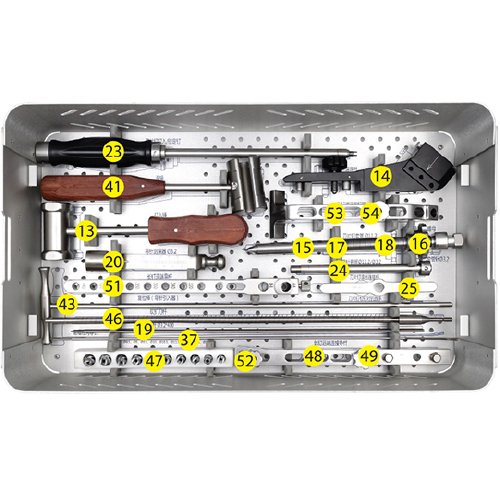

PFNA Nail Instrument Set
- Complete instrument set for PFNA nail surgery - Includes templates, guide sleeves, drill bits, and wrenches - Features positioning rods, locking pin sleeves, and depth gauges - Suitable for distal locking and soft tissue manipulation

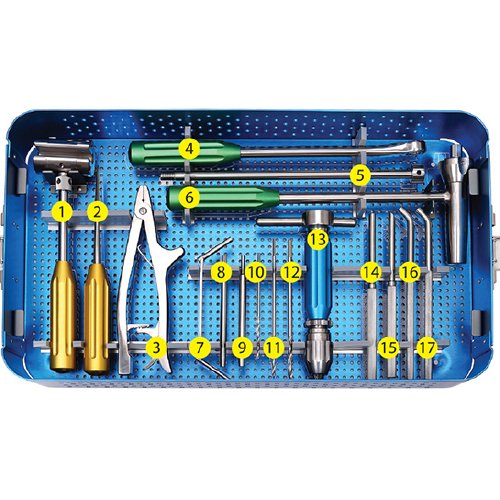

Elastic Nail Instrument Set
