New Femoral Reconstction Intramedullary Nail Instrument Set
- Complete set of instruments for femoral reconstruction
- Includes locking drills, nail bone drill, and guide pins
- Features soft tissue separating devices and positioning tools
- Comes with handle, spanners, and various sizes of soft knife heads
- SKU
- 1200-08
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Femoral Reconstruction Intramedullary Nail Instrument Set
Comprehensive surgical instrument set designed for femoral reconstruction procedures using intramedullary nailing technique. Includes all essential drilling, guiding, positioning, and soft tissue management tools required for proximal and distal locking applications.
Clinical overview
This comprehensive femoral reconstruction intramedullary nail instrument set provides surgeons with all necessary tools for safe and efficient proximal and distal locking procedures. The set includes specialized drilling systems, depth gauges, guide pins, and soft tissue protection devices designed to minimise operative time and enhance anatomical reduction.
The instrument composition supports the complete surgical workflow from initial soft tissue management through nail insertion, proximal and distal locking, and final positioning verification. Each component is precision-engineered for reliability and ease of use in the operating theatre.
Key features & surgeon benefits
Complete Surgical Workflow
- 54 precision instruments in single set
- Proximal and distal locking capability
- Soft tissue protection integrated throughout
Optimised Surgical Technique
- Dedicated depth gauges for accurate locking hole placement
- Multiple soft knife head sizes (φ8.5–φ13) for varied anatomy
- Integrated positioning frame and distal guide rod system
Cost-Effective Solution
- Single comprehensive kit eliminates need for multiple purchases
- Durable stainless steel construction ensures long instrument life
- Reduced operative time through integrated design
Flexible Configuration
- Available as complete set or individual component ordering
- OEM customisation options for specific surgical protocols
- Scalable for high-volume surgical centres
Technical specifications
| Indications | Femoral shaft fractures, femoral reconstruction, intramedullary nailing with proximal and distal locking |
|---|---|
| Sizes / range | Soft knife heads φ8.5–φ13; locking drills φ4.3, φ6.4; guide drills φ2.5; positioning drills φ5.2 |
| Material | Stainless steel (surgical grade) |
| Sterilisation | Autoclavable; steam sterilisation recommended at 121°C, 15 min, 2.1 bar |
| Packaging | Complete set in protective carrying case with foam insert |
| Warranty | As applicable; contact sales for terms |

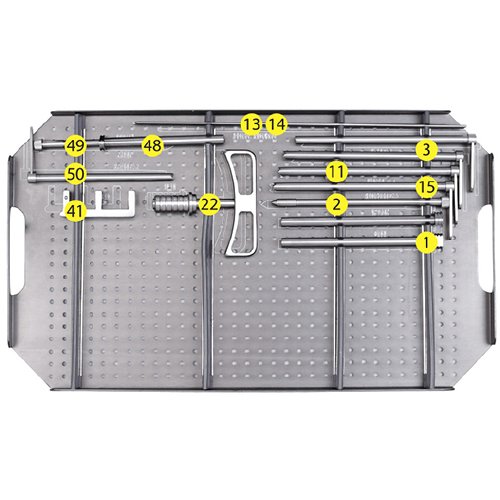

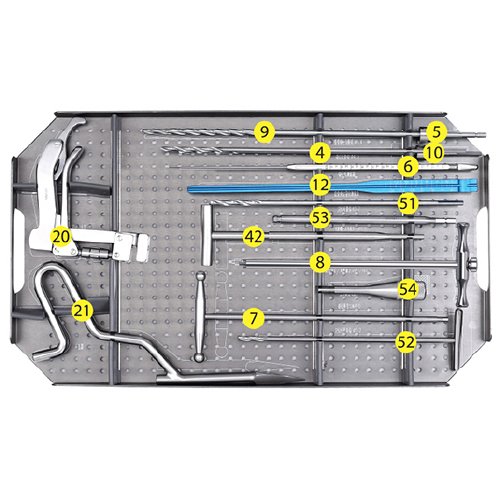

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Locking Pipe | 1 |
| 2 | Soft Tissue Separating Device Long | 1 |
| 3 | Locking Drills φ4.3 | 1 |
| 4 | Locking Nail Bone Drill φ4.3 | 1 |
| 5 | Limit Device φ4.3 | 1 |
| 6 | Locking Hole Depth Gauge | 1 |
| 7 | Locking Spanner SW4.0 | 1 |
| 8 | Femur Neck Nail/Tail Spanner SW5/M3.5 | 1 |
| 9 | Femur Neck Nail Drill φ6.4 | 1 |
| 10 | Limit Device φ6.4 | 1 |
| 11 | Femur Neck Nail Drill φ6.4 | 1 |
| 12 | Femur Neck Guide Depth Gauge φ2.5×320 | 1 |
| 13 | Femur Neck Screw Guide Pin φ2.5×320 | 1 |
| 14 | Femur Neck Guide Pin φ2.5×320 | 1 |
| 15 | Femur Neck Guide Drill Set φ2.5 | 1 |
| 16 | Proximal Enlargement | 1 |
| 17 | Proximal Hard Enlarge Limit Device | 1 |
| 18 | Limit Spanner SW3 | 1 |
| 19 | Protection Skin Board | 1 |
| 20 | Guide Pin Device | 1 |
| 21 | AWL | 1 |
| 22 | Handle | 1 |
| 23 | Reduction Rod (Guide Pin) | 1 |
| 24 | Soft Knife Rod φ2.5/φ8 | 1 |
| 25 | Soft Knife Head φ8.5 | 1 |
| 26 | Soft Knife Head φ9 | 1 |
| 27 | Soft Knife Head φ9.5 | 1 |
| 28 | Soft Knife Head φ10 | 1 |
| 29 | Soft Knife Head φ10.5 | 1 |
| 30 | Soft Knife Head φ11 | 1 |
| 31 | Soft Knife Head φ11.5 | 1 |
| 32 | Soft Knife Head φ12 | 1 |
| 33 | Soft Knife Head φ12.5 | 1 |
| 34 | Soft Knife Head φ13 | 1 |
| 35 | Ball Head Guide Pin φ2.5/φ4 | 1 |
| 36 | Proximal Guide Rod | 1 |
| 37 | Connecting Screw Spanner SW6.5 | 1 |
| 38 | Distal Guide Rod | 1 |
| 39 | Distal Positioning Frame | 1 |
| 40 | Connecting Guide Pin Locking Wheel | 1 |
| 41 | Positioning Card | 1 |
| 42 | Positioning Rod | 1 |
| 43 | Pull Device | 1 |
| 44 | Handle | 1 |
| 45 | Connecting Screw | 1 |
| 46 | Connecting Handle Wheel | 1 |
| 47 | Locking Wheel Spanner SW5 | 1 |
| 48 | Positioning Pipe | 1 |
| 49 | Soft Tissue Separating Device Short | 1 |
| 50 | Positioning Drill Set φ5.2 | 1 |
| 51 | Positioning Bone Drill φ5.2 | 1 |
| 52 | Positioning Flat Drill φ5.2 | 1 |
| 53 | Connecting Screw Universal Spanner SW6.5 | 1 |
| 54 | Main Nail Pull Connecting Rod | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, discuss customisation options, or arrange a product demonstration. We offer volume pricing and flexible delivery terms for surgical centres and hospital procurement departments.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
