PFNA Nail Instrument Set
- Complete instrument set for PFNA nail surgery
- Includes templates, guide sleeves, drill bits, and wrenches
- Features positioning rods, locking pin sleeves, and depth gauges
- Suitable for distal locking and soft tissue manipulation
- SKU
- 1200-07
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
PFNA Nail Instrument Set
Complete 62-piece instrument set purpose-built for proximal femoral nail antirotation (PFNA) procedures. Includes templates, guide sleeves, drill bits, wrenches, positioning rods, locking pin sleeves and depth gauges — everything required from entry point preparation through distal locking and closure.
Clinical overview
The PFNA Nail Instrument Set provides the complete surgical toolchain for proximal femoral nail antirotation procedures. From initial entry-point preparation and guide-pin placement through proximal reaming, nail insertion, helical blade advancement and distal locking, every step is supported by a dedicated, purpose-matched instrument.
Dedicated guide bars and positioning frames for both short and long nail configurations allow the surgeon to address intertrochanteric, subtrochanteric and reverse-obliquity fracture patterns with a single tray. Integrated soft-tissue protection sleeves and separating devices minimise iatrogenic tissue damage during drilling and locking.
Key features & surgeon benefits
Full PFNA procedural range
- Short and long nail instrument modules in one tray
- Proximal and distal locking instrumentation included
- Helical blade insertion and removal tools
Organised, sequential tray layout
- 62 instruments grouped by procedural step
- Quick-coupling handles for rapid tool changes
- Dedicated depth gauges for proximal and distal measurements
Reusable, cost-efficient system
- Fully autoclavable stainless steel construction
- Individual instrument replacement available
- Eliminates reliance on loaner trays
Tailored to your OR requirements
- Custom font, colour and laser marking
- Personalised text and orientation options
- OEM-ready private-label configuration
Technical specifications
| Indications | Intertrochanteric, subtrochanteric & proximal femoral fractures |
|---|---|
| Sizes / range | Short & long nail configurations |
| Material | Medical grade stainless steel |
| Sterilisation | Steam autoclave |
| Packaging | Autoclavable instrument box (1200-0762) |
| Warranty | As applicable — contact sales team |

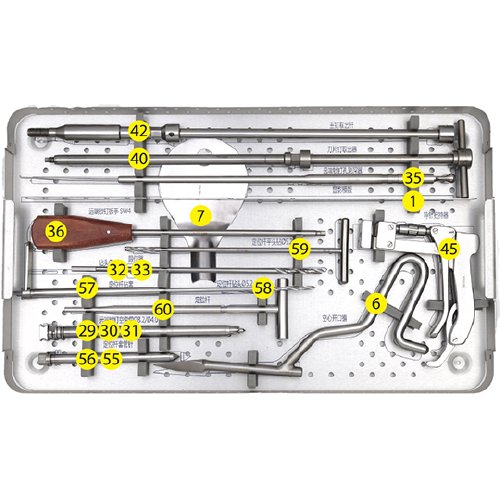

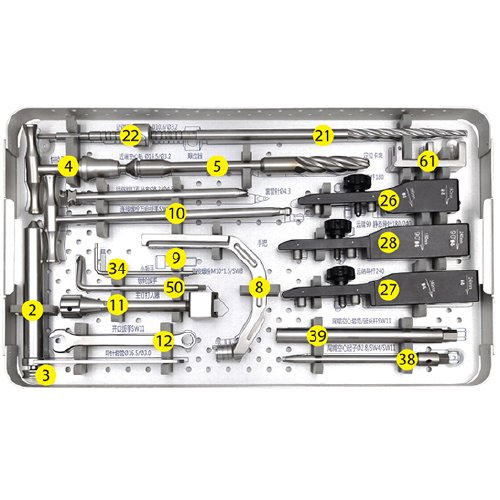

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1200-0701 | Template for Development | 1 |
| 1200-0702 | Guide Sleeve φ16.5 | 1 |
| 1200-0703 | Guide Pin Sleeve φ16.5/φ3.2 | 1 |
| 1200-0704 | Handle with Quick Coupling | 1 |
| 1200-0705 | Proximal Hollow Drill Bit φ16.5/φ3.2 | 1 |
| 1200-0706 | Hollow Open Tapper | 1 |
| 1200-0707 | Protected Plate for Soft Tissue | 1 |
| 1200-0708 | Handle | 1 |
| 1200-0709 | Connecting Bolt M10×1.5/SW8 | 1 |
| 1200-0710 | Universal Wrench of Connecting Bolt SW8 | 1 |
| 1200-0711 | Main Pin Impactor | 1 |
| 1200-0712 | Open Wrench SW11 | 1 |
| 1200-0713 | Impactor Hammer | 1 |
| 1200-0714 | Proximal Guide Bar | 1 |
| 1200-0715 | Guide Sleeve φ11.2 | 1 |
| 1200-0716 | Support/Compression Nut | 1 |
| 1200-0717 | Guide Sleeve for Pins φ11.2/φ3.2 | 1 |
| 1200-0718 | Pins φ3.2 | 1 |
| 1200-0719 | Thread Pin φ3.2×400mm | 1 |
| 1200-0720 | Depth Gauge φ3.2 | 1 |
| 1200-0721 | Proximal Hollow Position Stopper φ10.6/φ3.2 | 1 |
| 1200-0722 | Position Stopper | 1 |
| 1200-0723 | Screwdriver M7×1 L/SW4.5/φ3.2 | 1 |
| 1200-0724 | Connector | 1 |
| 1200-0725 | Wrench | 1 |
| 1200-0726 | Distal Guide Bar 180 | 1 |
| 1200-0727 | Distal Guide Bar 240 | 1 |
| 1200-0728 | Distal 90° Guide Bar 180/240 | 1 |
| 1200-0729 | Distal Locking Pin Sleeve φ11/φ8.2 | 1 |
| 1200-0730 | Soft Tissue Separating Device φ8.2/φ4.3 | 1 |
| 1200-0731 | Sleeve Pin φ4.3 | 1 |
| 1200-0732 | Drill Bit φ4.3 | 1 |
| 1200-0733 | Position Stopper φ4.3/SW3 | 1 |
| 1200-0734 | Small Wrench SW3/φ4 | 1 |
| 1200-0735 | Distal Locking Holes Depth Gauge | 1 |
| 1200-0736 | Distal Locking Screw Wrench SW4 | 1 |
| 1200-0737 | Tail Hook Guide Pin φ2.8 | 1 |
| 1200-0738 | Tail Hollow Screwdriver φ2.8/SW6.5/SW11 | 1 |
| 1200-0739 | Tail Hollow Sleeve/Extension Rod SW11 | 1 |
| 1200-0740 | Blade Nail Device M7×1 L/SW4.5 | 1 |
| 1200-0741 | Sliding Hammer | 1 |
| 1200-0742 | Nail Remove Rod M10×1.5 | 1 |
| 1200-0743 | Reduction Rod (Guide Pin Leading Device) | 1 |
| 1200-0744 | Ball Head Guide Pin φ2.5/φ4 | 1 |
| 1200-0745 | Guide Pin Control Device | 1 |
| 1200-0746 | Soft Expansion Tool Rod φ2.5/φ8 | 1 |
| 1200-0747 | Soft Expansion Metallurgy φ8–φ13 | 1 |
| 1200-0748 | Long Nail Distal Connection Guide Pin | 1 |
| 1200-0749 | Long Nail Distal Connection Guide Bar Lock Wheels M8×1/SW5 | 1 |
| 1200-0750 | Locking Wheel Spanner | 1 |
| 1200-0751 | Long Nail Distal Guide Bar | 1 |
| 1200-0752 | Long Nail Distal Guide Pin Locking Wheels M8×1/SW5 | 1 |
| 1200-0753 | Long Nail Distal Positioning Frame | 1 |
| 1200-0754 | Long Nail Distal Positioning Frame Lock Wheels M6/SW5 | 1 |
| 1200-0755 | Positioning Pipe φ10/φ8.1 | 1 |
| 1200-0756 | Positioning Stem Bushing Needle φ8.1 | 1 |
| 1200-0757 | Positioning Stem Drilling Sheath φ8.1/φ5.2 | 1 |
| 1200-0758 | Positioning Drill Rod φ5.2 | 1 |
| 1200-0759 | Positioning Stem Flats Drill φ5.2 | 1 |
| 1200-0760 | Positioning Rod φ8.1/φ5.2 | 1 |
| 1200-0761 | Positioning Card | 1 |
| 1200-0762 | Instrument Box | 1 |
Get in touch for pricing & availability
Request a tailored quotation for the PFNA Nail Instrument Set, including custom marking options and volume pricing for your facility or distribution network.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
