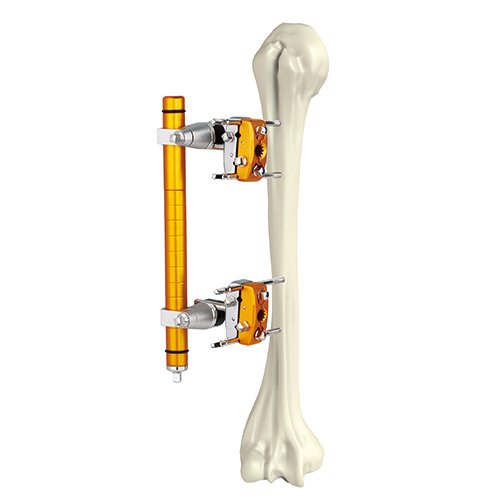

Humeral Shaft External Fixator
- Humeral Shaft External Fixator
- Compression Distraction Tube 15mm included
- Comes with Tube-Rod Coupling 15/5mm
- Includes 4-Hole Pin Clamp (3/4mm Pin)
- Contains Post 5mm/30 Degree
- Apex Pin Self-drilling 4*120mm included
- SKU
- 7100-11
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Humeral Shaft External Fixator
Comprehensive external fixation system for proximal and mid-shaft humeral fractures. Includes compression-distraction tube, multi-hole pin clamps, and self-drilling apex pins for secure, adjustable fixation in complex trauma cases.
Clinical overview
The Humeral Shaft External Fixator is a modular external fixation system designed for the management of complex humeral fractures, particularly in polytrauma patients or cases requiring staged reconstruction. The system combines a 15 mm compression-distraction tube with multi-hole pin clamps and self-drilling apex pins to provide secure, adjustable fixation with minimal soft-tissue disruption. This configuration allows for dynamic compression, distraction, and angulation adjustments during the healing process, supporting both acute stabilisation and progressive mobilisation protocols.
The kit includes all essential components for immediate application: compression-distraction tube, tube-rod couplings, 4-hole pin clamps, angled posts, and self-drilling pins. The modular design enables surgeons to adapt the construct to patient anatomy and fracture pattern, making it suitable for both simple and comminuted fractures of the proximal and mid-shaft humerus.
Key features & surgeon benefits
Secure Multi-Point Pin Fixation
- 4-hole pin clamps provide redundant fixation points
- Self-drilling apex pins minimise insertion trauma
- Rigid frame design reduces micromotion at fracture site
Modular, Rapid Assembly
- Pre-assembled core components reduce operative time
- Compression-distraction tube enables intraoperative adjustments
- Angled posts accommodate anatomical variation
Dynamic Healing Support
- Adjustable compression promotes callus formation
- Minimal soft-tissue envelope disruption
- Early mobilisation compatible with external frame
Adaptable to Anatomy
- Multiple pin diameters and lengths available
- Angled and straight post options
- Compatible with standard trauma instrumentation
Technical specifications
| Indications | Proximal and mid-shaft humeral fractures, complex trauma, comminuted fractures, polytrauma stabilisation |
|---|---|
| Sizes / range | Pin diameter: 3–4 mm; Tube diameter: 15 mm; Rod coupling: 5 mm; Pin length: 120 mm (standard) |
| Material | Stainless steel (surgical grade) |
| Sterilisation | Steam autoclavable; 121°C, 15 minutes at 15 psi |
| Packaging | Sterile, individual component packaging; complete kit in single carton |
| Warranty | As applicable; contact sales for details |
Standard instrument composition
| Item Code | Description | Qty |
|---|---|---|
| 7100-1101 | Compression Distraction Tube 15mm | 1 |
| 7100-1102 | Tube-Rod Coupling 15/5mm | 2 |
| 7100-1103 | 4-Hole Pin Clamp (3/4mm Pin) | 2 |
| 7100-1104 | Post 5mm/30 Degree | 2 |
| 7100-1105 | Apex Pin Self-drilling 4×120mm | 4 |
