NM-100 Multifunctional Drill Saw System
$3,471.00
– Versatile and cost-effective multifunctional drill saw system
– Professional surgical power tools manufacturer
– Reusable stainless steel material for long-lasting use
– Includes seven attachments for different surgical procedures
Description
NM-100 Multifunctional Drill Saw System
A versatile, cost-effective autoclavable drill and saw system engineered for orthopedic, trauma, and cranio-maxillofacial surgery. Features seven quick-change attachments, discretionary speed control, and professional-grade performance in a single modular handpiece.
Clinical overview
The NM-100 is a professional-grade multifunctional drill and saw system designed for high-demand surgical environments. Its single trigger modular handpiece accommodates seven quick-change attachments, enabling seamless transitions between drilling, reaming, and sawing tasks without instrument exchange. The system delivers precise, stable performance across orthopedic, trauma, and cranio-maxillofacial procedures.
Built from reusable stainless steel and fully autoclavable to 135°C, the NM-100 reduces consumable costs while maintaining rigorous infection control standards. Discretionary speed control and ergonomic design minimize surgeon fatigue and enhance procedural efficiency in complex cases.
Key features & surgeon benefits

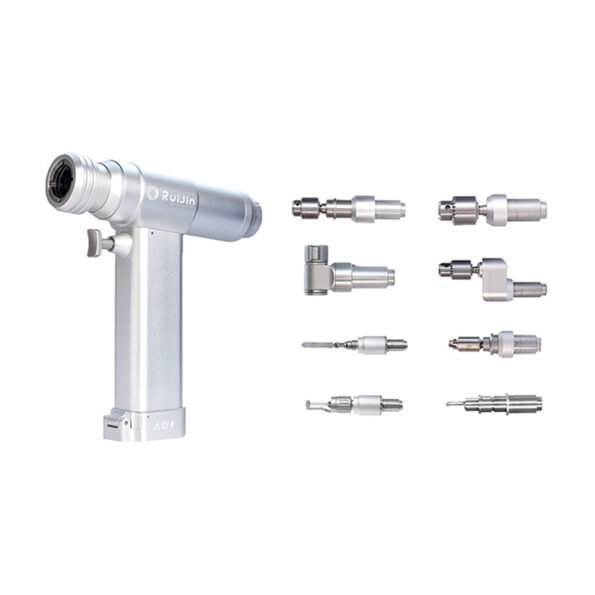

Seven Quick-Change Attachments
- Bone drill (1100 rpm) for precise cortical and cancellous drilling
- Sternum saw (15,000 rpm) with 360° rotating head and blade guard
- Cranial mill (40,000 rpm) for high-speed burring and contouring
- Oscillating saw (16,000 rpm) with rotating head for multi-directional access
- Acetabular reamer (300 rpm) for high-torque reaming operations
- Canulated drill (600 rpm) for intramedullary pin and Kirschner wire fixation
- Automatic-stopping cranial drill (900 rpm) with perforation safety feature
Modular Design & Ergonomics
- Single handpiece eliminates need for multiple instruments
- Ergonomic grip reduces hand fatigue during extended procedures
- Discretionary speed control for precise procedural adaptation
- Quick-change chuck system enables rapid attachment transitions
- 360° rotating heads on select attachments improve surgical access
- Low no-load noise (63 dB) maintains OR communication
Cost-Effective & Durable
- Reusable stainless steel construction reduces per-case consumable costs
- Fully autoclavable design eliminates single-use instrument expense
- Seven-in-one system reduces capital equipment footprint
- Comprehensive attachment range minimizes need for supplementary tools
- Professional-grade durability ensures long service life
Advanced Features
- Auto-pause cranial drill prevents over-penetration in neurosurgery
- Blade guard on sternum saw protects adjacent soft tissue
- Imported chuck ensures consistent performance and reliability
- Stable motor delivers precise torque across all speed ranges
- Regulatory compliance: Type 2 medical device (Wsyjxzz2012-2100053)
Technical specifications
| Indications | Orthopedic, trauma, cranio-maxillofacial, and general surgical drilling, reaming, and sawing procedures |
|---|---|
| Sizes / range | Drill chuck: 0.6–6 mm / 0.6–8 mm; cannula diameter 4.2 mm |
| Material | Stainless Steel (reusable) |
| Sterilisation | Autoclavable up to 135°C |
| Packaging | Each set packed in aluminium alloy box, then in carton |
| Warranty | As applicable |
| Power voltage | AC 220 V, 50 Hz |
| No-load noise | 63 dB |
| Color | Silver |
| Regulatory status | Type 2 medical device; Reg. No. Wsyjxzz2012-2100053 |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | Single trigger modular handpiece with autoclavable design | 1 |
| Quick Chuck (Bone Drill) | Imported chuck, 1100 rpm, 0.6–6 mm / 0.6–8 mm capacity | 1 |
| Sternum Saw Attachment | 360° rotating head with blade guard, 15,000 rpm | 1 |
| Cranial Mill Attachment | High-speed burring, 40,000 rpm, 0–40,000 rpm variable | 1 |
| Oscillating Saw Attachment | 360° rotating head, 16,000 rpm, easy blade load/unload | 1 |
| Acetabular Reamer Attachment | Hi-torque, 300 rpm, universal mill compatible | 1 |
| Canulated Drill (Wire & Pin Chuck) | Intramedullary pin and Kirschner wire fixation, 600 rpm | 1 |
| Automatic-Stopping Cranial Drill | Perforation safety feature, 900 rpm | 1 |
| Sterilizing Channel | For autoclave processing | 1 |
| Aluminium Alloy Case | Storage and transport | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, volume pricing, and delivery timelines. We support OEM partnerships and custom specifications for institutional and hospital procurement.
Email: info@tedsmedical.com
Related Products
– Orthopaedics Slow Speed with High Torque Surgical Drill ND-3011
– Autoclavable low-speed drill
– Discretionary speed control
– Low speed with higher torque
– Versatile and cost-effective
– Working Voltage 14.4V
– Output Power ≥ 20W
– The NM-300 Mini Multifunctional Drill Saw System is a versatile tool designed for veterinary surgery, orthopedic procedures, and Kirschner wire and intramedullary nail applications.
– Made of stainless steel and aluminum, this system is reusable and comes with CE and ISO13485 certifications.
– With a torque of 20000g/cm and a non-load speed of 600 rpm, it offers reliable and precise performance.
– The system includes one hand piece, two batteries, a charger, a drill chuck, a sterilizing channel, and an aluminum box for convenient storage and transport.
– Micro mini cannulated bone drill for veterinary surgeries
– Autoclavable type suitable for small animals
– Discretionary speed control for precise operations
– Comes with one handpiece, charger, two batteries, and more
– The Oscillating / Orthopedic Bone Saw Model OTS-1 is a powerful and portable tool designed for all kinds of joint operations.
– The main unit can be sterilized at high temperatures for maximum cleanliness and safety.
– Features a Swiss-made motor for reliable and precise performance.
– Comes with a complete set of standard configurations including handpiece, batteries, charger, sterilizing channels, and saw blades.
– Operates at a variable speed without steps, with a saw frequency of 0-15000 times/minute.
– The RJ-W-MZ-1 Micro Medical Electric Spine Drill is a professional drill saw suitable for orthopedic, ENT, neurosurgery, microsurgery, and burn applications.
– Made of stainless steel, this drill is reusable and certified with CE and ISO13485.
– With a maximum drilling diameter of 4.3mm and a speed of 40000rpm, it offers precision and efficiency in surgical procedures.
– This electric spine drill has a working voltage of 14.4V, a torque of 125gcm, and a charging time of approximately 3 hours.
– The Autopsy Saw System is widely used in craniotomy, spinal cord opening, and osteotomy
– It provides a swing cut with fast speed, causing no damage to soft tissue
– Features reliable and strong power without blood splatter and bone powder
– Ergonomic design to relieve operators’ operation fatigue
– Equipped with DC AC dual power supply for both indoor and outdoor use
– Comes with a standard configuration including a control cabinet, power connector, power cord, charger, handpiece, socket head wrench, and two saw blades
– Veterinary TPLO Saw with 2 batteries, ideal for animal surgery
– Features 130W output power and a speed range of 0-16000rpm
– Can be sterilized up to 135ºC, ensuring optimal hygiene
– Made of hard oxidized aluminum alloy for durability
– Step-less speed regulation and ergonomic design for operator safety
– Includes Ni-MH batteries and various accessories for convenience

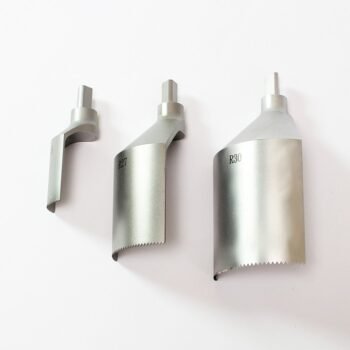

– Optional saw blades available in 8 sizes for versatile use
